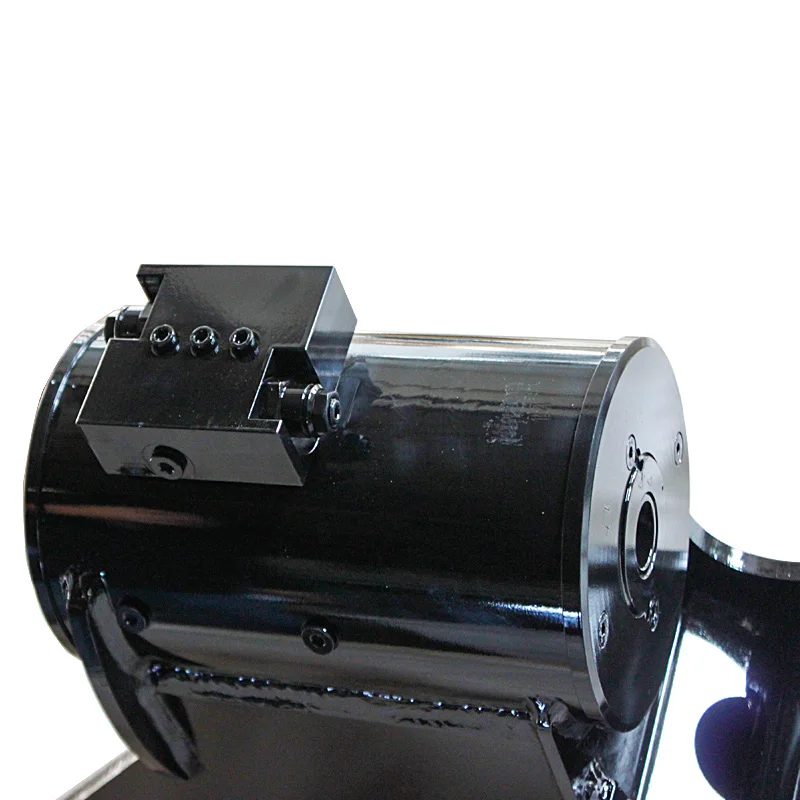

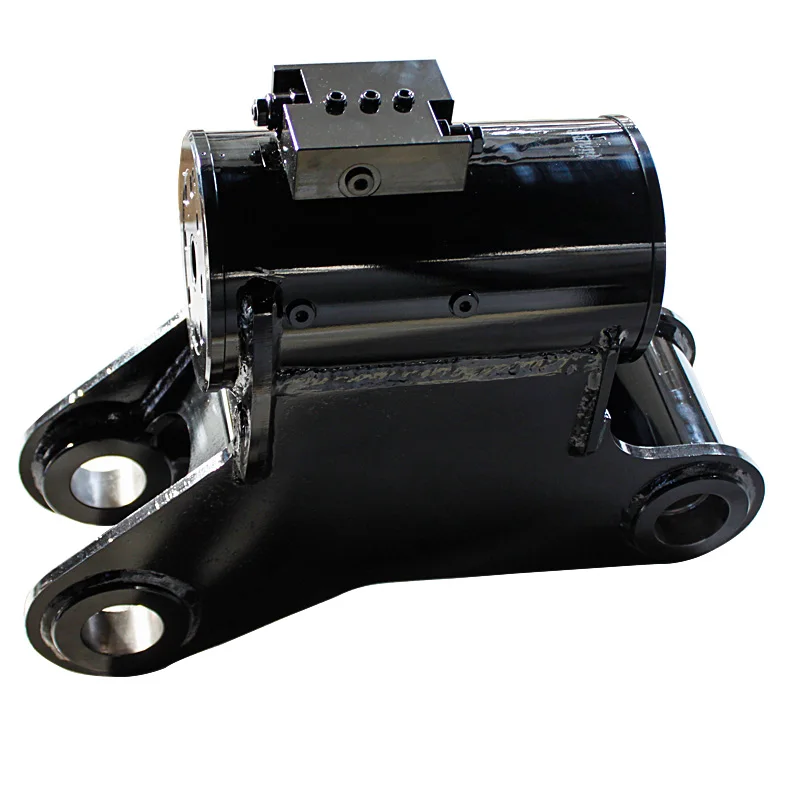

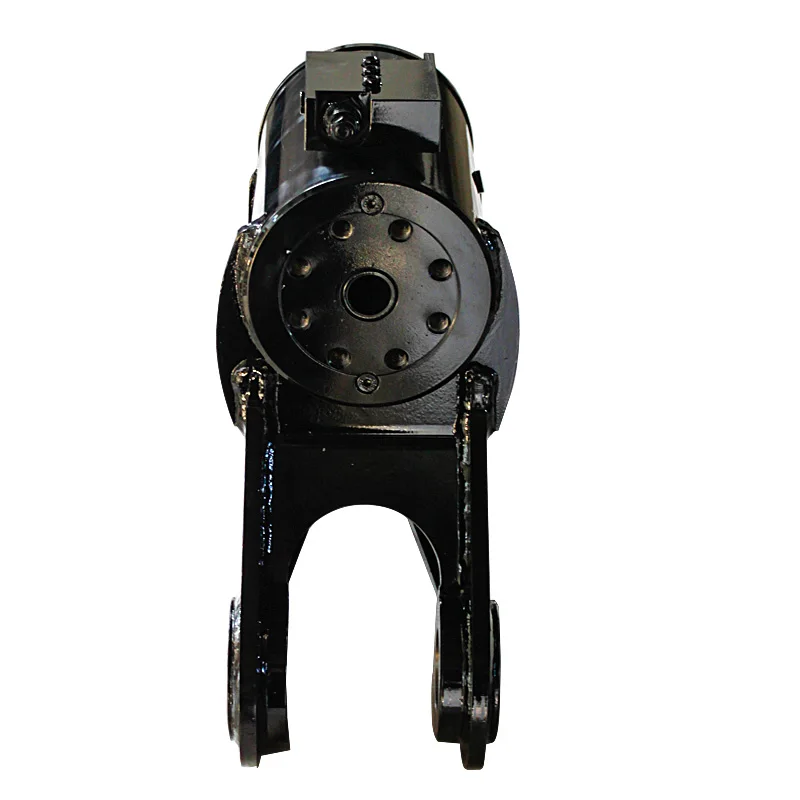

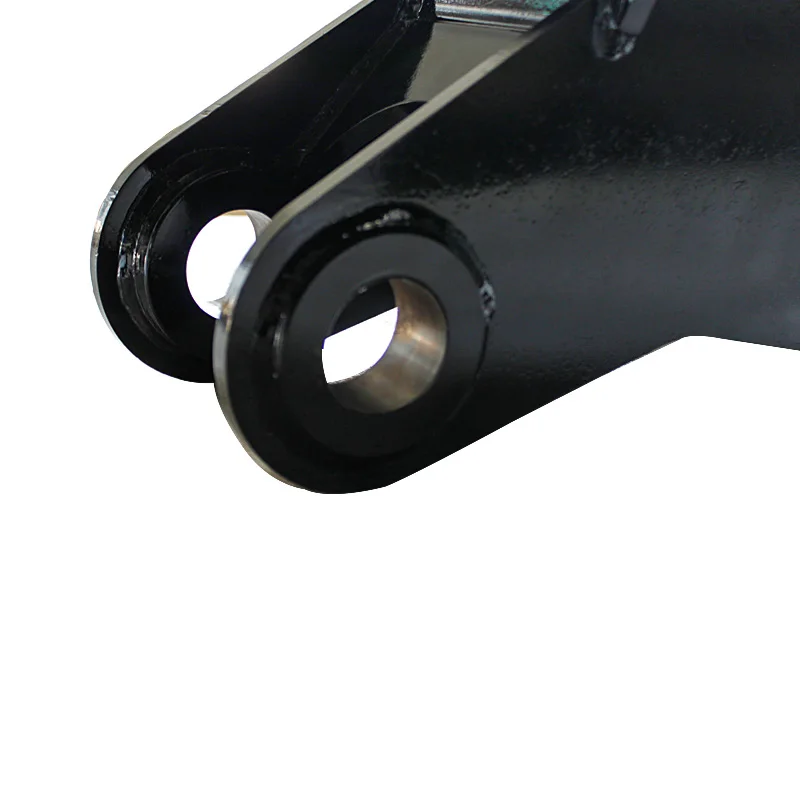

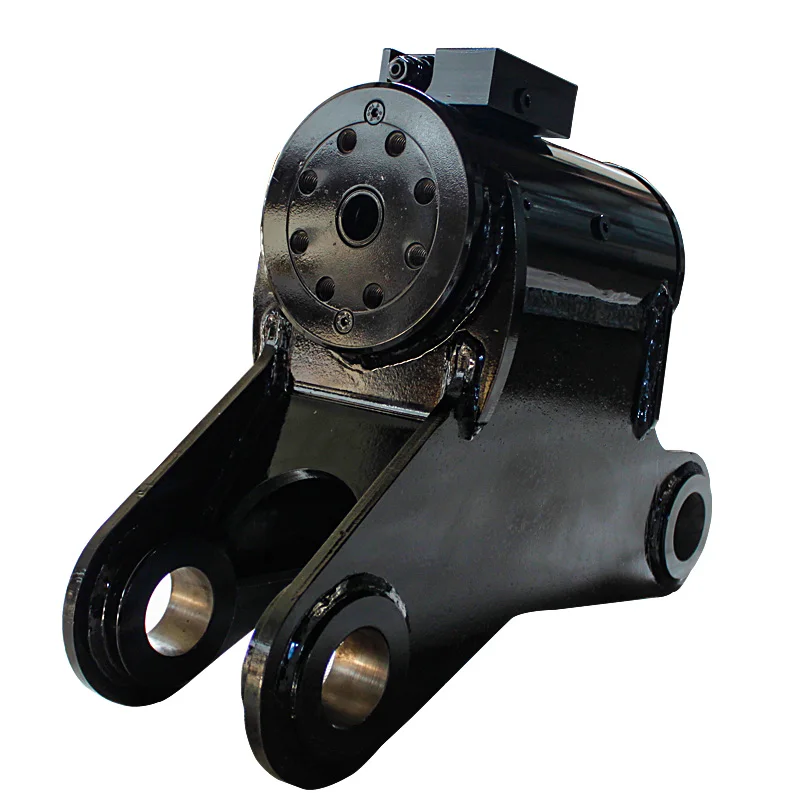

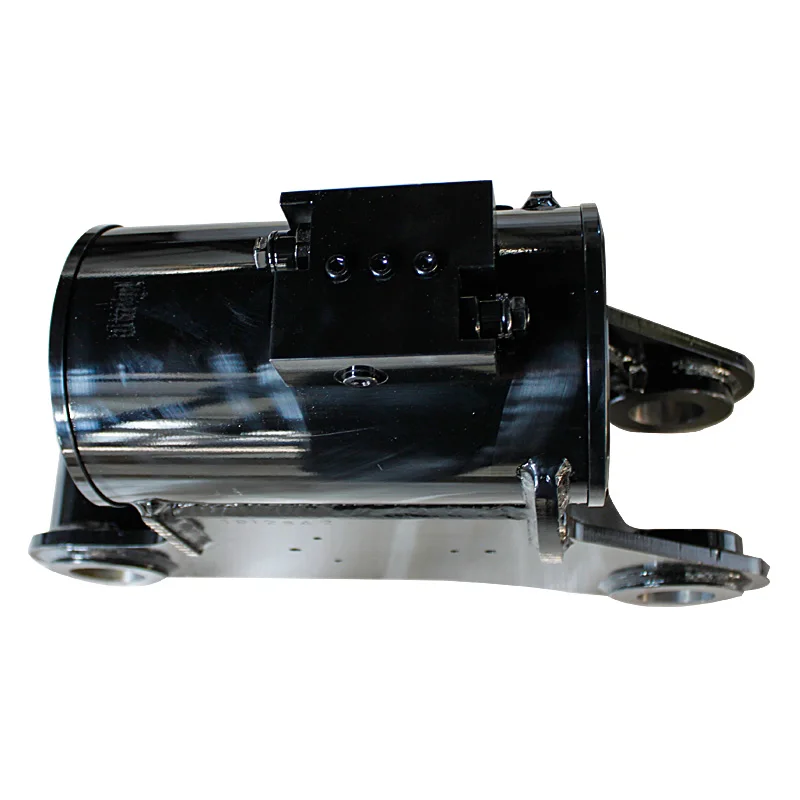

H2-009-180-QMAJC качели цилиндр

Описание и отзывы

Трекер стоимости

Характеристики





H2-009-180-QMAJC

Drive Torque Nm@21Mpa	900
Holding Torque Nm@210MPa	2400
Monment caoacity Cantilever mount Nm
Radial Capacity Kg	2130
Axial capacity Kg	6380
Shaft mounting surface diamete mm	117
MODELS	9
D2 Housing diameter mm	114
F1 Mounting holes,shaft flange mm	M10*1.5
F2 Number of mounting holes,shaft flange	M10*1.5
F3Bolt circle diameter,shaft flange mm	65
F4Mounting holes,housing flange mm
F5Number of mounting holea,housing flange
F6Bolt circle diameter housing flange mm
F7Shaft through-hole diameter mm	M24
H1Centerline to valve top mm	58.8
L1Overall Length(180°)mm
L1Overall Length(360°)mm	216
L2Overall Length(180°)mm
L2Overall Length(360°)mm	197
L3Overall Length(180°)mm
L3Overall Length(360°)mm	34.5
P1 P2Ports,housing	ISO-1179-1/BSPP“G” 1/8 to 1/4
V1 V2Ports,valve	ISO-11926/SAE 7/16



Customer first,quality first is the eternal them for the company.

Initiatives:
Quality system establishment:According to ISO9001:2008,CE and RoHS.
1.Metrological assurance: Conformity certification of measurement of the level of standards.
2.Process control: Process specification,full-time inspection and QC project team.
3.Information feedback: Kanban management inside the office and customer services external.







FAQ

Q1:Can you provide a sample before a big order?
A:Yes, we can .
Q2:Are you able to make Non-standard or customized air cylinders?
A:Yes, we can, we have our own factory, we can satisfy the customers' demands
Q3:How long is the warranty?
A:We offer 12 months warranty time.
Q4:What is your delivery time?
A:3-5days if we have stock, 15-25days if we have no stock.
Q5:How about your quality?
A:Most of the excavator/loader/Engineering vehicle companys is our customer in China,

we also have confidence to supply good products to our foreign customers.
