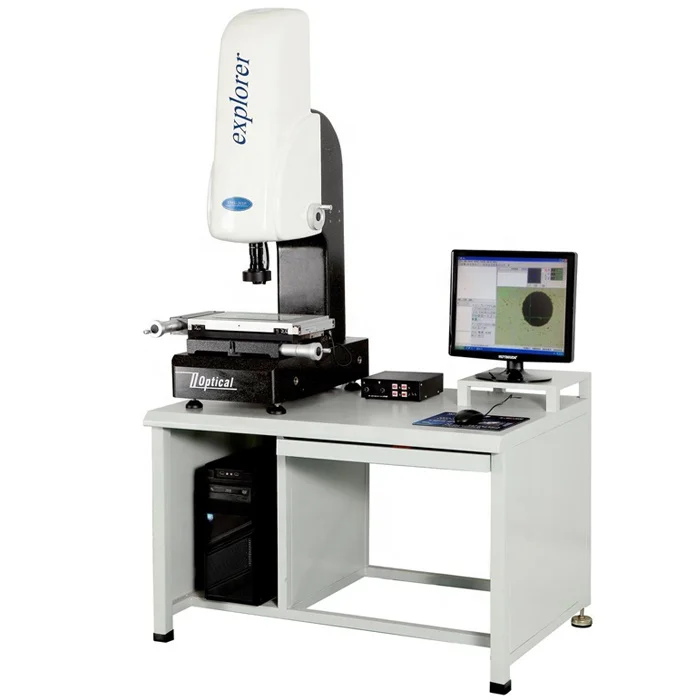

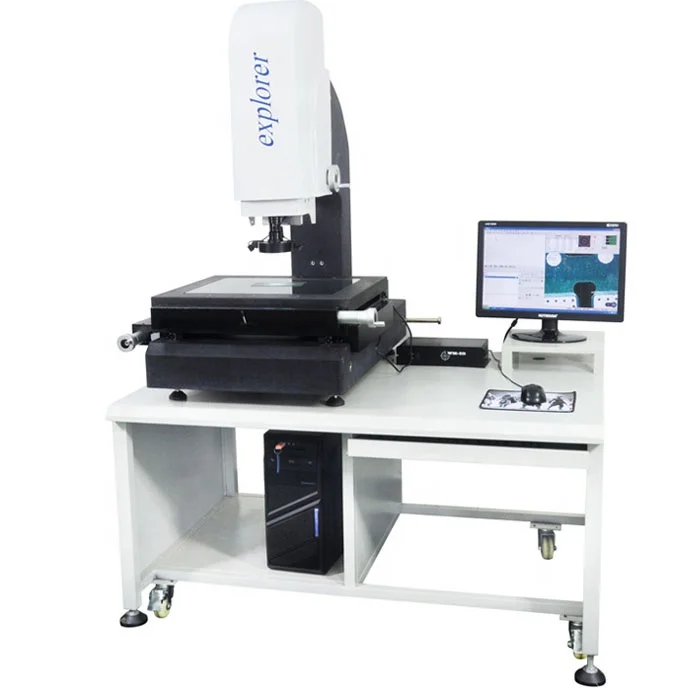

VMS4030 2D Video Measuring Machine,Manual 2d Image Measuring Instrument

Use

A high configuration,low price measuring equipment,based on two-dimensional coordinate measurement,including points,lines,circles,arcs,rectangles and other geometric elements and parts of the

length,angle,contour shape,surface shape,etc.Also do three-dimensional auxiliary measurement,such as the height of the steps,hole depth,surface flatness.and so on.Widly used in machinery,electronic,

plastics,hardware and other industries.

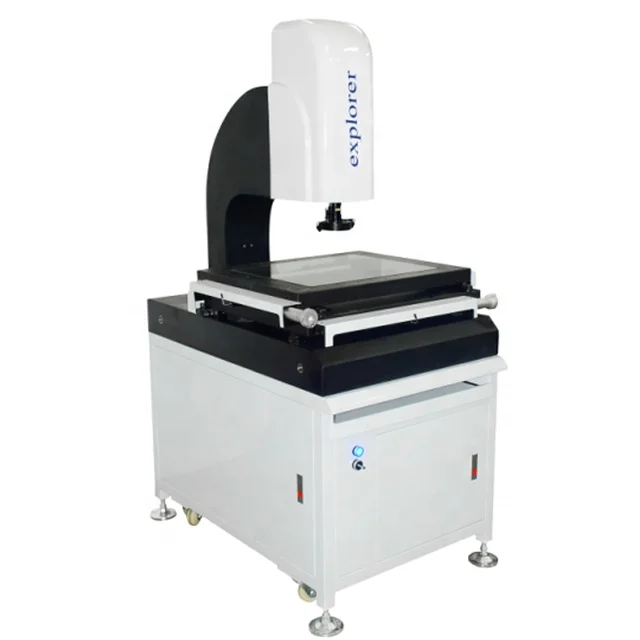

VMS4030 2D Video Measuring Machine,Manual 2d Image Measuring Instrument

Product Features

1.High precision and high strength machine:00  marble base/upright column/worktable,high precision and good stability.

2.XYZ three axis imported precision V type guide rail/imported optic axis drive system,long service life,good stablity.

3.High precision grating ruler 0.5 μm.

4.WM continuous zoom optical lens,different frames,different magnification,without zoom correction.

5.HD Japanese SONY CCD camera,high quality measuring screen.

6.Auxiliary focusing measurement,optical measuring altitude and flatness,and can be equipped with the British RENISHAW contact probe.

7.Surface light,LED profile light,Coaxial light.Choose match programmable three ring eight area light.

8.The laser pointer indicates the position of measuring,rapid positioning and conenient measurement.

9.Can match foot switch,easy to operate at any place.

10.Provide a wide range of models:such as VMS-2010,VMS-3020,VMS-4030,VMS-5040.

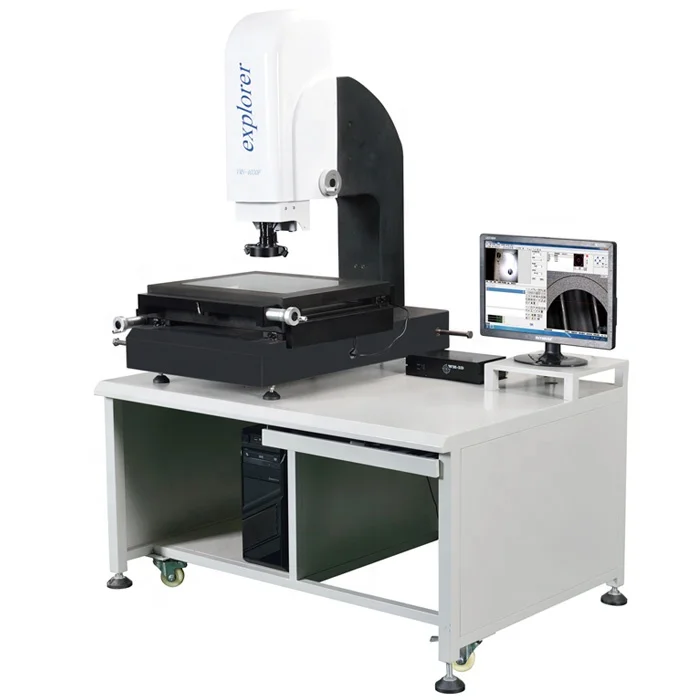

VMS4030 2D Video Measuring Machine,Manual 2d Image Measuring Instrument

Technical Specification

Model		VMS-2010F	VMS-3020F	VMS-4030F	VMS-5040F
Worktable	Metal table’s size(mm)	350*220	450*350	550*450	700*600
	Glass table’s size(mm)	230*130	330*230	430*330	530*430
	Three axis travel Travel(mm)	200*100	300*200	400*300	500*400
Weight(kg)		170	260	300	500
Dimension(L)*(W)*(H)		500*700*1100	600*750*1100	700*900*1150	850*1050*1200
Measuring System (Standard Accessories)		Camera :SONY1 / 3" Color CCD Camera
		Lens magnification :0.7~4.5X       WD:95mm
		Total magnification:30~230X        Object view:7~1.1mm
		Double Cross Line Generator Data Resolution:0.001mm
Lighting: Surface light and transmission light are used LED, brightness adjustable  Power:220/110V(AC),50HZ 30W
