CNCSG series CNC plasma and oxyfuel cutting machine

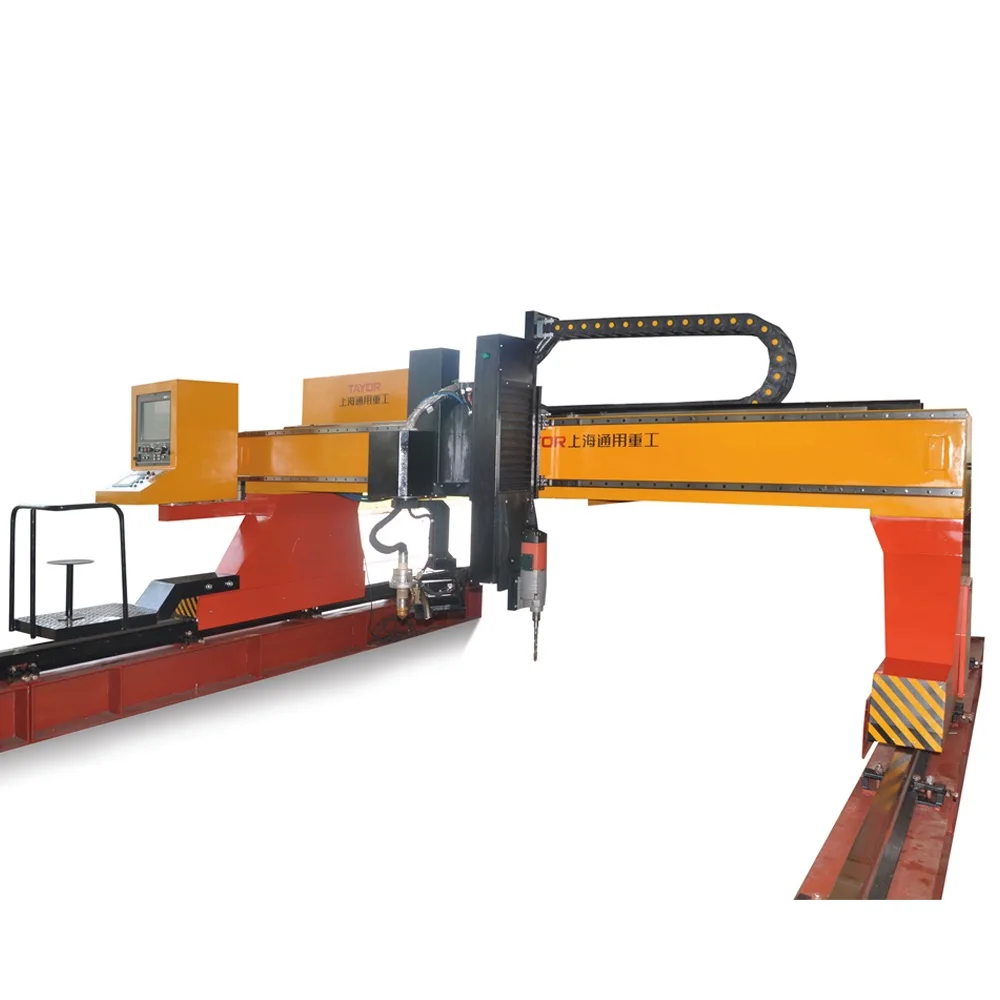

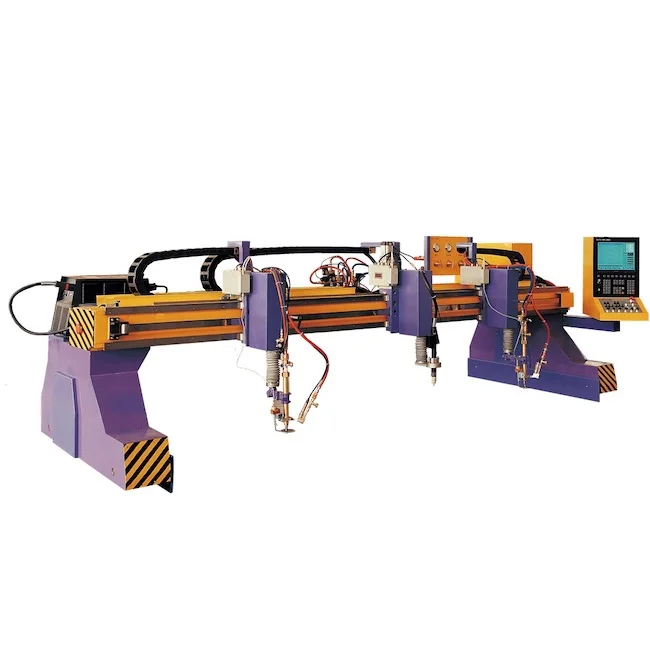

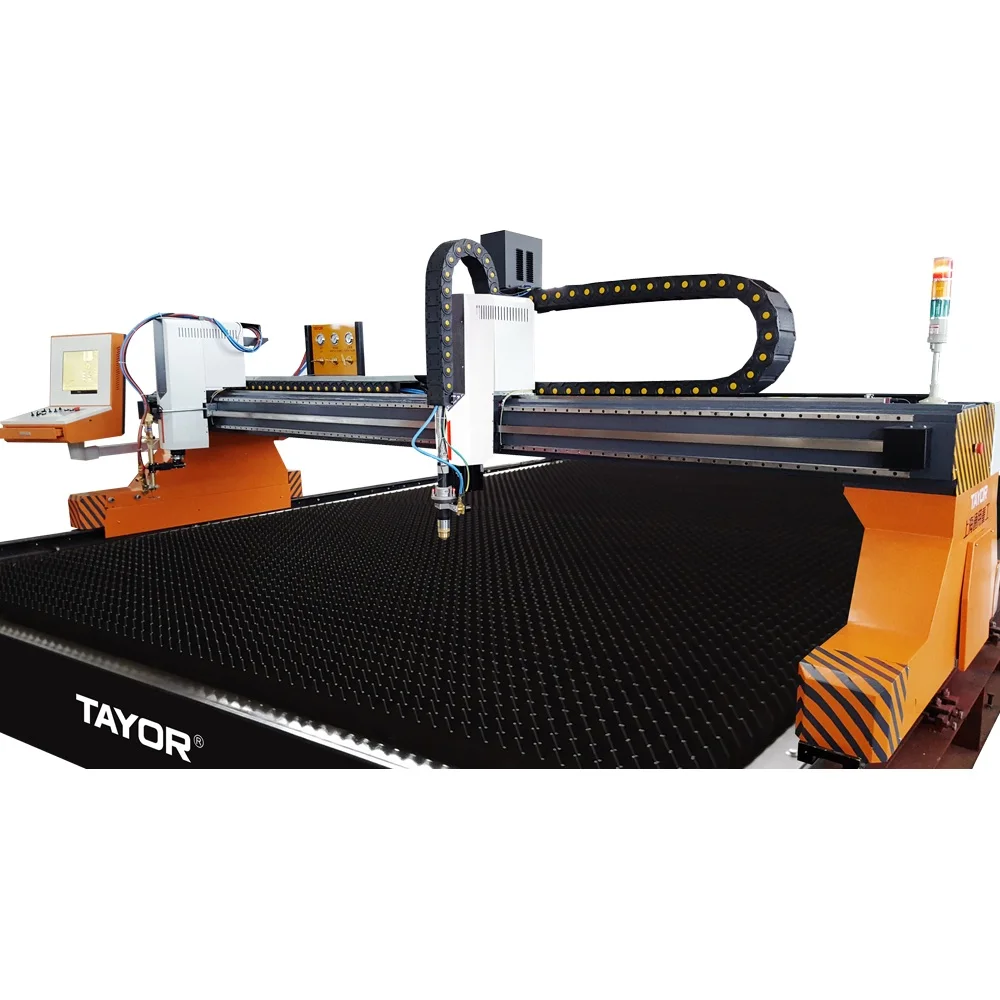

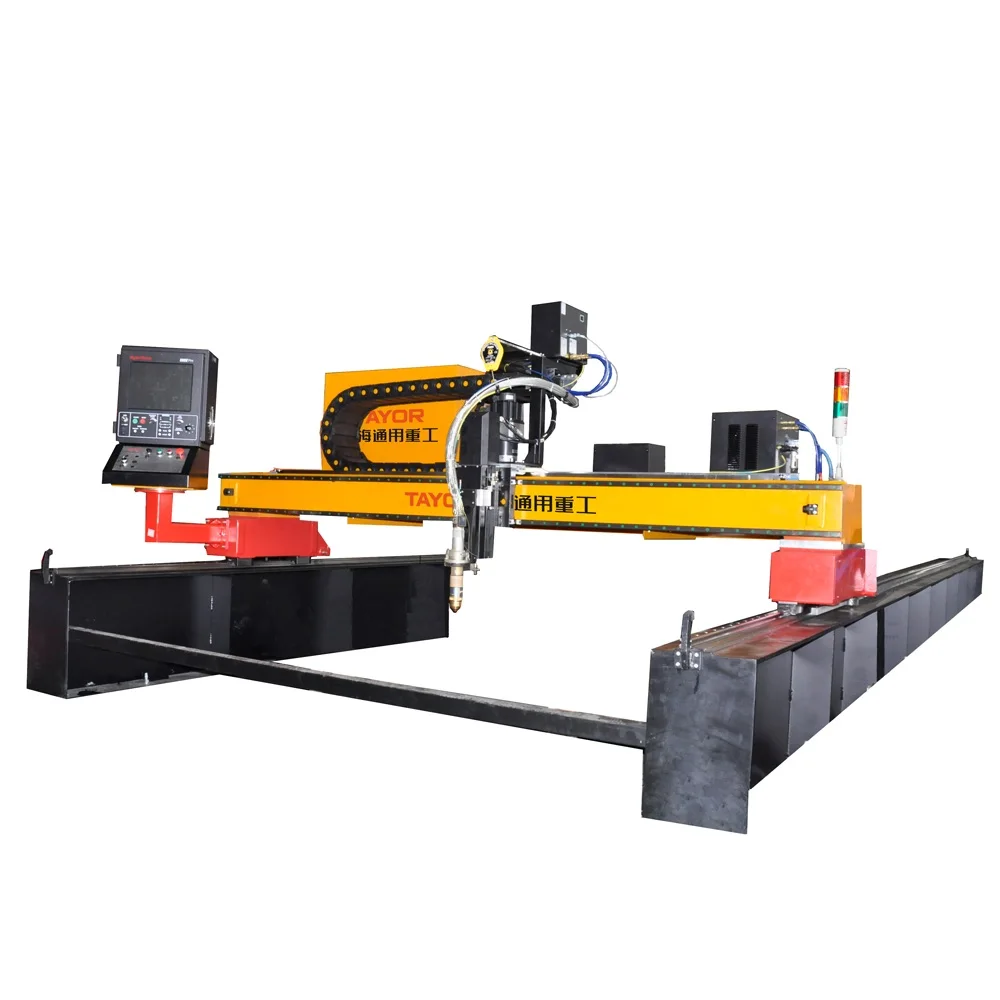

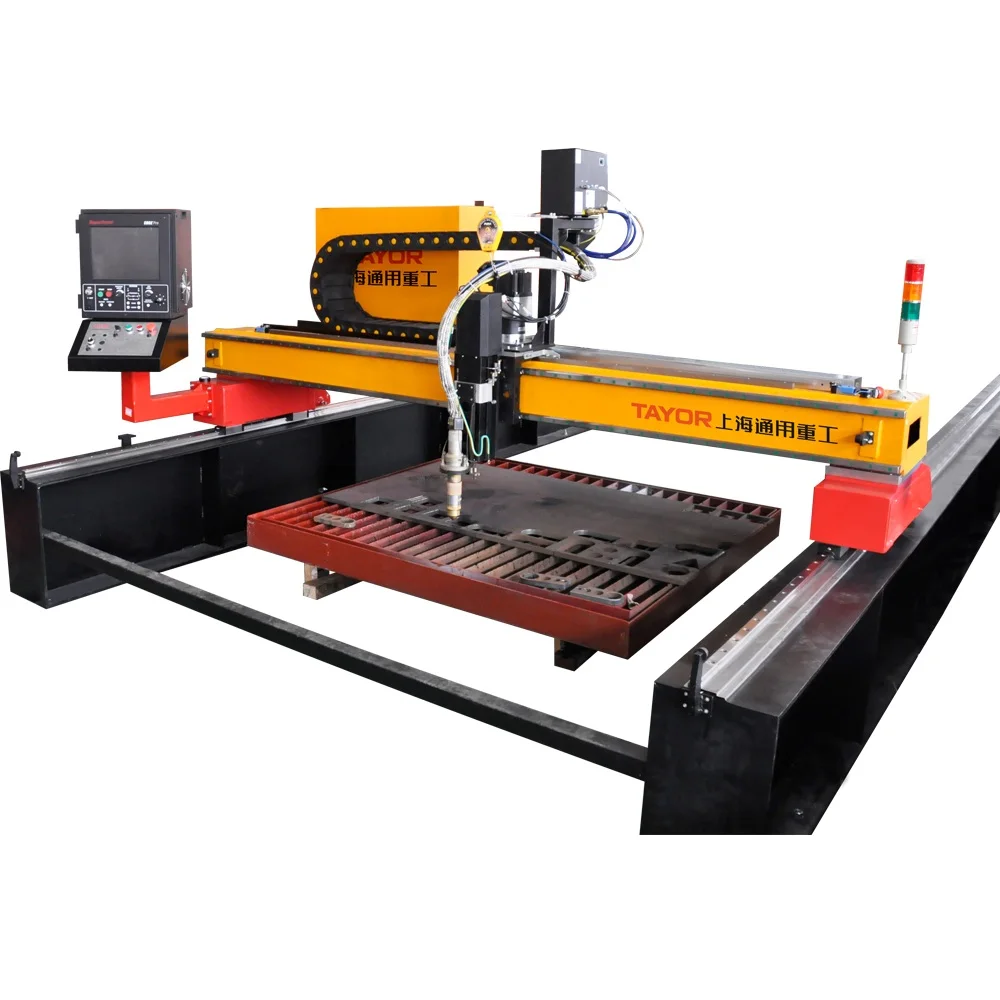

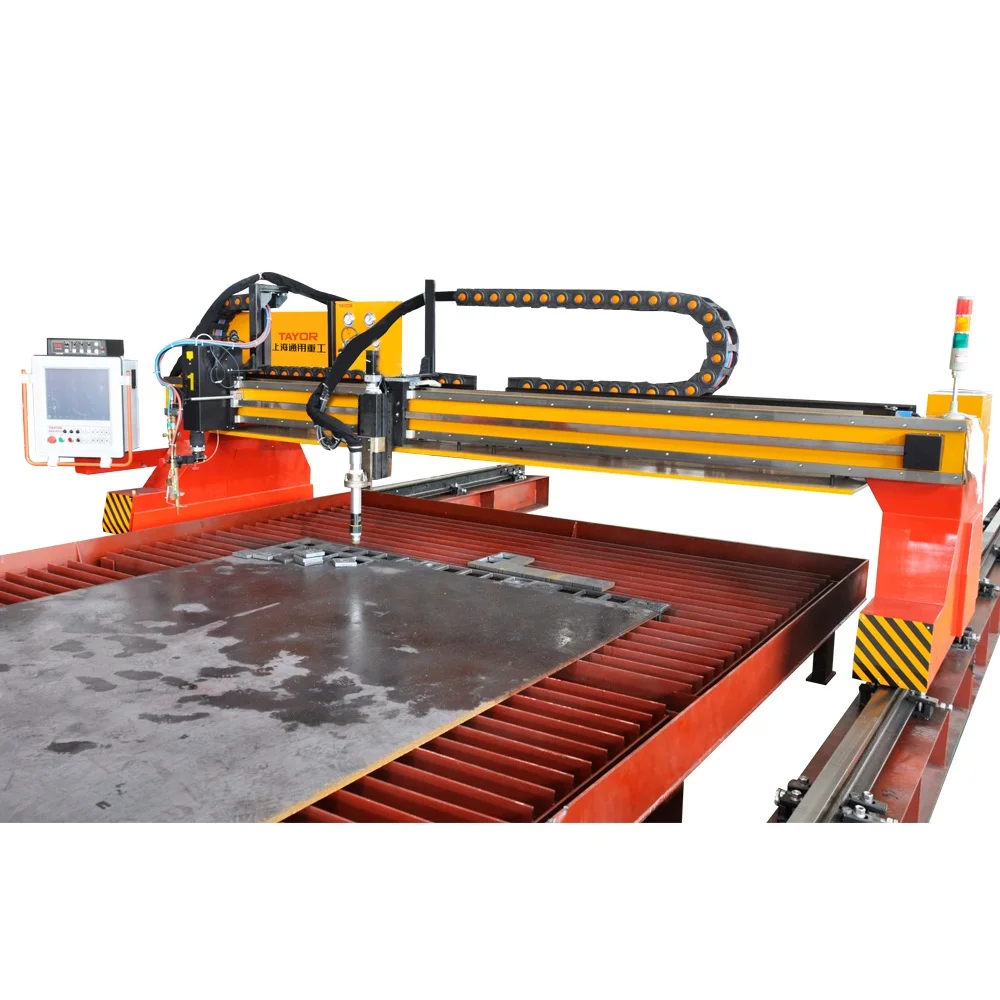

Gantry Type Series CNCSG is a heavy-duty, precision machine, specially designed for cutting large steel plate, can be equipped with multiple plasma torches and flame torches. It is very efficient, with excellent cutting quality.

Optional items:

Powder marking device

Straight-line stripe cutting torch

Straight-line triple beveling torch

Rotary triple-flame curve beveling torch

Rotary plasma curve beveling torch

Blow and draft dust and fume collection system

Water surface and underwater cutting table

Machine Features

1.     Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.

2.     Gapless gearing transmits, stable and smooth running at high speed so that we can achieve excellent cutting quality.

3.     Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and workpiece, so that we can achieve the best cutting quality.

4.     Able to cut workpiece with several torches at the same time, can improve cutting efficiency

5.     Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn

6.     Reliable, safe CNC system, automatic programming, optimization nesting, and piercing path, so that we can save steel effectively

Technical Specification

Effective Cutting Width (mm): 3000 to 8000 (customized)

Effective Cutting Length (mm):3000 to 30000(customized)

Flame Cutting Thickness(mm) :5-120mm(Max 300mm)

Plasma:1-80mm(according to plasma model)

Basic Components

Cutting Mode:                   Plasma and Oxy-Fuel/Flame

Drive Mode:                      AC Servo motor, Dual-drive

Cutting Torch Number:      Customization

CNC Controller:                Hypertherm EDGE CONNECT TC; EDGE CONNECT; LKNC-3200

Available Plasma Power:   Hypertherm, Kjellberg, Victor, ESAB

Programming Software:    Fastcam, SmartNest, Hypertherm

Input Power Voltage:        3×380V±10% 50HZ/according to the user's local condition

Operation Language:        Multilanguage

Main Application

CNC Plasma and oxyfuel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.

TAYOR Cutting Systems has over 20 years of experience qualifying us as experts in cutting. Let our qualified professionals work directly with you to find the right CNC plasma cutting machine for your plasma projects, oxy-fuel or fiber laser applications. Let our experience work for you
