Greenpedel е-байка 36В 250 Вт 26 дюймов переднее колесо безщеточный мотор для центрального движения комплект переделки электрического велосипеда электрических
- Категория: Запчасти для электровелосипедов >>>
- Поставщик: Changzhou,Green,Pedel,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.29 $* | 0.17 $* |
| Aug-16-2025 | 0.2 $* | 0.66 $* |
| Jul-16-2025 | 0.70 $* | 0.41 $* |
| Jun-16-2025 | 0.71 $* | 0.38 $* |
| May-16-2025 | 0.12 $* | 0.40 $* |
| Apr-16-2025 | 0.51 $* | 0.39 $* |
| Mar-16-2025 | 0.4 $* | 0.76 $* |
| Feb-16-2025 | 0.27 $* | 0.76 $* |
| Jan-16-2025 | 0.70 $* | 0.91 $* |
Характеристики
Product Paramenters
Motor | 36v 250w geared brushless hub motor with 9 pin waterproof cable |
Rim | Aluminium double wall rim 1.5-1.95 |
Spokes | 12G/13G |
controller | 36V48V 14A controller |
PAS | BZ(4) 1:1 8 magnets PAS |
throttle | 130X thumb throttle |
Brake | Ebrake(hydraulic brake) |
Hall sensor | Yes |
Brake type | V brake or Disc brake |
Integrated Speed Sensor | Yes |
Related Production
Our electric bike kit does not include battery, if you need, you can purchase them at the link below. Of course, you can also contact us directly, we will provide you with the best match according to your needs.
Product Description

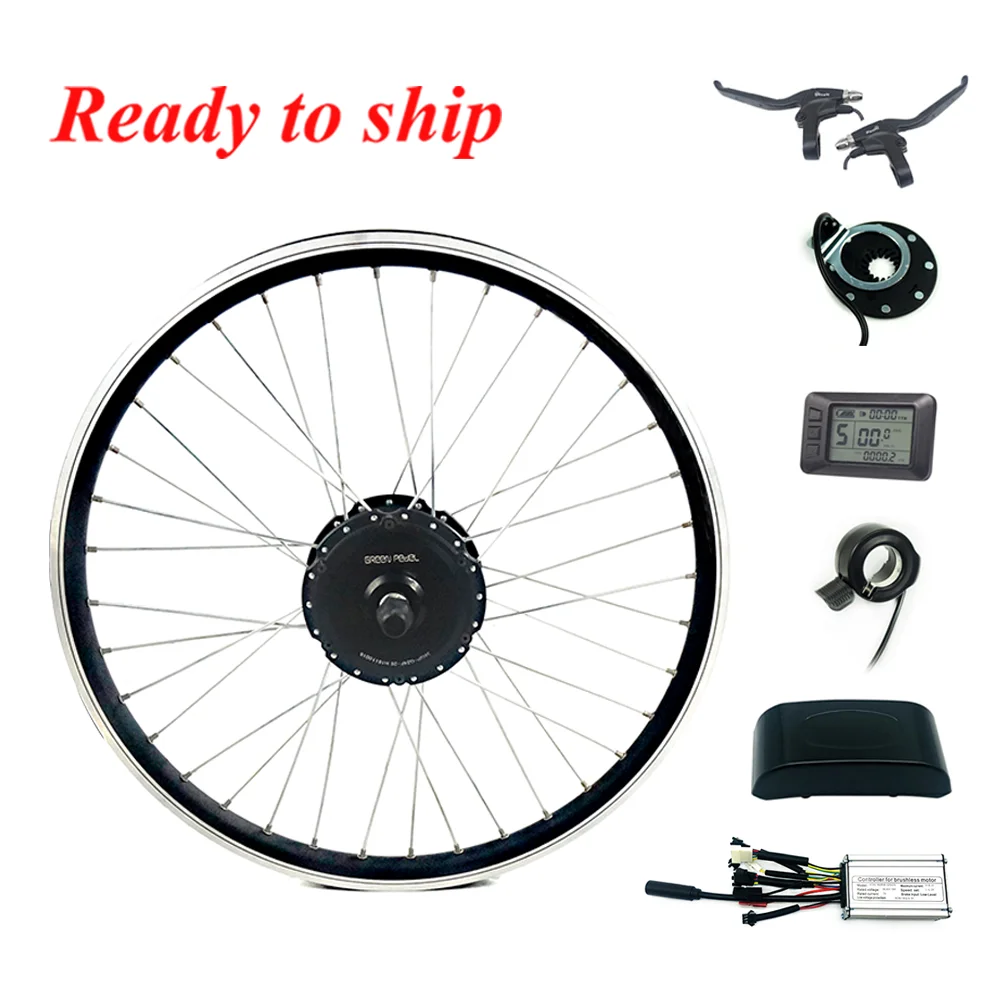

1 PCS * high quality red nylon rim tape
1 PCS * KT 36V 14A Controller(Waterproof with 1T5 cable)

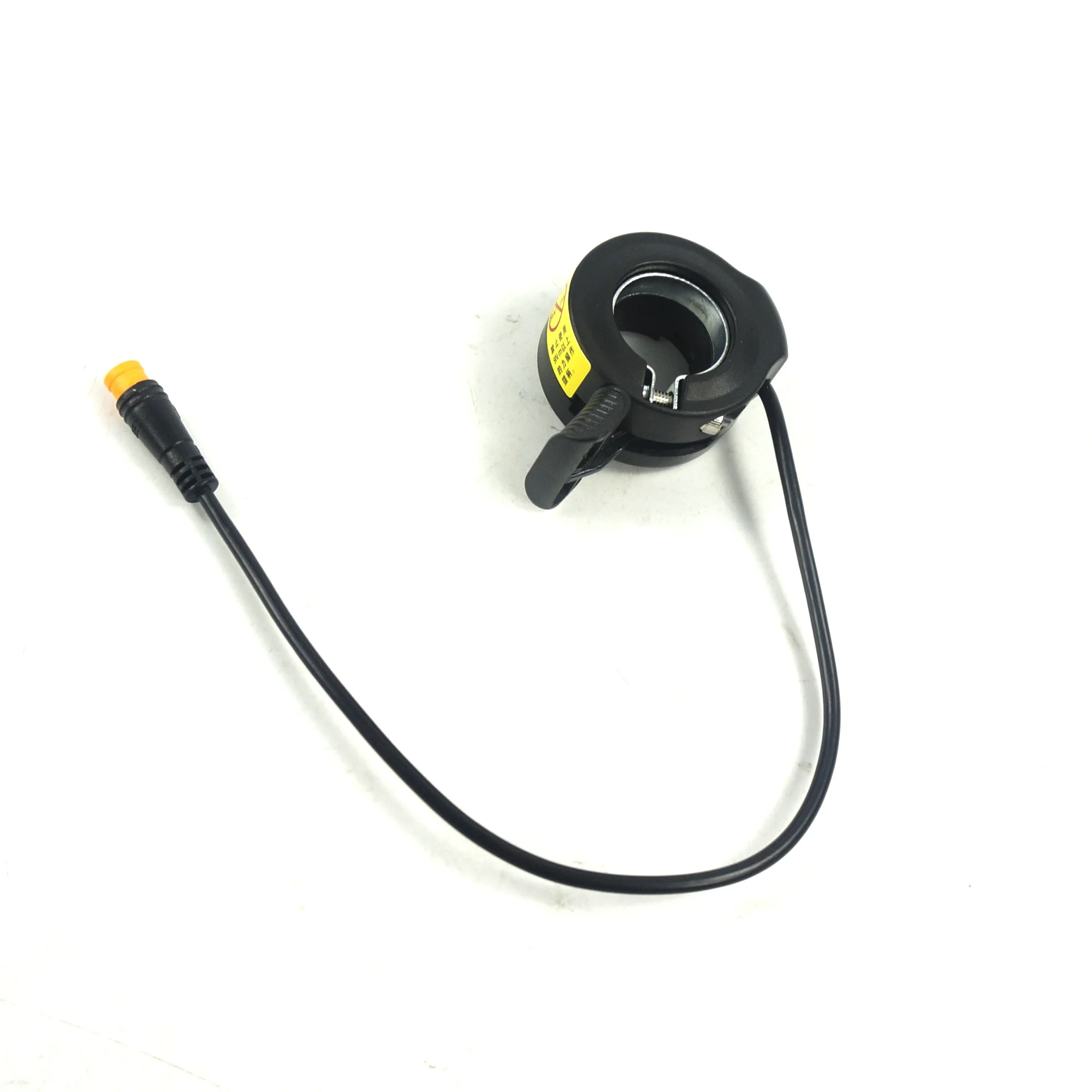

1 PCS * Wuxing 130X Thumb Throttle（Both right and left hands can be used）

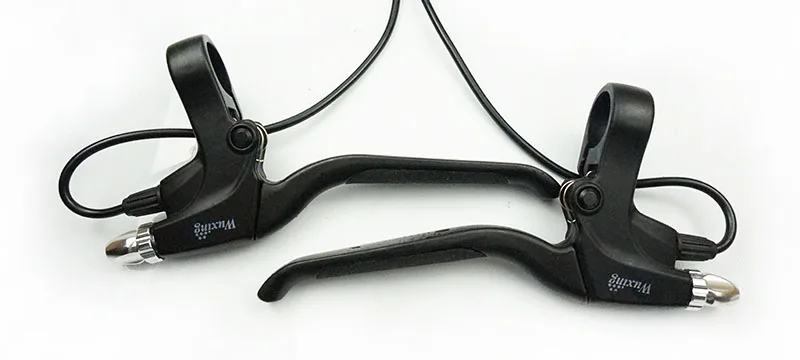

1 Pair * Wuxing 115PDD Ebrake（You can ask for a brake sensor instead .Please leave a message when you order )

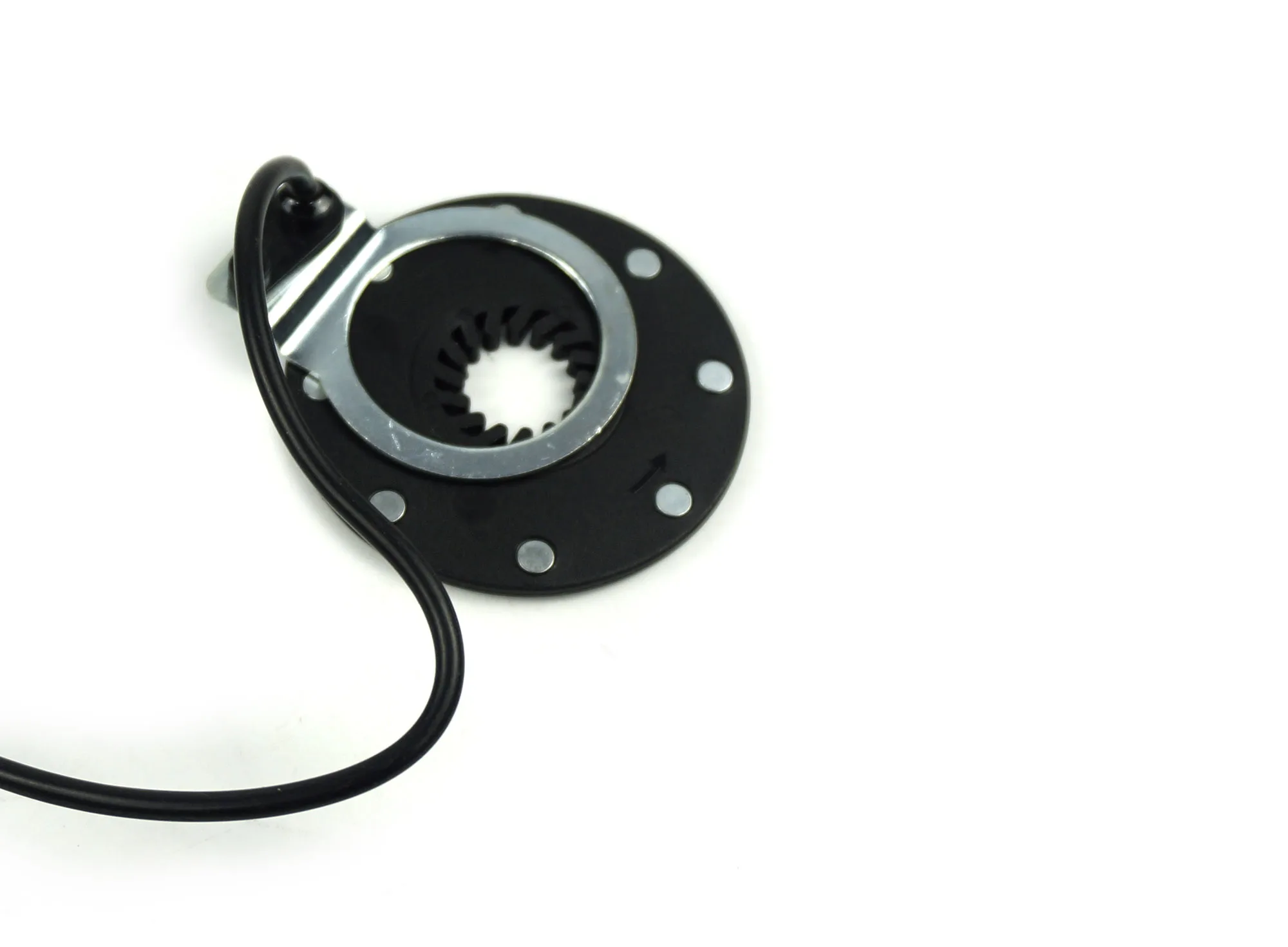

1 PCS * 1:1 PAS, 8 magnet
1 PCS * Controller Box
1 Pair * Wuxing 115PDD Ebrake（You can ask for a brake sensor instead .Please leave a message when you order )
1 PCS * 1:1 PAS, 8 magnet
1 PCS * Controller Box

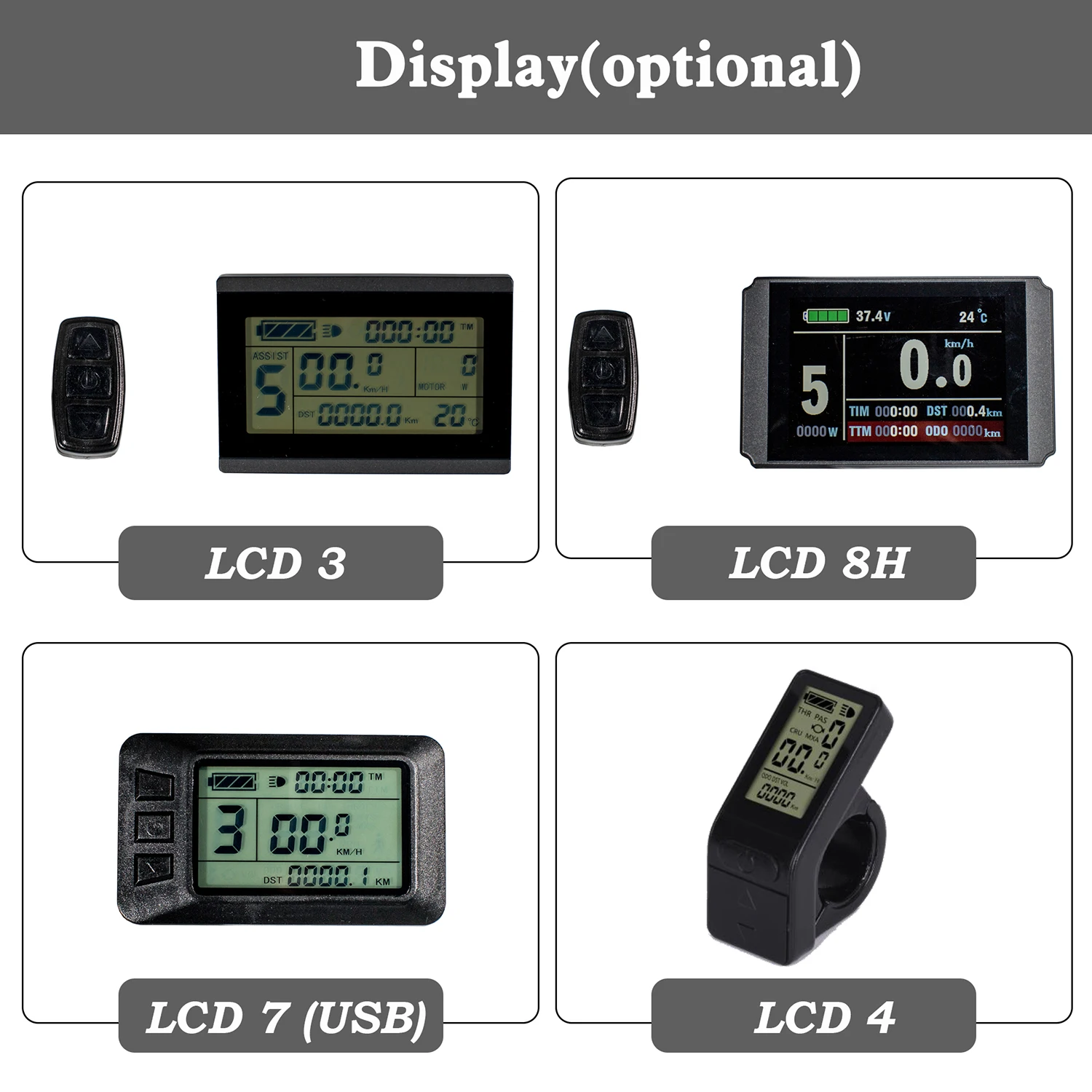

1 PCS * Display (LCD3/LCD4/LCD7/LCD8H)
This product provide 26 inch wheel size motor kit , if you need another , please click on the picture above or you can contact us directly.
This product provide Front wheel motor kit , if you need another , please click on the picture above or you can contact us directly.
250W ebike kit
350W ebike kit
500W ebike kit
750W ebike kit
1000W ebike kit
Fat tire ebike kit
Details Images

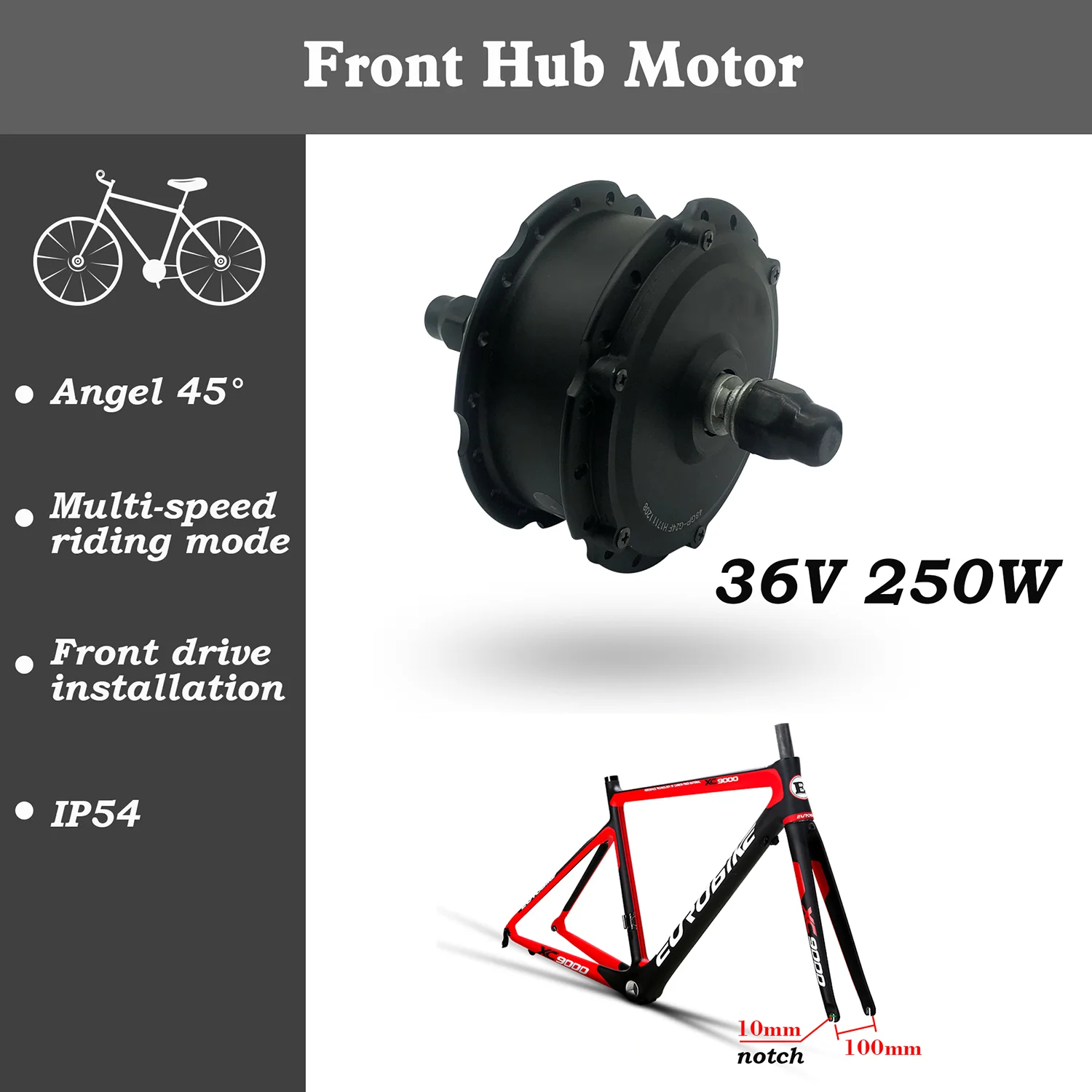

Type : 36V 250W front hub motor
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:4.4
Open Size : Front Wheel 100 mm
Color : Black
Noise : ＜55db
Waterproof Grade : IP54
Connector : Julet 1.2 square 9 pin waterproof plug
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:4.4
Open Size : Front Wheel 100 mm
Color : Black
Noise : ＜55db
Waterproof Grade : IP54
Connector : Julet 1.2 square 9 pin waterproof plug
Color : Silver
Dimension : 80.5*52*30.5mm
Mosfet : 6 Mosfets
Maximum current : 14±1A
Rated current : 7A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 10-13cm
Handlebar size for holdin : Φ22.2mm/Φ25.4mm
Plug : 5 pin connector
Color : Black
Cable Length : Normal(180cm including the connector), Waterproof(25cm including the connector)
Material : Aluminum Alloy
Installation : Left/Right
Size : L 156mm W 105mm H 34mm
Color : Black
Cable Length : Normal(180cm including the connector), Waterproof(2 pin/3pin 25cm including the connector)
You can freely ask for a brake sensor instead if you need.
Wire length:180cm(normal) ,25cm(Waterproof)
Plug:3 Pin Connector
Installation:Left/Right
Installation : Left
Color : Black
Magnet : 8 Magnets
Cable Length : 80cm including the connector
Plug : 3 Pin Connector
