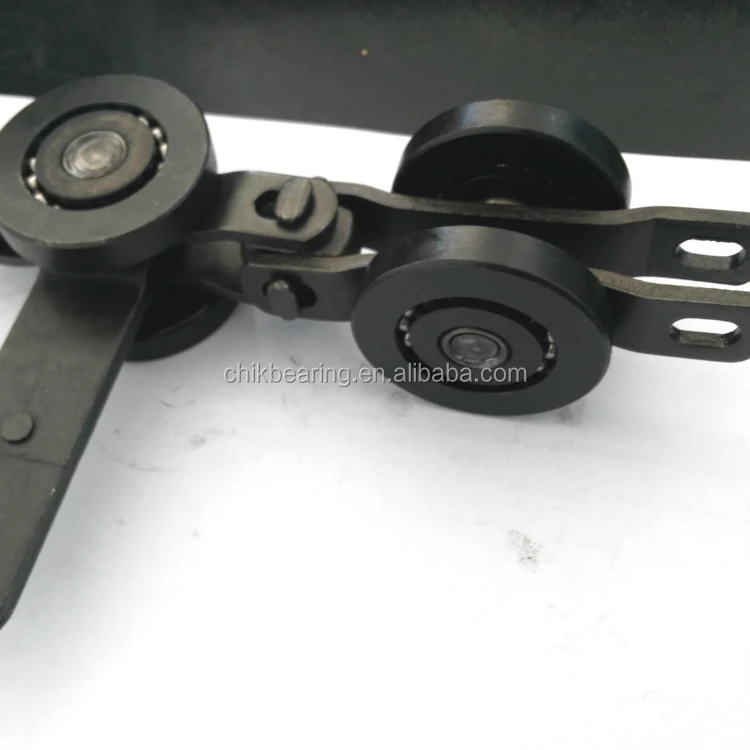

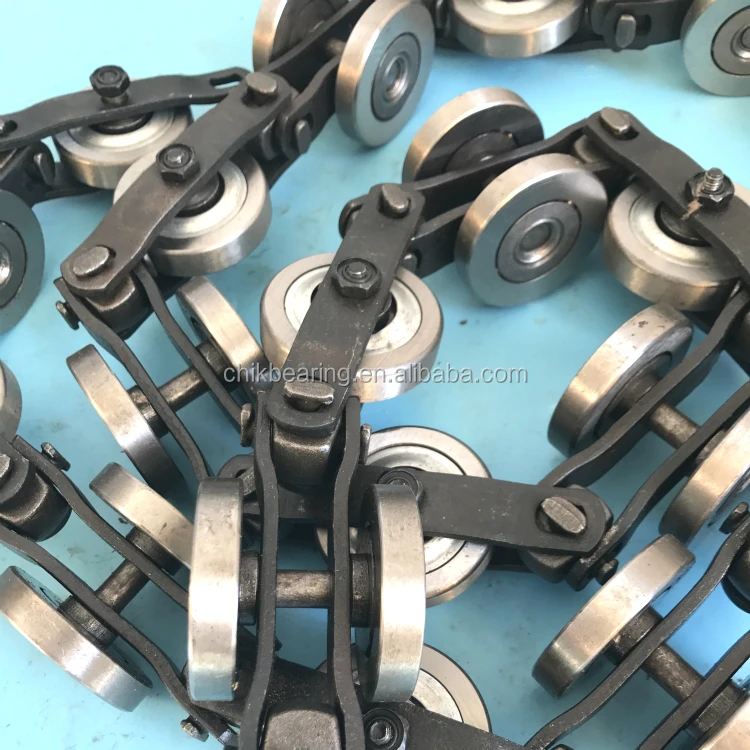

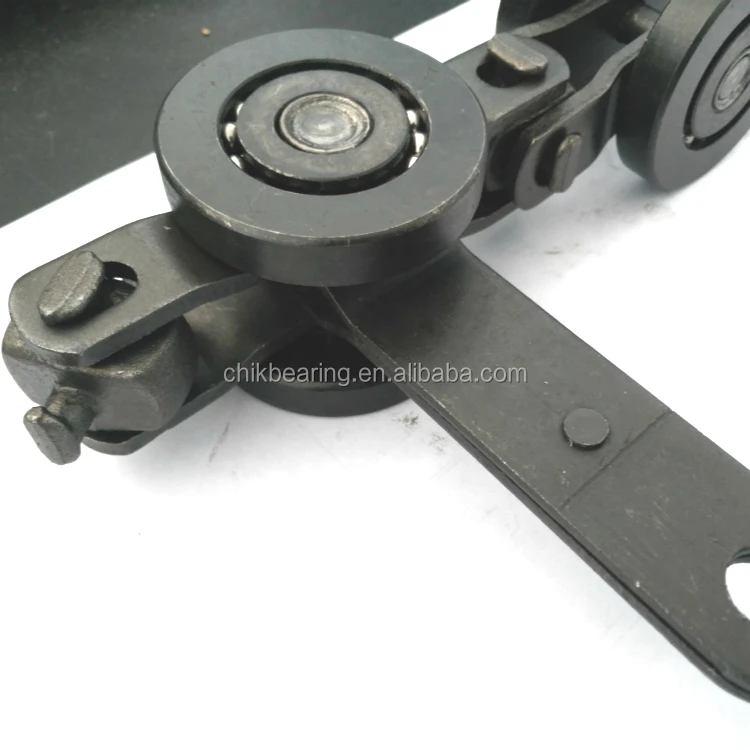

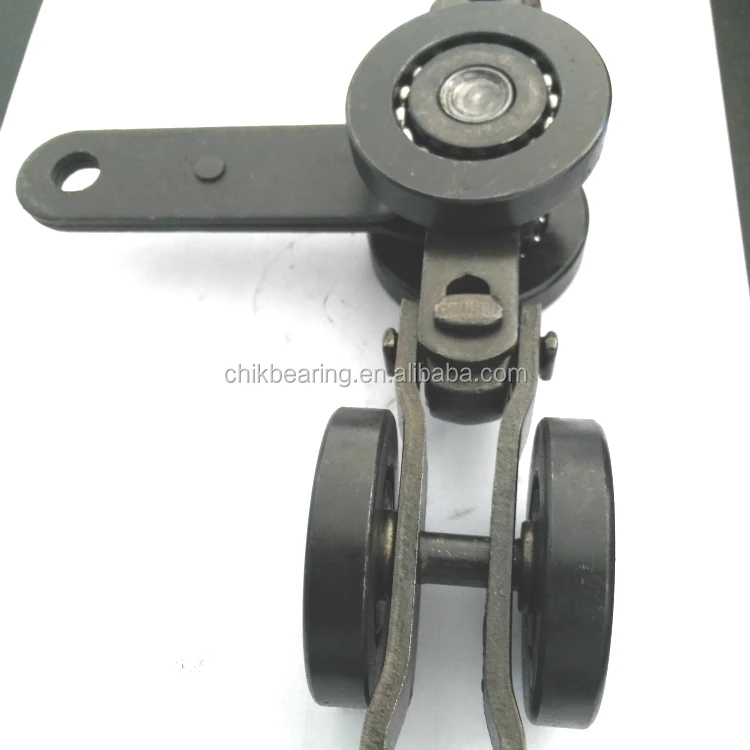

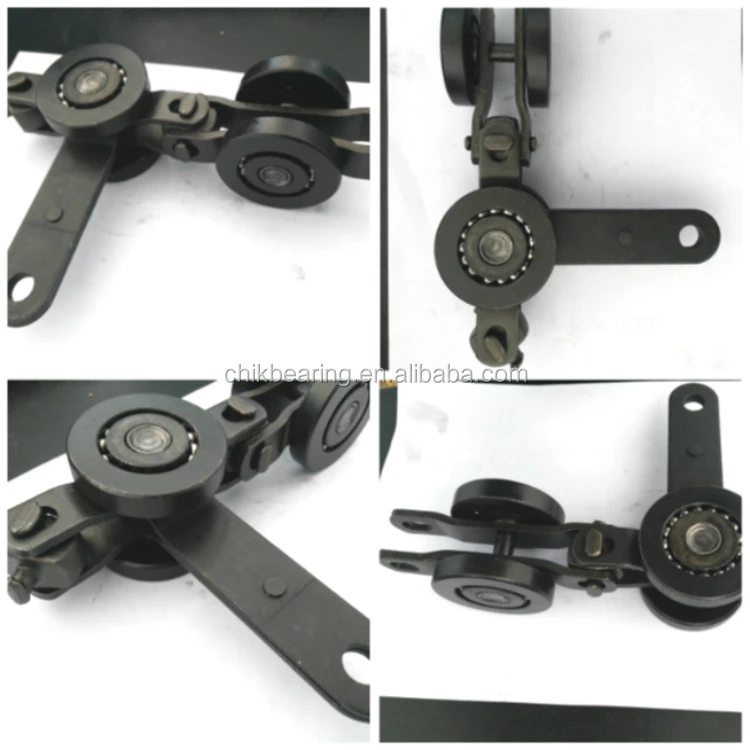

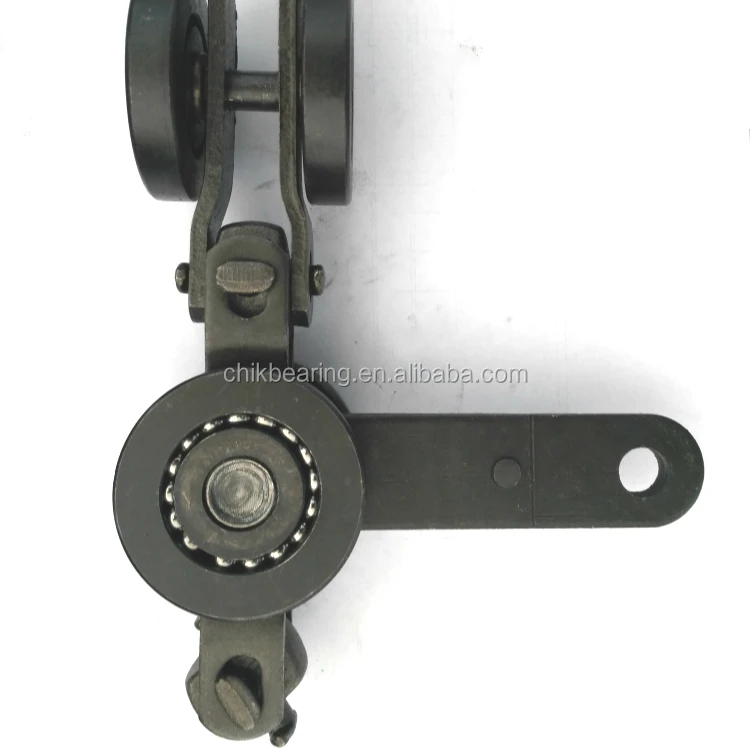

QXG-200 конвейерная цепь изогнутая двойная дорожка с

Models

QXG-150

QXG-150A

QXG-150B

QXG-200A

QXG-206A

QXG-240A

QXG-250A

QXG-300A

Pitch of Chain(mm)

150

150

150

200

206

240

250

300

Single Point Lifting(kg)

8

8

8

30

30

50

50

100

Allowable Chain Tension(KN)

2.5

2.5

2.5

3

3

5

5

10

Chain Breaking Force(KN)

>25

>25

>25

>30

>30

>50

>50

>100

Weight(kg/m)

2.83

2.83

2.83

5.5

5.7

6.5

6.8

11.5

Track Weight(kg/m)

4.36

4.36

4.36

6.8

6.8

7.9

7.9

14.8

Running Speed (m/min)

multi-speed

multi-speed

multi-speed

multi-speed

multi-speed

multi-speed

multi-speed

multi-speed

Pin Diameter(mm)

7

7

7

9

9

10

10

16

Reduction Ratio

1:10

1:10

1:10

1:10

1:10

1:10

1:10

1:10

Working Temperature

-20~220

-20~220

-20~220

-20~220

-20~220

-20~220

-20~220

-20~220

Conveyor Power(KW)

0.75,1.1,1.5

0.75,1.1,1.5

0.75,1.1,1.5

1.1,  1.5,2.2

1.1,  1.5,2.2

1.5,  2.2,3

1.5,  2.2,3

2.2,3,4

For more detailed parameters, please don’t hesitate to contact us

The above parameters all can be customized to meet different customers special requirement including driving system

When choosing the speed, the needed speed is suggested to be 0.6 to 0.8 times of the selected speed shit, which will enable the motor in a good working condition.
