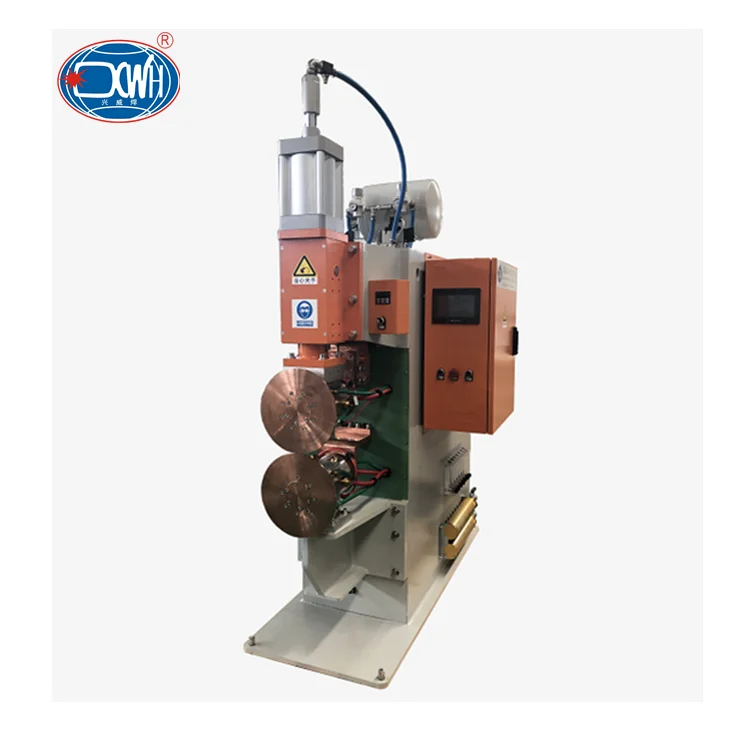

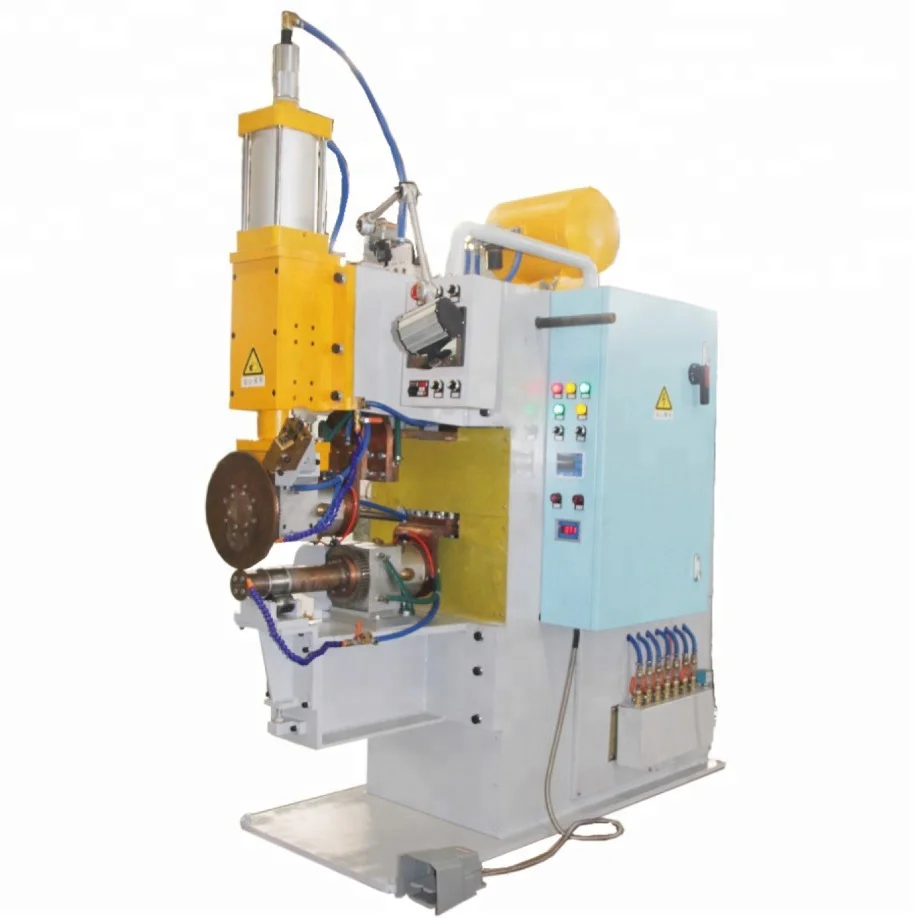

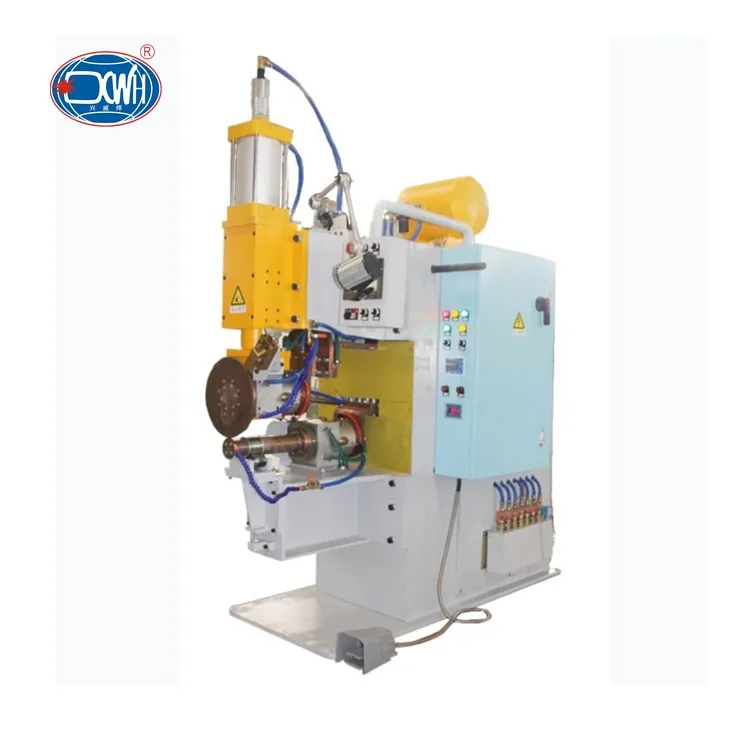

Высокопрочный сварочный аппарат серии FN на заказ для
- Категория: Seam Welders >>>
- Поставщик: Chengdu,Xingweihan,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3808.36 $* | 3998.14 $* |
| Aug-16-2025 | 3776.5 $* | 3965.97 $* |
| Jul-16-2025 | 3168.90 $* | 3326.13 $* |
| Jun-16-2025 | 3712.94 $* | 3898.83 $* |
| May-16-2025 | 3232.20 $* | 3394.13 $* |
| Apr-16-2025 | 3648.60 $* | 3830.14 $* |
| Mar-16-2025 | 3616.5 $* | 3797.73 $* |
| Feb-16-2025 | 3584.38 $* | 3763.99 $* |
| Jan-16-2025 | 3552.63 $* | 3730.65 $* |
Характеристики
Product Description
MAIN FEATURES
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of the welding wheel..
3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility .
4.Two kinds of welding modes: Horizontal and Vertical
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.
2.Internal cooling used in the welder, while external cooling of the welding wheel..
3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility .
4.Two kinds of welding modes: Horizontal and Vertical
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Detailed Images
Packing&Shipping
Related Products
Company Profile
Why Choose Us
*Your reply will be replied within 24 hours.
*Fast delivery time and good after service.
*Keep the mass production as the sample in high quality.
*Freight forwarder: faster, safer, and convenient.
*Good factory price.
*Guaranteed for one year.
*Providing overseas services.
Long-term Experience of Welding Machine Manufacturing
*Fast delivery time and good after service.
*Keep the mass production as the sample in high quality.
*Freight forwarder: faster, safer, and convenient.
*Good factory price.
*Guaranteed for one year.
*Providing overseas services.
Long-term Experience of Welding Machine Manufacturing
Customized Designing and Manufacturing
Many customer's trust
FAQ
Q1: What does your factory produce?
A: We produce and export all kinds of welding machine. We can also design and develop the
welding machine according to your requirement.
Q2: What about your standard delivery time?
A: Normally 15 days after receiving the deposit, delivery date will be longer on customized products.
Q3: Can I visit your factory?
A: Of course, we can pick you up in the airport.
Q4: Do you have CE certificate?
A: YES, we have CE, CCC, ISO.
Q5: Where do your factory located?
A: Our factory located in NO.538 Xingfu Road, Xindu, Chengdu, China.
Q6: Will you send engineer to help installing the welding machine?
A: Of course. If you need, we can send our engineer to fly to your factory to help installing the welding machine, train your
workers and make sure the welding machine running well before he leave.
welding machine according to your requirement.
Q2: What about your standard delivery time?
A: Normally 15 days after receiving the deposit, delivery date will be longer on customized products.
Q3: Can I visit your factory?
A: Of course, we can pick you up in the airport.
Q4: Do you have CE certificate?
A: YES, we have CE, CCC, ISO.
Q5: Where do your factory located?
A: Our factory located in NO.538 Xingfu Road, Xindu, Chengdu, China.
Q6: Will you send engineer to help installing the welding machine?
A: Of course. If you need, we can send our engineer to fly to your factory to help installing the welding machine, train your
workers and make sure the welding machine running well before he leave.
Contact us
