Wuxi поликристаллический класс B 19.4% 4 77 Вт Высокое качество 5 в 156 75*156 75 Продажа солнечных батарей
- Категория: Solar Cells >>>
- Поставщик: Jiangsu,Ideasolar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 146.54 $* | 149.57 $* |
| Jul-19-2025 | 118.99 $* | 120.1 $* |
| Jun-19-2025 | 144.69 $* | 147.75 $* |
| May-19-2025 | 143.0 $* | 146.13 $* |
| Apr-19-2025 | 114.43 $* | 116.93 $* |
| Mar-19-2025 | 140.73 $* | 143.19 $* |
| Feb-19-2025 | 139.74 $* | 142.80 $* |
| Jan-19-2025 | 138.94 $* | 141.11 $* |
Характеристики
Product Description
1.Appearance
Physical Characteristics | ||||||||
Substrate Material | poly crystalline | |||||||
Dimensions | 156.75*156.75mm | |||||||
Thickness | 210 um± 20 um | |||||||

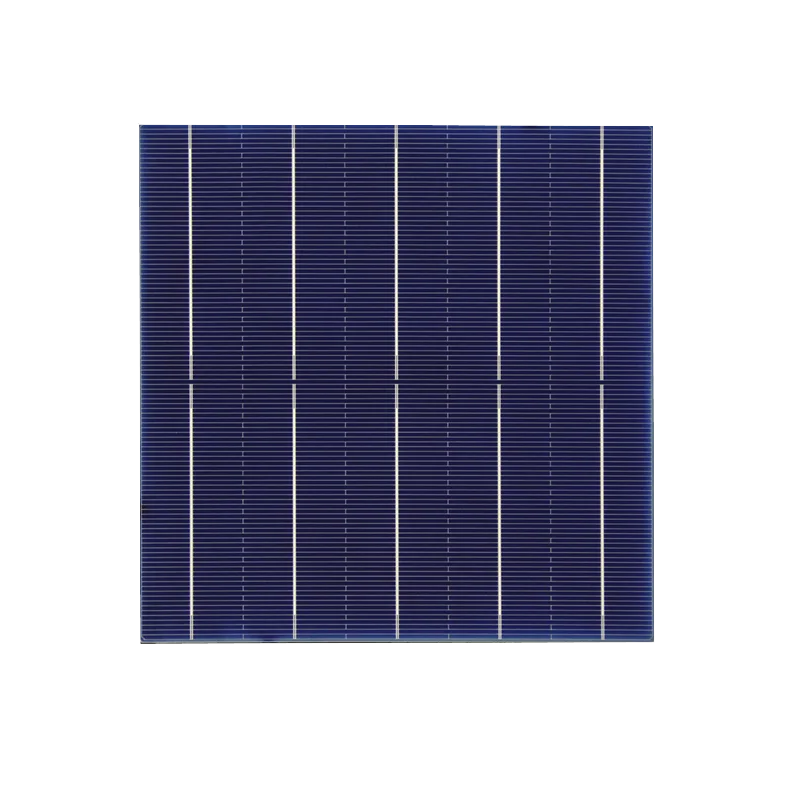

Front（-） | Blue SiNx antireflection coating | |||||||
Bus-bar with 0.7 mm width,108 fingers | ||||||||

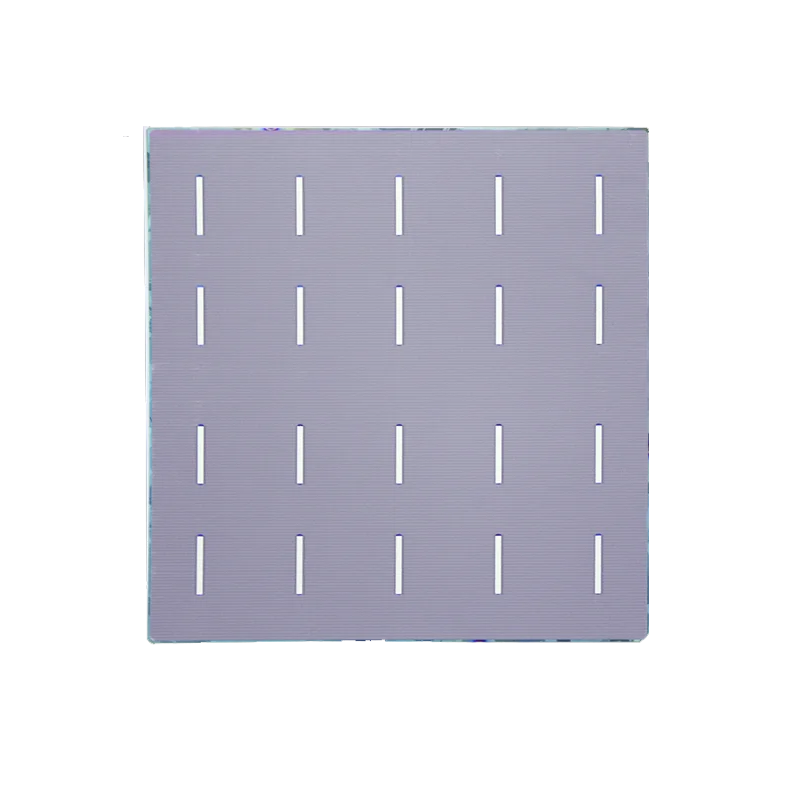

Rear(+) | Bus-bar(Segmented) with 2.0mm width | |||||||
Aluminum local back surface field | ||||||||
Grade | B class for test | |||||||

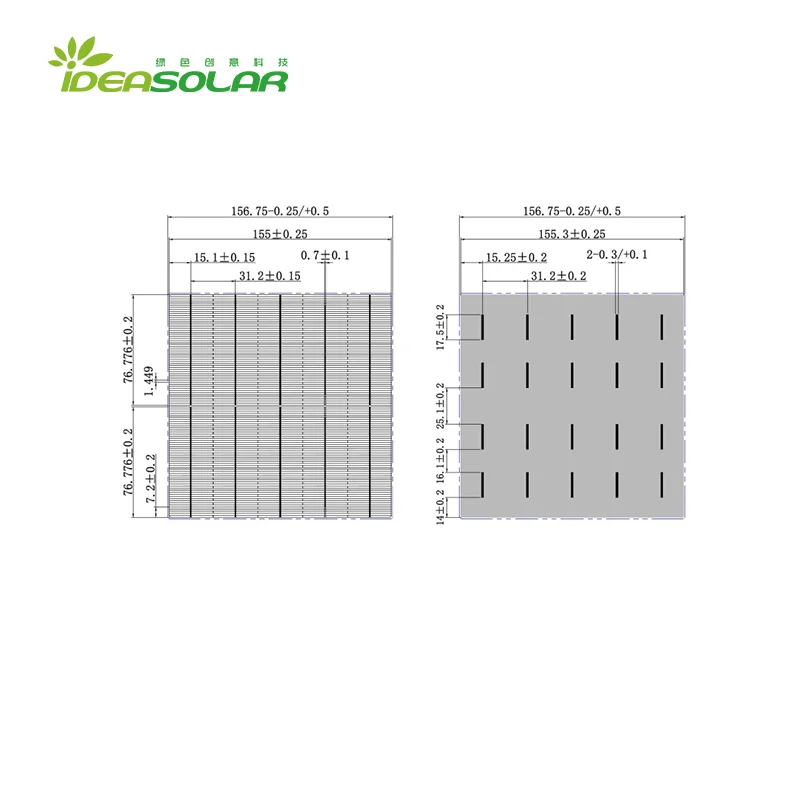

2.Design
3.Electrical Performance
Module Efficiency- ηm(%) | 19.2% | 19.4% | 19.5% | 19.6% |
Maximum Power - Pmax(W) | 4.72 | 4.77 | 4.79 | 4.82 |
PS:1000W/m2 , AM1.5 , 25℃
4.Temperature Coefficient
TkVoltage | -0.36%/K |
TkCurrent | +0.07%/K |
TkPower | -0.38%/K |
5.IV Curve Spectral Response
6.Light Intensity Dependence
Intensity[W/m2] | 1000 | 800 | 600 | 200 | 100 | 60 | 30 | 15 |
Voc | 1 | 0.99 | 0.98 | 0.93 | 0.9 | 0.88 | 0.85 | 0.82 |
Isc | 1 | 0.8 | 0.6 | 0.2 | 0.1 | 0.06 | 0.03 | 0.01 |

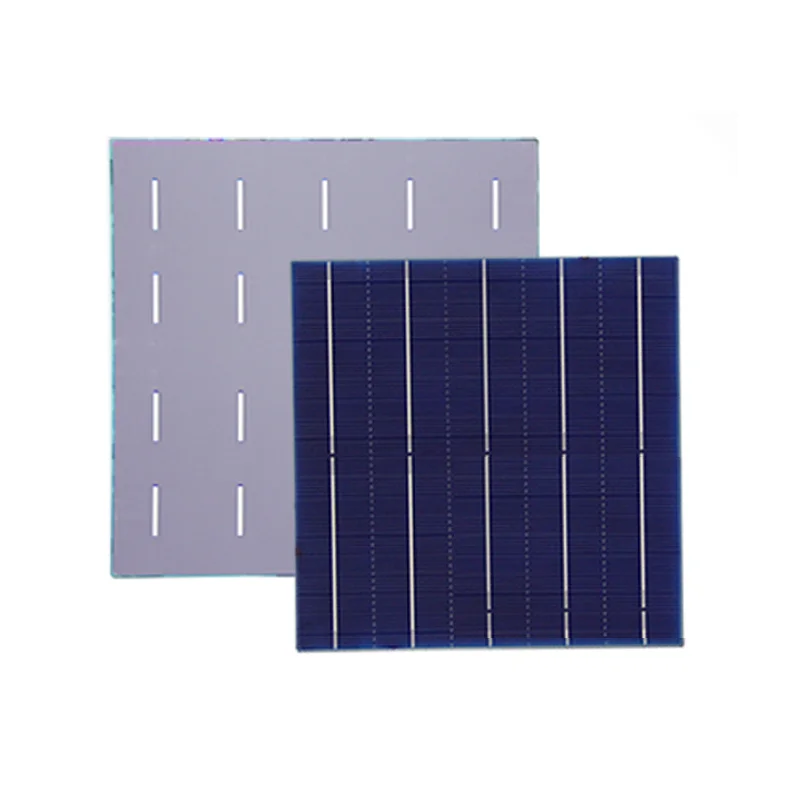

Detailed Images
Character
Our solar cell adopts the ozone anti-pid technology,
all solar cell adopt AOI appearance detection.
The front main gate pull is greater than 1.5n/mm.
The back main gate pull is greater than 2N/mm.
- Our factory
Our high purity silicon reduction furnace hall, energy center and plant

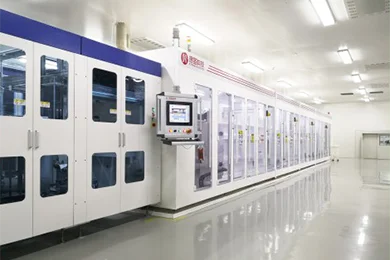

Automatic production line
Our production line is fully automated.
Certifications
Various Certificates
IDEA SOLAR has various certificates, including TUV,CQC,CE, etc
Customer Photos
Our Clients
We supply battery cells to the top 10 component factories in China, which is highly praised.
Process Introduction
Packing&Shipping

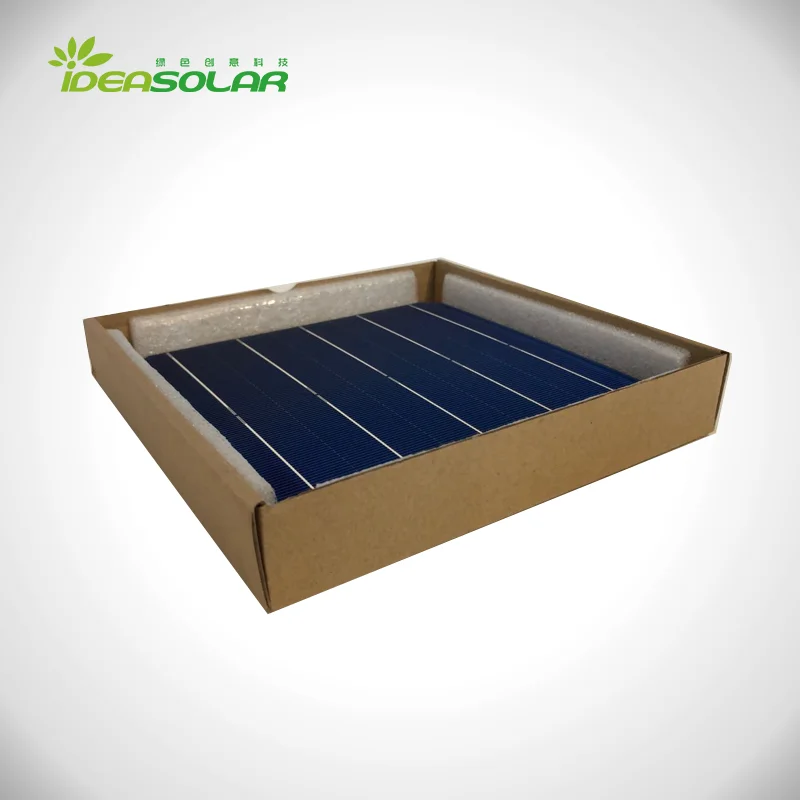

100pcs of cells per box. Cells are protected in the box. Box is covered by shrink film. Box’s label is attached on outside.
16 boxes per carton. EPE is used as protection in the carton. Carton’s label is attached on outside, and kept visible.
6 cartons per layer, up to 4 layers, a total of 24 cartons. Itis fixed by packing belt and packed by PE film
Company Introduction
Jiangsu Ideasolar Co., Ltd. was founded on October 9, 2010. It is a wholly-owned subsidiary of Wuxi Green idea Technology Ltd.
It is a clean energy and environmental protection industry platform integrating production, sales, project constfruction and
operation.
It is a clean energy and environmental protection industry platform integrating production, sales, project constfruction and
operation.
FAQ
Q: Are you a factory or trading company
A: We are a manufacturer with expert license
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: How about your delivery time
A: Generally ,it will take 14 days after receiving your advance payment.
Q: How about your delivery time
A: Generally ,it will take 14 days after receiving your advance payment.
