Машина для производства соевого овощного белка TSP под ключ новый
- Категория: Оборудование для переработки бобовых продуктов >>>
- Поставщик: Jinan,Himax,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 21420.22 $* | 22491.67 $* |
| Aug-15-2025 | 21240.23 $* | 22302.85 $* |
| Jul-15-2025 | 17820.23 $* | 18711.76 $* |
| Jun-15-2025 | 20880.14 $* | 21924.7 $* |
| May-15-2025 | 18180.81 $* | 19089.73 $* |
| Apr-15-2025 | 20520.17 $* | 21546.97 $* |
| Mar-15-2025 | 20340.62 $* | 21357.36 $* |
| Feb-15-2025 | 20160.95 $* | 21168.8 $* |
| Jan-15-2025 | 19980.52 $* | 20979.1 $* |
Характеристики
Automatic Tsp Tvp Soya Beans Chunks Protein Nuggets Machine
Soya Chunks comes from defatted soy flour. It's also quick to cook and a great source of vegetable protein without all the fat.
For instance, it's excellent in chili, tacos, veggie burgers and soups. It can be boiled in high temperature with different taste
or added into meal product as stuffing, the same to meat, your family will hardly be able to tell the difference.
2. Technical Parameter
Model | HM65 Extruder line | HM85 Extruder Line |
Installed Power | 68.5kw | 165kw |
Power Consumption | 43kw | 103kw |
Capacity | 240-280kg/h | 400-500kg/h |
Dimension | 18000x1200x2200mm | 22000x3500x2300mm |
3.Raw material
This line adopts low-temperature soybean meal, peanut meal, wheat gluten isolated soya etc as main raw materials, which can produce textured protein and fiber protein with certain strength and toughness.
4. Capacity: 120--150kg/h
5. Voltage in China
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
6. Equipment List

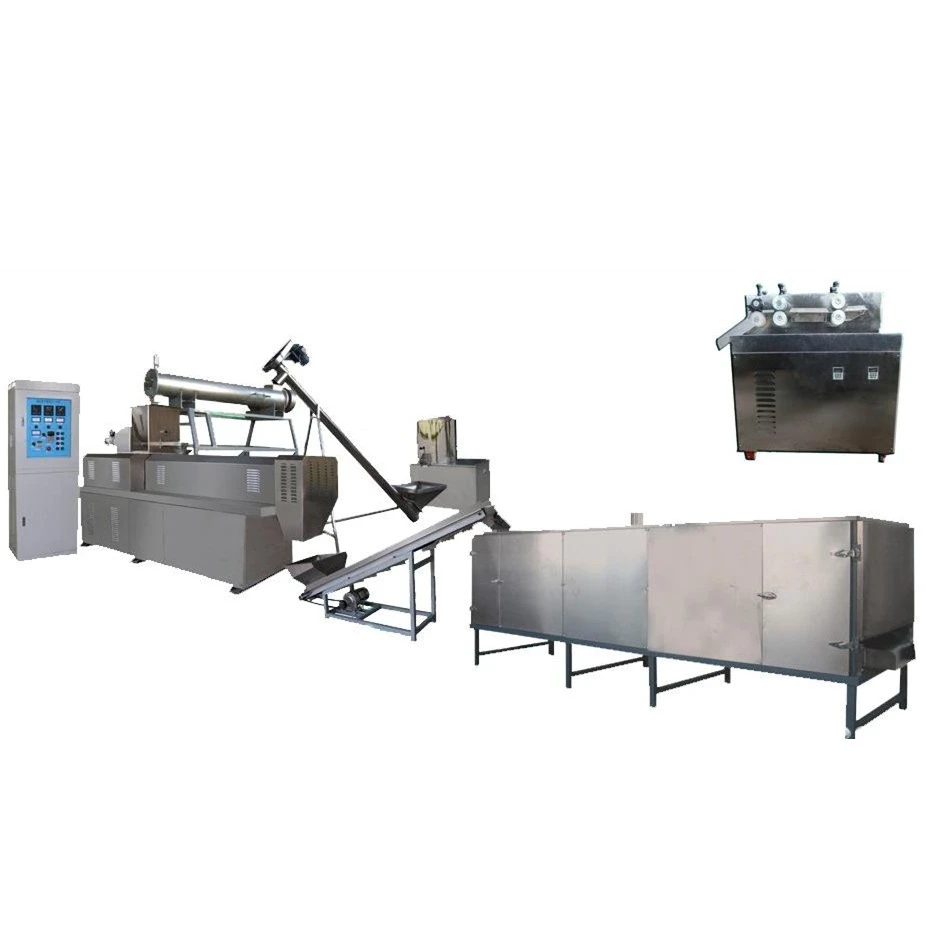

Mixer →Screw conveyor →Twin screw extruder →Air conveyor →Dryer →Cooling conveyor
Mixer →Screw conveyor →Twin screw extruder →Air conveyor →Dryer →Cooling conveyor

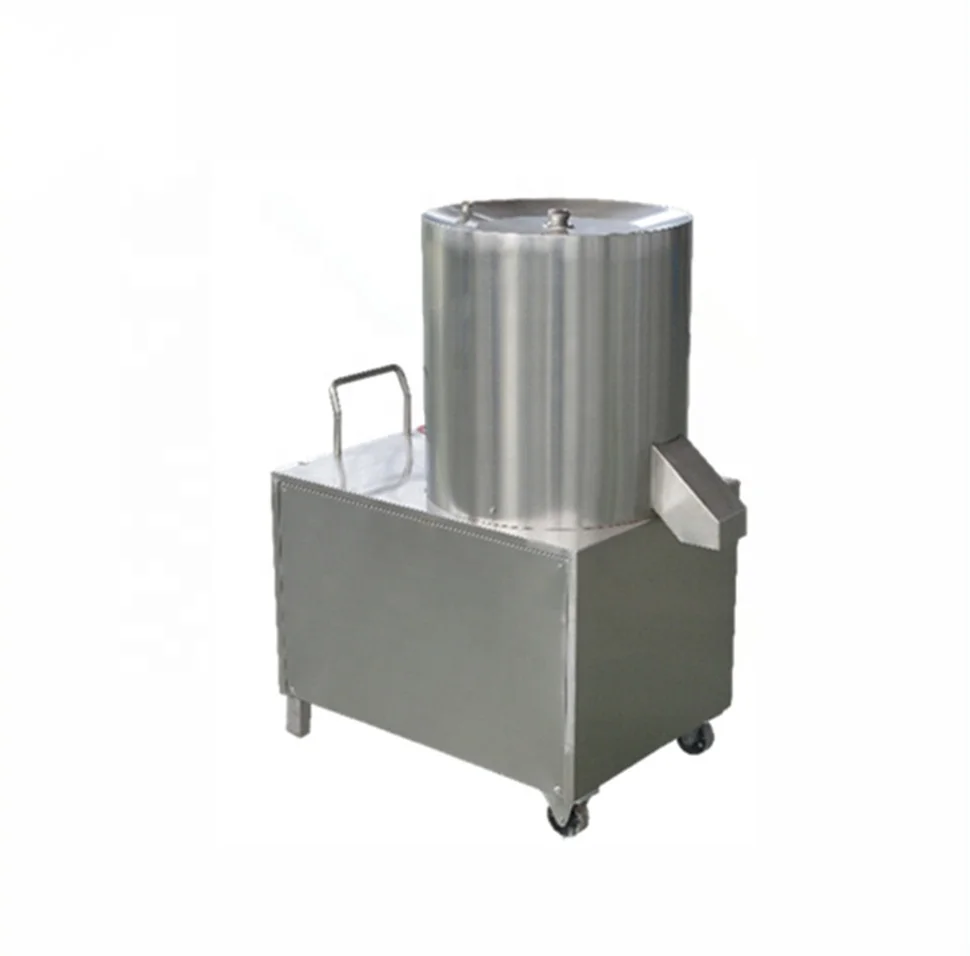

Mixer makes the raw material adding to water and liquid chemical
additive fully mixed. This part that contacts mixer to material adopts the stainless steel material.
additive fully mixed. This part that contacts mixer to material adopts the stainless steel material.

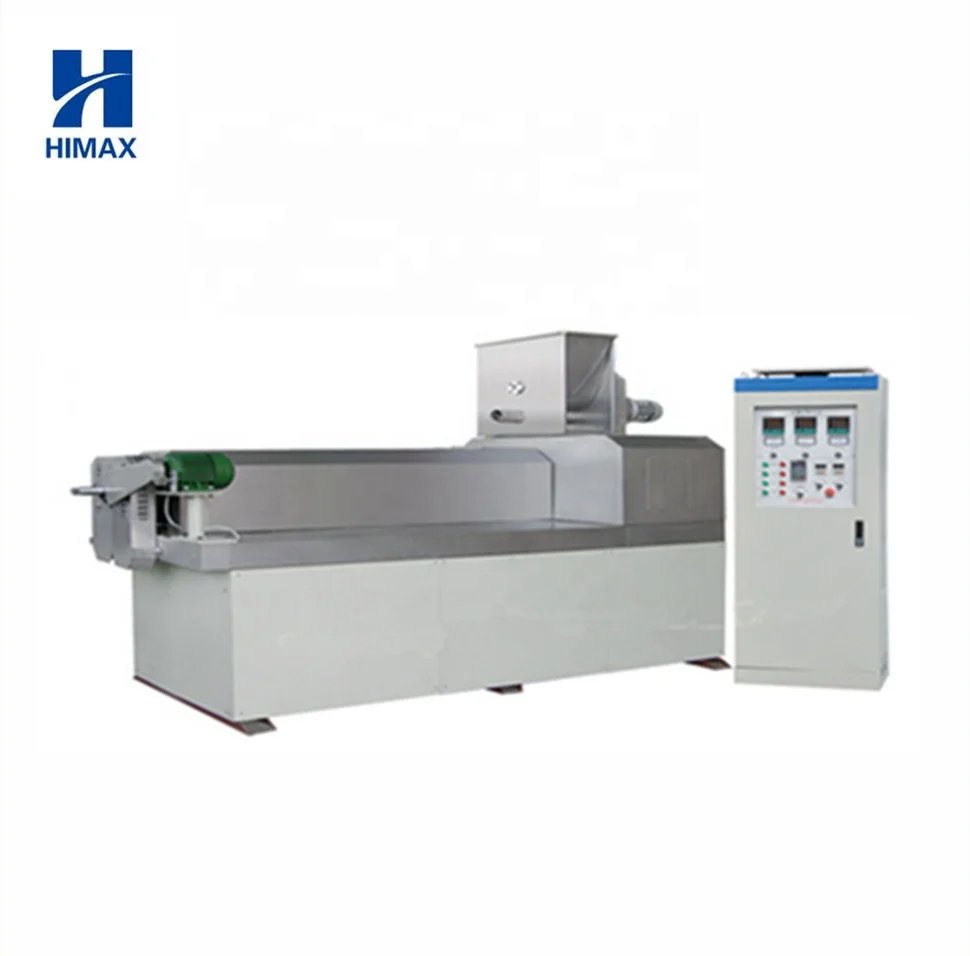

Double-screw extruder
The main extruder adopts frequency speed controlling with high automation and stable per-formation. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and
combining willingly according to the different demand.
combining willingly according to the different demand.

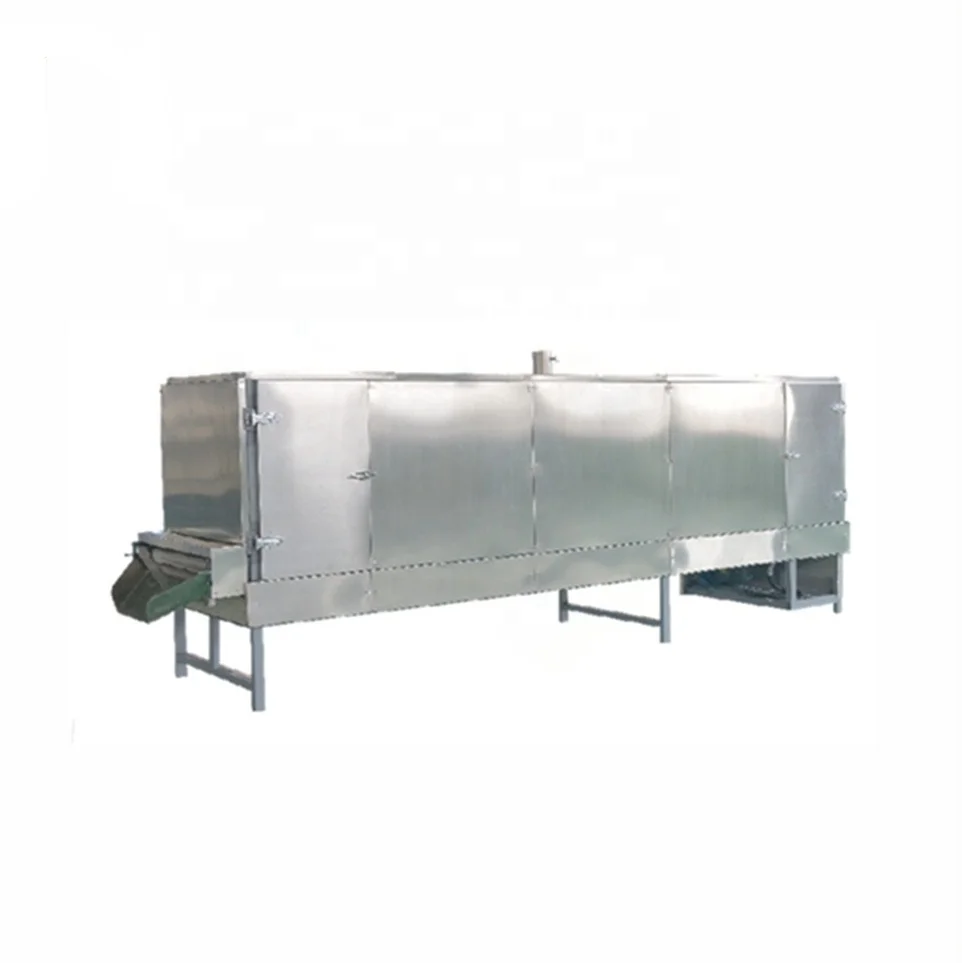

Dryer(Oven)
The oven has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.

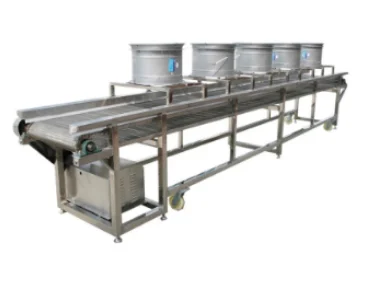

Cooling conveyor makes raw material from theextruder cool in the process of conveying. It willcause the surface to be dry and will not stick.
7. Details image
1.Productive: Automated systems for controlled and consistent production on a continuous b asis, easy and quick product changeover, automated start up, simple cleaning and maintenance procedures.
2.Flexible Formula: Processing of a wide range of raw materials, such as corn, wheat, rice, potato, oat etc.
3.Application: Easy adaptation to extend the range of products by changing the segments screw.
4.Smart Control System: PLC Control of production to ensure optimized process parameters for each recipe.
5.Advanced Die and Cutting system: This designs give processors an entirely new set of templates to create innovative shapes and sizes-Balls, animals, stars, rings, pillows, triangles, curls, chips, sticks, and also letters.
2.Flexible Formula: Processing of a wide range of raw materials, such as corn, wheat, rice, potato, oat etc.
3.Application: Easy adaptation to extend the range of products by changing the segments screw.
4.Smart Control System: PLC Control of production to ensure optimized process parameters for each recipe.
5.Advanced Die and Cutting system: This designs give processors an entirely new set of templates to create innovative shapes and sizes-Balls, animals, stars, rings, pillows, triangles, curls, chips, sticks, and also letters.
9. Why choose us
11. Our company
12. Our service
2. Do you supply spare parts ?
Yes, we supply spare parts with reasonable price;
3. What can you provide for after sale service ?
We can send engineers to your factory for installation and training if customers' required.
4. If we show you our layout of factory, can you help to design the whole process line ?
Yes, our experienced engineers and technical employee can help you to arrange the layout and installation of whole process line based on your real situation;
5. Which city are you from?
City Jinan ,china
6. If we have samples of new products, can you help to analysis and design the machine ?
Yes, Our technical department can help to analysis, design and test the new products you offered.
-- Before sale service
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
--After sale services
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for customer
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
--After sale services
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for customer
13. FAQ
1. What is your machine warranty ?
One year, main parts warranty time will be 2 or 3 years.
One year, main parts warranty time will be 2 or 3 years.
2. Do you supply spare parts ?
Yes, we supply spare parts with reasonable price;
3. What can you provide for after sale service ?
We can send engineers to your factory for installation and training if customers' required.
4. If we show you our layout of factory, can you help to design the whole process line ?
Yes, our experienced engineers and technical employee can help you to arrange the layout and installation of whole process line based on your real situation;
5. Which city are you from?
City Jinan ,china
6. If we have samples of new products, can you help to analysis and design the machine ?
Yes, Our technical department can help to analysis, design and test the new products you offered.
