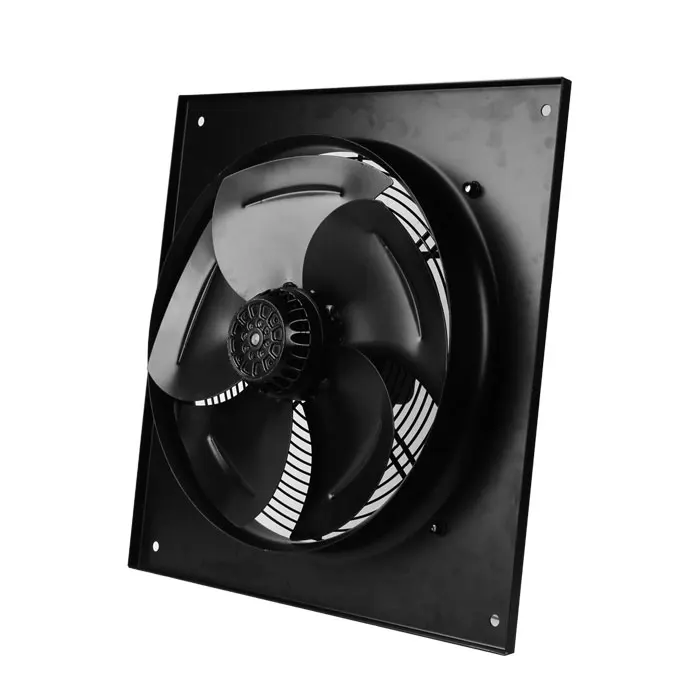

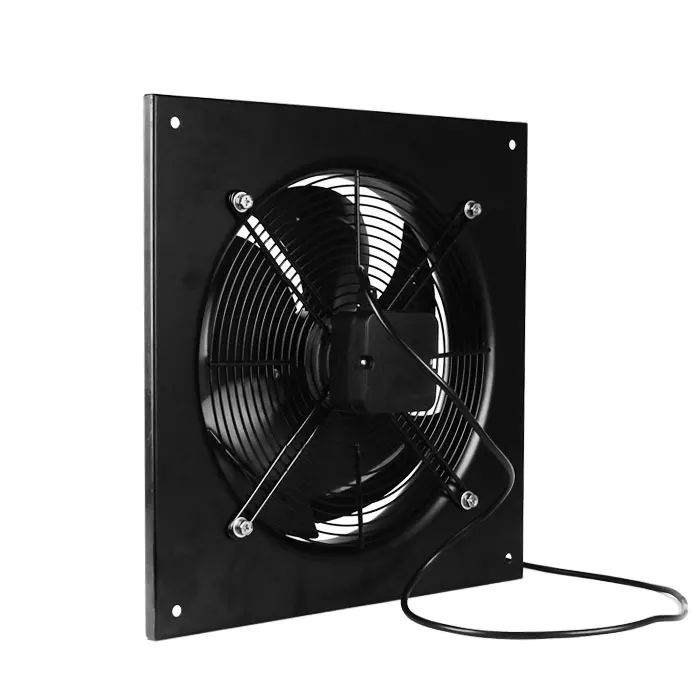

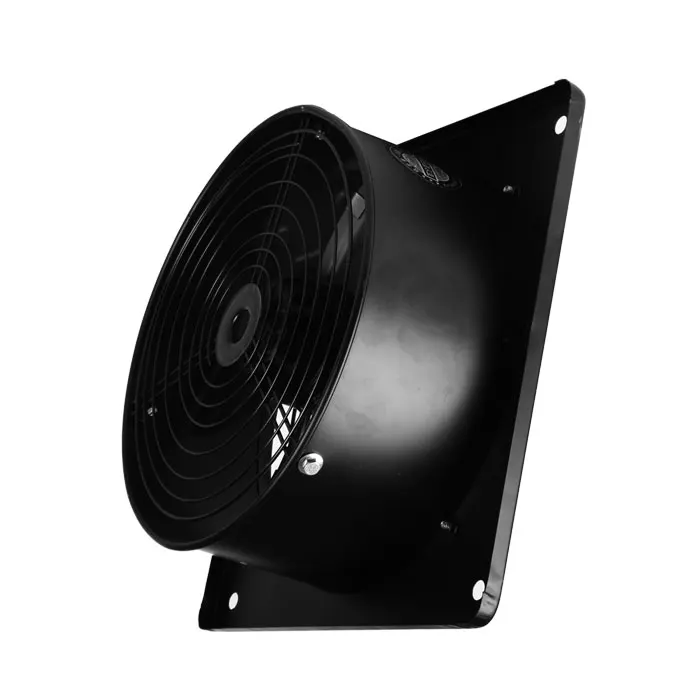

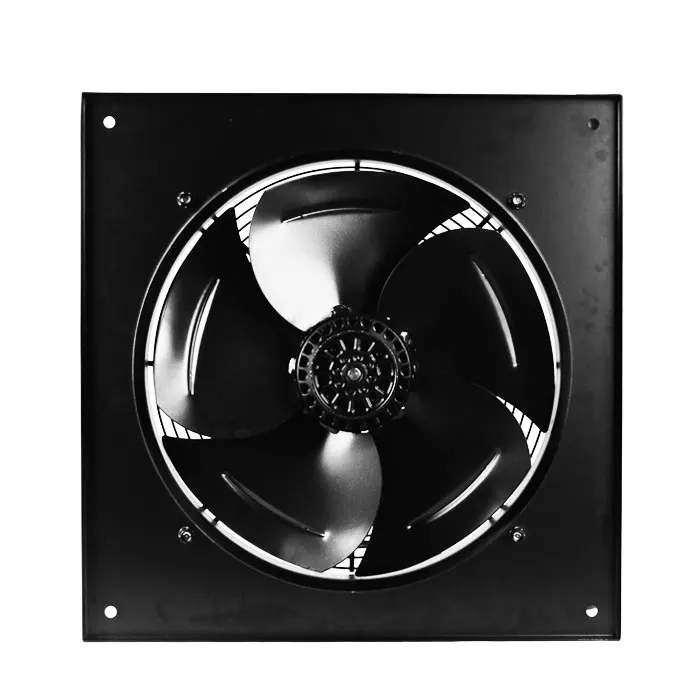

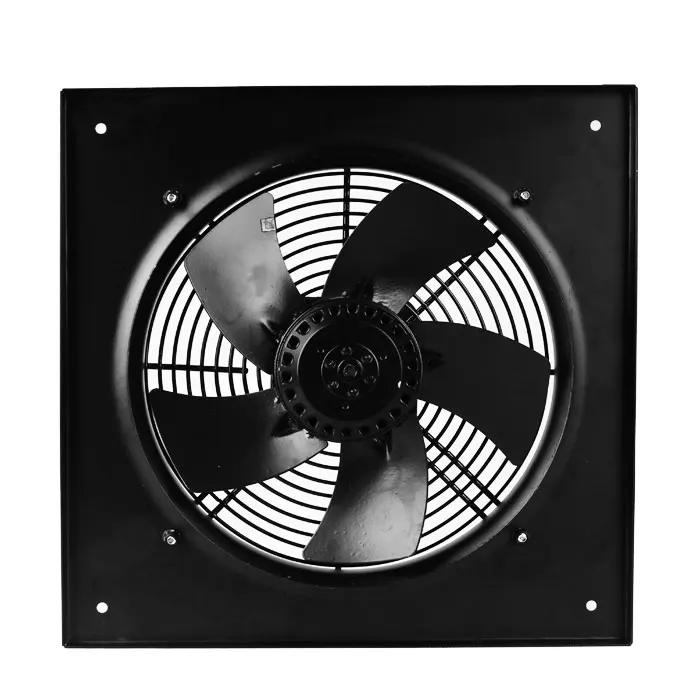

Низкошумный высокоскоростной вытяжной вентилятор YWF 2E-300 12 дюймов 220 В шарикоподшипники из медной проволоки

Описание и отзывы

Трекер стоимости

Характеристики

Product advantage

(Low Price Industrial Fans with CE Certificate)

1.Profuse designs with series quality grade fan&motor manufactruer

2.Competitive price,high quality---CE& ISO9001

3.Low noise,large air volum

The biggest advantage of our products is:"Low noise, Big Air flow High stabiltiy, high efficiency".

Low noise: we adopt two-sides banlances on fan, Vibration speed virtual value of fans ≤0.5 mm/s

High stabitility: we test every fan and blowers before shipment, and life time more than 30000 h

High efficiency: our fan adopted the specical design to keep the best banlance betwwen Air flow and Noise.

Quality policy: Carefully planned,Well designed,Painstakingly created,Meticulous service.



MODEL	VOLTAGE (V)	FREQUENCY (Hz)	SPEED (R/min)	INPUT POWER (W)	NOISE (dB/A)	AIR VOULME (M3/H)	OPERATING TEMPERATURE (Min/Max℃)
TX2E-200	220	50/60	2650	65	63/66	1050	-30/+60
TX2D-200	380	50/60	2650	65	63/66	1080	-30/+60
TX2E-250	220	50/60	2550	80	68/73	2650	-30/+60
TX2D-250	380	50/60	2550	80	68/73	2600	-30/+60
TX2E-300	220	50/60	2850	100	68/73	3250	-30/+60
TX2D-300	380	50/60	2750	100	68/73	3300	-30/+60
TX2E-350	220	50/60	2650	120	68/73	5850	-30/+60
TX2D-350	380	50/60	2650	120	68/73	5930	-30/+60
TX4E-400	220	50/60	1380	180	68/70	5800	-30/+60
TX4D-400	380	50/60	1380	180	68/70	4800	-30/+60
TX4E-450	220	50/60	1380	250	62/68	5750	-30/+60
TX4D-450	380	50/60	1380	250	62/68	5800	-30/+60
TX4E-500	220	50/60	1380	450	70/74	9150	-30/+60
TX4D-500	380	50/60	1380	450	70/74	9150	-30/+60
TX4E-550	220	50/60	1350	500	70/74	11000	-30/+60
TX4D-550	380	50/60	1350	500	70/74	11000	-30/+60
TX4E-630	220	50/60	1350	600	75/79	14000	-30/+60
TX4D-630	380	50/60	1350	600	75/79	14000	-30/+60
