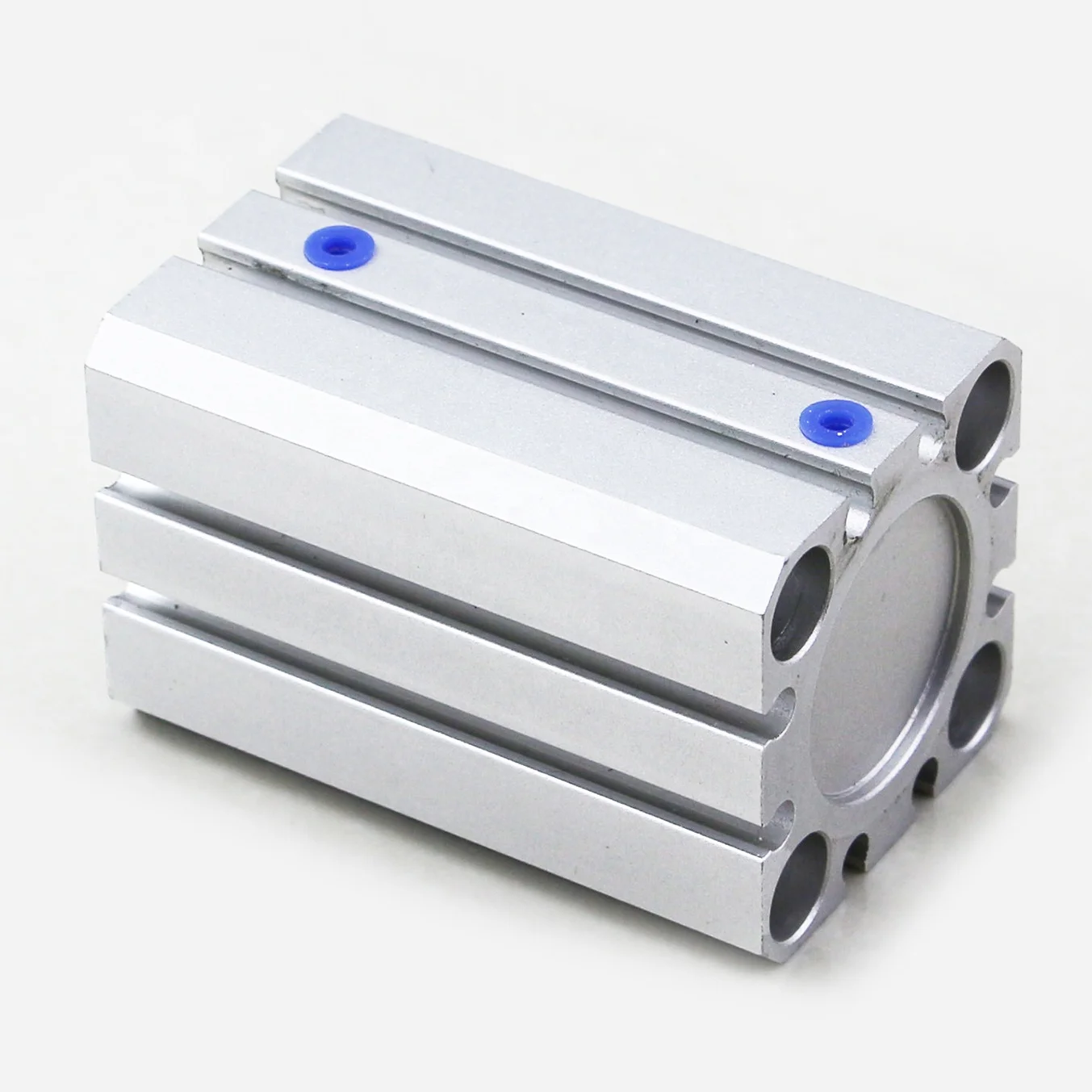

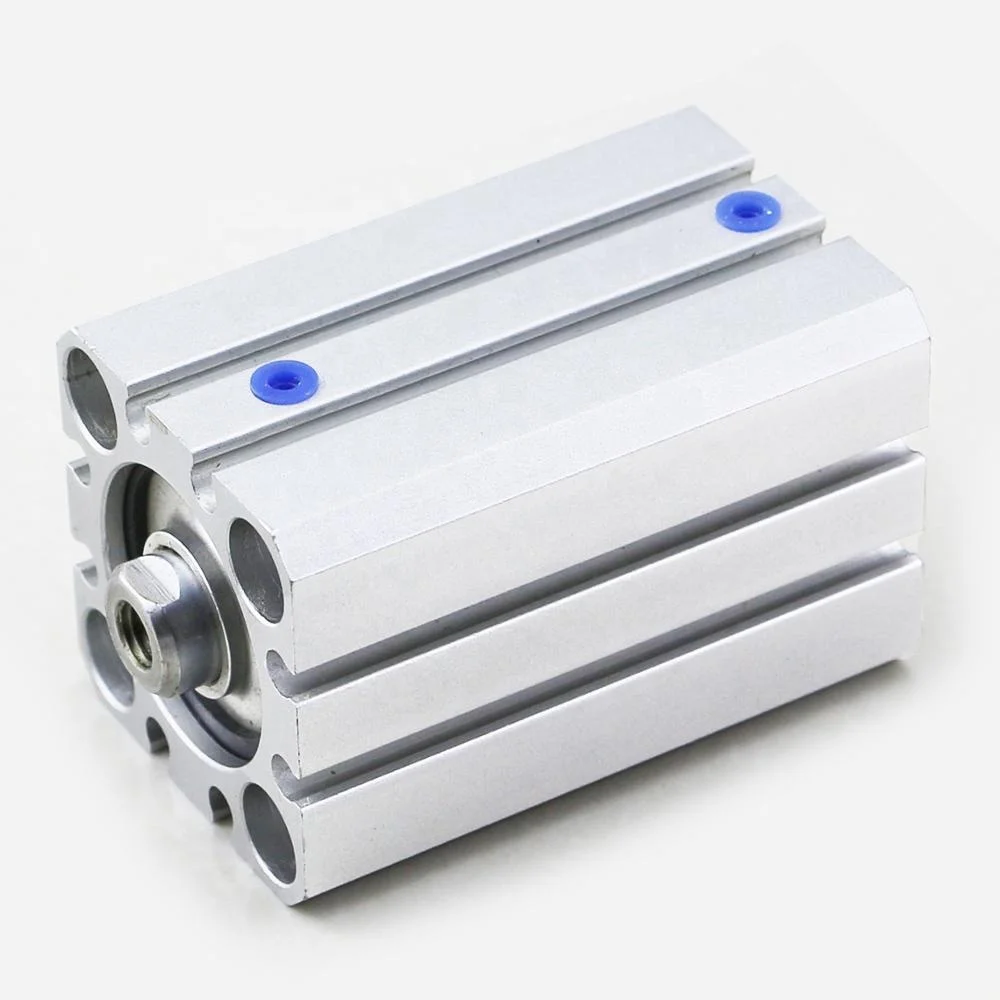

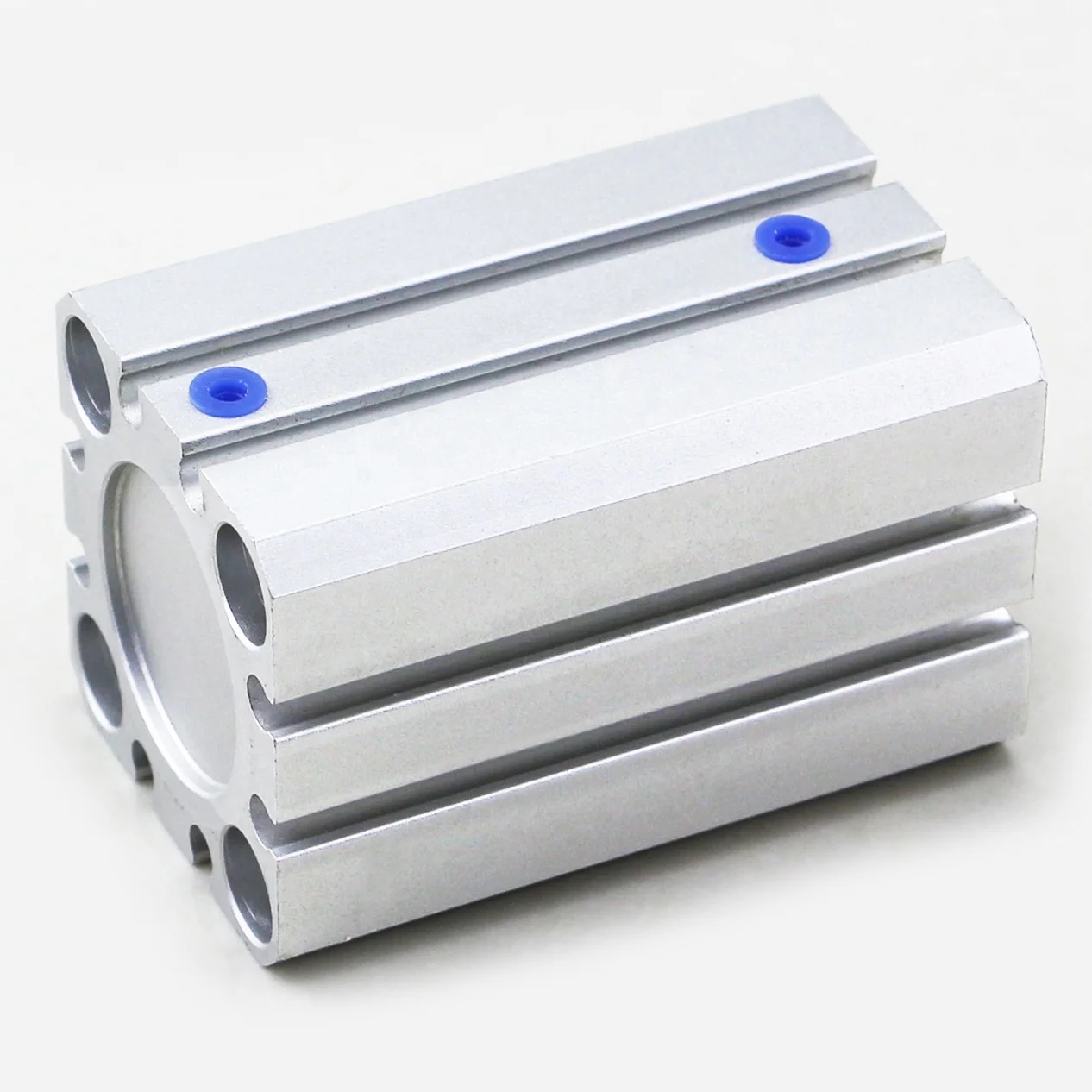

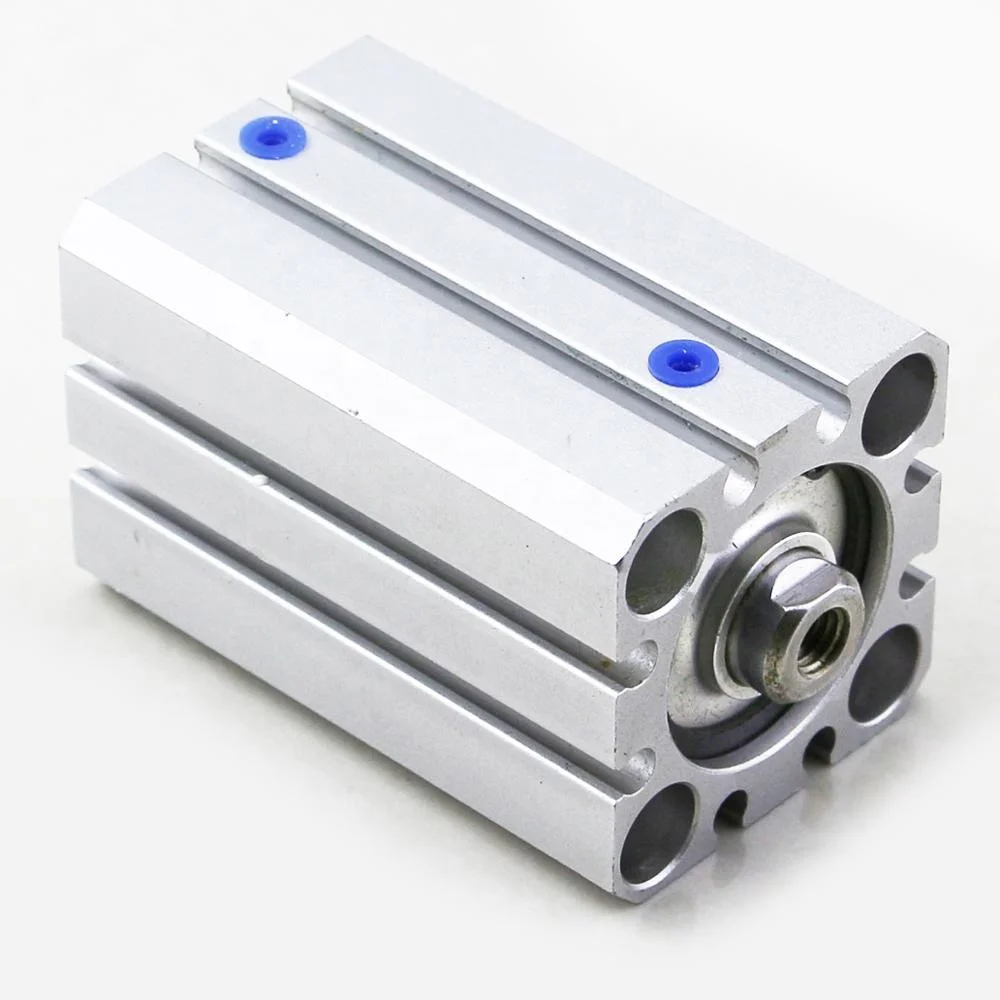

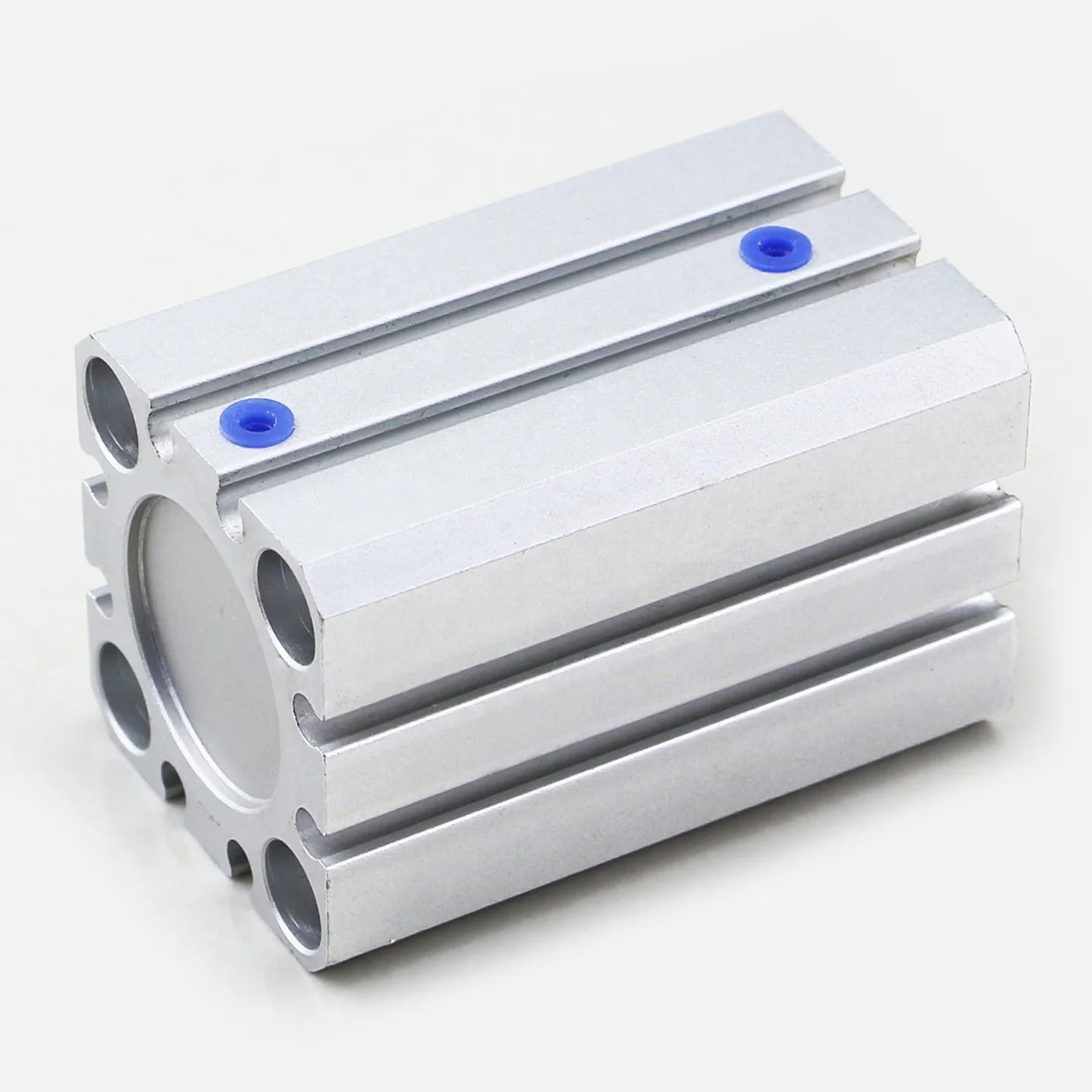

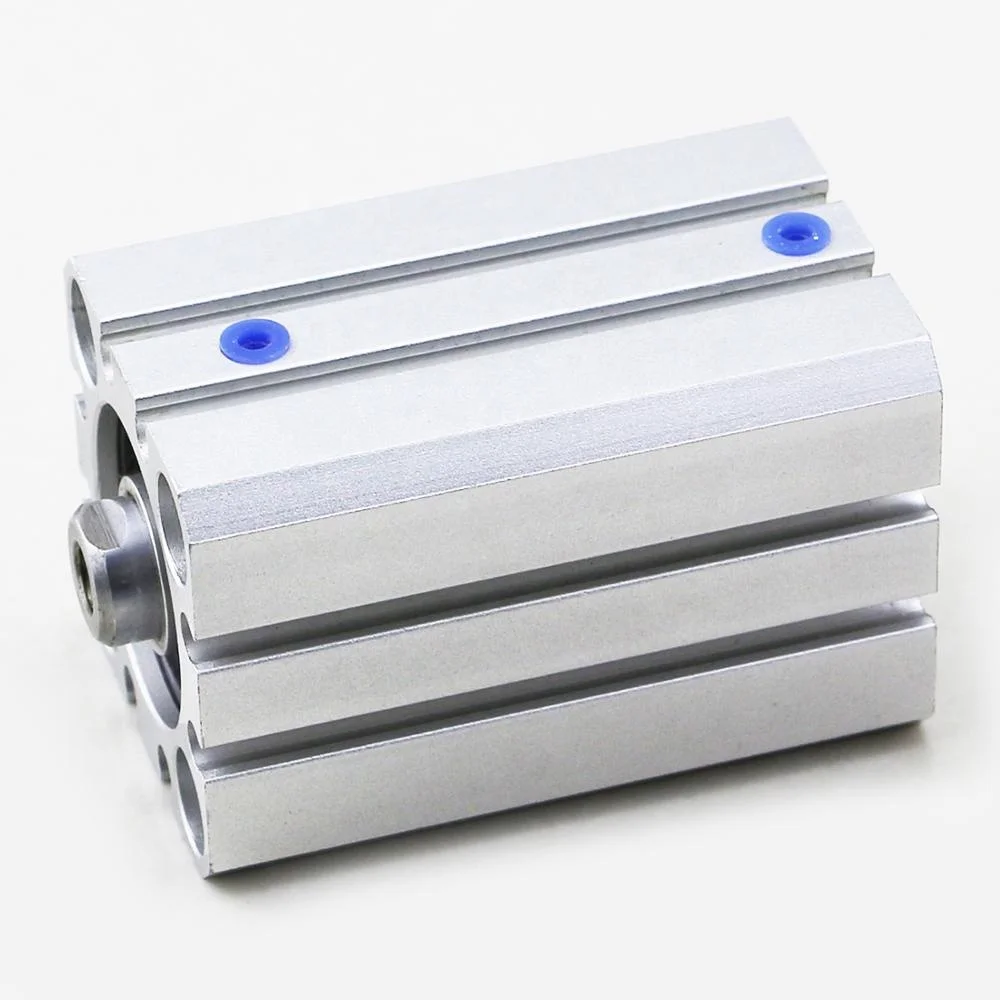

Базовый тип тяги с внутренней резьбой cqsb серии SMC пневматический цилиндр захвата Компактный алюминиевый пневматические
- Категория: Pneumatic Cylinders >>>
- Поставщик: Taizhou,Chenming,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.85 $* | 0.86 $* |
| Aug-18-2025 | 0.55 $* | 0.68 $* |
| Jul-18-2025 | 0.57 $* | 0.59 $* |
| Jun-18-2025 | 0.86 $* | 0.23 $* |
| May-18-2025 | 0.72 $* | 0.37 $* |
| Apr-18-2025 | 0.4 $* | 0.82 $* |
| Mar-18-2025 | 0.58 $* | 0.29 $* |
| Feb-18-2025 | 0.38 $* | 0.92 $* |
| Jan-18-2025 | 0.62 $* | 0.52 $* |
Характеристики
Basic Type Rod End Male Thread CQSB Series SMC Compact Air Cylinder Aluminum Compact Pneumatic Cylinders
Product Description
Ordering Code
CQS B 32×15 - D
Modle Mounting Bore x Stroke Action
CQS : Standard type B: Through-hole (Standard) D: Double acting
CDQSB : Magnet type L: Foot
LC: Compact foot
F: Rod side flange
G: Head side flange
D: Double
Inner structure and material of major parts:
| NO | Item | Material | NO | Item | Material |
| 1 | Cylinder Tube | Aluminum alloy | 11 | Collar | Aluminum alloy |
| 2 | Collar | Aluminum alloy | 12 | Bushing | Oil-impregnated sintered alloy |
| 3 | Piston | Aluminum alloy | 13 | Wear ring | Resin |
| 4 | Piston rod | Stainless steel | 14 | Magnet | - |
| 5 | Rataining ring | Carbon tool steel | 15 | Centering location ring | Aluminum alloy |
| 6 | Rod end nut | Carton steel | 16 | Rod seal | NBR |
| 7 | Spacer for switch type | Aluminum alloy | 17 | Piston seal | NBR |
| 8 | Bumper A | Urethane | 18 | Tube gasket | NBR |
| 9 | Bumper B | Urethane | |||
| 10 | Bottom plate | Aluminum alloy |
Specifications
| Bore size | 12 | 16 | 20 | 25 |
| Acting type | Double acting, Single rod | |||
| Fluid | Air(to be filtered by 40 µm filter element) | |||
| Lubricatin | Not rquired | |||
| Proof pressure | 1.5MPa(215psi)(15bar) | |||
| Maximun operating pressure | 1.0MPa | |||
| Minimum operating pressure | 0.07MPa | 0.05MPa | ||
| Ambient and fluid temperature | Without auto switch: -10 to 70℃(No freezing) | |||
| With auto switch: -10 to 60℃(No freezing) | ||||
| Rod end thread | Female thread | |||
| Piston speed | 50 to 500mm/s | |||
| Cushion type | None, Rubber Bumper | |||
Dimensions
Product Details
Main Product
Company Information
Our Service
FAQ
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
