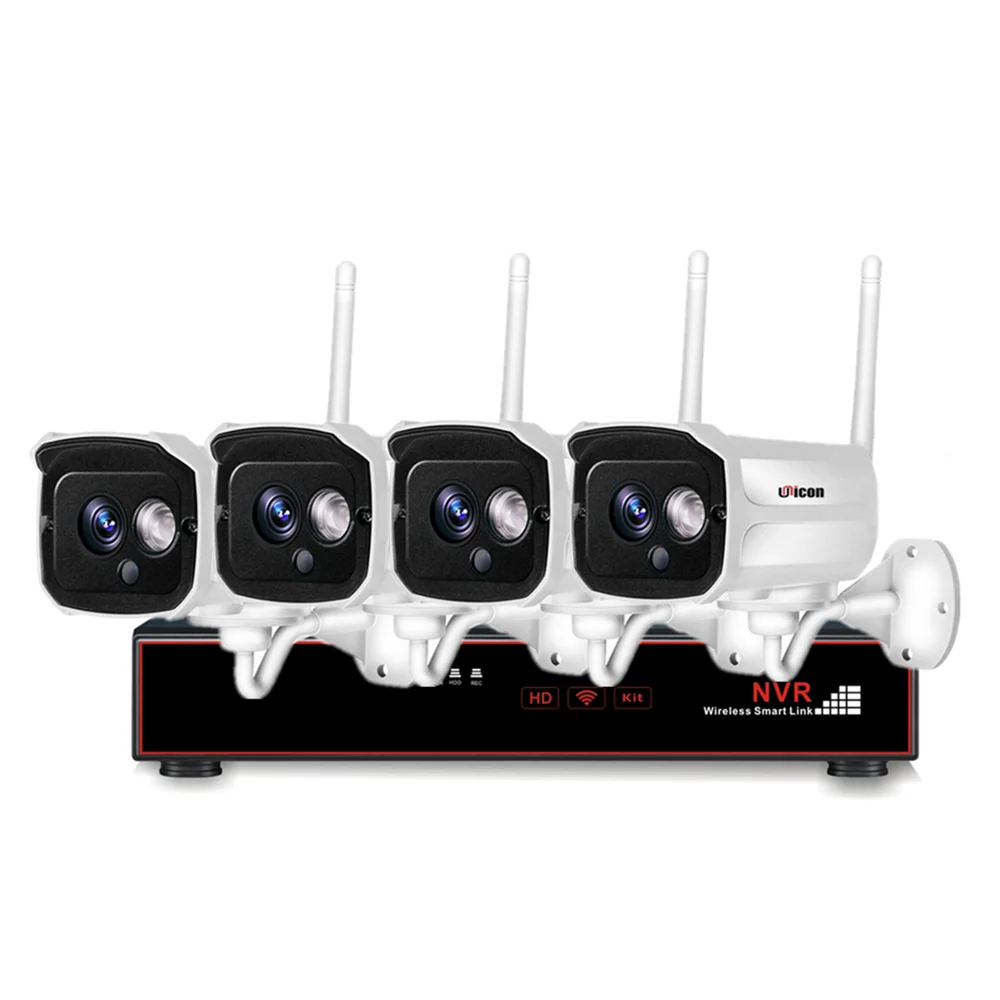

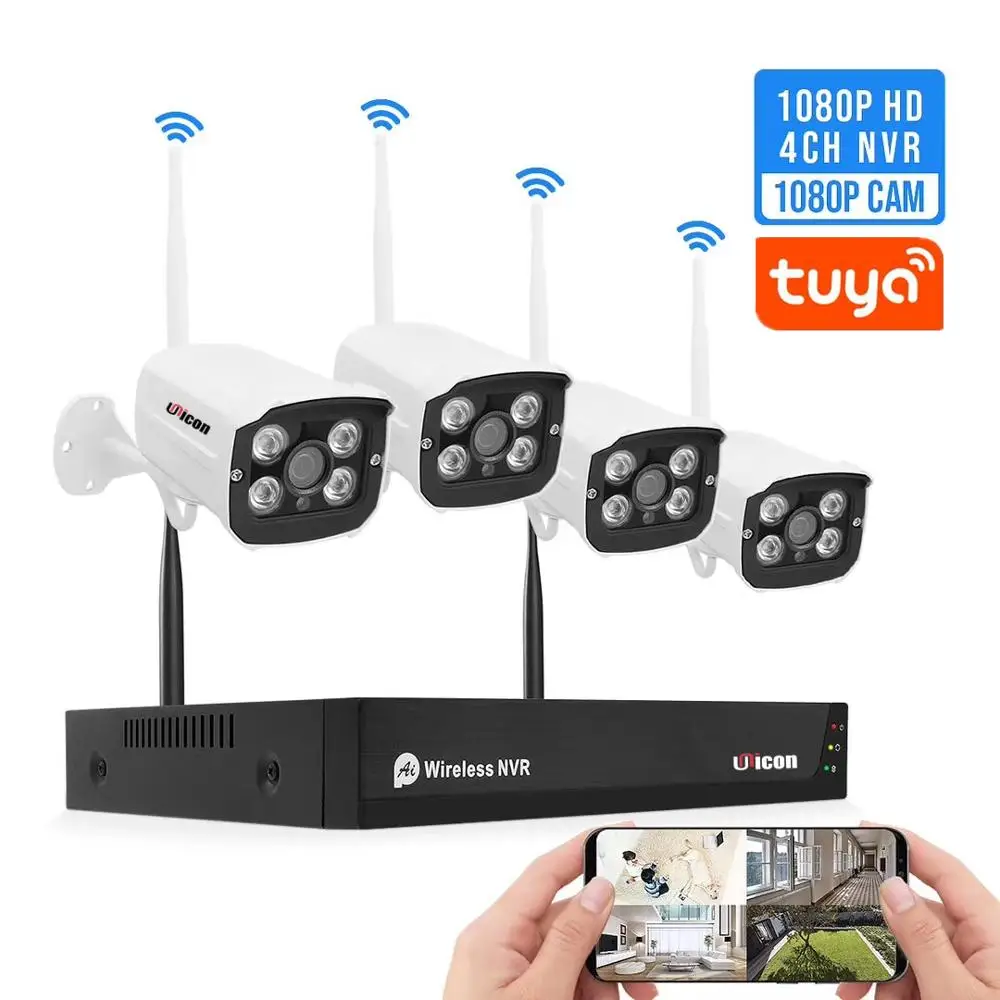

Умный пульт дистанционного управления Tuya Smart Life CMOS 720P изображение 4 канала беспроводная передача Wi-Fi комплекты сетевого видеорегистратора с голосовым управлением Google Home

Model

Wifi NVR

Operating System

Embedded Linux OS

AV(video)input

Network Video

4CH

Network video input broad bank

10Mbps

AV (video) output

HDMI input

1ch,resolution:1024x768,1366x768,1440x900,1920x1080p

VGA output

1ch,resolution:1024x768,1366x768,1440x900,1920x1080p

AV CODEC Specification

Video Resolution

1080P

synch-playback

4CH

Video Control

Video/Capture mode

Manual,Time,Motion,Alarm

Playback mode

Real time,Routine,Event

Backup

USB backup

Alarm

Alarm Input

4ch (optional)

Alarm Output

1ch (optional)

Hard Disk

Type

1*SATA interface

Max Capacity

4 TB at most for each

External Interface

Network Interface

1 adaptable RJ45 10M/100M, 1 WIFI interface

USB Interface

2 USB 2.0

Network Control

Protocol

UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…

Others

Power Supply

DC12V3A

Power Consumption (W)

≤5W(Without HDD)

Operate Temperature (°C)

-10℃~+55℃

Working Humidity (%) RH

10%~90%

Size

257mm(W)×210mm(V)×45mm(H)

Weight(excluding HDD)

≤1Kg

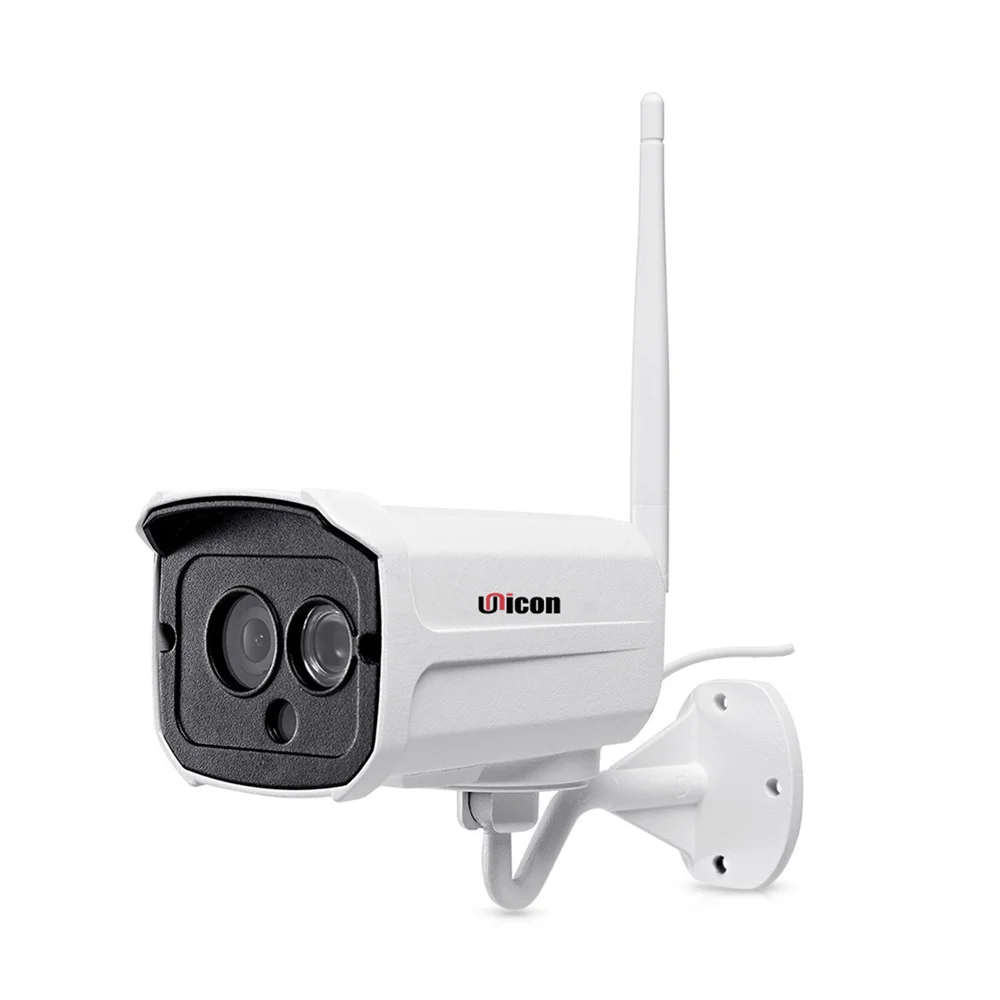

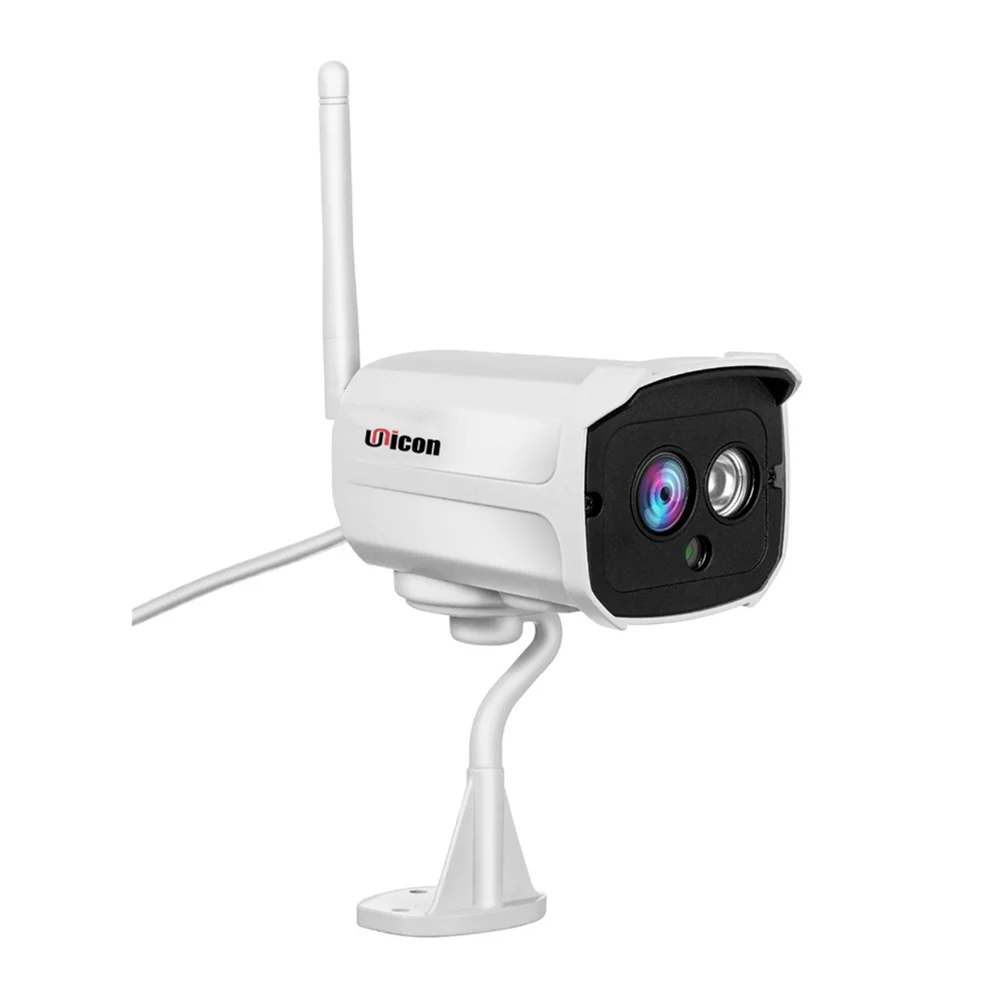

Model

Wifi Camera

Technical Parameters

Sensor

1/4” Progressive Scan Sensor

Signal System

PAL/NTSC

Resolution

1080P; 1920 x 1080 16 : 9 High Defination

Minimum illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

3.6/4/6mm (optional)

OSD

Date Time & Title

White Balance

Auto

Day&Night

Auto / Color / BW

3D-DNR

Auto

Mirror/Flip

On / Off

Frame Specification

Three Streaming at the Same Time:
H.264 1920x1080@30fps or below
H.264 1920x1080@30fps or below

S/N

> 39.1 Db

Interface

RJ45 / WIFI 802.11b/g/n

General Specification

Anti-thunder Level

Standard IEC61000-4-5

Ambient

Temperature/Humidity

-10℃ to +50℃ / 30% to 80% RH
