Безвентиляторный multi com с двумя LAN мини-ПК linux компьютер настольный i5 5200U промышленный
- Категория: Mini PC >>>
- Поставщик: Shenzhen,Gowin,Industrial,Control,System,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.2 $* | 0.70 $* |
| Aug-16-2025 | 0.15 $* | 0.17 $* |
| Jul-16-2025 | 0.44 $* | 0.2 $* |
| Jun-16-2025 | 0.7 $* | 0.45 $* |
| May-16-2025 | 0.5 $* | 0.95 $* |
| Apr-16-2025 | 0.6 $* | 0.59 $* |
| Mar-16-2025 | 0.27 $* | 0.56 $* |
| Feb-16-2025 | 0.22 $* | 0.23 $* |
| Jan-16-2025 | 0.71 $* | 0.88 $* |
Характеристики
Product Description

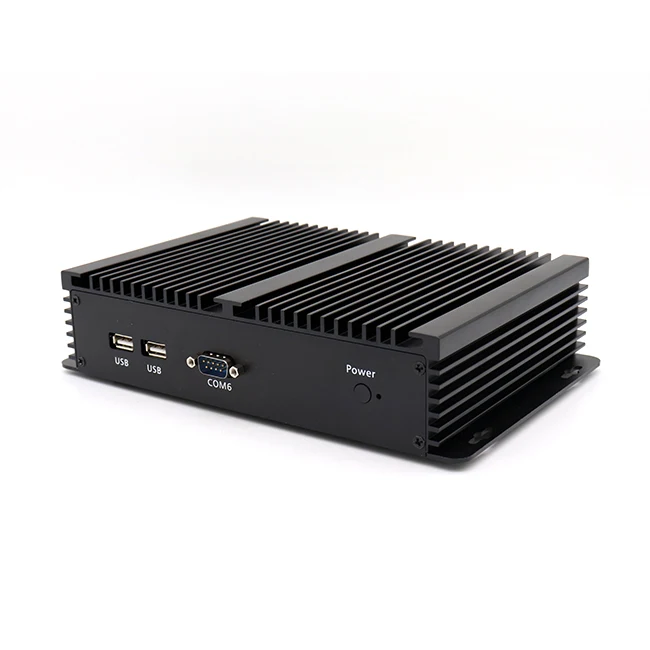

fanless multi com dual lans mini pc linux computadora set desktop i5 5200U pc industrial
Please note: this model can support processor including: Pentium 3805U /3825U/3215U4th/5th/ generation of i3 / i5 /i7.If you want to know more details price ,please contact us.
CPU including: 3215U/3805U/3825U/ I3-4010U; I3-4010Y;I3-5005U;I5-4200Y;I5-4200U;I5-5200U;I7-4500U;I7-5500U
Features:
- Full-fledged desktop performance with the latest Intel® Core™ i7, i5, i3 or pentuim processors
- Support Dual display configuration by multiple interface: HD/ Vga or HD/DP
- With 4 x USB3.0 2 x USB2.0 • Support automatic start the computer when plug in power
- Support wake up on Lan
- OS Support: Win 7/ Win 8/ Win 10/ Linux
- Palm-size from factory: 230 x 150 x 54mm
- Fanless Cooling, Low power consumption
- Support GPIO
- Support Watchdog
- Support 2*MINIPCIE
- Support 6*com (RS232/RS485/RS422),
- Support DUAL LANS (RTL8111E)
| Model name | GY-K286 | |
| Processor | CPU | Core I5 5200U(2 cores, 4 Threads) |
| Base Frequency | 2.2GHz | |
| Burst Frequency | 3.8GHz | |
| Memory | Technology | Single Channel DDR3L |
| Capacity | 2G/4G/8G/16G | |
| Storage | SATA | Support 1*2.5 inch SATA laptop HDD or SDD |
| MSATA | 16G/32G/64G/128G/256G/512G/1T etc | |
| Graphics | Processor | Intel® HD Graphics 5500 |
| Interface | 1*HD+VGA+LVDS (optional) | |
| Ethernet | LAN | 2*RTL8111 Gigabit NIC |
| WAN | 1*Full height Mini PCIE +1*Half height Mini PCIE + 2 external antennas (Optional) | |
| 4G | Support (Optional) | |

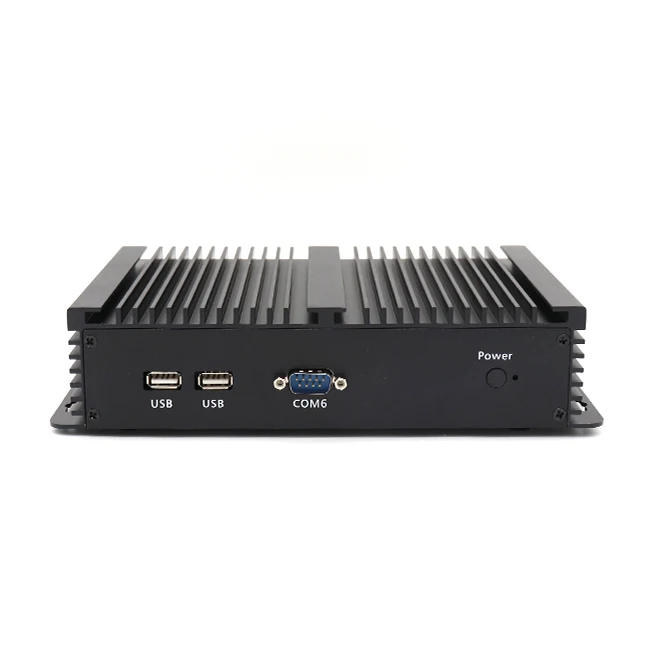

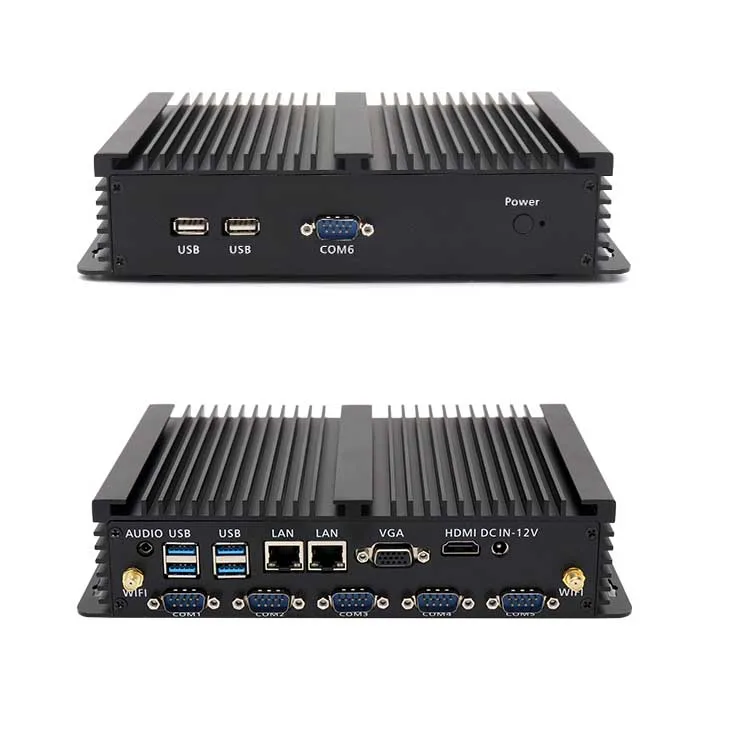

| IO interface | Front side | 2*USB2.0,1*SIM card, 1*power |

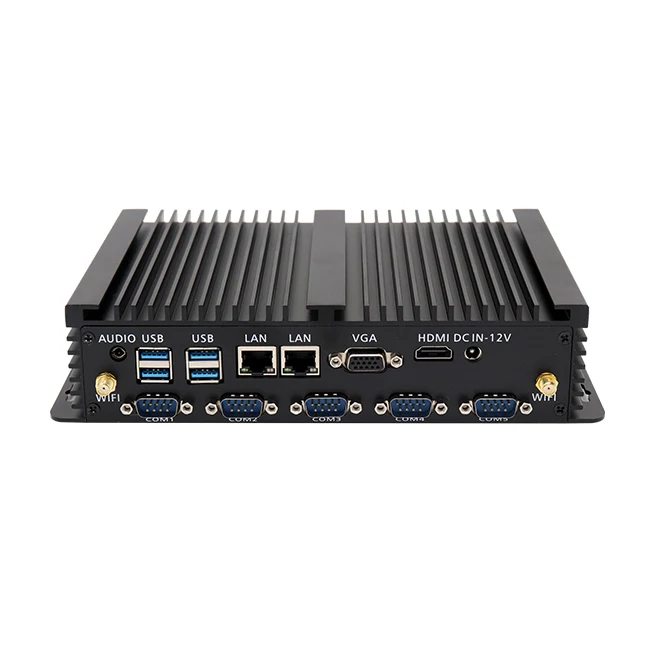

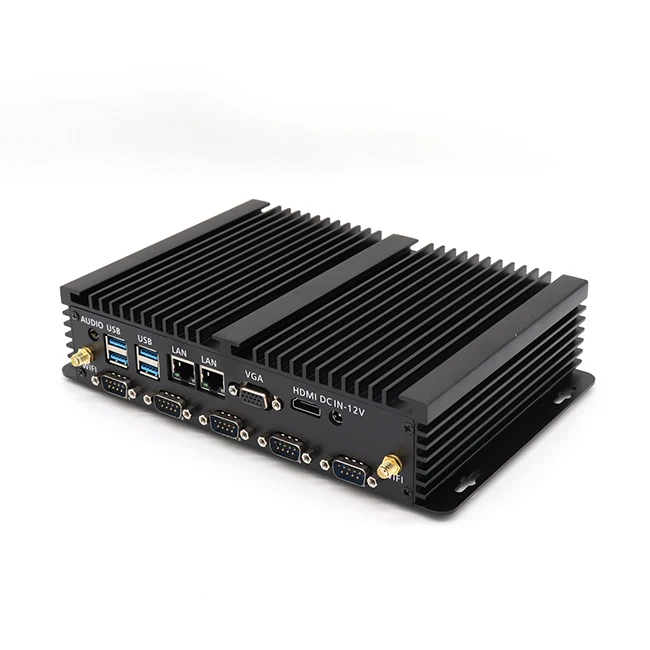

| Back side | 1*DCIN,2*LAN,1*VGA,2*HDMI,4*USB3.0,1*MIC,1*SPK | |
| Power requirement | Power type | External power adapter mode |
| Power adapter | 12V 5A(Huntkey brand) | |
| TDP | 15W | |
| Audio | ALC662 | |
| OS support | Win 7, 8, 10 and all kind Linux OS | |
| Chassis | Construction | Aluminum housing |
| Mounting | 4 wall mounting hole | |
| Dimensions | 230*150*54mm | |
| Weight | N.G 1.4KG | |
| Working environment | Humidity | 5%~95% Relative humidity with non-condensation |
| Storage temperature | -40~80℃ | |
| Working Temperature | -20~60℃ | |
| Gross Weight | 2.0kg | |
Certifications
Packaging & Shipping
Product Packing List:
| Series | NO. | Material list |
| 1 | 1 | Gowinpc mini pc |
| 2 | 1 | 12V 5A Power adapter |
| 4 | 1 | User manuel |
| 5 | 1 | Bracket(set) |
| 6 | 6 | Screws |
| 7 | 5,10 | Units/carton |
Different Power Plug for Different Country.
Package
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-2.0KG);
5Pieces/Carton(G.W. : 5.0-10.0KG);
Our Services
FAQ
Q1. Can I get a sample for testing?
Re: Yes ,you can. After paid sample and shipping cost, we will deliver it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. How many goods in one carton?What is its size?
Re: Our standard carton is 5 sets/ carton, its size is 42*8.5*34.5CM .
Q4. This is my first time buying computers, could you provide some advice?
Re: Yes, it's our pleasure. Different use have different options, pls contact us to get more details
Q5. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. Pls contact us to get more information, thanks.
Q6. Can you print my logo on the mini computer and customize logo on boot-screen?
Re: Yes, we can silkscreen logo on computer case, and customize logo on boot-sreen.
Q7.What is your warranty?
Re:All of our devices warranty is for 3 years.
Q8. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q9. Do you have FCC,CE,ROSH Certificates?
Re: Yes, we have all of them.
Q10. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty)
