5 м ручная лебедка прицеп мачта Мобильная камера видеонаблюдения палка
- Категория: Телекоммуникационная башня >>>
- Поставщик: Shenzhen,Okaf,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 714.83 $* | 750.92 $* |
| Aug-16-2025 | 708.32 $* | 743.87 $* |
| Jul-16-2025 | 594.16 $* | 624.29 $* |
| Jun-16-2025 | 696.3 $* | 731.68 $* |
| May-16-2025 | 606.21 $* | 636.29 $* |
| Apr-16-2025 | 684.56 $* | 718.55 $* |
| Mar-16-2025 | 678.43 $* | 712.45 $* |
| Feb-16-2025 | 672.73 $* | 706.40 $* |
| Jan-16-2025 | 666.9 $* | 699.87 $* |
Характеристики

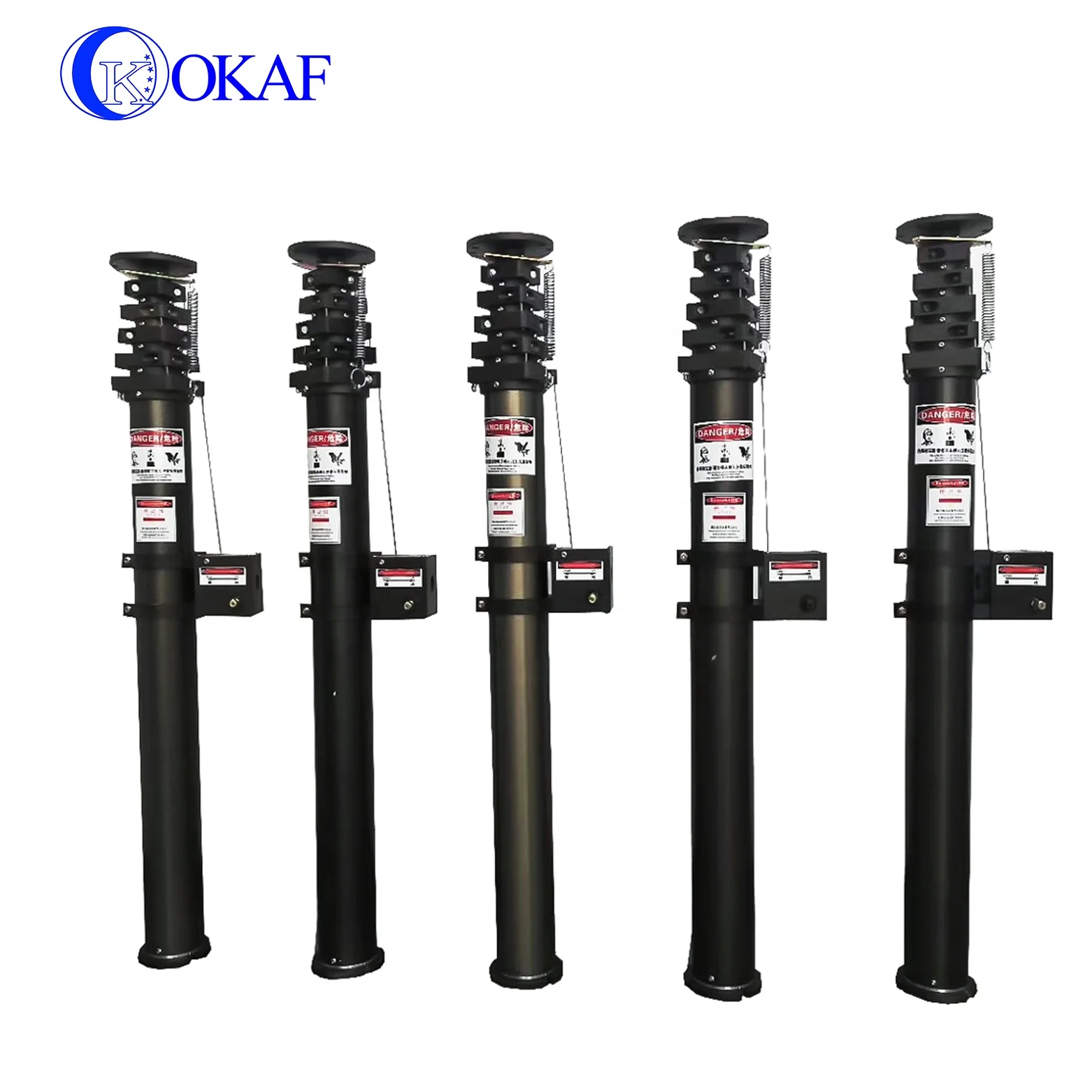

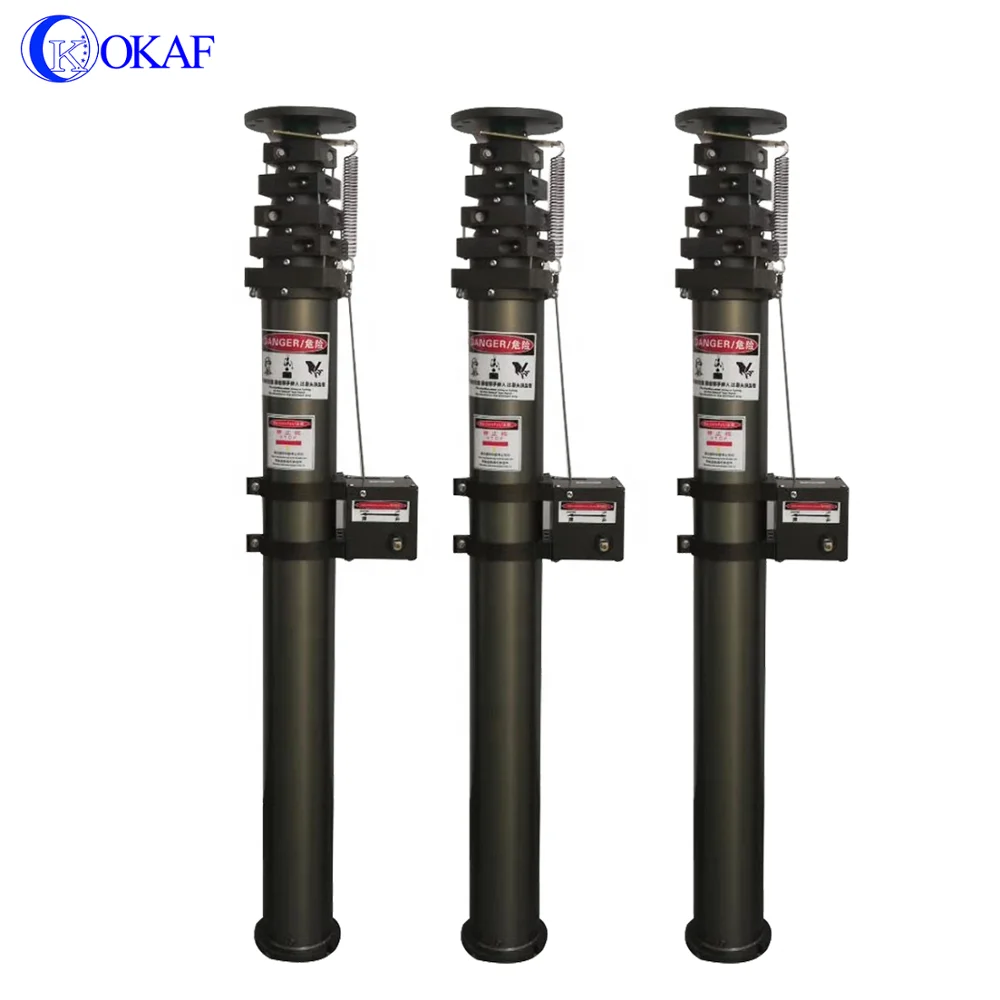

5m Manual Winch Trailer Mast Mobile Surveillance CCTV Camera Pole Telescopic Mast
Specification
Okaf manual telescopic mast antenna mast lifter is also a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely. Our company's manual antenna mast lifter is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc.
Working principle: The system uses screw drive or wire rope drive. Its good self-locking performance achieving reliable self-locking in any position improves the safety of reliability.
Technical data
| Model | Height Extended | Contractile height | Number of Tubes | Min Pipe Diameter | Maximum diameter | Wind power | Torsion precision | Max payload |
| OK-SD03SJ | 3M | 1200mm | 3(1060-200) | 52mm | 80mm | Level 8/19m/SEC | ≤±2º | 30KG |
| OK-SD04SJ | 4M | 1300mm | 4(1140-220) | 40mm | 80mm | Level 8/19m/SEC | ≤±2º | 30KG |
| OK-SD05SJ | 5M | 1500mm | 4(1340-220) | 40mm | 80mm | Level 8/19m/SEC | ≤±2º | 25KG |
| OK-SD05BSJ | 5M | 1200mm | 6(970-220) | 40mm | 106mm | Level 8/19m/SEC | ≤±2º | 20KG |
| OK-SD06SJ | 6M | 1400mm | 6(1160-230) | 40mm | 106mm | Level 8/19m/SEC | ≤±2º | 20KG |
| OK-SD08SJ | 8M | 1700mm | 6(1460-240) | 40mm | 106mm | Level 8/19m/SEC | ≤±2º | 20KG |
| OK-SD10SJ | 10M | 2100mm | 6(1860-270) | 40mm | 106mm | Level 8/19m/SEC | ≤±2º | 15KG |
| OK-SD10BSJ | 10M | 1800mm | 8(1500-280) | 40mm | 132mm | Level 8/19m/SEC | ≤±2º | 15KG |
| OK-SD12SJ | 12M | 2100mm | 8(1780-340) | 40mm | 132mm | Level 8/19m/SEC | ≤±2º | 10KG |
| OK-SD15SJ | 15M | 2500mm | 8(2180-400) | 40mm | 132mm | Level 8/19m/SEC | ≤±2º | 8KG |
| OK-SD18SJ | 18M | 2900mm | 8(2580-450) | 52mm | 160mm | Level 8/19m/SEC | ≤±2º | 5KG |
| OK-SD20SJ | 20M | 3100mm | 8(2390-450) | 40mm | 160mm | Level 8/19m/SEC | ≤±2º | 5KG |
Application
Application of Telescopic Mast
1.Wi-Fi antennas.
2.Temporary communications.
3. Emergency services (Light tower for fire fighting rescue)
4. Mobile surveillance ( PTZ camera for law forensics)
4. Radio installation Surveying
5. Semi-permanent Installations for outdoor Events(Military or patrol surveillance)

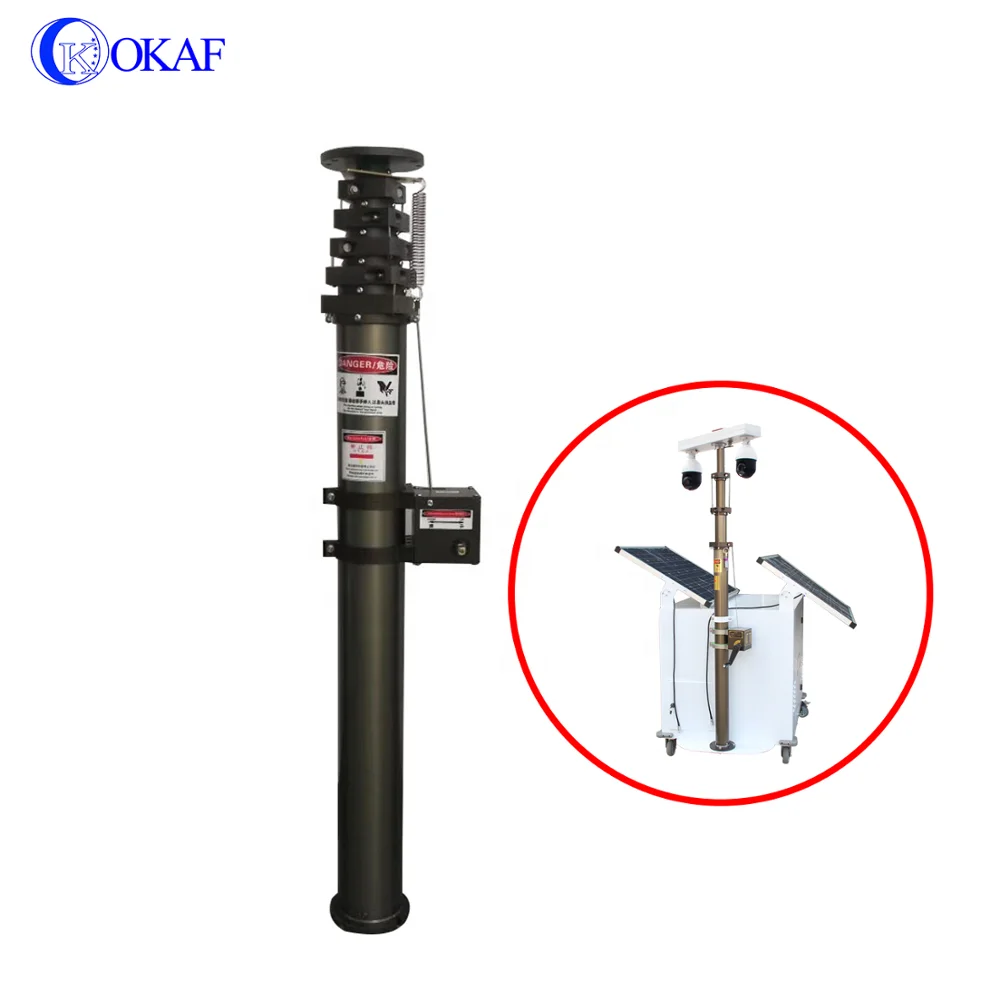

6. Construction site surveillance( Telescopic Mast for mobile CCTV trailers for construction sites monitoring).
Packaging & Shipping
All of the manual telescopic mast are well packed with standard export wood box. We provide standard accessories .
Company Information
Shenzhen Okaf Technology Co., Ltd has specialized in CCTV surveillance products such as vehicle PTZ Camera, 4G deployment dome camera, telescopic mast since 2005. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays. Our main products apply to public security departments such as: vehicle PTZ Camera, 4G deployment dome camera, vehicle mobile lifter, vehicle mobile lighting devices, police dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.
Our Services
Our Service
1. OEM manufacturing is welcome.
2. Sample order is available.
3. Most of the products are able to customized.
4. Fast reply within 12 hours as soon as we get your inquiry.
5. We will provide the most suitable solution for you when we get your requirement.
6. No worry if cooperate with OKAF. We will provide best service before sales and after sales. We are here always happy to help until you get the goods, test them and make sure everything is fine.
FAQ
Q1. How to choose a telescopic mast ?
A: Please kindly share with us the application, working height and top payload you need. Then our strong technician and engineer team will provide the most suitable solution or do customized fo you.
Q2. Do you accept OEM/ODM ?
A: Yes, OEM or ODM manufacturing are welcome , highly welcome to negotiate with our sales person, we can provide guaranteed products and competitive prices.
Q3. Can I have a sample first ?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the shipping cost.
Q4. What is your MOQ?
A:Our (MOQ) minimum order quantity is 1 pc each model.
Q5. Is there any assure to cooperate with you ?
We provide 1 year warranty for the telescopic antenna towers. Any issues during the warranty, we will take responsibility on it. Okaf have specialied in the filed for more than 10 years. Most of our customers have cooperature with us for more than 6 years because of our Integrity, professional and responsible.
Q6. How to order ?
A: Once the order confirm, we will send you PI. You could pay by TT, Western union, Paypal, Alibaba Trade Assurance. We will arrange production and shipment after get the payment.
More models of our telescopic mast you may like
 |  |  |
 |  |  |
