Оборудование для чтения штрих-кодов 3D сканер и фотосъемки визуальное распознавание высокая скорость Ce/iso9001


Поделиться:


Цена:3 000,00 $ - 3 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 3570.48 $* 3749.69 $*
Aug-16-2025 3540.90 $* 3717.1 $*
Jul-16-2025 2970.49 $* 3119.50 $*
Jun-16-2025 3480.63 $* 3654.15 $*
May-16-2025 3030.57 $* 3182.10 $*
Apr-16-2025 3420.24 $* 3591.93 $*
Mar-16-2025 3390.21 $* 3560.62 $*
Feb-16-2025 3360.26 $* 3528.2 $*
Jan-16-2025 3330.45 $* 3497.95 $*

Характеристики



Product Paramenters


Barcode reader scanner equipment for Express parcels high speed code visual recognition

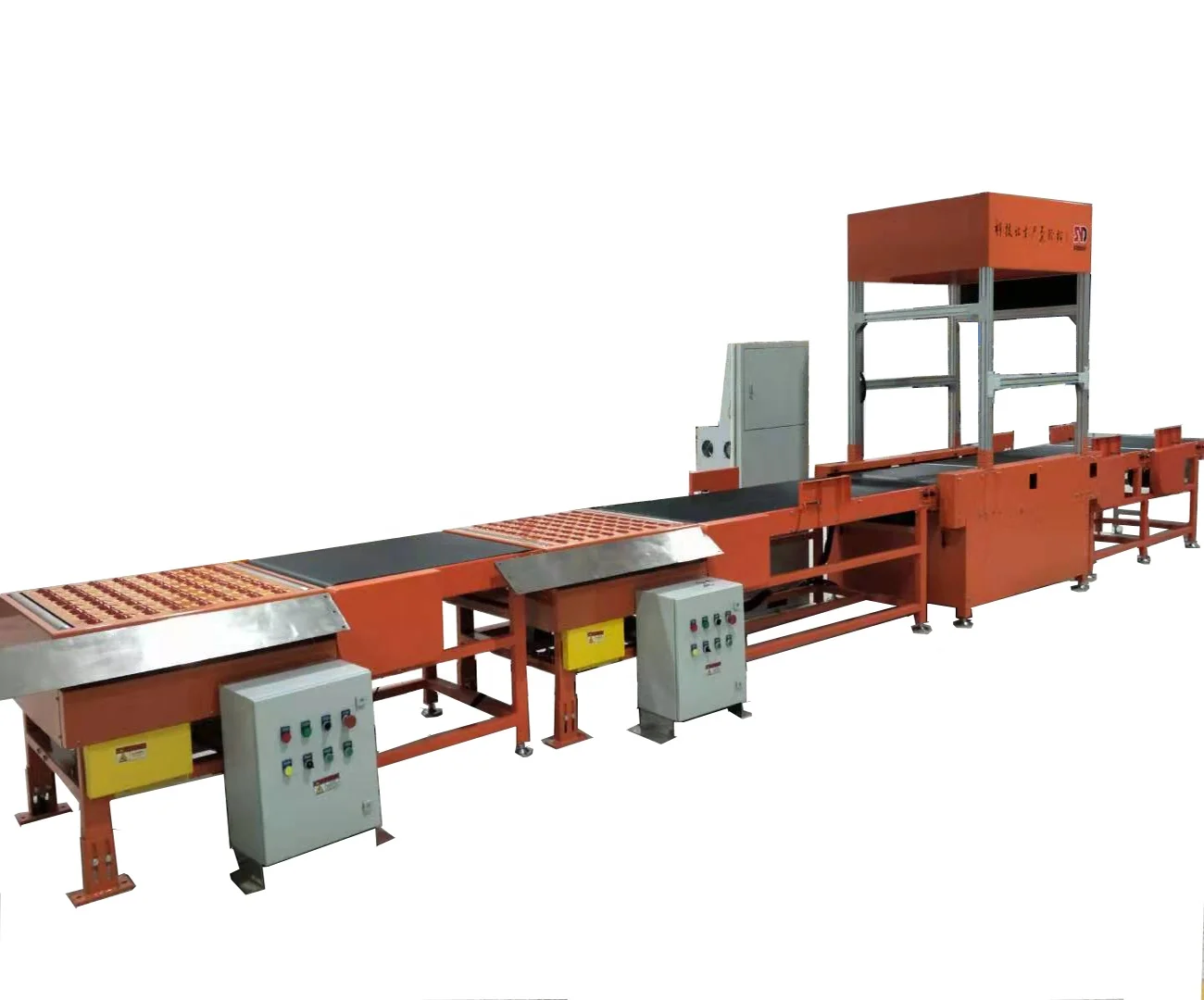

High speed warehouse parcel top-sided scanning equipment for conveyors

This top-sided scanning equipment is mainly installed on a high-speed conveyor during loading or unloading section and used to make records of both the barcodes and the parcel photos with barcodes. The photos can be queried and tracked.

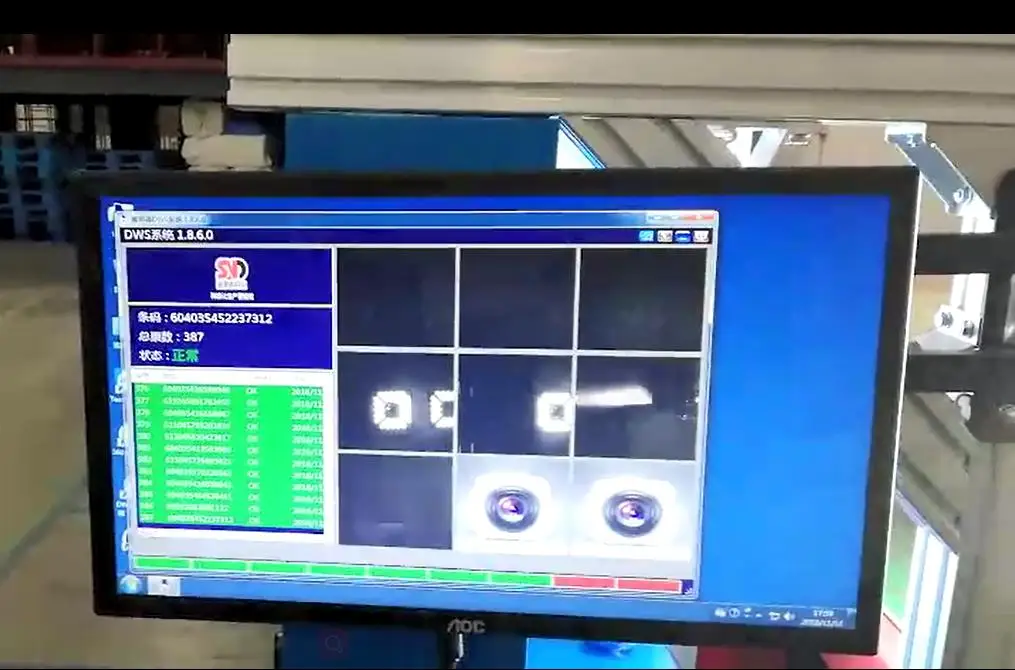

The scanner unit can not only recognize the barcode figures but also take photo of the parcels, both the figures and photos can be kept in local disk or uploaded to customers’ management system.


Several parcels can proceed together in a row,and the scanner reads all barcode in seconds, which allows the scanner unit to handle 10K~12K parcels in a hour.

Those courier express companies (such as UPS, FedEx, and TNT), e-commerce platforms (for example amazon), the large commodity companies and pharmacy companies and the duty-free warehouses e.t.c. that with huge flow of parcels or goods are popular to use this scanner unit.




Product Description


Discription

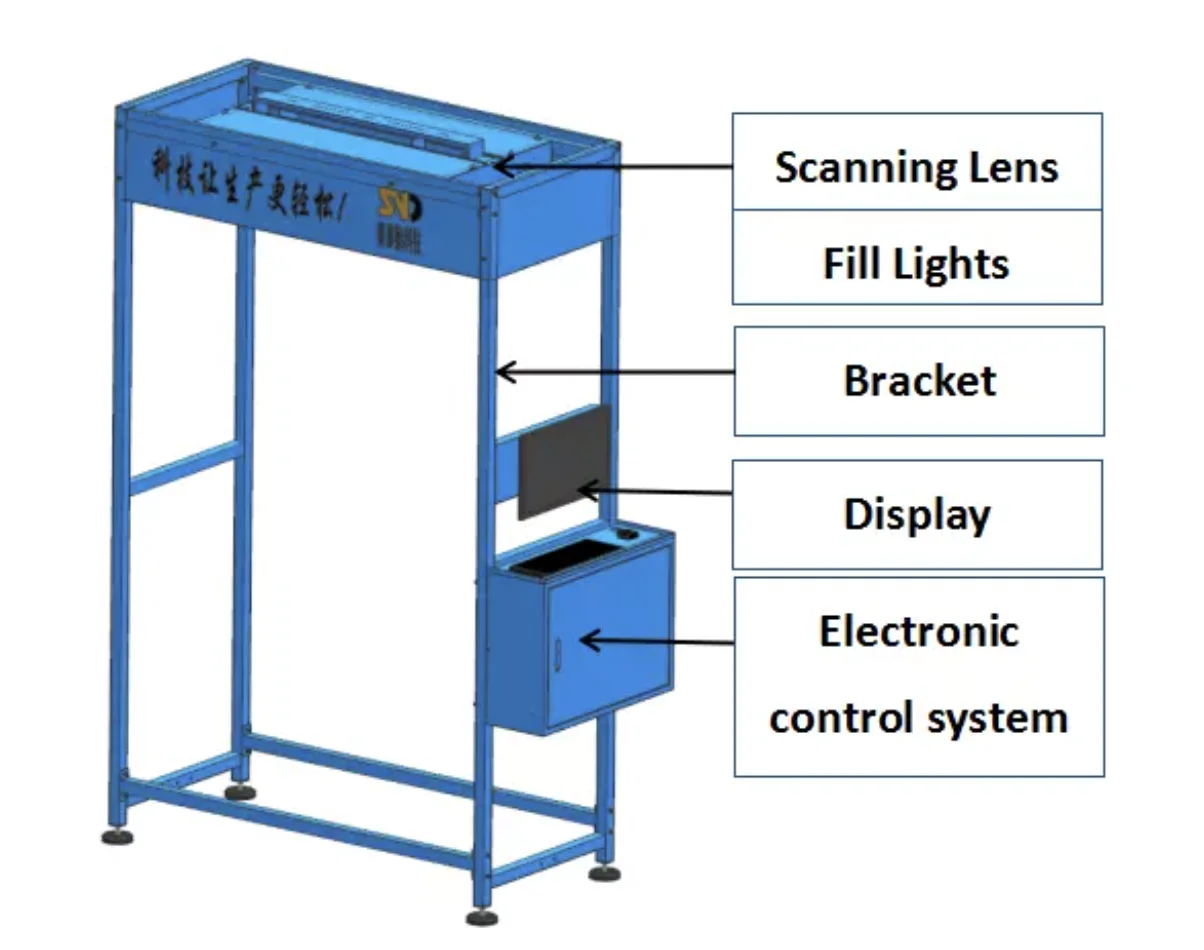

Specifications
Industrial computer
Intel I5-4590 CPU
Display
19.5 inches
Camera
MV-CA060-11GM
Fill light
MV-LB-200-200-20WL+S
Keyboard mouse
Logitech MK120
Bracket
L683*W1711*H2357
Camera case
/
Lens
MVL-HF1628M-6MP


Reading accuracy
Bar code recognition rate is greater than or equal to 99.5% (≥9.5mil)
Field of view (width)
900mm
Maximum depth of field (Height)
700mm
Standard barcode
No pollution, Damage, Fine folds, Defects, Recognition rate 100%
Support belt line speed
Conveyor belt speed ≤60m/min
Machine mounting surface distance from the belt line
1450mm






Main Features

    1)Have top reading function

    2)High-speed, multi-parcel-in-one-time, dynamic scanning code, high reading accuracy

    3)Real-time upload of customer management system

    4)Scanning rate ≥99.5%, efficiency up to 10,000 pieces/hour



Company Profile


Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments.

There are not only standard equipments but also customizable ones to realize different functions,such as high speed bulk packages barcode scanning, static and dynamic weighing,volume dimensions measuring,conveying and sorting,as well as the DWS integrated line system and also face recognition system,feeding systems,automatic conveying equipment,and follow-up robot,transportation robot,etc.The information collected can be stored, downloaded and shared to the users' management system.

The equipments take machine vision deep learning algorithms and robotic motion control as the core,and image processing algorithms,artificial intelligence,pattern recognition,video analysis algorithms, ARM|FPGA|DSP embedded software and hardware development,industrial machine vision positioning,visual tracking,visual inspection,multi-sensor information fusion and other technical means,to achieve the goal of "replacing manual labor with robot".

These equipments are designed to sent companies free from the problems of "Labor shortage,Labor expensiveness and Labor difficulty" and disputes and losts because of manual typo-error, and can achieve a highly rised working efficiency.

Technology makes production easier.

We pursuit a win-win situation. Our mission is to bring our partners easier work and higher efficiency.We will constantly contribute in upgrading and developing new technologies for practical application and provide high quality equipments and professional consultant services to our partners.


Our Factory












PATENTS
HONOURS


COOPERATION CASES



PARTNER



Our Service


After-sales service

A), One year free quality warranty

B), On-site service available

C), 24h on-line services

D), Overall warehouse solution
