1060 размер 1000*600 мм лазерный гравировальный станок с ЧПУ лазер 100 Вт система ruida глобальная
- Категория: Лазерные гравировальные машины >>>
- Поставщик: Liaocheng,Foster,Laser,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2083.53 $* | 2187.86 $* |
| Aug-20-2025 | 2065.82 $* | 2168.66 $* |
| Jul-20-2025 | 1733.14 $* | 1820.3 $* |
| Jun-20-2025 | 2030.71 $* | 2132.47 $* |
| May-20-2025 | 1768.99 $* | 1856.23 $* |
| Apr-20-2025 | 1995.85 $* | 2095.27 $* |
| Mar-20-2025 | 1978.56 $* | 2077.48 $* |
| Feb-20-2025 | 1960.65 $* | 2058.11 $* |
| Jan-20-2025 | 1943.76 $* | 2040.42 $* |
Характеристики
Product description
Features
1 ) Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2 ) USB Interface, U-flash Disk Supported, Ethernet cable, WIFI ( Optional parts )
3 ) Air Assist, Remove heat and combustible gases from the cutting surface
4 ) Embedded Exhaust Fan, Easier install, Safer transport
5 ) Rotary Axis, Engrave any cylindrical object ( Optional parts )
6 ) Aluminum Knife Worktable or Honeycomb Worktable.

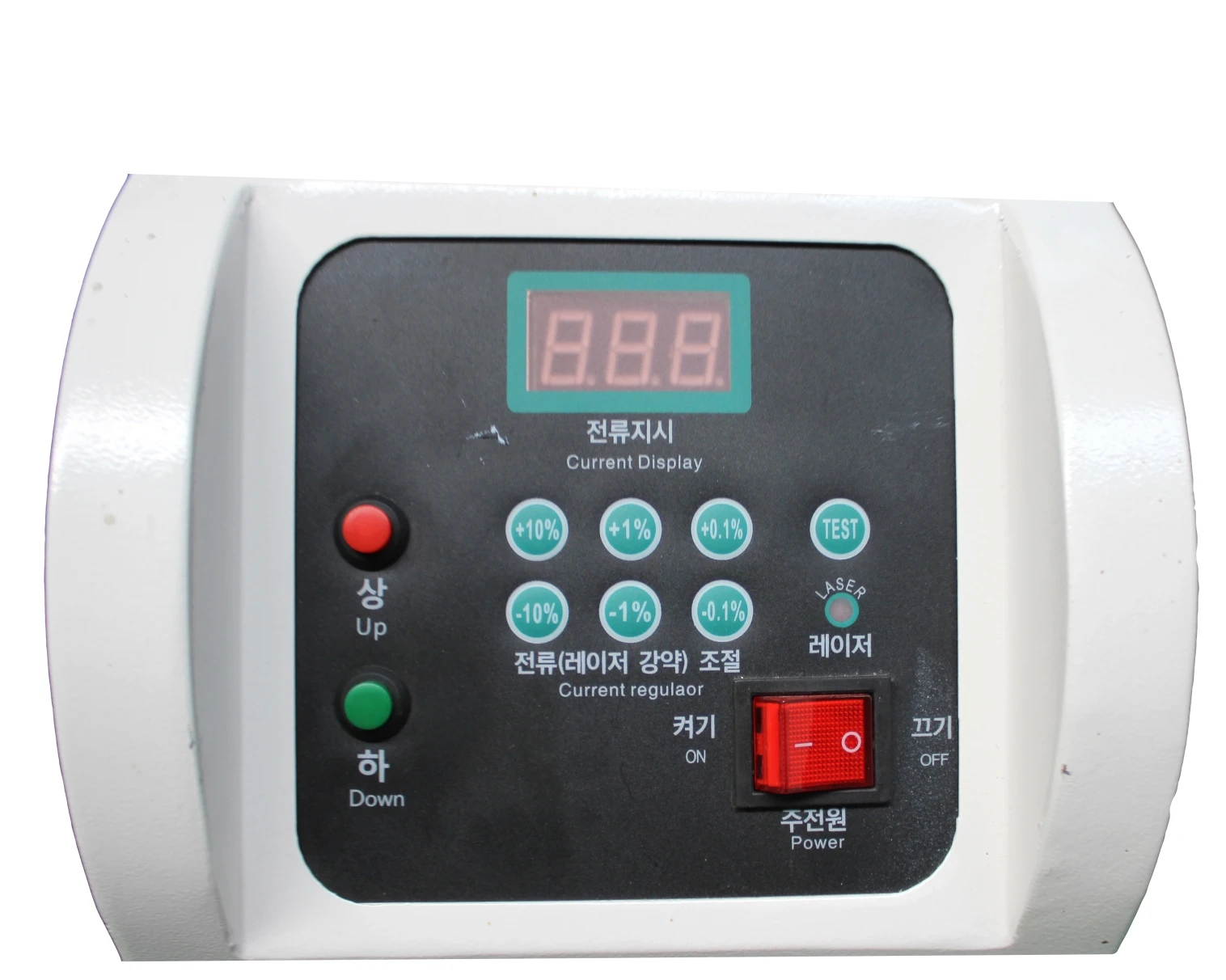

7 ) Intuitive Control Panel, Set Speed, power and more controls directly from the laser
8 ) Water Cooling and Protection System
9 ) Red light positioning
10 ) Emergency Stop Button
11 ) Larger Size, 1000' 600mm working area
12 ) The lifting platform is electric control

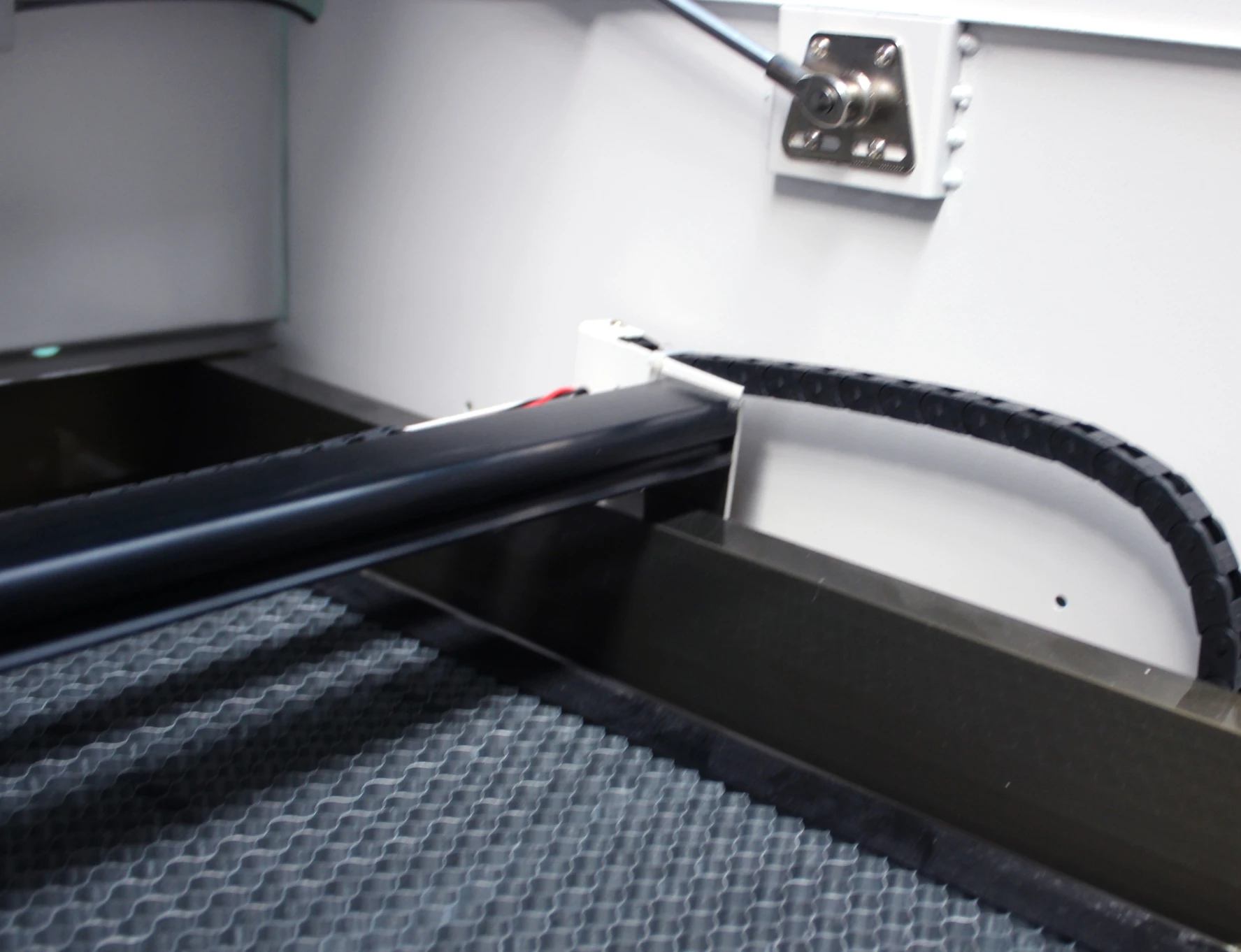

13 ) Drag-and-chain transmission line
14 ) Laser focal length: 5CM
1 ) Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2 ) USB Interface, U-flash Disk Supported, Ethernet cable, WIFI ( Optional parts )
3 ) Air Assist, Remove heat and combustible gases from the cutting surface
4 ) Embedded Exhaust Fan, Easier install, Safer transport
5 ) Rotary Axis, Engrave any cylindrical object ( Optional parts )
6 ) Aluminum Knife Worktable or Honeycomb Worktable.
7 ) Intuitive Control Panel, Set Speed, power and more controls directly from the laser
8 ) Water Cooling and Protection System
9 ) Red light positioning
10 ) Emergency Stop Button
11 ) Larger Size, 1000' 600mm working area
12 ) The lifting platform is electric control
13 ) Drag-and-chain transmission line
14 ) Laser focal length: 5CM
Details Images
Main configuration
Product Paramenters
Model | FST 1060 laser engraving cutting machine |
Working area | 1000*600mm |
Laser type | sealed co2 glass laser tube |
Laser power | 40W/50W/60W/80W/100W/150W |
Engraving speed | 0-30000mm/min |
Cutting speed | 0-3600mm/min |
Cutting thickness | 0-20mm ( depends on materials) |
Resolution rate | ±0.05mm |
Data transfer interface | USB2.0 |
Working voltage | 220v±10% 50hz 110v±10%60hz |
Min shaping character | Character:2*2mm letter:1*1mm |
Software | RdworksV8/ CorelDraw/AutoCAD |
Supported graphic formats | BMP PCX TGA TIF PLT CDR |
Working temperature | 0-45°C |
Working humidity | 5%-90% |
Rsolution ratio | <4500DPI |
Optional parts | Rotary axis,water chiller 3000/5000/5200. |
Package | Packing in export wooden cases |
Application Industry
Applicable material for reference | ||||||||||
Material | Engrave | Cut | Material | Engrave | Cut | |||||
Natural wood | √ | √ | Paper | √ | √ | |||||
Acrylic | √ | √ | Mylar | √ | √ | |||||
Glass | √ | × | Press board | √ | √ | |||||
Double color plate | √ | √ | Rubber | √ | √ | |||||
Bamboo | √ | √ | Plyeood | √ | √ | |||||
MDF | √ | √ | Fiberglass | √ | √ | |||||
Cloth | √ | √ | Painted metal | √ | √ | |||||
Leather | √ | √ | Plastic | √ | √ | |||||
Marble | √ | × | Ceramic | √ | × | |||||
Matte boards | √ | √ | Costed Metal | √ | × | |||||
Stone | √ | × | Other materials | Inquire us, we will test for you | ||||||
Cutting thickness of different laser power for reference | ||||||
Laser power(W) | Acrylic(mm) | Plywood | MDF(mm) | |||
40W | 3 | 2 | 1.5 | |||
60W | 8 | 5 | 3 | |||
80W | 12 | 8 | 6 | |||
100W | 15 | 12 | 9 | |||
150W | 25 | 20 | 15 | |||
Product packaging
FeedBack
FAQ
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to clien's specific requirements, it would be 7 to 10 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Our Service
1Warranty for 1 years.
2, Maintenance for whole life.
3,We will provide the consumable parts at an agency price.
4,24 hours online service,free technical support.
5,Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6,We have manual instruction and CD/U disk for software installation,operation and machine's using and maintenance.
