Покачивающийся ворот открывалка 500 кг Max Duty Heavy качание мощности вес автоматический
- Категория: Gate Operators >>>
- Поставщик: Nanjing,Carin,Electric,Service,Company,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.58 $* | 0.89 $* |
| Aug-18-2025 | 0.35 $* | 0.14 $* |
| Jul-18-2025 | 0.74 $* | 0.94 $* |
| Jun-18-2025 | 0.32 $* | 0.59 $* |
| May-18-2025 | 0.90 $* | 0.85 $* |
| Apr-18-2025 | 0.67 $* | 0.90 $* |
| Mar-18-2025 | 0.16 $* | 0.49 $* |
| Feb-18-2025 | 0.50 $* | 0.56 $* |
| Jan-18-2025 | 0.71 $* | 0.94 $* |
Характеристики
Products Description
L8 MAIN FEATURE
1)Automation for gates leaves up to 3.5m 300KG
2)Massive motor-gear unit for reliable power transmission
3)Self-locking spindle for maximum stability
4)High quality materials for long-term operation
5)Integrated limit stops for easier installation
6)Comfortable emergency release
7)Smart Plug & Play controls for maximum operating comfort
8)Standard soft stop for smooth gate movement
9)ARS Automatic Reversal System for maximum safety
10)Clever mounting design for smooth motion
2)Massive motor-gear unit for reliable power transmission
3)Self-locking spindle for maximum stability
4)High quality materials for long-term operation
5)Integrated limit stops for easier installation
6)Comfortable emergency release
7)Smart Plug & Play controls for maximum operating comfort
8)Standard soft stop for smooth gate movement
9)ARS Automatic Reversal System for maximum safety
10)Clever mounting design for smooth motion

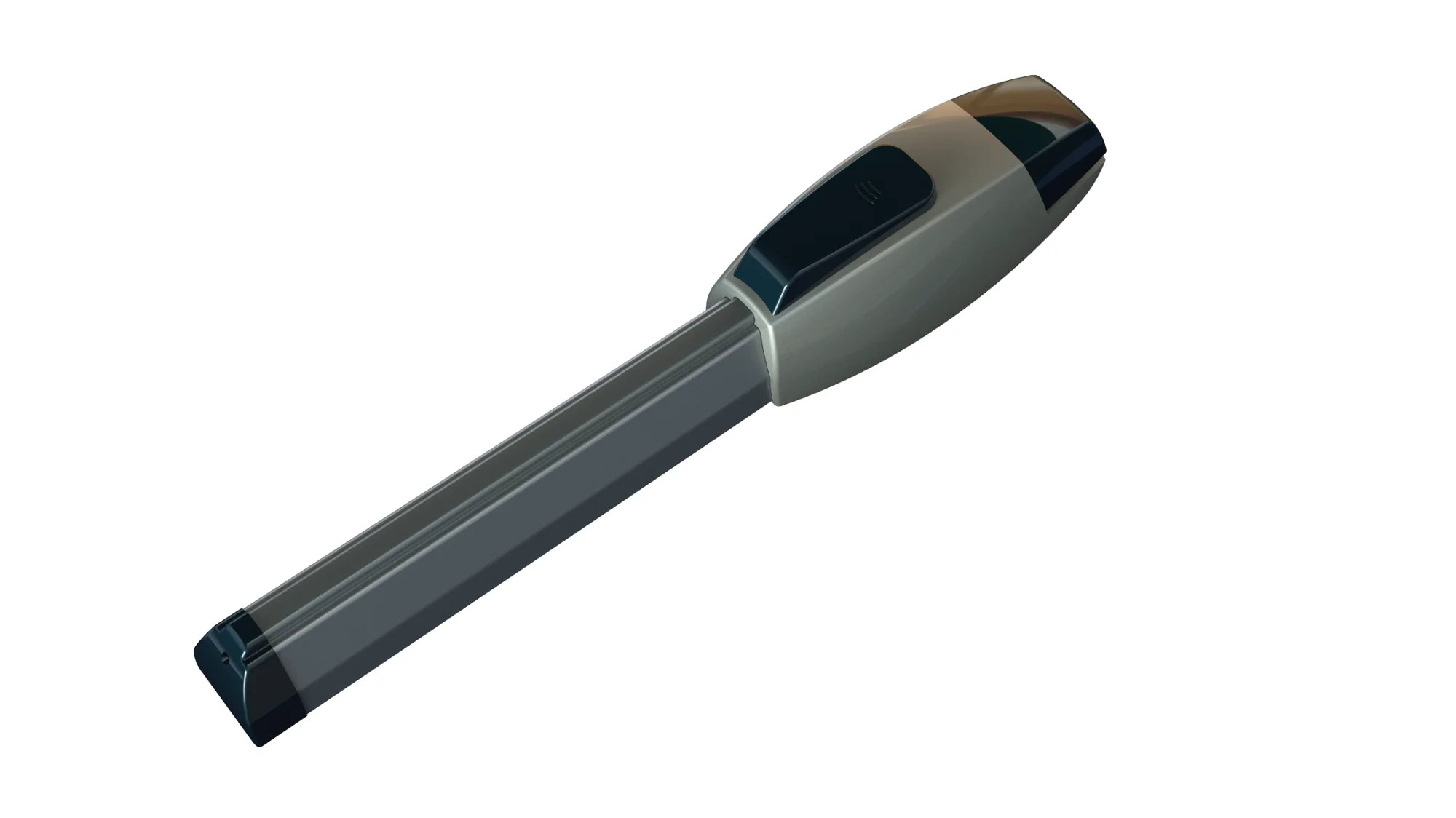

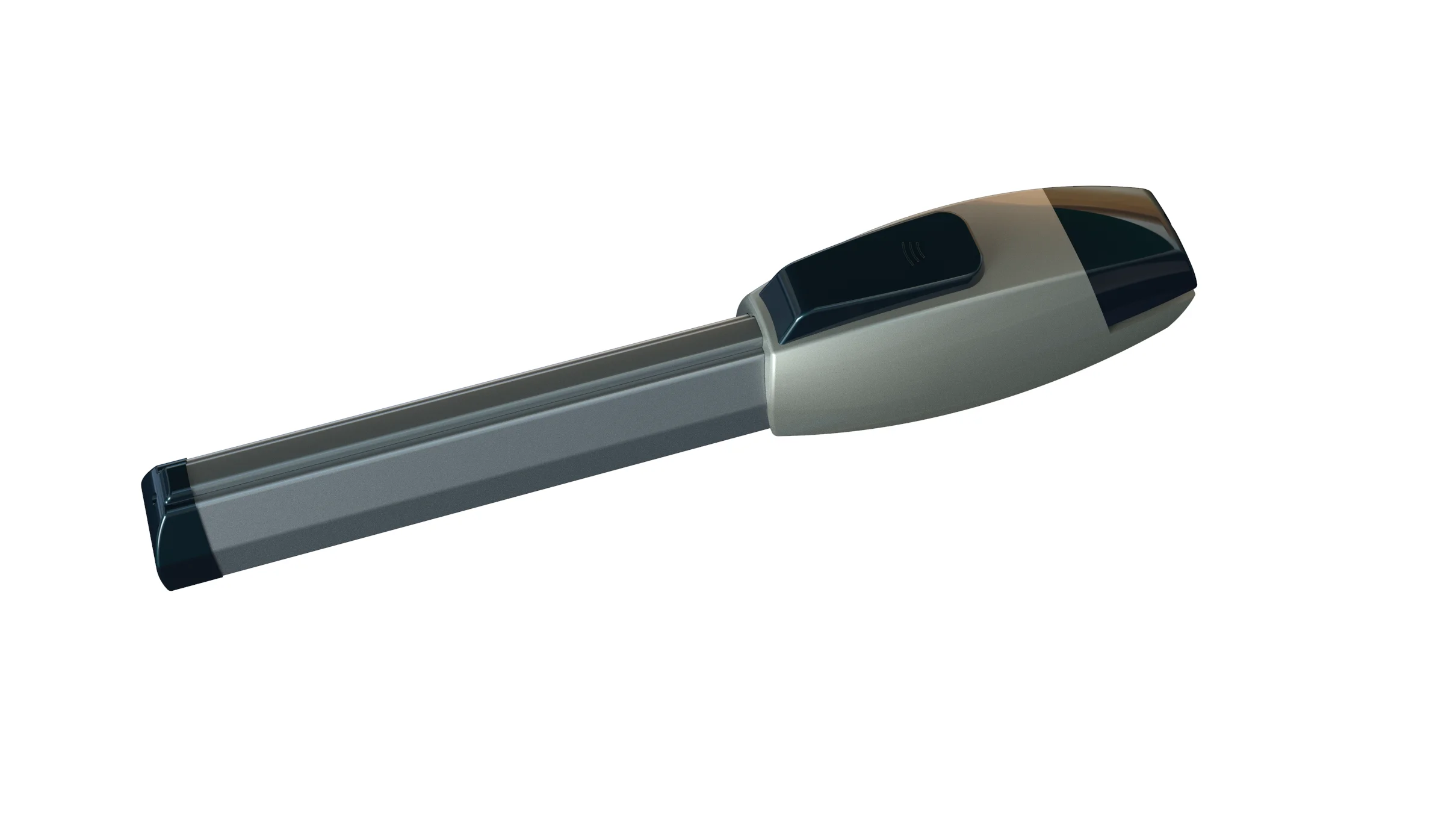

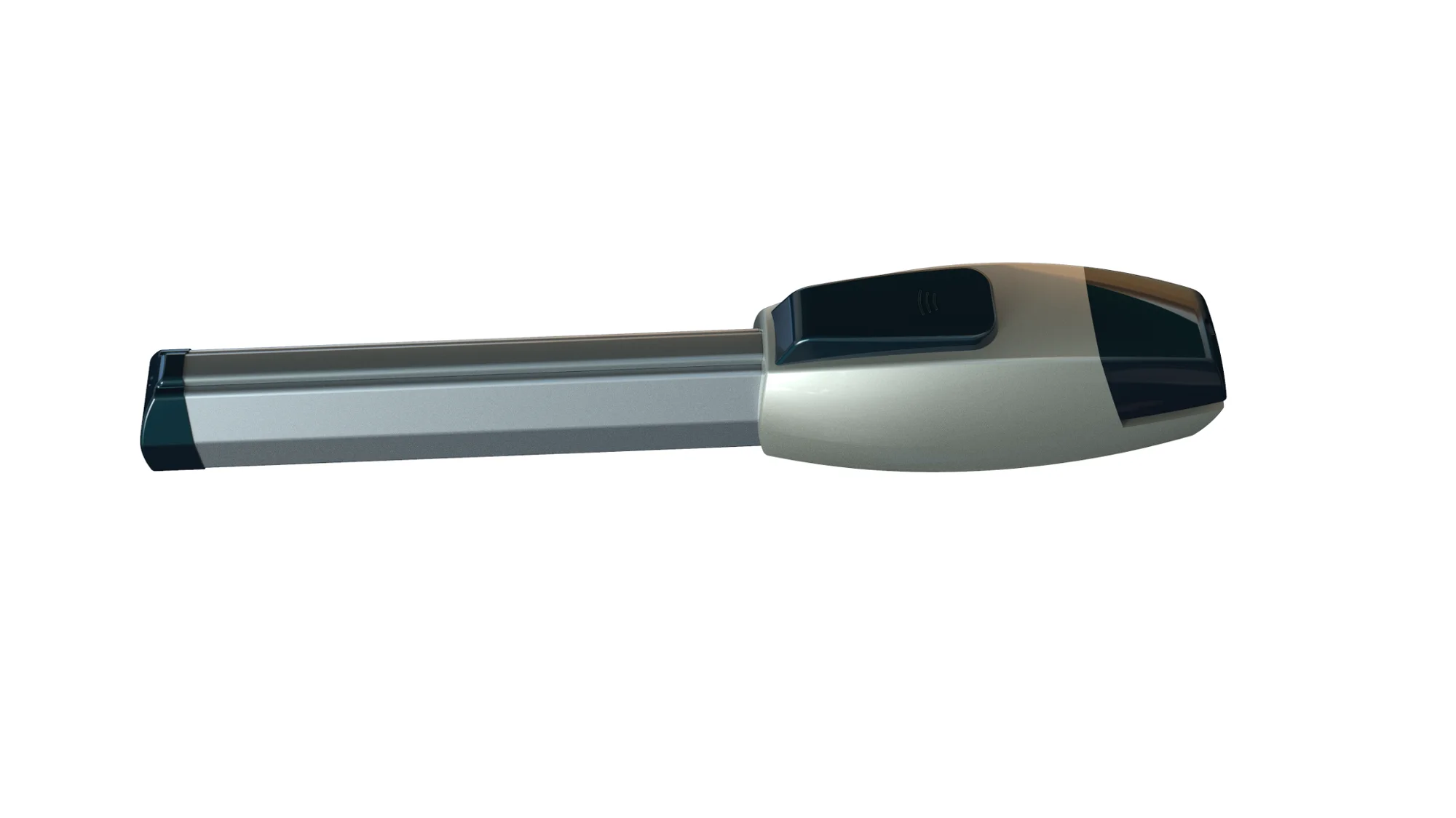

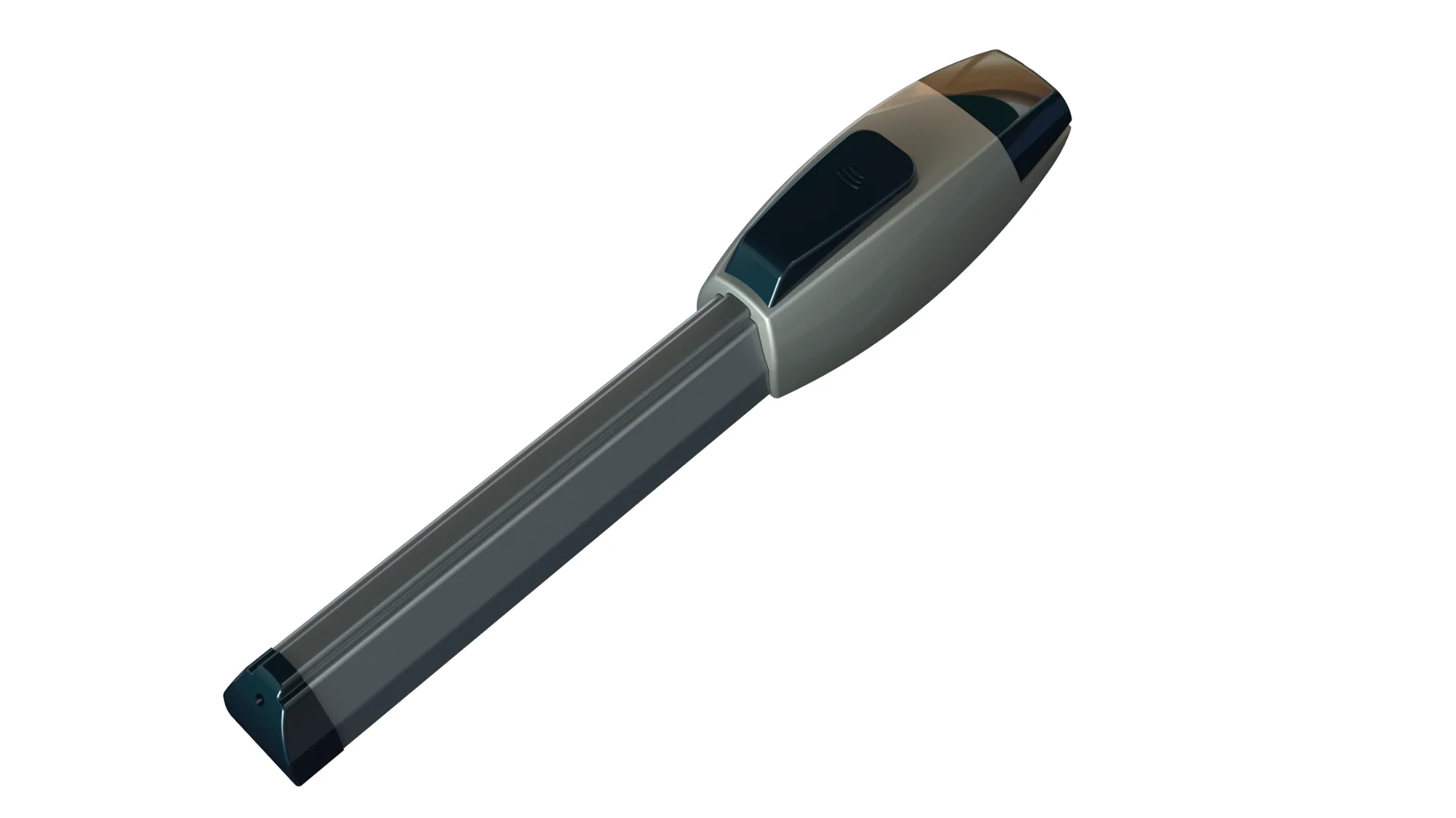

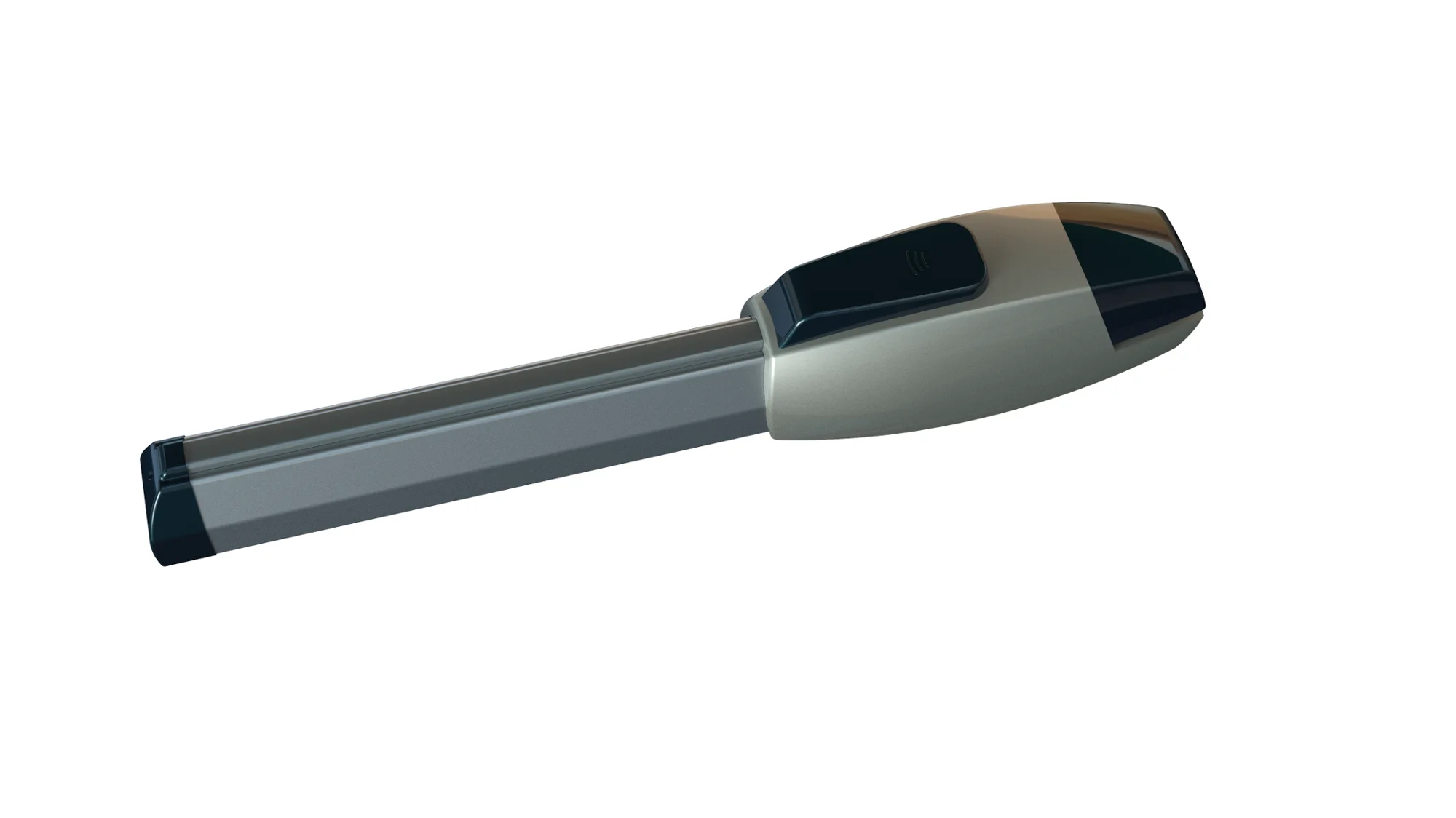

Details Images
Product Paramenters
Model | L8-DC-400 | L8-DC-600 | L8-AC-400 | L8-AC-600 |
Power Supply | AC110/220 | AC110/220 | AC110/220 | AC110/220 |
Motor | 24V | 24V | 110/220 | 110/220 |
Current | 4A | 4A | 2A/1A | 2A/1A |
Absorbed Power | 50W | 50W | 200W | 200W |
Max leaf Length | 2.5M | 3M | 3M | 3.5M |
Max leaf Weight | 400KGS | 400KGS | 500KGS | 500KGS |
Open Speed | 1.6CM/S | 1.6CM/S | 1.6CM/S | 1.6CM/S |
Thrust | 1400N | 1400N | 2500N | 2500N |
Stroke | 400MM | 600MM | 400MM | 600MM |
Working Temp. | -20°C~+70°C | -20°C~+70°C | -20°C~+70°C | -20°C~+70°C |
Duty | 95% | 95% | 40% | 40% |
Protection Class | IP45 | IP45 | IP45 | IP45 |
Capacitor | --- | --- | 25uf/8uf | 25uf/8uf |
Open Angle | 0~120 | 0~120 | 0~120 | 0~120 |
Limit Switch | Limit Switch | Limit Switch | Limit Switch | Limit Switch |
Company Profile
Company Profile
Nanjing Carin Electric Service Co. is a company(manufactory) established in 1991, The company integrates foreign and Chinese advanced techonogy,which enables our products to have reliable quality and competitive prices.we provide blank product, Our main products include:Automation for sliding oor.Automation for swingdoor and hydranlic swing gates. Automatic sliding doors and automation for windows, our products are also progressing with the times.Sincerely Welcome you visit our factory.
Product Packaging
Exhibition
Certifications
FAQ
1. Are you manufacturer or Trade Company?
We are professional and leading gate opener manufacturer, founded in 1991.
We are professional and leading gate opener manufacturer, founded in 1991.
2. What's the order process?
a. Inquiry--- The more information you provide, the suitable product we can provide for you! The information such as the gate weight, width, height, power source or other specials you give us will be more appreciated.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Sample confirmation---sample will be shipped out in 2 days.
e. Payment terms--- T/T 50% in advanced, balanced against copy of Bill of Lading.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
a. Inquiry--- The more information you provide, the suitable product we can provide for you! The information such as the gate weight, width, height, power source or other specials you give us will be more appreciated.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Sample confirmation---sample will be shipped out in 2 days.
e. Payment terms--- T/T 50% in advanced, balanced against copy of Bill of Lading.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T, L/C
T/T, L/C
