18650/26650/32650 Cylindrical Battery Double Points Spot Welder Welding Machine For Laboratory Research







Features

1. This pneumatic spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.03-0.25mm with good welding effect.



2. ARP30 series battery assembly microcomputer precision welding power supply adopts double pulse welding method. It is an advanced level high performance resistance welding machine in China.



3. It is specially designed for the production of high-end mobile phone batteries, mobile power supplies, power batteries, digital batteries, and nickel-metal hydride and nickel-cadmium batteries. Designed as needed.



4. ARP series precision AC resistance welding power supply is a new power source developed by Japanese thyristor inverter technology, microcomputer control technology and modern power electronics technology.



5. The time control reaches millisecond precision, the control response and control precision are greatly improved; the precision double pulse current output makes the welding process significantly improved;



6. The advanced software and hardware technology also makes the device have a series of advantages such as small size, energy saving and high efficiency; the microcontroller (MCU) With the adoption of electronic technology.



7. The device has excellent functions of modern equipment, including digital control, monitoring, fault diagnosis and protection, data transmission, etc.



8. The equipment is complete in function, flexible and convenient, and adaptable.

Optional

1. Single point or double points

2. Button or touch-screen



Technical Parameter

Air Pressure Range	0.1 - 0.7 Mpa ( air compressor is required)
Welding Current	2500A
Welding Thickness	0.03 - 0.25mm
Operation Temperature	-20 - 40℃
Product Dimensions	L800xW600xH130mm
Net Weight	30kg
Function	Welding Machine
Compliance	CE Certificate
Warranty	Two Years limited warranty with lifetime support
Color	Customer's Request
Product Keywords	Lithium battery spot welder,li-polymer battery tab welder,li-ion battery welder equipment

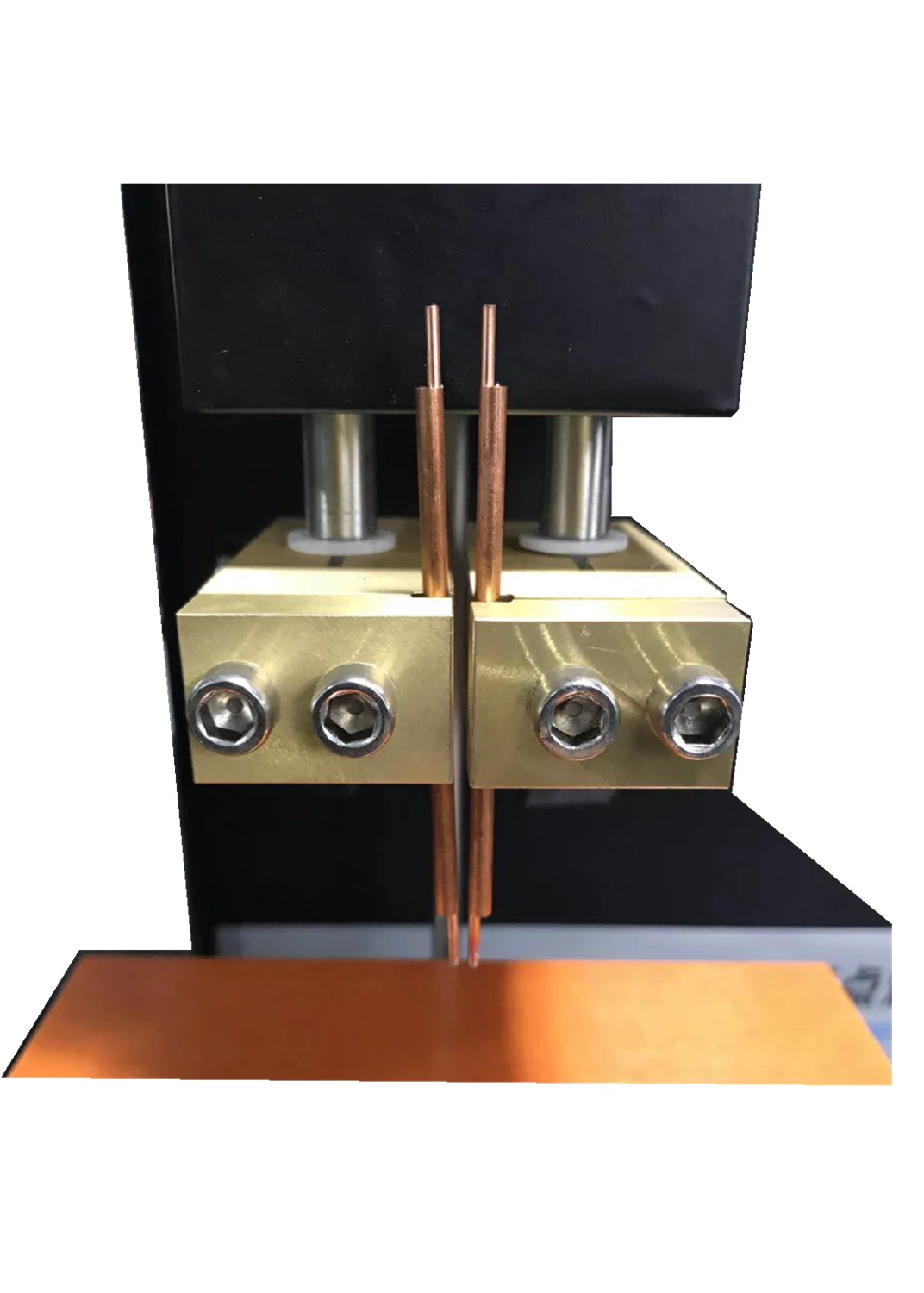

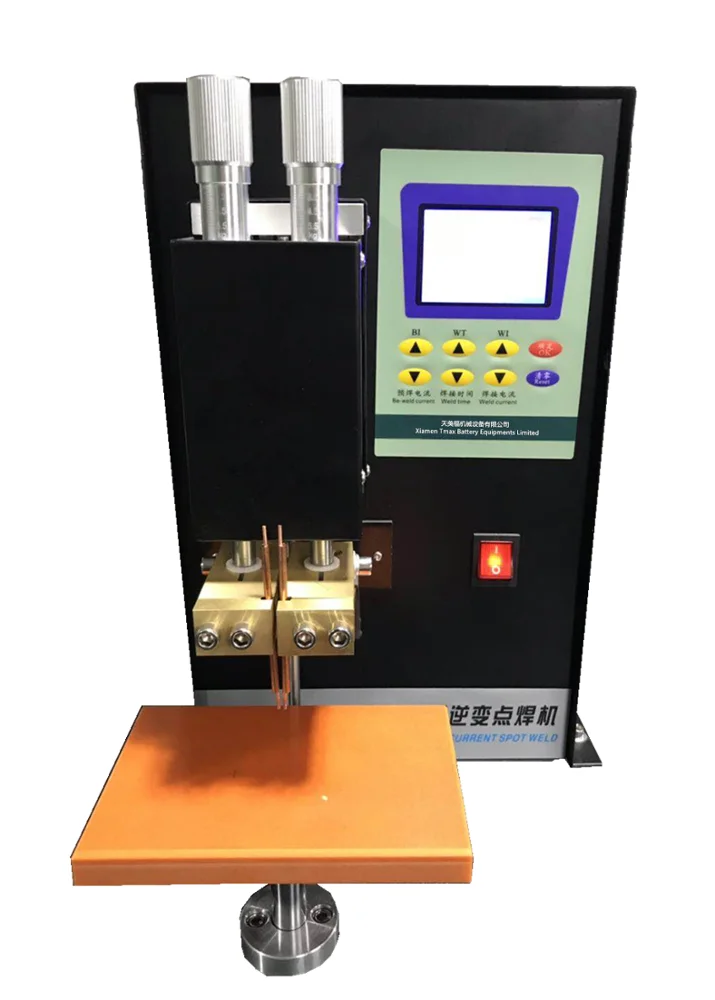

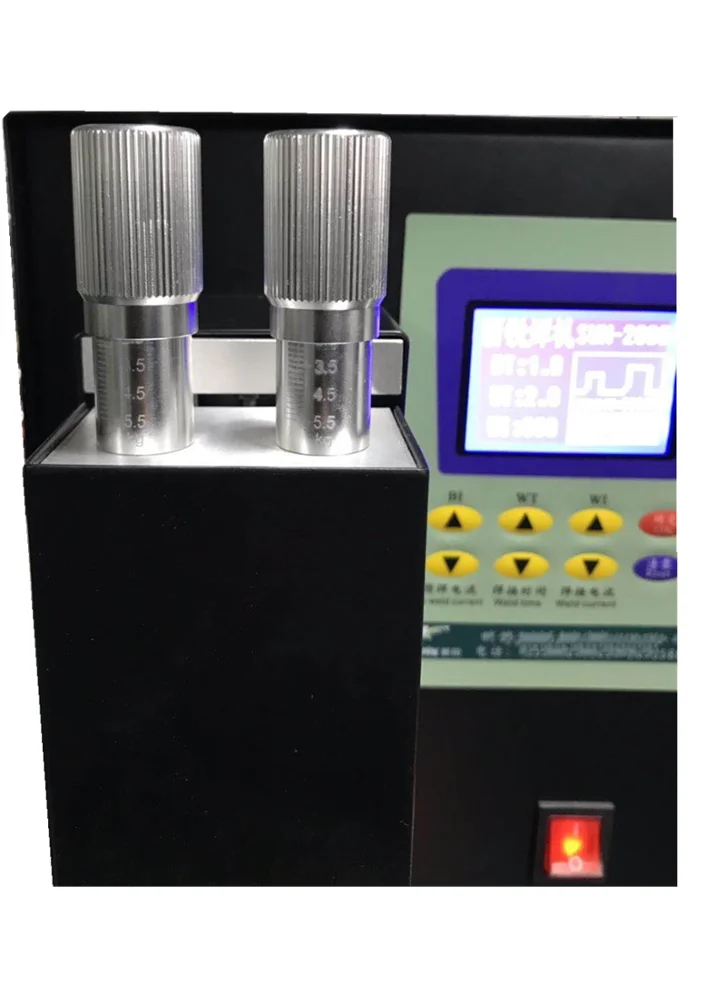

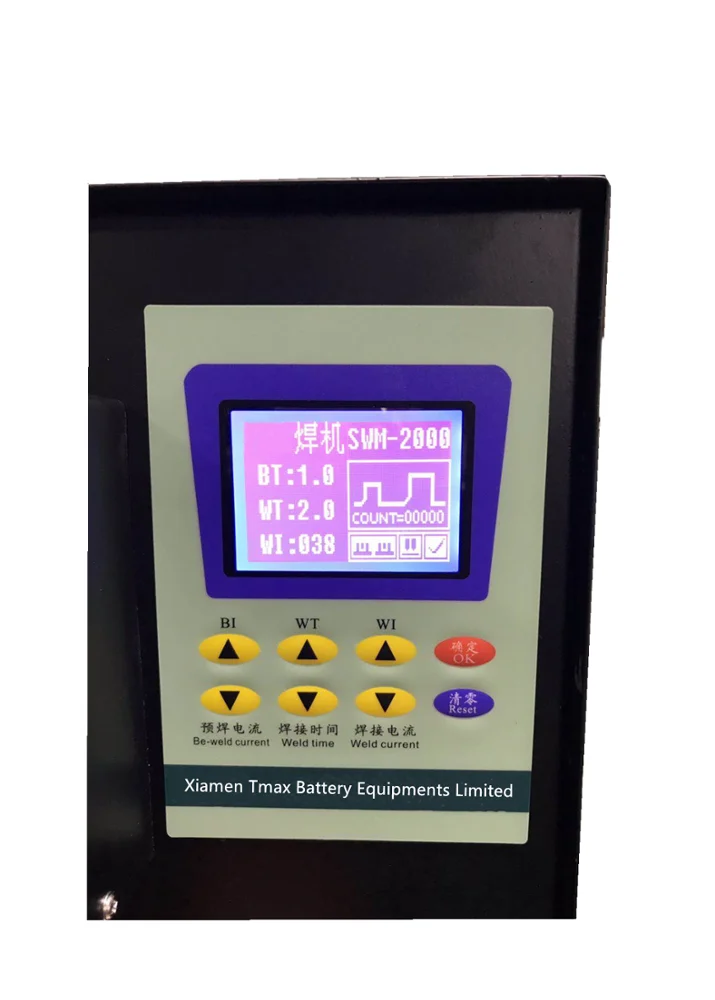

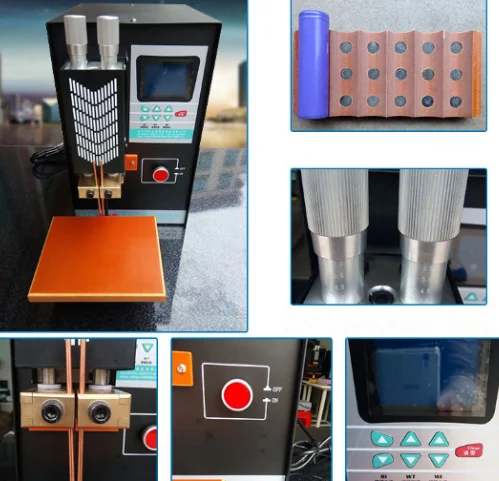

Product Images













1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
