Полуавтоматическая машина для изготовления пустотелых бетонных блоков в Новой Зеландии
- Категория: Brick Making Machinery >>>
- Поставщик: Henan,Mingxin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.77 $* | 0.74 $* |
| Aug-15-2025 | 0.87 $* | 0.65 $* |
| Jul-15-2025 | 0.11 $* | 0.26 $* |
| Jun-15-2025 | 0.59 $* | 0.5 $* |
| May-15-2025 | 0.18 $* | 0.47 $* |
| Apr-15-2025 | 0.31 $* | 0.32 $* |
| Mar-15-2025 | 0.60 $* | 0.99 $* |
| Feb-15-2025 | 0.75 $* | 0.42 $* |
| Jan-15-2025 | 0.51 $* | 0.55 $* |
Характеристики
Product Description

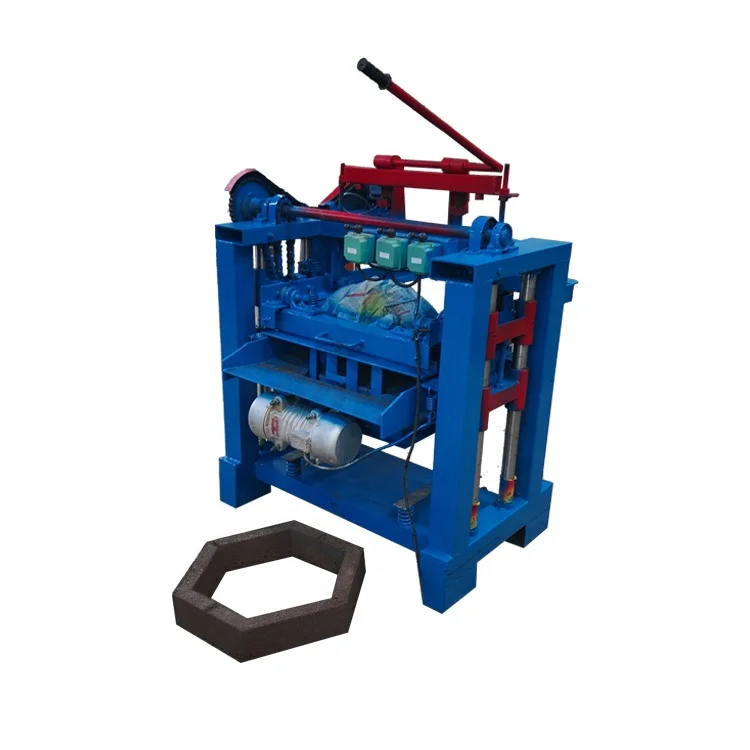

Building Semi-auto Hollow Concrete Block Making Machine
Building Semi-auto Hollow Concrete Block Making Machine In New Zealand On Sale is our newest cement block making machine.it use concrete materials.
A vibrator is added on its upper die,and digital travel switches are mounted,because this machine is higher in presser,it is equiped with electromagnetic brake motor for effectively eliminating the after-shock so that the production efficiency can be increased largely. one machine can produce different kinds of interlocking block by changing moulds.when building ,just lock them together.
A vibrator is added on its upper die,and digital travel switches are mounted,because this machine is higher in presser,it is equiped with electromagnetic brake motor for effectively eliminating the after-shock so that the production efficiency can be increased largely. one machine can produce different kinds of interlocking block by changing moulds.when building ,just lock them together.
product Name | Block making machine |
Model | QT2-45 |
Voltage | 220V |
Produce capacity | 300-400time/day |
block type | 400*200*200mm 3pcs/time 390*390*190mm 3pcs/time 390*150*190mm 3pcs/time 390*150*190mm 3pcs/time 390*120*190mm 4pcs/time 240*115*53mm 12pcs/time custom-made |
Shaping Cycle | 40-45S |
Weight | 200kg |
Size | 1100*800*1150mm |
QT2-45 diesel models
Model | QT4-35 |
Voltage | 380V |
Produce capacity | 500-600times/day |
Hollow block size | 400*200*200mm 4pcs/time 390*390*190mm4pcs/time 390*150*190mm 5pcs/time 390*150*190mm5pcs/time 390*120*190mm6pcs/time 240*115*53mm 28cs/time |
Shiping cycle | 35-40S |
Weight | 800kg |
Size | 3500*2000*2600mm |

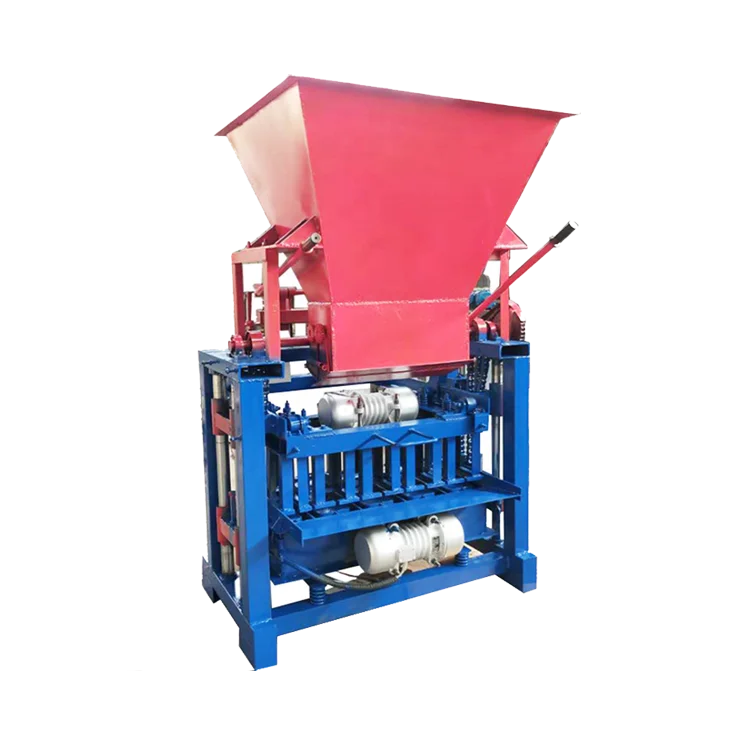

Model | QT4-35 (with hopper) |
Voltage | 220V/380V |
Produce capacity | 500-600times |
Hollow block size | 400*200*200mm 4pcs/time 390*390*190mm4pcs/time 390*150*190mm 5pcs/time 390*150*190mm5pcs/time 390*120*190mm6pcs/time 240*115*53mm 28cs/time custom-made |
Weight | 850kg |
Size | 3500*2000*2600mm |

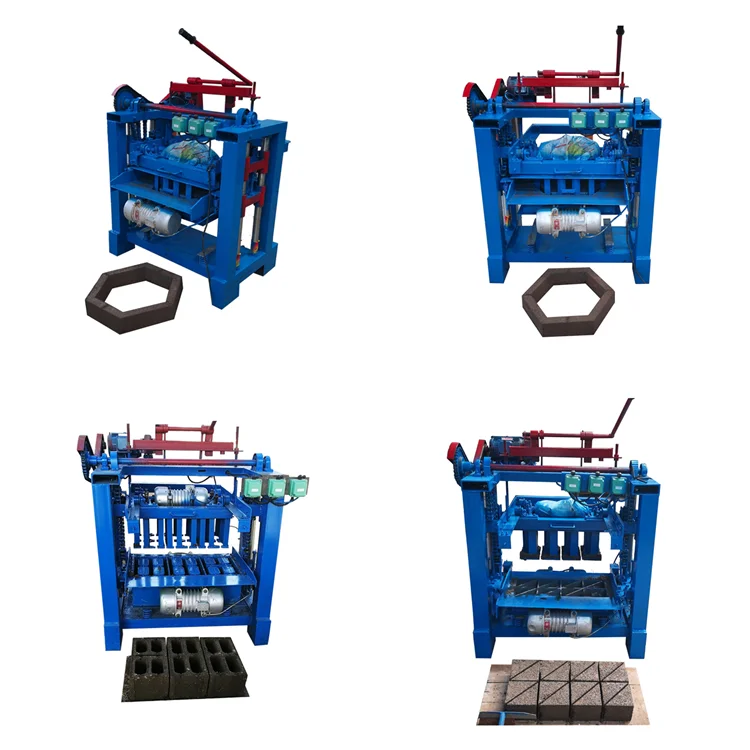

Detailed Images
Building Semi-auto Hollow Concrete Block Making Machine Details

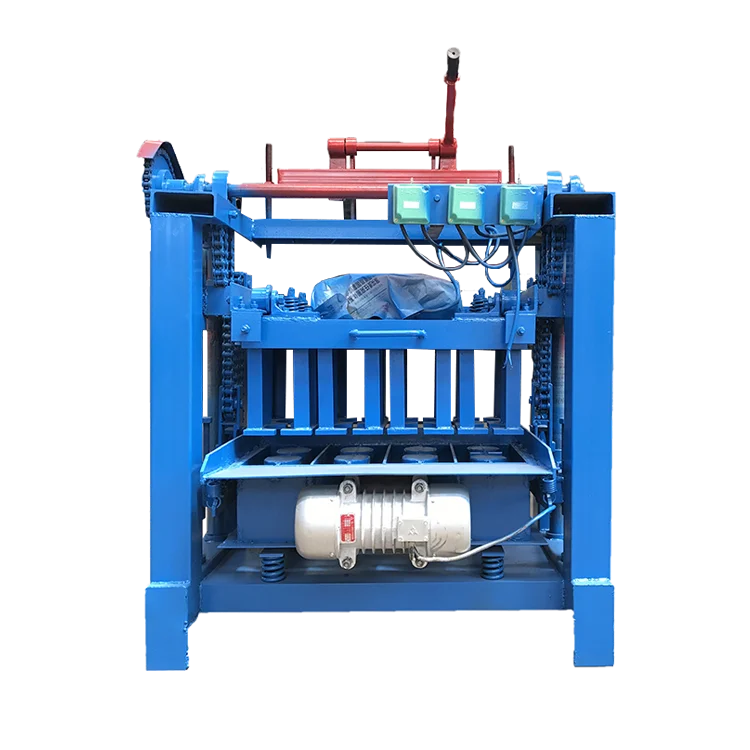

Building Semi-auto Hollow Concrete Block Making Machine
1.Forming machine frame: using high strength steel and special welding process, extremely strong.2.Guide column: made of super special steel, the surface of chrome plating with torsion and wear resistance.
3.Brick machine mould head: mechanical and electrical hydraulic synchronous drive, the same plate products height error is very small.
4.Distributing Device: the use of sensing and hydraulic proportional drive technology, in the swing under the action of the cloth cart forced centrifugal discharge, cloth quickly uniform, especially beneficial to multi-row hole products.
5.Cement brick machine vibrator: driven by electro-hydraulic technology, multi-source vibration system, in the computer control by hydraulic drive vertical synchronous vibration, frequency auxiliary adjustable, to achieve the low frequency feeding, high frequency molding working principle, for different raw materials can obtain the vibration effect.
6.Through the replacement of different molds, the production of different specifications of porous bricks, standard bricks, hollow block, the secondary cloth device can be produced along the stone, color pavement brick, grass brick, slope brick and other products.
Raw Material
Building Semi-auto Hollow Concrete Block Making Machine Production suggestions
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. water consumption per day:3T.
1. Area: all factory area 1200sq.m.
2. Workers : two-three. 3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. water consumption per day:3T.
Machine Mould
QT4-35A semi automatic brick making machine cement block making machines price Mould
The finished blocks are produced by Building Semi-auto Hollow Concrete Block Making Machine Application

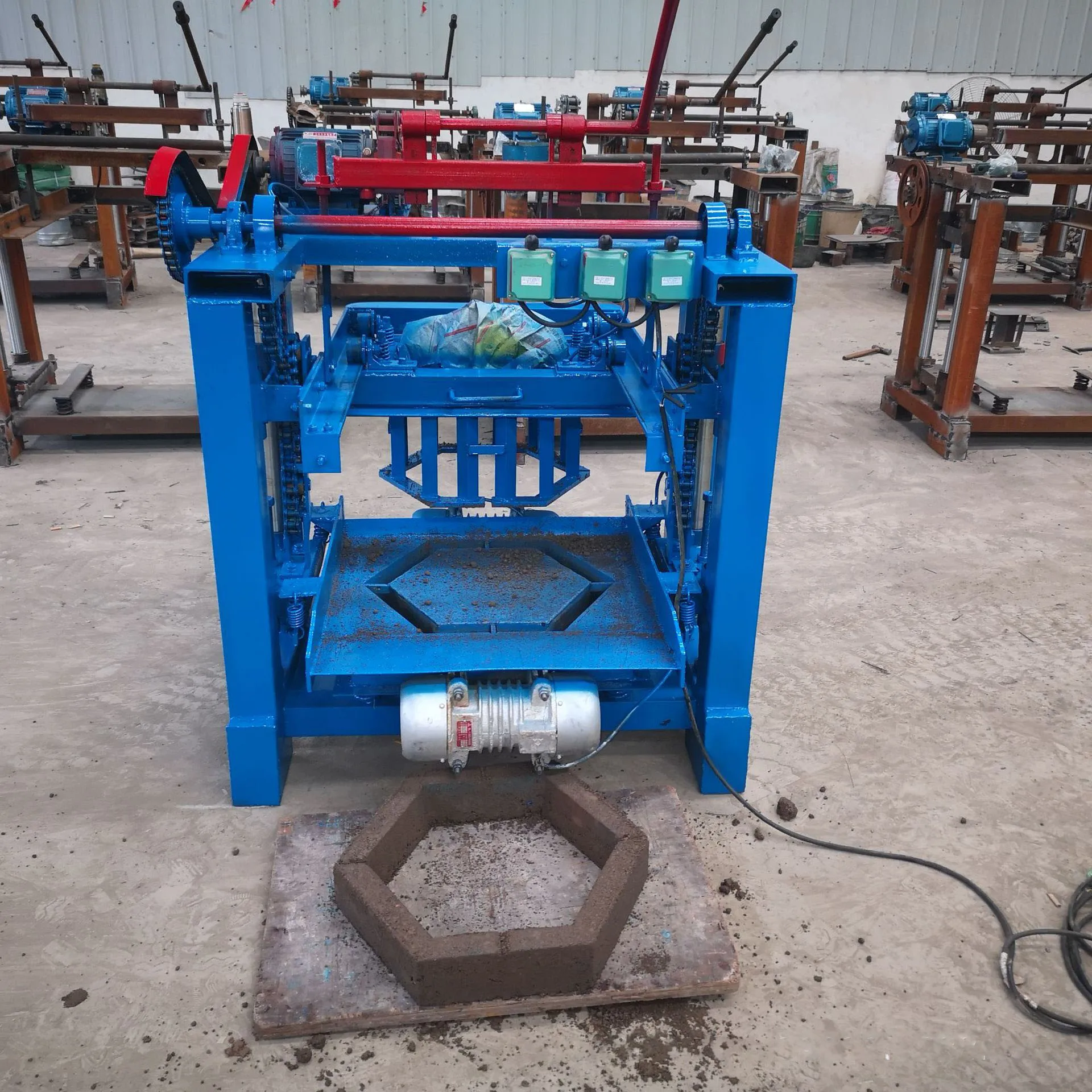

Widely used in the landscaping of gardens, residential quarters, colleges, factories, sidewalks, squares, etc.Customer Site
Packing&Shipping
Packaging Details:
(1) simple packaging.Other in wooden boxes;
(2) Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving client
(2) Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving client
Our Service
We have big technical team of more than 50 staffs, offer full life service to guarantee our customers using our easy operating machine with fruitful profit!
1. We will give you scientific advice and help you to select proper machine before placing order.
2. After shipment made, We will send our engineer to your area helping you to make factory design.
Before machine reaching your area, more engineers will go to your factory preparing installation and
debugging.
3. Our engineers will finish all work until the machine start nice working. We will train your own
engineers of the machine repairation and maintenance.
4. At any time, if the machine could not work well, our engineer will help you to solve the problems. If
1. We will give you scientific advice and help you to select proper machine before placing order.
2. After shipment made, We will send our engineer to your area helping you to make factory design.
Before machine reaching your area, more engineers will go to your factory preparing installation and
debugging.
3. Our engineers will finish all work until the machine start nice working. We will train your own
engineers of the machine repairation and maintenance.
4. At any time, if the machine could not work well, our engineer will help you to solve the problems. If
necessary, we will send our engineer to your factory to repair the machine or replace the parts.
5. One time buying, full life service and co-operation.
5. One time buying, full life service and co-operation.
