Расходомер Сырой Нефти Кориолиса с
- Категория: Расходомер >>>
- Поставщик: Q&T,INSTRUMENT,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2142.31 $* | 2249.66 $* |
| Aug-19-2025 | 2124.39 $* | 2230.54 $* |
| Jul-19-2025 | 1782.83 $* | 1871.6 $* |
| Jun-19-2025 | 2088.19 $* | 2192.19 $* |
| May-19-2025 | 1818.14 $* | 1909.0 $* |
| Apr-19-2025 | 2052.98 $* | 2155.12 $* |
| Mar-19-2025 | 2034.16 $* | 2136.34 $* |
| Feb-19-2025 | 2016.55 $* | 2117.10 $* |
| Jan-19-2025 | 1998.95 $* | 2098.48 $* |
Характеристики

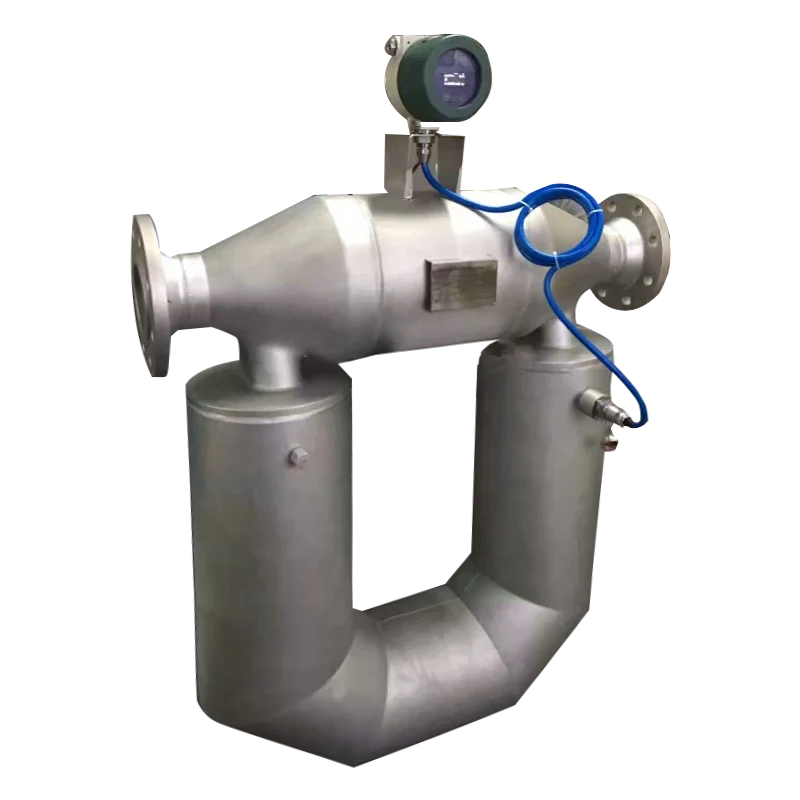

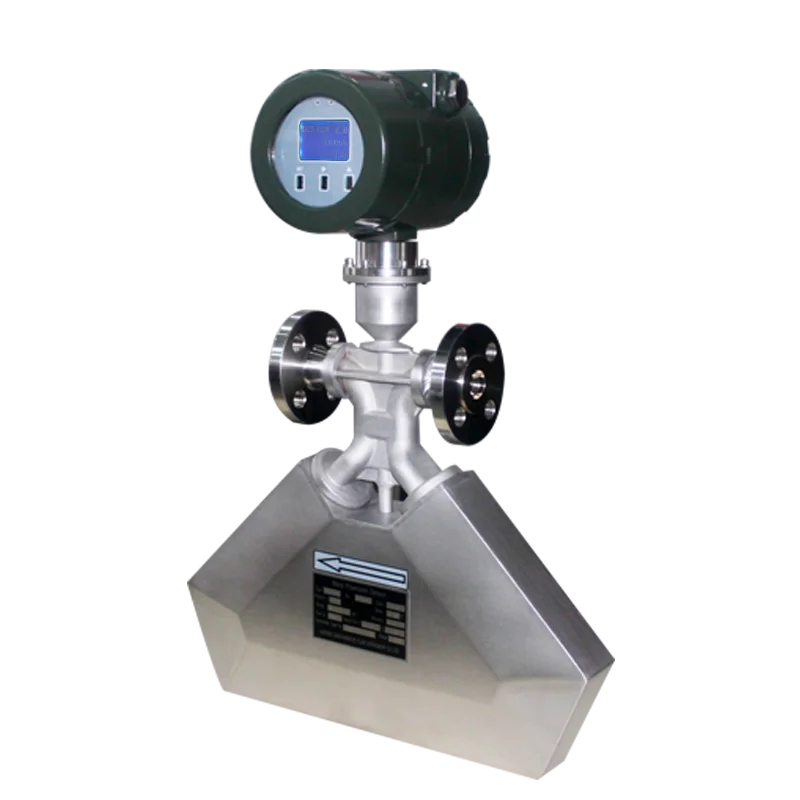

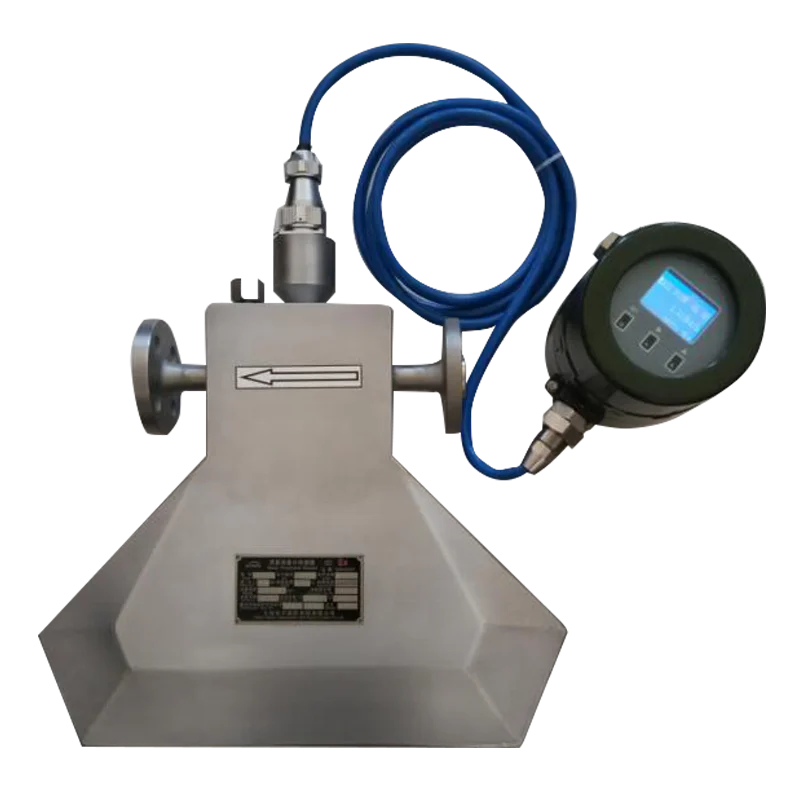

LCD display Crude oil coriolis mass flow meter
- Petroleum, such as crude oil, coal slurry, lubricant and other fuels
- High viscosity materials, such as asphalt, heavy oil and grease
- Suspended and solid particulate matter materials, such as cement slurry and lime slurry;
- Easy-to-solidified materials, such as asphalt
- Micro-flow measurements, such as fine chemical and pharmaceutical industries;
Independent of density changes, ability to measure undefined or
variable mixtures
SPECIFICATION
| Flow accuracy | ±0.2% Optional ±0.1% |
| Diameter | DN3~DN200mm |
| Flow repeatability | ±0.1~0.2% |
| Density measuring | 0.3~3.000g/cm3 |
| Density accuracy | ±0.002g/cm3 |
| Temperature measuring range | -200~300℃ (Standard Model -50~200℃) |
| Temperature accuracy | +/-1℃ |
| Output of current loop | 4~20mA; Optional signal of flow rate/Density/Temperature |
| Output of frequency/pulse | 0~10000HZ; Flow signal (Open collector) |
| Communication | RS485, MODBUS protocol |
| Power supply of transmitter | 18~36VDC power≤7W or 85~265VDC power 10W |
| Protection class | IP67 |
| Material | Measuring tube SS316L housing:SS304 |
| Pressure rating | 4.0Mpa (Standard pressure) |
| Explosion-proof | Exd(ia) IIC T6Gb |
| Enviroment Specifications | |
| Ambient temperature | -20~-60℃ |
| Enviroment humidity | ≤90%RH |
FLOW RANGE
| Specification | DN (mm) | Flow range (kg/h) | Zero stability, kg/h | NW (kg) | GW (kg) | ||
| 0.2% | 0.15% | 0.1% | |||||
| QTCMF-003 | 3 | 0~96~120 | 0.018 | 0.012 | 0.012 | 8 | 19 |
| QTCMF-006 | 6 | 0~540~660 | 0.099 | 0.066 | 0.066 | 12 | 22 |
| QTCMF-008 | 8 | 0~960~1200 | 0.18 | 0.12 | 0.12 | 12 | 23 |
| QTCMF-010 | 10 | 0~1500~1800 | 0.27 | 0.18 | 0.18 | 11 | 24 |
| QTCMF-015 | 15 | 0~3000~4200 | 0.63 | 0.42 | 0.42 | 12 | 25 |
| QTCMF-020 | 20 | 0~6000~7800 | 1.17 | 0.78 | 0.78 | 20 | 34 |
| QTCMF-025 | 25 | 0~10200~13500 | 2.025 | 1.35 | 1.35 | 21 | 35 |
| QTCMF-032 | 32 | 0~18000~24000 | 3.6 | 2.4 | 2.4 | 27 | 45 |
| QTCMF-040 | 40 | 0~30000~36000 | 5.4 | 3.6 | 3.6 | 35 | 55 |
| QTCMF-050 | 50 | 0~48000~60000 | 9 | 6 | 6 | 40 | 60 |
| QTCMF-080 | 80 | 0~120000~160000 | 24 | 16 | 16 | 90 | 150 |
| QTCMF-100 | 100 | 0~222000~270000 | 40.5 | 27 | 27 | 170 | 245 |
| QTCMF-150 | 150 | 0~480000~600000 | 90 | 60 | 60 | 255 | 350 |
