Датчики детектора петли для автоматизированных доступа и
- Категория: Other Access Control Products >>>
- Поставщик: Shenzhen,ExcelSoo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 24.64 $* | 25.61 $* |
| Aug-18-2025 | 24.24 $* | 25.69 $* |
| Jul-18-2025 | 20.54 $* | 21.50 $* |
| Jun-18-2025 | 23.5 $* | 24.71 $* |
| May-18-2025 | 20.37 $* | 21.69 $* |
| Apr-18-2025 | 23.29 $* | 24.5 $* |
| Mar-18-2025 | 23.59 $* | 24.82 $* |
| Feb-18-2025 | 22.44 $* | 23.26 $* |
| Jan-18-2025 | 22.65 $* | 23.51 $* |
Характеристики
Product Description

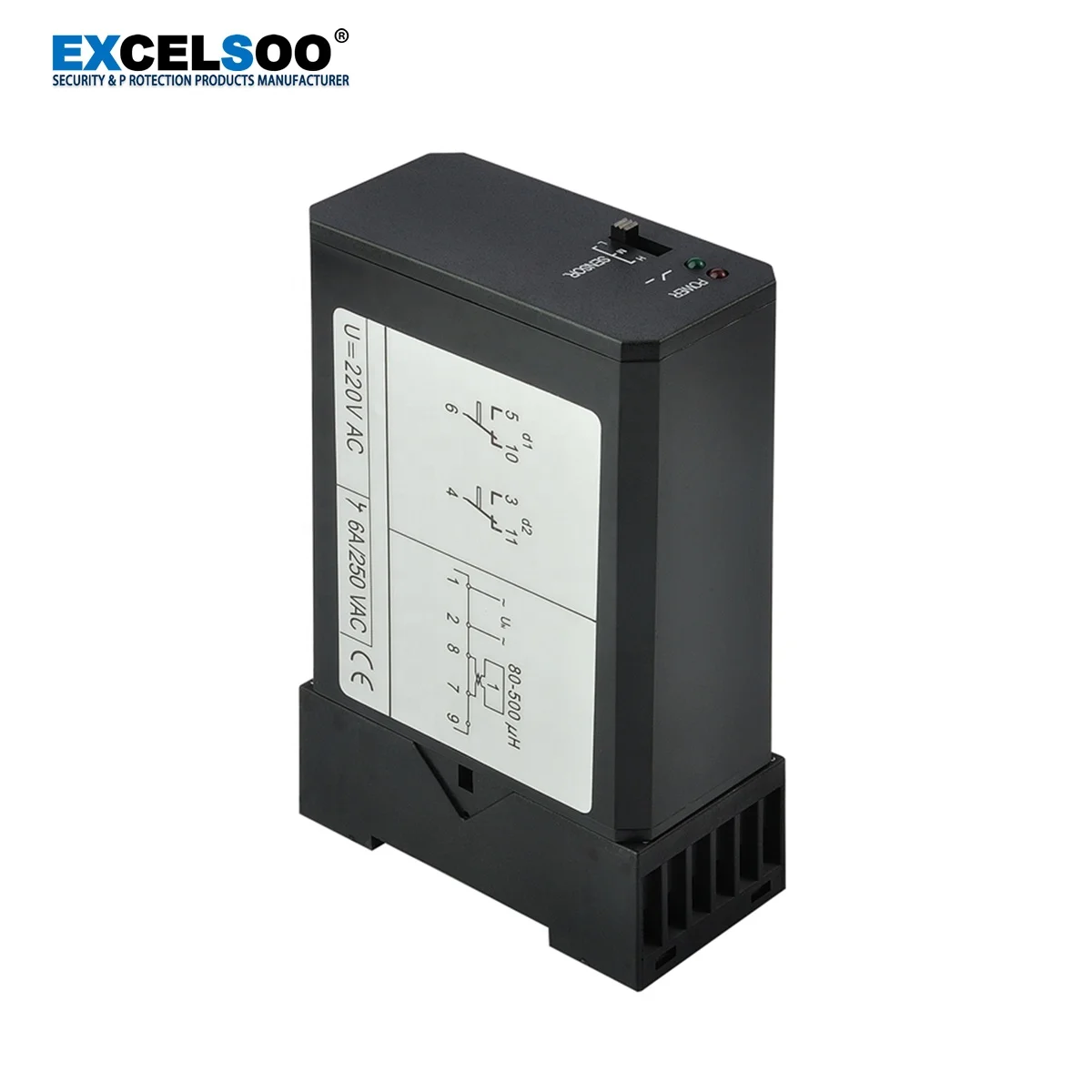

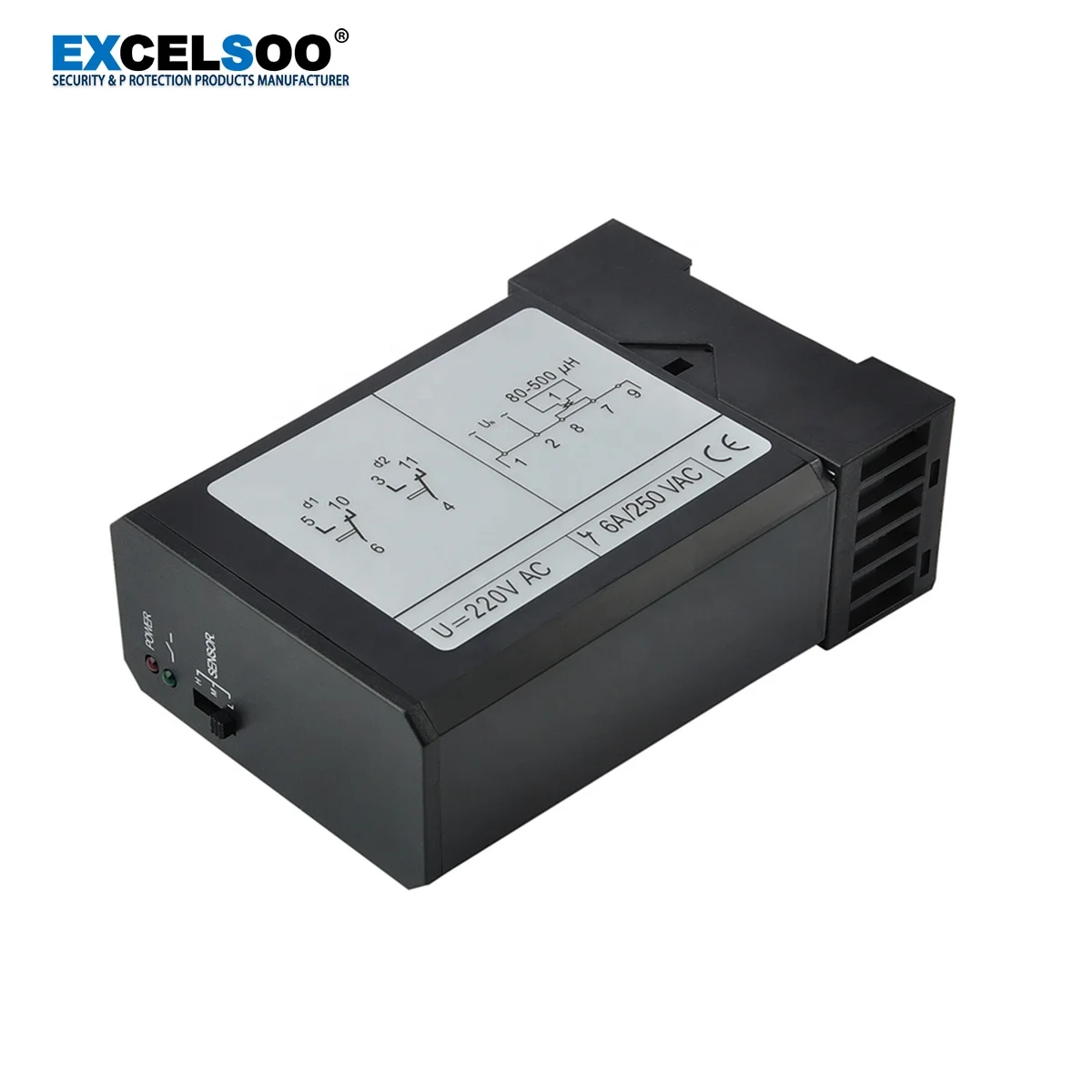

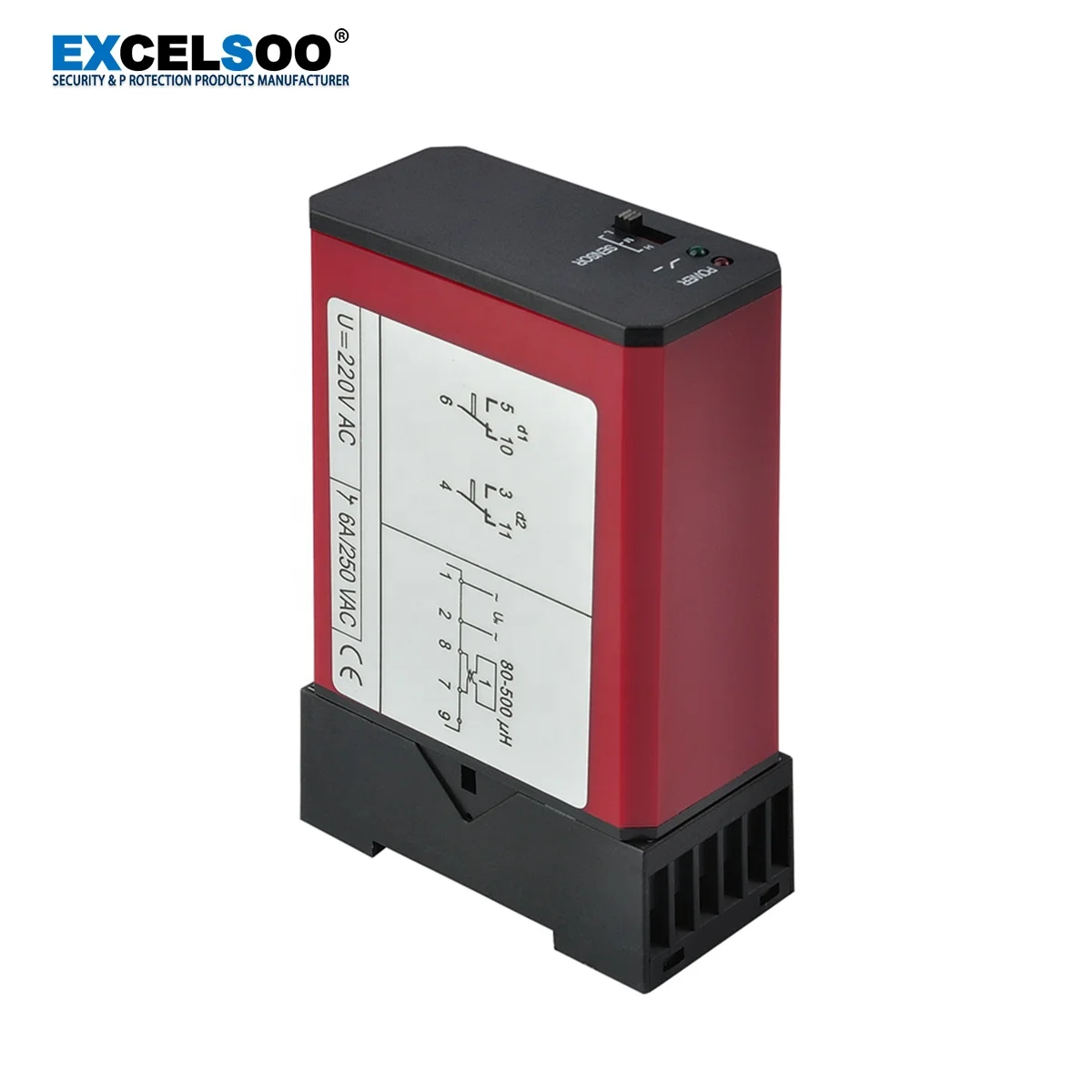

Excelsoo Vehicle loop detector for barrier gate is used to detect the presence of car via inductance loop coil. Loop detector in installed in barrier gate to detect verify if vehicle have finished passing through parking access control or parking ticketing lane. After car has completely passed through the boom gate, loop detector will give signal to barrier gate to start closing boom arm.
Specification
This is a single channel inductive loop detectors which is based on the changes in the inductance that are caused by metal parts of a vehicle. These signals are then picked up & evaluated by a microprocessor and when operation voltage is applied, its calibrations becomes automated thus resulting in ease of use.
Supply voltage | 230V AC , 115V AC, 24V DC/AC, 12V DC/AC ( Please the label on the detector for more information) |
Voltage tolerance AC | +10% / -15% |
Voltage tolerance DC | ±15% |
Power Consumption | 4.5VA |
Output relays | 240V/5A |
Operating temperature | -20°C to +65°C |
Storage temperature | -40°C to +85°C |
Frequency range | 20 kHz to 170 kHz |
Reaction time | 100ms |
Signal holding time | Unlimited / limited when loop is permanently covered 10 minutes |
Sensitivity | Adjustable in 3 increments |
Loop inductance | Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH |
Loop connection wiring | Max. length 20 meters, twisted at least 20 times per meter |
Size of Housing | 78x40x108 mm (L x W x H) |
Packing & Delivery
50pcs/Carton, 44*26*26cm (L*W*H)
Company Profie
Production process
FAQ
The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation location must choose to stay away from the heat source, it around other devices must maintain a distance of at least 10mm (mustn’t fix cling to the cabinet). A correct loop configuration and detector installation will ensure a successful inductive loop detection system. Loop of several important parameters include: loop figure, size, and turns, install methods (details as “Loop installation guide”).
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
