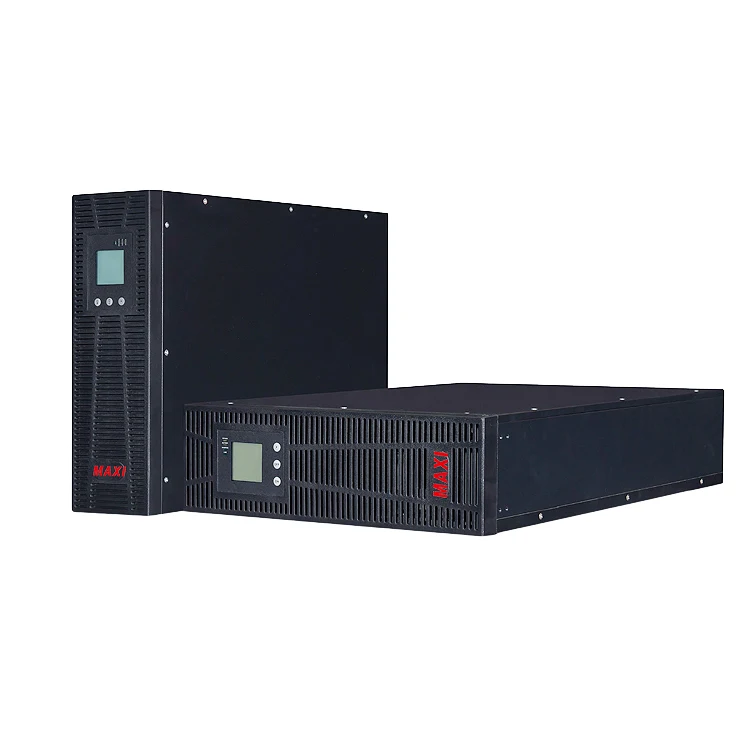

19 дюймов Чистая синусоида выход онлайн ups стоечный 1kva/2 кВА/3kva со светодиодным

Model

RMT1K

RMT1KL

RMT2K

RMT2KL

RMT3K

RMT3KL

Rating

1KVA/900W

2KVA/1800W

3KVA/2700W

Input

Input phase

Single phase & earth ground

Voltage range

(90±5)VAC~(290±5)VAC

Power factor

≥0.99

Voltage range of bypass

(80±5)VAC~(286±5)VAC (default:80VAC~264VAC Could be adjusted by software)

Output

Output phase

Single phase & earth ground

Rated voltage

220VAC

Power factor

0.9

Voltage precision

±2%

Output wave form

(AC&battery modes)

Pure sine wave

Output frequency

Normal mode

1. synchronize with the input frequency in the range 46 Hz~54 Hz

2. 50Hz (40Hz<input frequency <46Hz , 54Hz<input frequency <60Hz)

3.Can be set as 60Hz

Battery mode

Inverter overload capacity

(Utility power,25℃)

105%±5%<Load≤125%±5% 50s transfer to bypass

125%±5%< Load <150%±5% 25s transfer to bypass

Load > 150%±5%,300ms transfer to bypass

Transfer time

0ms (Normal mode←→ Battery mode)

<4ms(Normal mode←→Bypass mode)

Crest factor

3:1

Battery

Batteries voltage

36VDC

72VDC/96VDC

96VDC

Battery Quantity

3pcsx7AH

Long backup ext battery

Standard backup

Long backup ext battery

Standard backup

 Long backup ext battery

Battery Type

Sealed lead acid maintenance free (SLMF)

Backup Time(25℃)

Full load≥5min (Standard)

Charging  current

1A

6A

1A

5.5A

1A

5.5A

Physical

WxDxH(mm)

482X450X88 (2U)

482X450X88 (2U)

482X665X132 (3U)

482X450X88 (2U)

482X665X132 (3U)

482X450X88 (2U)

Weight(kg)

13.7KG

7.2KG

28KG

9.7KG

32.5KG

9.7KG
