Ortopedia jacobs патрон ortopedico
- Категория: Ортопедические хирургические инструменты >>>
- Поставщик: Tianjin,Health,Sci-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.76 $* | 0.2 $* |
| Aug-16-2025 | 0.82 $* | 0.87 $* |
| Jul-16-2025 | 0.14 $* | 0.14 $* |
| Jun-16-2025 | 0.2 $* | 0.33 $* |
| May-16-2025 | 0.70 $* | 0.3 $* |
| Apr-16-2025 | 0.65 $* | 0.40 $* |
| Mar-16-2025 | 0.10 $* | 0.42 $* |
| Feb-16-2025 | 0.60 $* | 0.54 $* |
| Jan-16-2025 | 0.69 $* | 0.88 $* |
Характеристики
ortopedia jacobs chuck ortopedico taladro
One-hand operation, high sealing system, burshless motor
Product Description
Technical Data
| No. | Item | Values |
| 1 | Radial circle run-out | ≤0.1mm |
| 2 | Axial movement | ≤0.5mm |
| 3 | Biggest drill bit diameter | 8mm |
| 4 | Diameter of Cannulation | 6.5mm |
| 5 | Sterilization | ≤135 |
| 6 | Noise | ≤75db |
Optional Items
| No | Item | Model | Unit |
| 1 | Multi-Function Drill | hand piece:With brushless DC canulated motor imported from USA | piece |
| 2 | Battery | Material: Ni-MH with Longer service-life,High capacity:2100MAH Voltage: 9.6V | piece |
| 3 | Battery Box | Peek Material: sterilized more than 3000 times. | piece |
| 4 | Charger | More conveninent Design to Guarantee the battery life | piece |
| 5 | Transfer Shield | Imported stainless steel 304 | piece |
| 6 | Key | Imported stainless steel | piece |
| 7 | Small Kwire attachment | 0.7-1.6mm K wire | piece |
| 8 | Large Kwire attachment | 1.6-4.0mm Kiwre | piece |

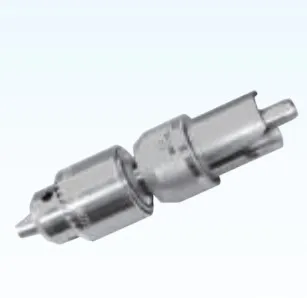

| 9 | Key Chuck | Speed Range"0-1200rpm, Torque 3.5NM | piece |
| 10 | Reaming Attachment | Speed Range 0-400rpm, Torque 10nm | piece |
| 11 | Reciprocating saw | Frenquency:12000cpm | piece |
E System Features:
- Ergonomic design
- More capacity
- High sealing system
- One-hand operation
- Cutting effectively
- 360° rotating
- High-performance brushless motor
- Adapter integrated in the Charger
Warranty
Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.
Notes:
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm, acetabulum reaming drill with big torque,rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
3. The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized, it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.
Packaging & Shipping
Packing: Optional Aluminum case for each set , then into a good quality carton, or on request.
Shipping: Door to door courier like DHL\\TNT\\UPS\\FEDEX, or shipped by air/sea.
You May Like-A150
Company Information
Tianjin Health Sci-Tech Co., Ltd. was established in 2005 and located in Binhai High-tech District,Tianjin China. We are a medical device manufacturer integrated with R&D, production and sales, We organize production strictly in accordance with the national GMP certification standards. we focused on medical drill series,saw series, medical warming system and point therapy plaster etc. Our main products include medical bone drill, multi-function canulate drill, oscillating saw, reciprocating saw and medical electric plaster saw, patient warming system and point therapy plaster.which can be used in many surgeries such as trauma operation, thoracic surgery, joint operation, and veterinary orthopedic, etc.
In the past years, the company has always been aiming at "Professional,Dedicated,Innovative,Share &win-win". Which supported us to maintain long-term development in today's medical device market and get a satisfying market share worldwide.
