Машина для производства одноразовых трубочек питьевой

Машина для производства одноразовых трубочек питьевой

Категория: оборудование для производства соломы >>>
Поставщик: Ruian,Honetop,Machinery,Co.,Ltd.

Цена:16 000,00 $ - 19 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	19040.39 $*	19992.96 $*
Aug-17-2025	18880.85 $*	19824.66 $*
Jul-17-2025	15840.6 $*	16632.8 $*
Jun-17-2025	18560.79 $*	19488.22 $*
May-17-2025	16160.11 $*	16968.86 $*
Apr-17-2025	18240.35 $*	19152.35 $*
Mar-17-2025	18080.61 $*	18984.88 $*
Feb-17-2025	17920.88 $*	18816.94 $*
Jan-17-2025	17760.88 $*	18648.97 $*

Характеристики

Product Details

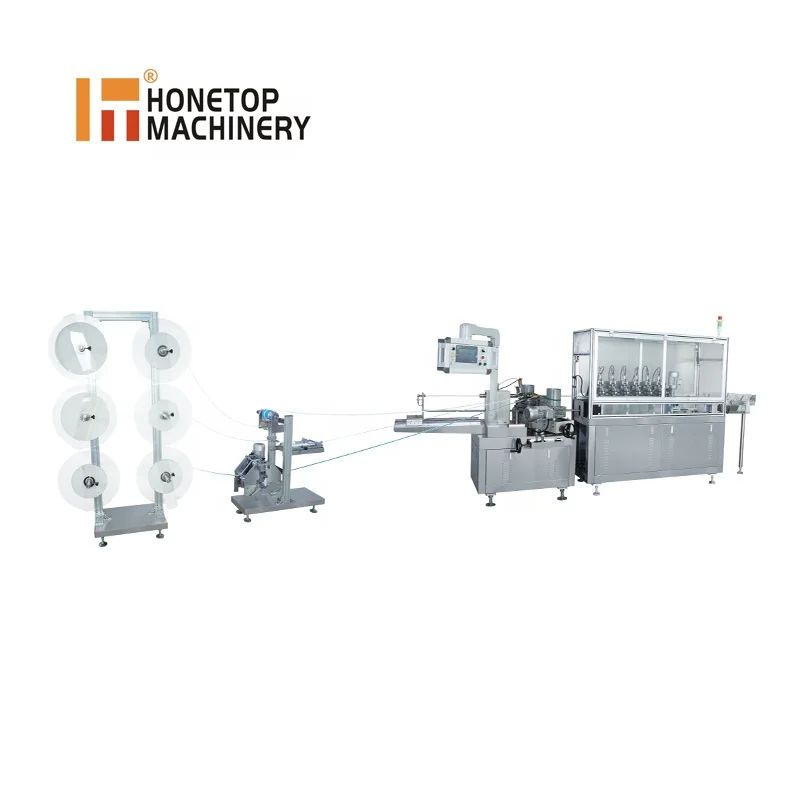

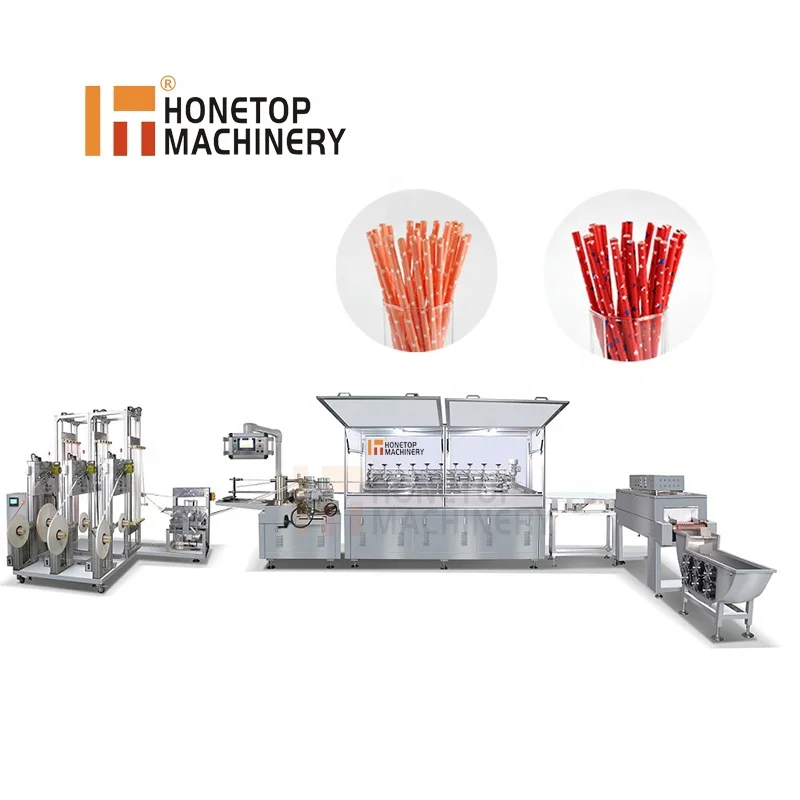

China Multi-cutters Biodegradable Bamboo Paper Straws Making Machine

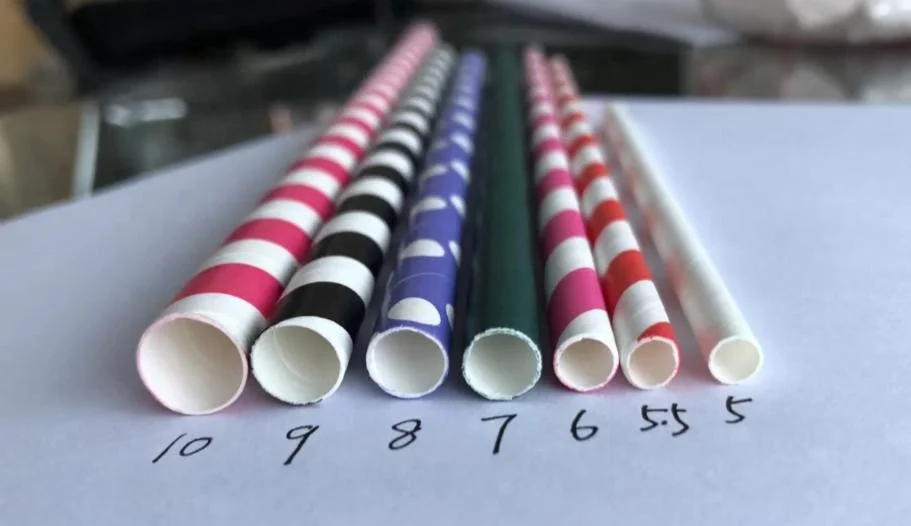

This Machine is suitable for producing different sizes of paper straws and very small paper tubes.

[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

We have 5 knives, 6 knives, 7 knives, 10 knives paper tube machines, if you are interested, you can consult us

Technical Parameter

Technical Parameter		Control System
Paper Layer	3 layers	Motor	3.0kw
Inner Diameter	5-12mm	PLC	Panel Master
Wall Thickness	0.5-1mm	Operating Panel	Panel Master
Winding Speed	20-40 meters/min	Inverter	3.7kw Schneider
Winding Nose	Two noses single belt	Electric Components	Schneider
Cutting System	Numerical Multi-blades (standard 5 pcs)	Servo Motor	Schneider
Synchronism tracking cutting system	Servo motor synchronism tracking	Pneumatic Components	Jingwei
Synchronism tracking cutting system	Servo motor synchronism tracking	Bearing	Haerbin
Gluing Way	Single/Double sides	Screw Rod / Slider	Shangyin
Working Air Pressure	0.6Mpa	Configuration
Operator	1-2 person	Paper Reel Stand	3 Layers
Power Supply	380V/3Phase/50Hz	Gluing Unit	3Layers
Measurement & Weight		Belt	5 Pieces
Measurement	350015001200mm	Mandrel Shaft	2 Pieces
Working Space	7000*5000mm	Extra blades	5 Pieces
Weight	1300kgs	Useful Tool	1 Set
