Самонивелирующийся лазерный уровень Huepar 503DG многоуровневый нивелир для пола с 12 линиями плитки дистанционным управлением и жесткой
- Категория: Инструменты для измерения уровня >>>
- Поставщик: Zhuhai,Levelsure,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.38 $* | 0.66 $* |
| Aug-20-2025 | 0.47 $* | 0.39 $* |
| Jul-20-2025 | 0.27 $* | 0.17 $* |
| Jun-20-2025 | 0.4 $* | 0.18 $* |
| May-20-2025 | 0.53 $* | 0.4 $* |
| Apr-20-2025 | 0.89 $* | 0.87 $* |
| Mar-20-2025 | 0.61 $* | 0.86 $* |
| Feb-20-2025 | 0.80 $* | 0.96 $* |
| Jan-20-2025 | 0.8 $* | 0.55 $* |
Характеристики
Product Description
503DG 3 x 360 Green Laser Level Specifications: | GF360G | |
* Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output * Laser Wavelength: 505-520nm * Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft * Leveling/Compensation Range: 4°+/- 1° * Working Distance (Line): 65Ft (100 LUX), 200Ft with Huepar Laser Receiver LR-6RG&LR-5RG * Operating Time: 6 hours continual use with all laser beams * Power Source: 7.4V 2600mA Li-ion battery * IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough * Operation Temperature Range: 14℉ ~ 104℉ (-10℃~ 40℃) * Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃) * Mount Size: 1/4"-20 | 1H360°/2V360° | |
Laser class | Class 2 | |
Beam source | Green Beam | |
Laser wavelength | 520nm | |
H/V accuracy | ±3mm/10m;±1/9 In. at 33 Ft. | |
Self-leveling range | 4°±1° | |
Self-leveling time | ≤3s | |
Working distance (Line) | 45m、≥60m with detector | |
Operating time | >5h(all lasers on) | |
Power source | Lithium battery | |
IP rating | IP54 | |
Operating Temp | -10°C to 50°C | |
Storage Temp | -20°C to 70°C | |
Mount size | 1/4'' or 5/8" | |
503DG Laser Level Features:
✔️3 X 360 WITH FLOOR LINE LASER: This laser tool projects one 360° horizontal floor laser line for tiling installation at a 2/5" distance. With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.15" height. Two vertical lines cross at 90°angles makes user quickly visualize and finish square layout. This 360 laser level is a complete tool for covering the floor, wall, ceiling all around the room.
✔️MULTIFUNCTIONAL LASER TOOL: The remote control enables to select three 360° laser lines individually at a distance up to 33Ft. With smart pendulum, this laser tool self levels and indicates out-of-level condition while pendulum unlocked. The laser tool will beep as a reminder when out of self-leveling range ±4°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver.
✔️DUAL POWER METHODS&TYPE-C PORT: Huepar laser tool employed large capacity lithium battery (can be purchased easily at local market) for 6 hours use with all beams on. An extra battery is included for backup. Besides, this laser tool can be used at job site by plugged in when take out the battery. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc. Users can charge the battery independently with the battery charger included.
✔️MAGNETIC BRACKET&MOUNTING THREADS: The strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications. The four fine-tuning knobs on the bracket can adjust the left and right position, front and back position within 4.8 inch and the vertical angle against the wall. The laser tool comes with a 5/8"-11 female to 1/4"-20 male thread adapter as well as the 1/4"-20 mount thread to suit for standard tripod or pole mounts.
✔️DURABLE DESIGN&KIT CONTENTS: Over-molded metal laser window withstands tough job site conditions and can be removed and replaced with a screwdriver. The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool. The kit also includes 2 Li-ion batteries, magnetic bracket, lifting base, remote control, battery charger, type-c power cord, steel sheet, power adapter, 5/8"-11 thread adapter, laser target plate, user manual.
✔️MULTIFUNCTIONAL LASER TOOL: The remote control enables to select three 360° laser lines individually at a distance up to 33Ft. With smart pendulum, this laser tool self levels and indicates out-of-level condition while pendulum unlocked. The laser tool will beep as a reminder when out of self-leveling range ±4°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver.
✔️DUAL POWER METHODS&TYPE-C PORT: Huepar laser tool employed large capacity lithium battery (can be purchased easily at local market) for 6 hours use with all beams on. An extra battery is included for backup. Besides, this laser tool can be used at job site by plugged in when take out the battery. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc. Users can charge the battery independently with the battery charger included.
✔️MAGNETIC BRACKET&MOUNTING THREADS: The strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications. The four fine-tuning knobs on the bracket can adjust the left and right position, front and back position within 4.8 inch and the vertical angle against the wall. The laser tool comes with a 5/8"-11 female to 1/4"-20 male thread adapter as well as the 1/4"-20 mount thread to suit for standard tripod or pole mounts.
✔️DURABLE DESIGN&KIT CONTENTS: Over-molded metal laser window withstands tough job site conditions and can be removed and replaced with a screwdriver. The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool. The kit also includes 2 Li-ion batteries, magnetic bracket, lifting base, remote control, battery charger, type-c power cord, steel sheet, power adapter, 5/8"-11 thread adapter, laser target plate, user manual.

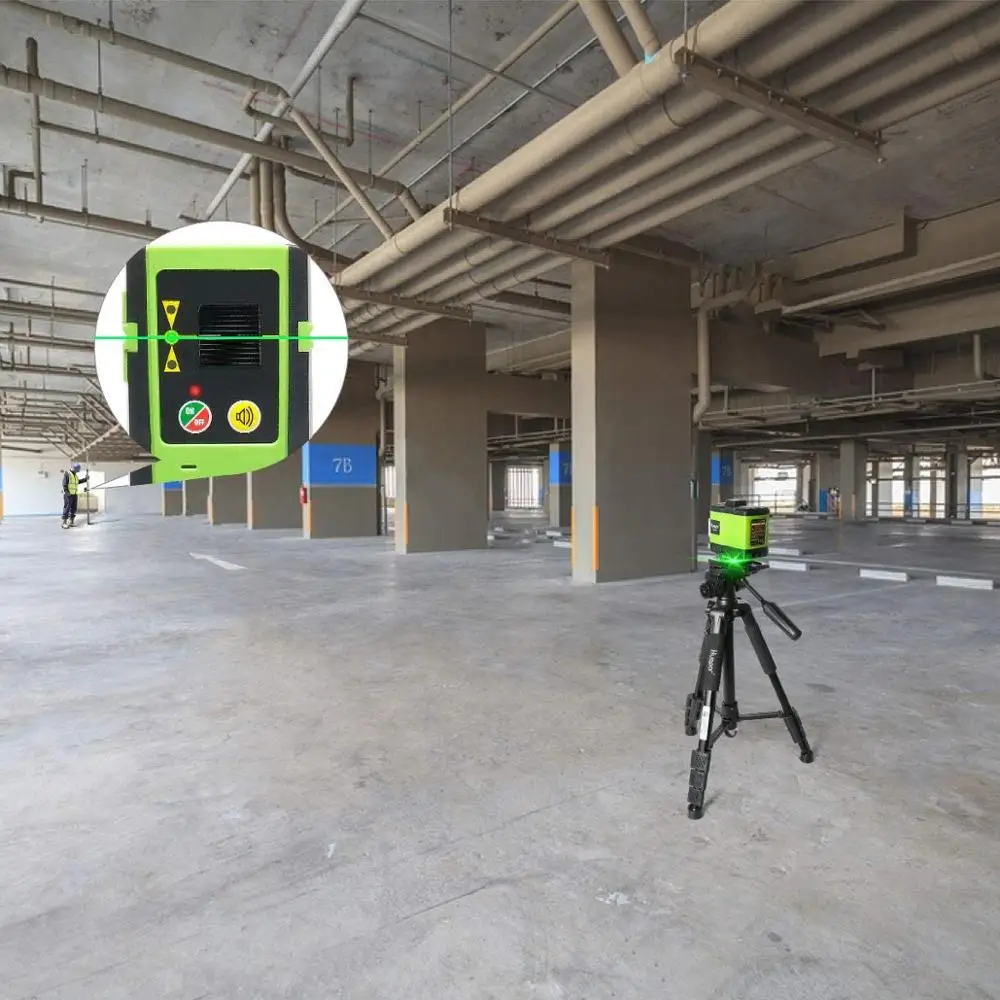

Pulse Mode
* Turn ON the pulse mode: After power ON, short press the pulse mode button to switch ON/OFF the pulse mode.
* Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Detector
* It is compatible with LR-6RG / LR-5RG Line Laser Detector only.
* Keep the pulse mode on when using with a receiver.
* Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Detector
* When the pulse mode is activated, the laser beams will become dimmer.
* It is compatible with LR-6RG / LR-5RG Line Laser Detector only.
* Keep the pulse mode on when using with a receiver.
Self-leveling mode & Manual mode
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, manual mode locks laser lines in place for use at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, manual mode locks laser lines in place for use at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now

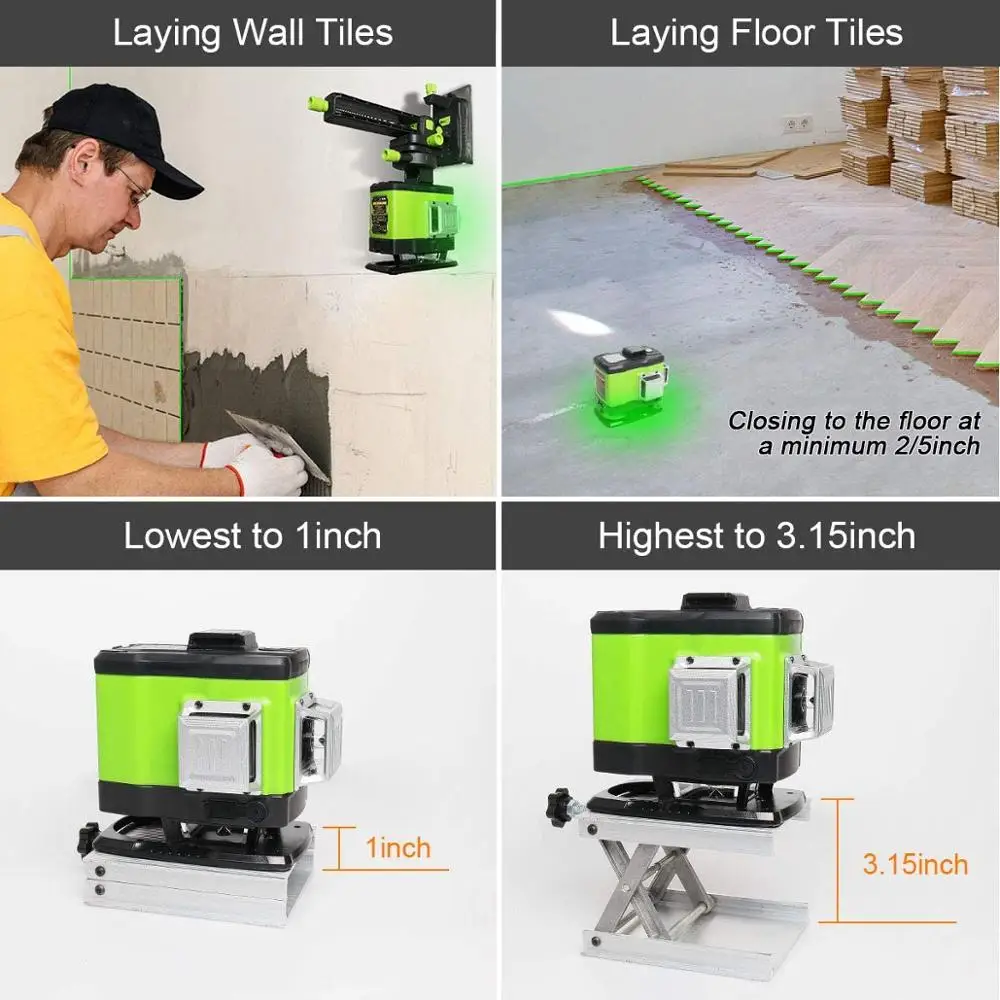

Lifting Base
* This line laser tool generates one 360°horizontal tiling laser on the floor or wall providing all-around leveling coverage for
layout of tile, stone, brick, carpet and hardwood flooring.
* With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions
between 1 inch and 3.15 inch height.
* This line laser tool generates one 360°horizontal tiling laser on the floor or wall providing all-around leveling coverage for
layout of tile, stone, brick, carpet and hardwood flooring.
* With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions
between 1 inch and 3.15 inch height.
Lines Switching
* Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
* The remote control enables to select three 360° laser lines individually at a distance up to 33Ft.
* In manual mode, when all laser lines are switched off while the indicators are still on, the laser tool will shut OFF automatically after about 4 minutes of inactivity.
* The laser line(s) can be temporarily turned OFF by the remote control when you need to leave for a while.
* Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
* The remote control enables to select three 360° laser lines individually at a distance up to 33Ft.
* In manual mode, when all laser lines are switched off while the indicators are still on, the laser tool will shut OFF automatically after about 4 minutes of inactivity.
* The laser line(s) can be temporarily turned OFF by the remote control when you need to leave for a while.

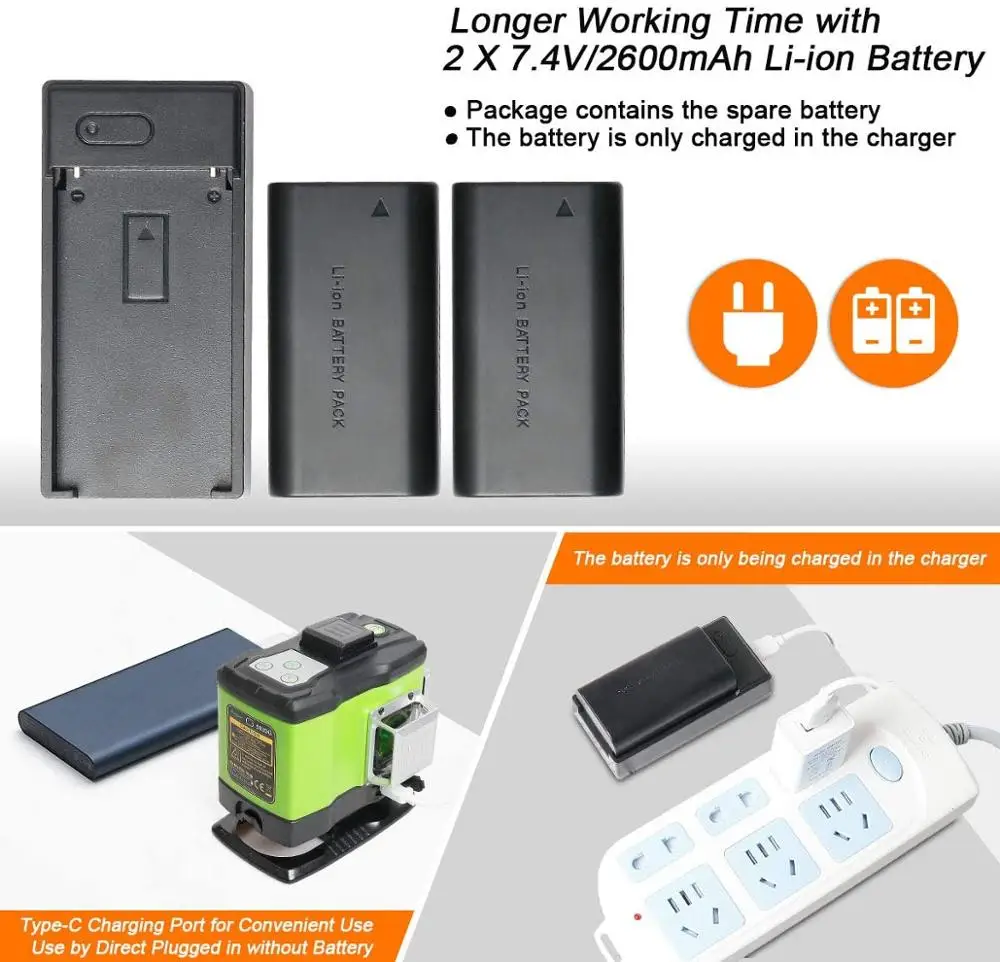

Dual Power Methods:
* This laser tool utilizes the large capacity li-ion battery which is compatible with Samsung SB-L110 battery.
* An extra battery is included in the package for backup.
* The level tool can be used at job site by plugged in directly when take out the battery.
* Users can charge the battery independently with the battery charger. The battery is not being charged in the device when connected to the power adapter.
* With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.
* This laser tool utilizes the large capacity li-ion battery which is compatible with Samsung SB-L110 battery.
* An extra battery is included in the package for backup.
* The level tool can be used at job site by plugged in directly when take out the battery.
* Users can charge the battery independently with the battery charger. The battery is not being charged in the device when connected to the power adapter.
* With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.
Magnetic Bracket&Mounting Thread
* The included strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications.
* The four fine-tuning knobs on the bracketenable to adjust the left and right position, front and back position within 4.8 inch (12cm) and the vertical angle against the wall.
* The laser tool comes with a 5/8"-11 female to 1/4"-20 male thread adapter as well as the 1/4"-20 mount thread to suit for standard tripod or pole mounts.
* The included strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications.
* The four fine-tuning knobs on the bracketenable to adjust the left and right position, front and back position within 4.8 inch (12cm) and the vertical angle against the wall.
* The laser tool comes with a 5/8"-11 female to 1/4"-20 male thread adapter as well as the 1/4"-20 mount thread to suit for standard tripod or pole mounts.

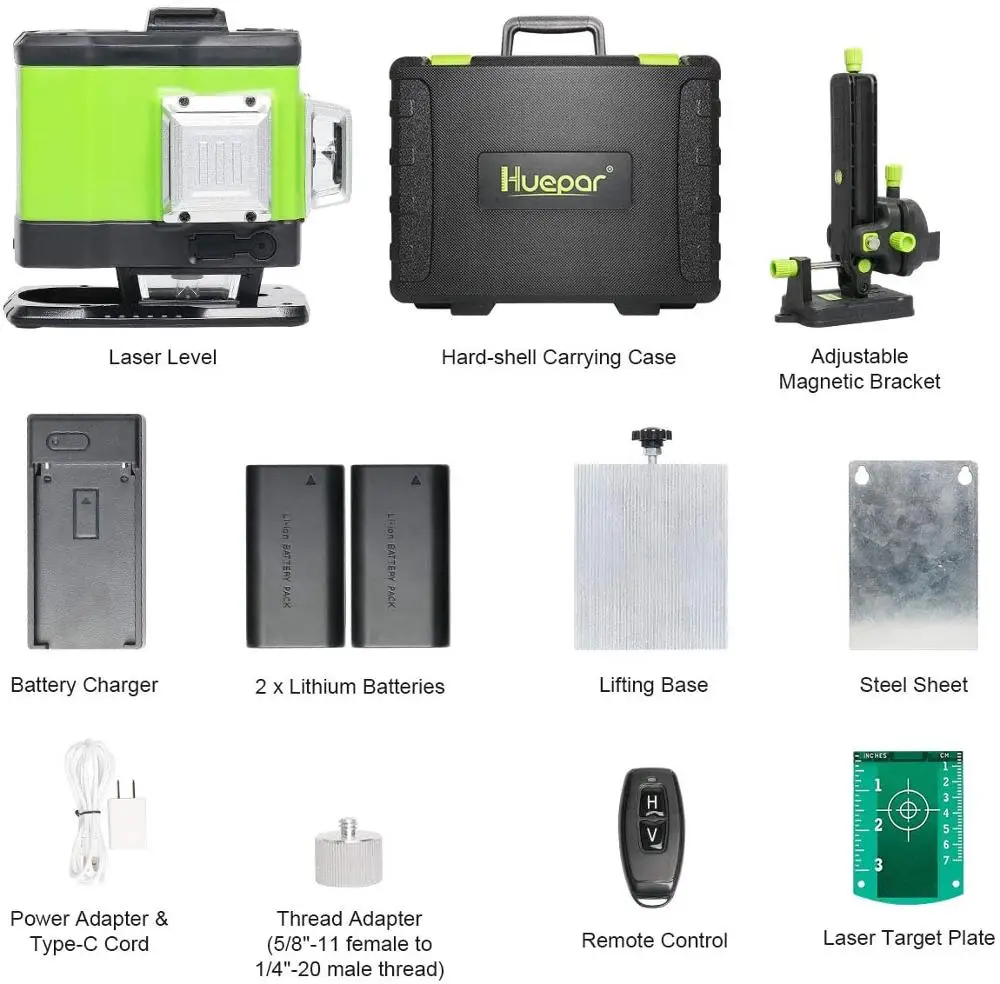

* 1 x Huepar 503DG 3D Green Tiling Laser Level
* 2 x Rechargeable Lithium Batteries
* 1 x Type-C Power Cord
* 1 x Magnetic Bracket & 1 x Steel Sheet
* 1 x Hard Carry Case
* 1 x Power Adapter
* 1 x Battery Charger
* 1 x Remote Control
* 1 x 5/8"-11 female to 1/4"-20 male thread adapter
* 1 x Laser Target Plate & 1 x User Manual
* 2 x Rechargeable Lithium Batteries
* 1 x Type-C Power Cord
* 1 x Magnetic Bracket & 1 x Steel Sheet
* 1 x Hard Carry Case
* 1 x Power Adapter
* 1 x Battery Charger
* 1 x Remote Control
* 1 x 5/8"-11 female to 1/4"-20 male thread adapter
* 1 x Laser Target Plate & 1 x User Manual
Company Profile
A quality oriented manufacturer for measuring tools that have been dedicating to supply reliable quality&high
cost-effective&satisfactory after service to the high-end market.
cost-effective&satisfactory after service to the high-end market.
