Автоматическая машина для резки резиновых лент
US $1500-$4500
Силиконовые уплотнительные ленты режущие резиновые
- Категория: Другое оборудование для обработки резины >>>
- Поставщик: Zhengzhou,Miles,Tech,Company,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.9 $* | 0.50 $* |
| Aug-20-2025 | 0.76 $* | 0.74 $* |
| Jul-20-2025 | 0.33 $* | 0.72 $* |
| Jun-20-2025 | 0.13 $* | 0.79 $* |
| May-20-2025 | 0.54 $* | 0.22 $* |
| Apr-20-2025 | 0.77 $* | 0.65 $* |
| Mar-20-2025 | 0.7 $* | 0.54 $* |
| Feb-20-2025 | 0.64 $* | 0.85 $* |
| Jan-20-2025 | 0.68 $* | 0.41 $* |
Характеристики
Product Description
Product Information

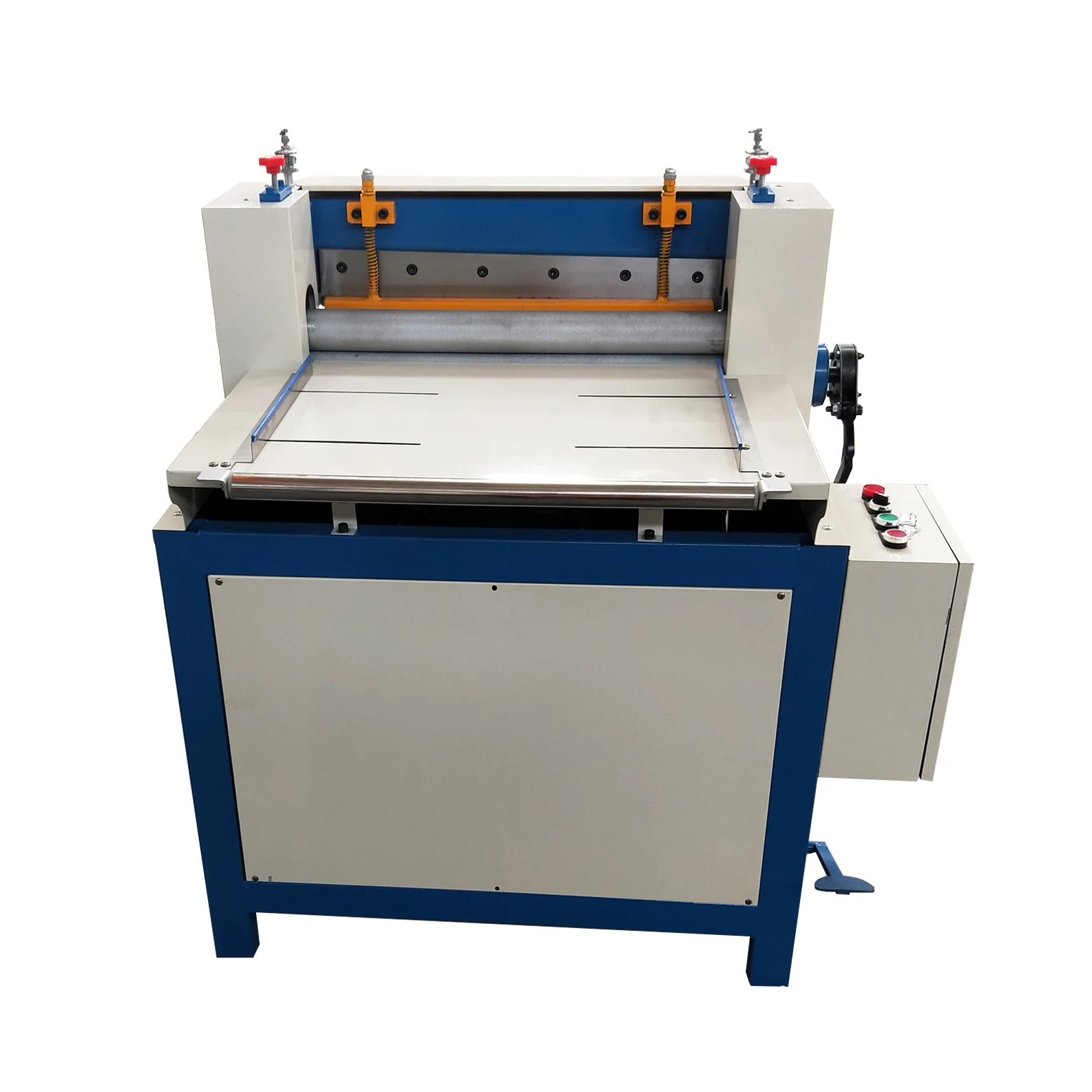

Silicone Sealing Strips Cutting Cutters Strips Rubber Cutting Machines
The rubber slitting/cutting machine has replaced the backward process of manual material cutting, and ensured the shearing precision, avoided the material waste, improved the working efficiency and reduced the cost.The machine is suitable for cutting various materials such as Silicone Rubber,filter sponge,Leather,EVA Foam,Sponge,PVC Sheet,Polyurethane Rubber,PVC film,plastic hard sheet,Nylon Coated Neoprene Rubber Sheets, rubber, silicone, polyester film, leather, sponge, glass fiber, carbon fiber, paper, aluminum sheet, etc.
Product Specification & Parameter
| Model | MT-ZYG600 | MT-ZYS600 | MT-ZYS800 | MT-ZYS1000 | MT-ZYS1300 | MT-ZYS1500 |
| Width | 600mm | 600mm | 800mm | 1000mm | 1300mm | 1500mm |
| Length | 1-65mm | 1-9000mm | ||||
| Thickness | 2-18mm | 2-20mm | 2-20mm | 2-22mm | 2-25mm | 2-25mm |
| Cutting speed | 75times/min | 75times/min | 60times/min | 50times/min | 45times/min | 45times/min |
| Carrier way | Conveyor + platform | Conveyor | ||||
| Votlage | 220V | 220V | 220V | 220V | 220V | 220V |
| Power | 2.2KW | 2.2KW | 3KW | 4KW | 5.5KW | 5.5KW |
| Size | 2*0.8*1.1M | 1.3*1.2*1.1M | 1.5*1.2*1.1M | 1.5*1.4*1.2M | 1.6*1.5*1.2 | 2.1*1.7*1.2M |
| Weight | 260kg | 300kg | 380kg | 450kg | 650kg | 750kg |

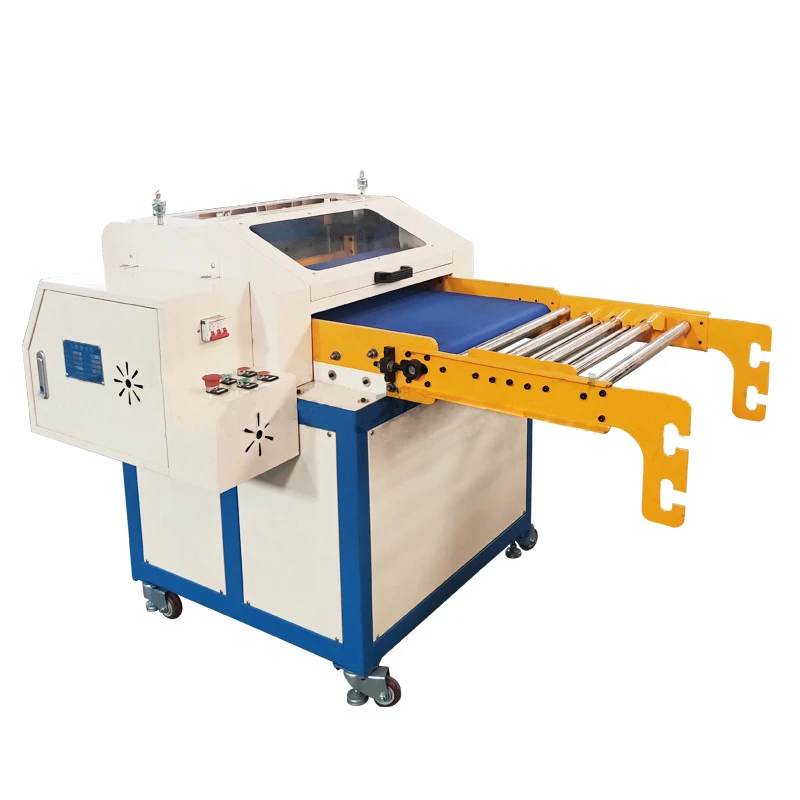

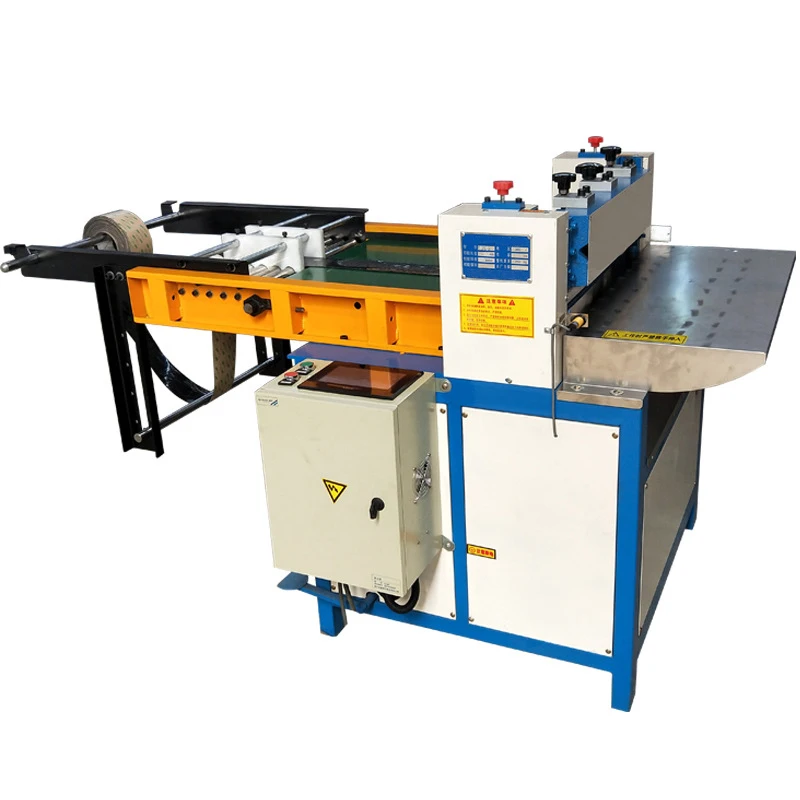

Silicone Sealing Strips Cutting Cutters Strips Rubber Cutting Machines
| Model | MT-CNC600 |
| Cutting width | 600mm |
| Cutting length | 1mm-9meters |
| Cutting thickness | 40mm |
| Cutting | 45times/min |
| Material | Silicone Rubber,Leather,EVA Foam,Sponge,PVC Sheet,Polyurethane Rubber,PVC film,plastic hard sheet,Nylon Coated Neoprene Rubber Sheets,etc |
| Voltage | 220V,50/60HZ,AC |
| Power | 3.8KW |
| Size | 2*1.2*1.1m |
| Weight | 500kg |
Features
1.The CNC operating system adopts the famous brand (xinjie) 7-inch touch screen, PLC, the response speed is fast, the service life is long, the after-sale service has the safeguard, the system screen has many dimensions to store the page, convenient your quick setting.
2.The machine slide is made of copper, with advantages of self-lubrication, wear resistance and long service life.
3.The power output of this machine adopts hangzhou famous brand worm gear reducer, which has the advantages of low noise, good heat dissipation, long life, large power transmission, impact resistance, etc.
4.The transmission system of this machine adopts belt transmission with tooth shape, which has the advantages of low noise, high friction, wear resistance, no heat and low power loss, etc. Its price and life is ordinary triangle belt 3 times.
5.Blade material selection alloy steel tungsten steel, sharpness, wear resistance, especially suitable for rubber and other materials of high frequency cutting.
6.PVC conveyor belt easy to put the material, the material does not run off, so that the film feeding tension is constant, to ensure the maximum accuracy of size.
Feature
7.The stainless steel outlet has registered the appearance design patent, the design is reasonable, the slope is big, the material slides smoothly does not block the material.
8.The discharge port is equipped with infrared induction switch to prevent improper hand cutting.

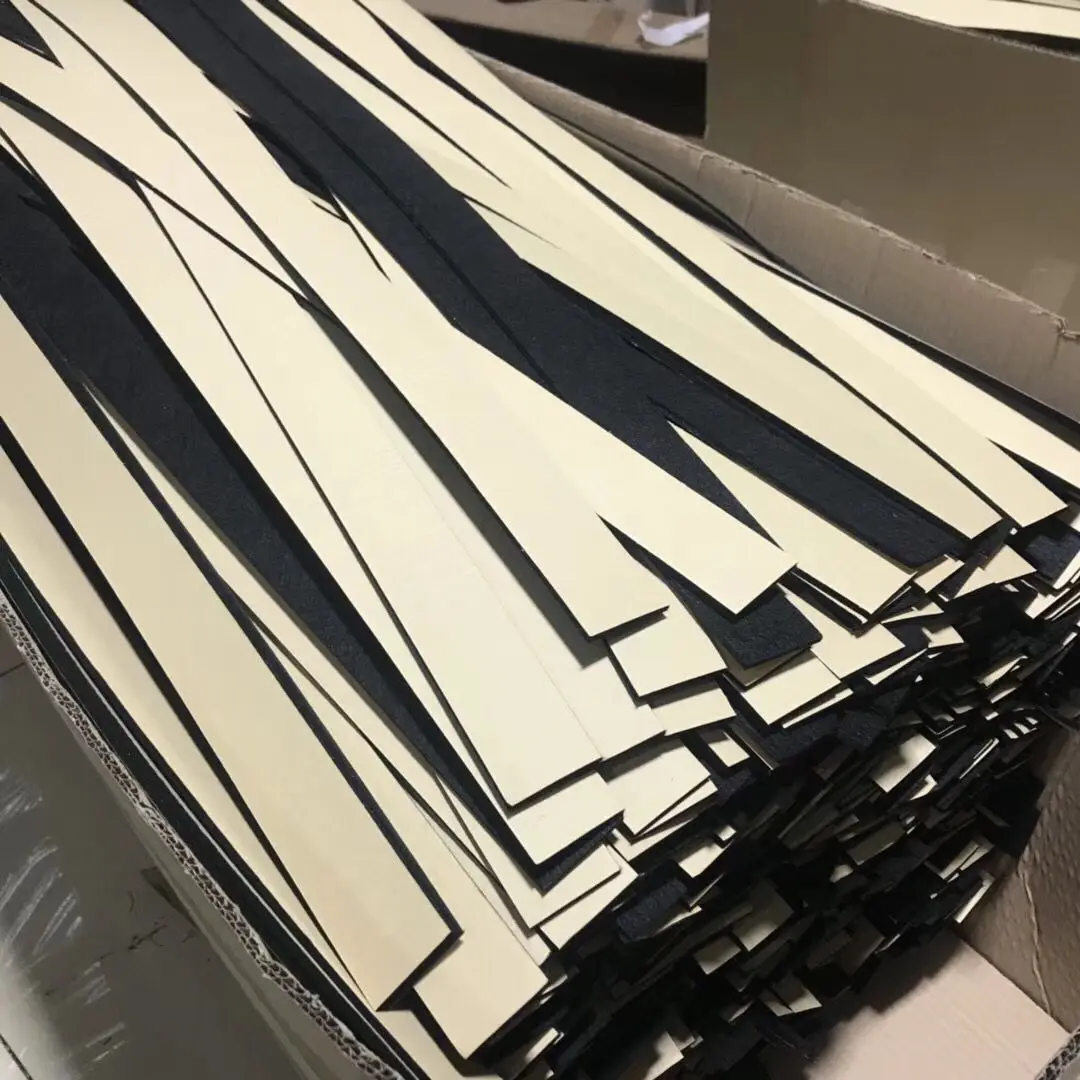

Product Pictures
Silicone Sealing Strips Cutting Cutters Strips Rubber Cutting Machines
Packaging & Shipping
Packaging & Shipping
Company Information
Pompany Information
Zhengzhou Miles Tech Company Ltd. was founded in 2008, located in Zhengzhou City, China.
We are quite strong in technique forces and our products are highly reliable in quality.
Specialize in the manufacture of Filling machine,sealing machine,capping,labeling machines,
coding unit,packaging machine,production line and related cutting equipments and so on.
Our business is mainly on European,Europe,North America,South America, Asia,Australia,Middle East.
Welcome foreign dealers/wholesalers to come to visit us and talk about the exclusive agents business.
FAQ
FAQ
1. Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 10 years and alsoa professional exporter.
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service..
5. Q:What is the delivery time?
A: Mostly it takes 5 to 20 workdays (depend on different machine) after receiving the deposit and confirming the drawing or samples as required.
