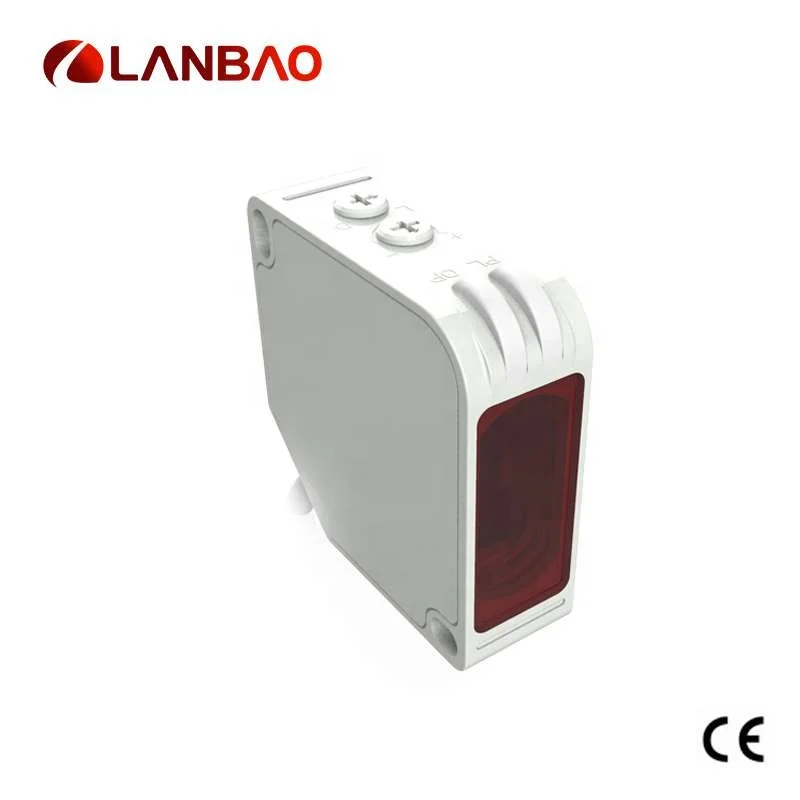

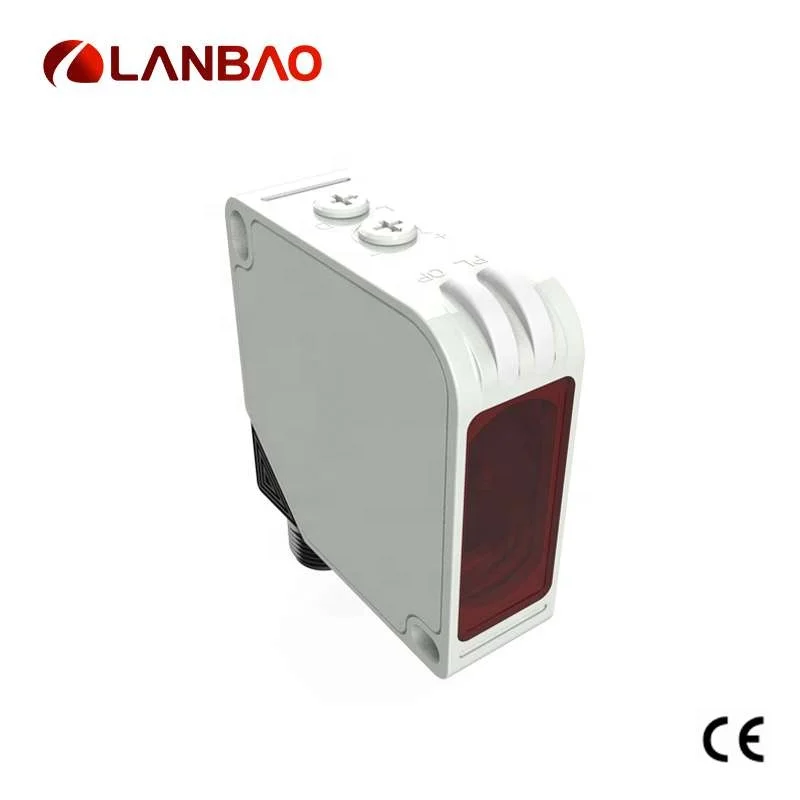

Датчик обнаружения парковки Lanbao инфракрасный квадратной формы 60 м 0-30 В
- Категория: Sensors >>>
- Поставщик: Shanghai,Lanbao,Sensing,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 21.56 $* | 22.51 $* |
| Aug-18-2025 | 21.46 $* | 22.84 $* |
| Jul-18-2025 | 18.40 $* | 19.43 $* |
| Jun-18-2025 | 21.30 $* | 22.68 $* |
| May-18-2025 | 18.67 $* | 19.31 $* |
| Apr-18-2025 | 21.10 $* | 22.51 $* |
| Mar-18-2025 | 20.60 $* | 21.89 $* |
| Feb-18-2025 | 20.91 $* | 21.19 $* |
| Jan-18-2025 | 20.73 $* | 21.37 $* |
Характеристики
Lanbao Through Beam Long Sensing Distance 60m 0-30VDC Infrared Square Shape Car Parking Detection Sensor Photo Sensor
Product Features
* Through beam reflection working principle;* Excellent anti-interference performance
* High detection accuracy
Product Paramenters
Part number | ||||
NPN+PNP NO/NC | PTE-TM60D(Emitter) | PTE-TM60DFB(Receiver) | ||
PTE-TM60D-E2(Emitter) | PTE-TM60DFB-E2(Receiver) | |||
Technical specifications | ||||
Detection type | Through beam | |||
Rated distance(Sn) | 60m (Emitter adjustable) | |||
Output | NO/NC (select by L/D potentiometer) | |||
Light source | Infrared LED (850nm) | |||
Standard target | >φ15mm opaque object | |||
Dimensions | 50 mm *50 mm *18 mm | |||
Supply voltage | 10…30 VDC | |||
Target | ... | |||
Hysteresis range [%/Sr] | ... | |||
Repeat accuracy [R] | ≤5% | |||
Load current | ≤200mA(Receiver) | |||
Residual voltage | ≤2.5V(Receiver) | |||
Consumption current | ≤40mA | |||
Circuit protection | Short-circuit and reverse polarity | |||
Response time | <2ms | |||
Output indicator | Emitter: Green LED Receiver: Yellow LED | |||
Ambient temperature | -25℃…+55℃ | |||
Ambient humidity | 35-85%RH (non-condensing) | |||
Voltage withstand | 1000V/AC 50/60Hz 60s | |||
Insulation resistance | ≥50MΩ(500VDC) | |||
Insulation resistance | 10…50Hz (0.5mm) | |||
Degree of protection | IP67 | |||
Housing material | PC/ABS | |||
Connection type | 2m PVC cable M12 connector(4pins) | |||
Dimension
Wiring diagram
Certifications
Our standard products already obtained ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,
ROHS certificates.
ROHS certificates.
