Tuya 4CH 2 0 мегапиксельная камера

Описание и отзывы

Трекер стоимости

Характеристики

Feature
Build in 7inch standard definition  LCD Screen (resolution:800*600), LCD screen can support 330 degree rotate.
Step on the Internet: With eseecloud  service,easy to achieve a variety of network penetrations one step to remote monitoring,getting rid of various complicated networksettings, easy and simple to operate.
Mobile monitor: Support various mobile monitoring(iPhone,  Android)
Display:support  HDMI HD output.
Compression algorithm ideal: H.264 High Profile compression  algorithm,

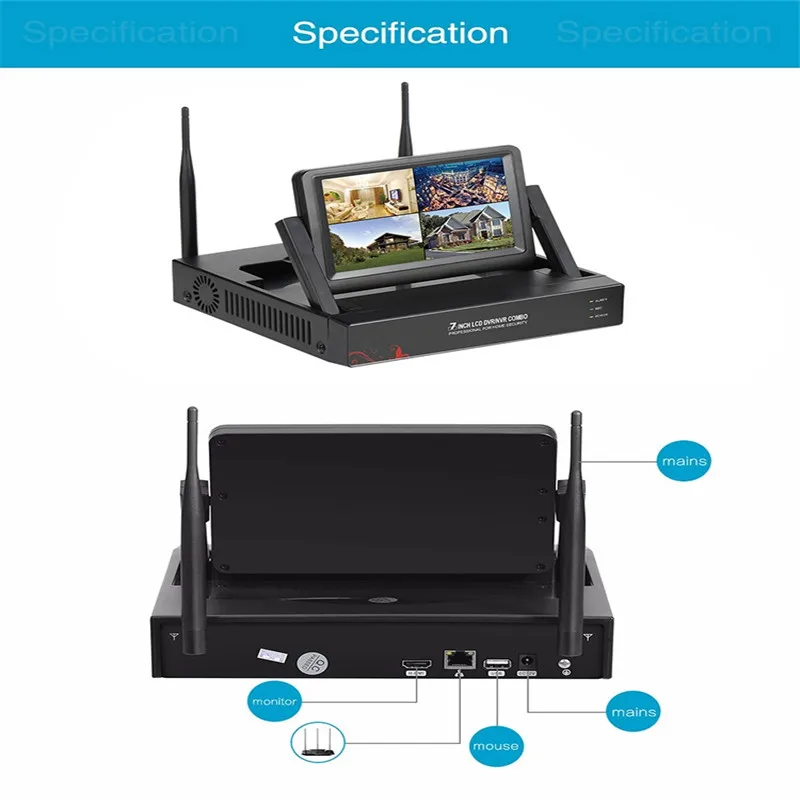

wireless nvr		4CH
	Network Video	4CH
	Video input	4ch 720P/960P/1080P
AV (audio/video) output	HDMI output	1ch,resolution:1024x768,1366x768,1440x900,1920x1080p
	VGA output	1ch,resolution:1024x768,1366x768,1440x900,1920x1080p
AV CODEC Specification	Video Resolution	D1/720P/960P
	synch-playback	4CH
Video Control	Video/Capture mode	Maual,Time,Motion,Alarm
	Playback mode	Real time,Routine,Event
	Backup	USB backup
Hard Disk	Type	1*SATA interface
	Max Capacity	4 TB at most for each
External Interface	Network Interface	1 adaptable RJ45 10M/100M, 1 WIFI interface
	USB Interface	2 USB 2.0
Network Control	Protocol	UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
		DHCP (Automatically obtain an IP address), etc…
Others	Power Supply	DC12V3A
	Power Consumption (W)	≤5W(Without HDD)
	Operate Temperature (°C)	-10℃~+55℃
	Working Humidity (%) RH	10%~90%

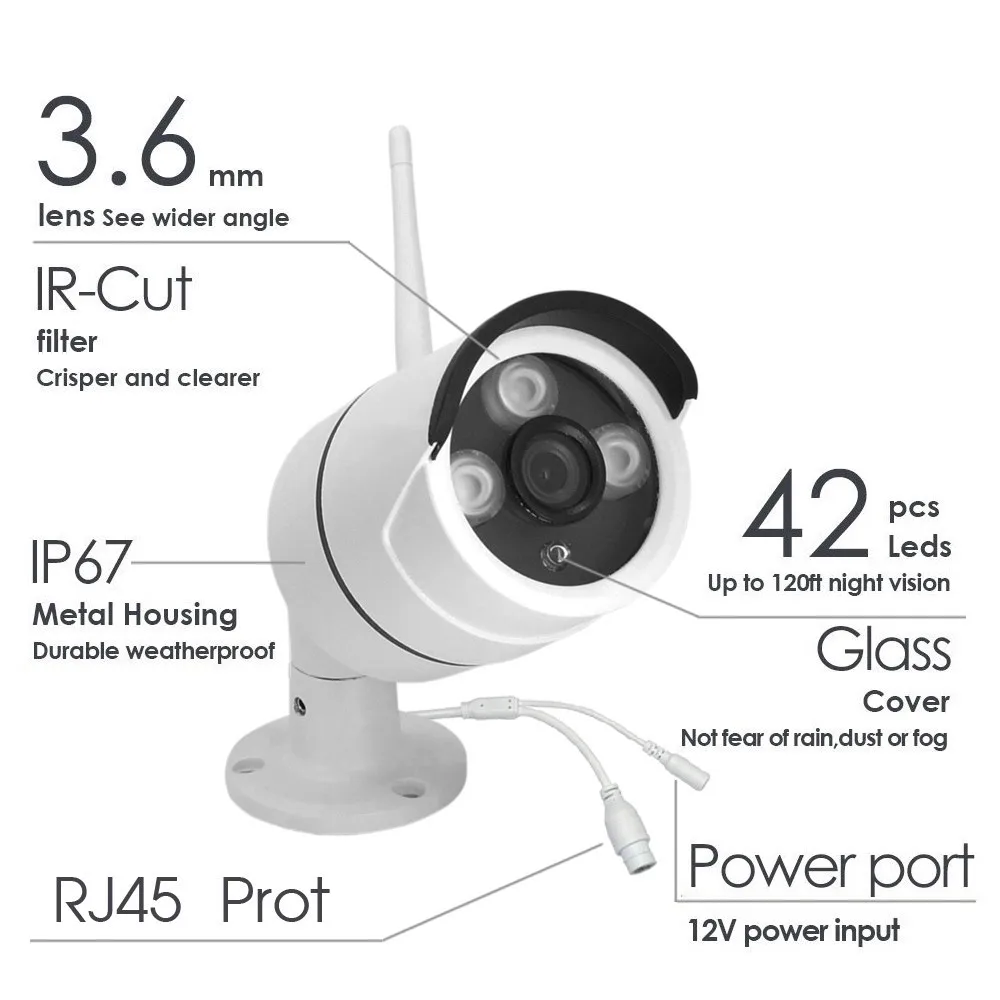

Model	720P  CAMERA	960P  CAMERA	1080P  CAMERA
Sensor	1/4” Progressive Scan Sensor	1/3” Progressive Scan Sensor	1/3” Progressive Scan Sensor
S/N Ratio	> 39.1 dB	> 39.1 dB	> 39.1 dB
Resolution	1280 x 720 16 : 9	1280 x 960  4 : 3	1280 x 1080 4 : 3
Minimum illumination	Color: 0.1 Lux  B/W: 0.01 Lux	Color: 0.1 Lux  B/W: 0.01 Lux	Color: 0.1 Lux  B/W: 0.01 Lux
Lens	4/6mm	4/6mm	4/6mm
OSD	Date Time & Title	Date Time & Title	Date Time & Title
Day & Night	Auto / Color / BW	Auto / Color / BW	Auto / Color / BW
3D-DNR	Auto	Auto	Auto
Mirror/Flip	On / Off	On / Off	On / Off
Privacy Regional Shelter	4 Zone Selectable	4 Zone Selectable	4 Zone Selectable
smart stream	Dual-stream:	Dual-stream:	Dual-stream:
	1280x720@15fps	1280x960@15fps	1280x1080@15fps
	640x360@15fps	640x360@15fps	640x360@15fps
Power	DC12V-1A	DC12V-1A	DC12V-1A
Power consumption	≤6W	≤6W	≤6W
Port	RJ45 / WIFI 802.11b/g/n	RJ45 / WIFI 802.11b/g/n	RJ45 / WIFI 802.11b/g/n
Audio	Audio tail line output (Optional)	Audio tail line output (Optional)	Audio tail line output (Optional)
working temperature/ humidity	-10℃ to +50℃ / 30% to 80% RH	-10℃ to +50℃ / 30% to 80% RH	-10℃ to +50℃ / 30% to 80% RH
Storage temperature/humidity	-20℃ to +60℃ / 20% to 90% RH	-20℃ to +60℃ / 20% to 90% RH	-20℃ to +60℃ / 20% to 90% RH







Our Services
OEM Service:We could offer OEM and ODM services for our clients.
Delivery Time:Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:2 years repair.Whole life service for continue cooperating customers!
Price Term:FOB Shenzhen
Delivery Term:ByExpress(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
FAQ
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.

Q: What's the MOQ?
A: 1pc for sample, at least 10pcs after sample order.

Q: How long is thedelivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
