Экономичный Jaguar 4 головки 46 кормушек SMT Pick and Place Machine для сборки печатных плат


Поделиться:


Цена:14 500,00 $ - 15 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 17255.45 $* 18118.43 $*
Aug-18-2025 17110.98 $* 17966.41 $*
Jul-18-2025 14355.28 $* 15073.93 $*
Jun-18-2025 16820.79 $* 17661.20 $*
May-18-2025 14645.10 $* 15377.62 $*
Apr-18-2025 16530.70 $* 17357.62 $*
Mar-18-2025 16385.77 $* 17204.15 $*
Feb-18-2025 16240.9 $* 17052.18 $*
Jan-18-2025 16095.44 $* 16900.73 $*

Характеристики

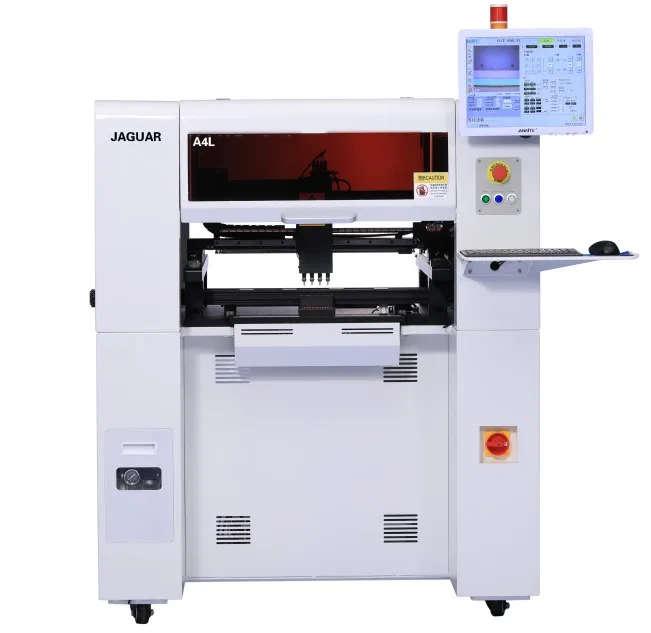

JAGUAR-A4L 4 Heads Automatic SMT P&P Machine



JAGUAR-A4L pick and place machine configured 4 heads and can install 46 feeders, it's max speed can reach to 8000CPH, it's high precision pick and place machine


JAGUAR-A4L



SPECIFICATION:








































































































Feeder No.



46 (Front 20, rear 26)



Product Weight



450KGS



Mounting Heads



4 (No need to change Nozzle)



XYZ Drive Guide Rail



TBI High-precision heavy-duty straight-line guide rail



Average Power



600W



Positioning Accuracy



0.01mm



Motion Drive System



Panasonic High speed DPS driver



Nozzle Buffering Range



5.0mm



Operating System



Support Windows XP, Win7 operating system



Power Supply



220V, 50Hz



Component Angle



0~360°, synchronized rotation in motion



Compressed Air



0.5-06Mpa



X/Y Running Mode



Imported TBI high-precision ball screw + imported TBI heavy-duty linear guide



Driving Motor



Panasonic servo motor



Recognition Method



4 heads recognize synchronously



Placement Mode



Manual, semi-automatic, fully-automatic



Nozzle Vacuum Source



High-speed on-off vacuum generator with vacuum damage



Alarm when open the cover



Reducing speed or out of service



Max. Circuit Board Area



480x300mm



Board Input Method



Automatically connect loader and position PCB transmission



XY Max. Movement Range



556x680mm



Rail Guide Adjusting Method



Manual + Automatic



Z Axis Max. Movement Range



20mm



Visual Display



15" industrial control display ratio 4:3, resolution 1024x768



Belt Type Feeder



8/12/16/24/32mm feeders, stick feeder



Programming Mode



Point-to-point programming, visual programming, PCB file coordinates inputting, etc.



Max. Mounting Speed



8000CPH



Average Mounting Speed



6000CPH (Visual)



Recognition Camera No.



1 Mark recognition camera, 4 high speed recognition camera, 1 high-precision recognition camera



Dimensions



1095x1165x1400mm



Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 45mm*45mm range pin pitch ≥0.3mm QFP, BGA etc.




Machine Dimension:

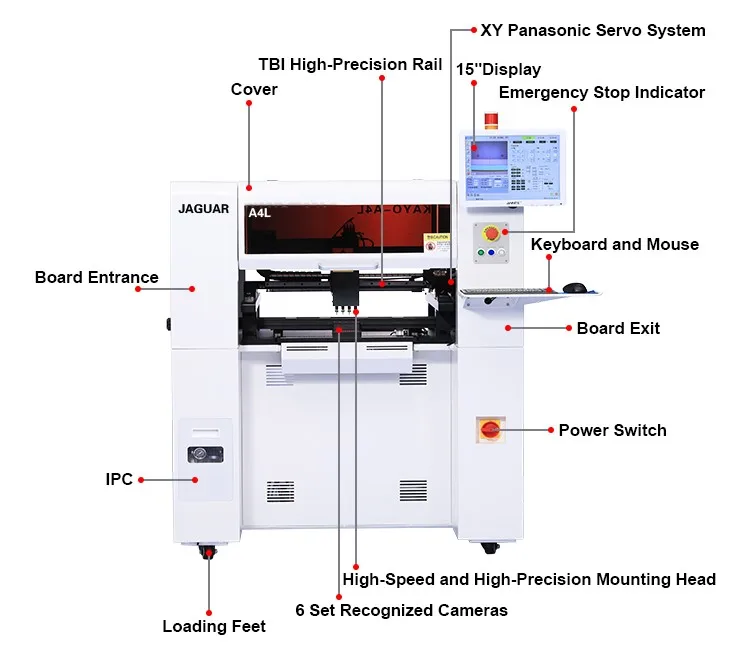

JAGUAR-A4L 1


Product Details:


JAGUAR-A4L 2


Product Advantages:


A4L

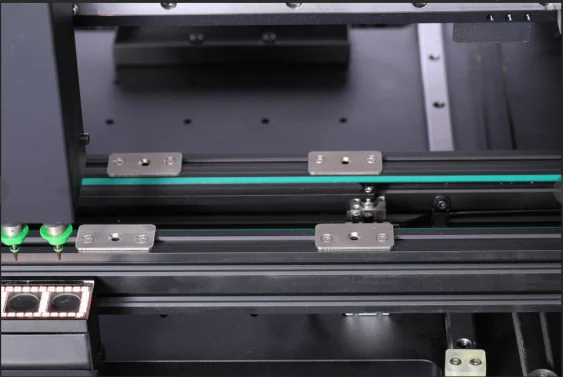

1.Optimized multi-functional conveyor (best positioning + no impact stopping), adopt a laser sensor rather than mechanical stopper to position. No rely on the PCB board size, shape, achieve the best positioning and no impact stop.


A4L

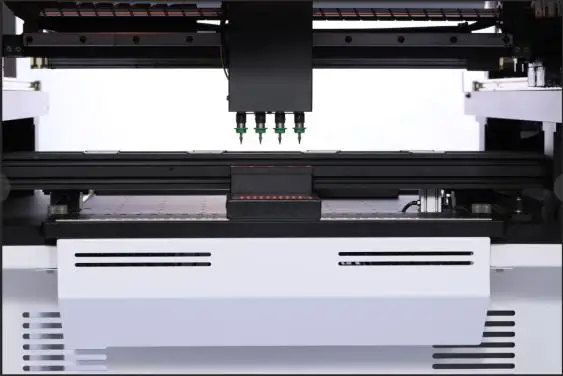

2.High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.


A4L


3.Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.


A4L


4.Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide and ball screw, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.


Actual Placement Effect:


JAGUAR-A4 PCB


About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.


Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
