High quality Handheld Digital Energy Meter 3 Phase AC Power Quality Analyser



Product Description

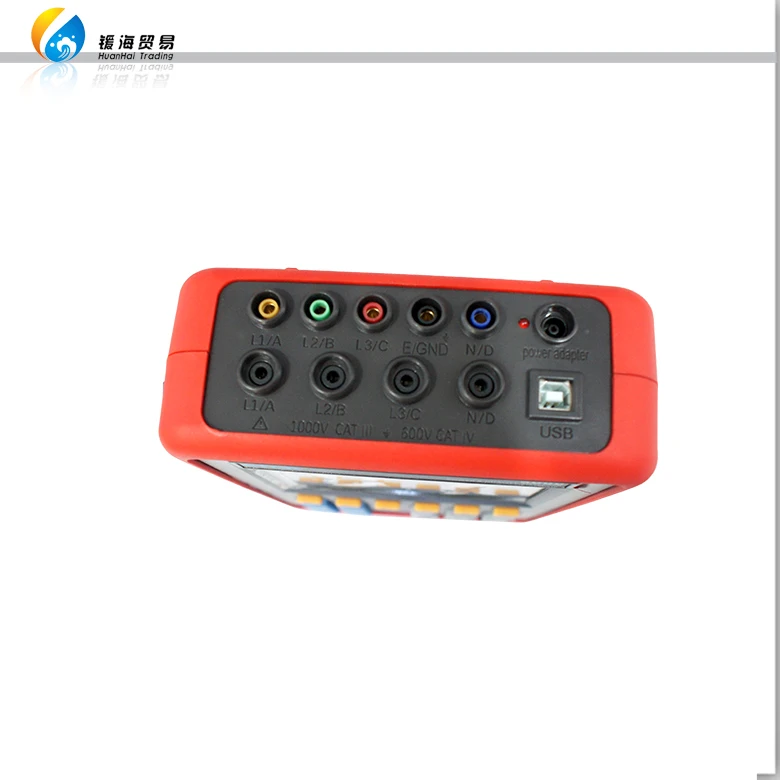

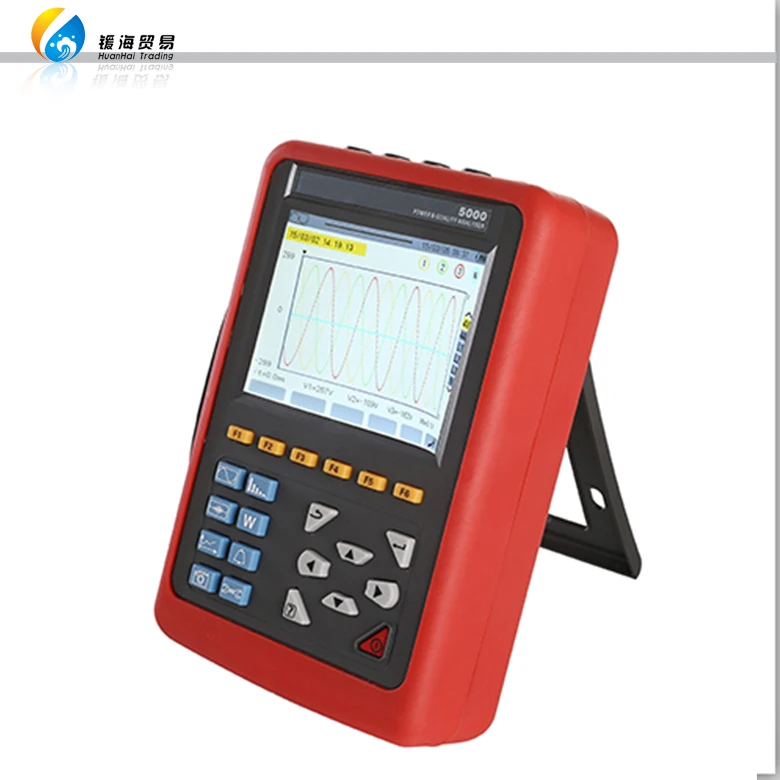

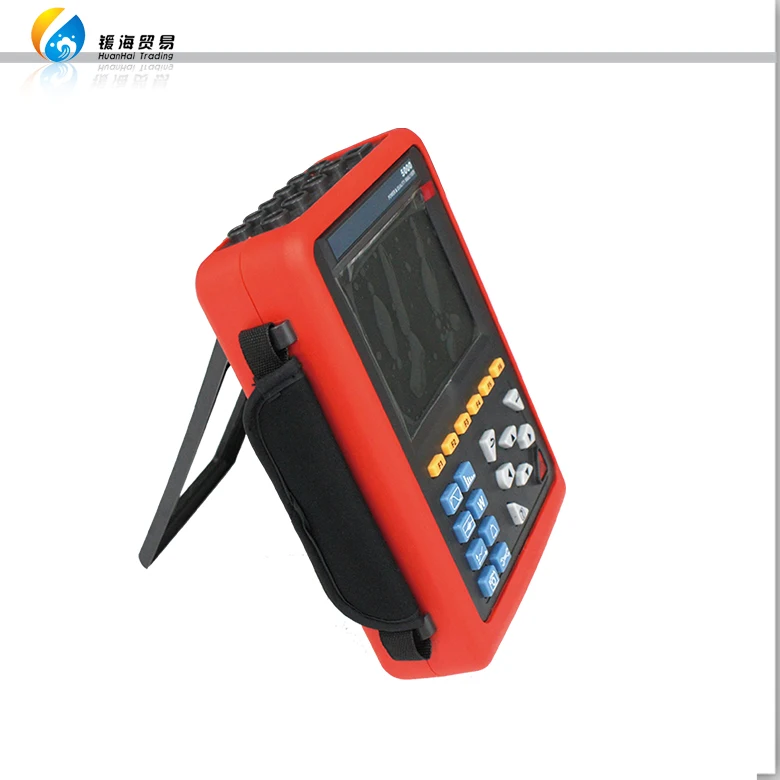

power quality analyser (1).jpgpower quality analyser (2).jpgpower quality analyser (4).jpgpower quality analyser (5).jpg

power quality analyser (3).jpg

HZCR5000 Power Quality Analyzer is a comprehensive test instrument carefully developed by our company and specially designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on. Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage,  maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Display real-time waveform, harmonic ratio bar charts of current voltage; Dynamically capture instantaneous change of voltage current, monitoring starting current, monitoring the power parameters and generate the alarm list, generate the trend chart for a long time record test data.


In the current power applications, more and more large power equipment, power grid fault have become more and more complex, with development of the industry, it put forward high request more and more to quality that electric energy. We provide this power quality analyzer for that, which you can troubleshoot of complex power system more quickly and accurate, and monitoring and maintenance of power quality parameters more comprehensive and systemic.


HZCR5000 Power quality analyser adopt DSP + ARM double processor architecture, DSP is use for data collection and the processing of algorithm, the ARM is use for the communication protocol and the man-machine interface processing; Analog signal acquisition is by 2 pieces AD7655 of ADI company. Resolution for AD7655 is 16 bit and it is 4 channel synchronous sampling. The highest sampling rate can reach 1 MSPS, to ensure the accuracy of the channel and the information integrity, and wouldn’t miss any transient changes in the grid, can more accurate to detect the transient waveform rising and dropping drastically, and waveform instantaneous interrupt; DSP working frequency is over 200 MHZ, to be able to timely monitoring of the power grid and dynamically adjust the sampling frequency to realize synchronization of power frequency and sampling frequency; Using a 5.6 -inch LCD color screen display, a resolution of 640 dots x 480 dots, with different display color difference between the parameters of phase, waveform, vector diagram, harmonic ratio, the user can be more efficient and more intuitive understand the state of power grid parameters. Built-in flash memory can store 60 group of screenshots at the same time, 150 groups of capture transient voltage/current waveform figure, and 12800 groups of alarm list. Starting current detection model can continuously capture starting current waveform for 100 s. Built-in 2G memory card to store the trend curve record, simultaneous recording 20 parameters (can choose according to needcollect data for once every five seconds, trend curve records can be stored for 300 days.


Power Quality Analyser also named: Intelligent Three Phase Power Quality Analyser, Multifunctional Power Quality Analyser, which simultaneous with the functions of harmonic analyser, phase volt-ampere meter, electric parameter tester. It apply to electricity industry, petrochemical, metallurgy, railway, mining enterprises, scientific research institution, metrological department. Especially suitable for comprehensive analysis and diagnosis on all the voltage, current, power, power, harmonic, phase electric parameters.


2. Function


Waveform real-time display (4 channels voltage/4 channels current).


True RMS values of voltages and currents.


The DC components of voltages.


Peak current and voltage values.


Minimum and maximum half-cycle RMS current and voltage values.


Phasor diagram display.


Measurement of each harmonic up to order 50.


Bar charts show harmonic ratios of current and voltage of each phase.


Total harmonic distortion (THD).


Active, reactive, apparent power, by phase and cumulative.


Active, reactive, apparent energy, by phase and cumulative.


Transformer K factor.


Power factors (PF) and displacement factors (DPF or COSΦ).


Short-term voltage flicker (PST).


Three phase unbalance(current and voltage).


3. Base condition and working condition























































































Influence factor



Test item



Base condition



Working condition



Environment temperature



All parameters



(23±2)°C



-10°C~ 40°C



Relative humidity



All parameters



40%~ 60%



<80%



Phase-to-neutral voltage



All parameters



(100±1%)V



1.0V~ 1000V



Phase-to-phase voltage



True RMS phase-to-phase voltage



(200±1%)V



1.0V~ 2000V



Current



True RMS current



(5±1%)A



10mA~ 1000A



Network frequency



All parameters



50Hz±0.1Hz



40Hz~ 70Hz



Phase shift



Active power and active energy



Cosφ=1



Cosφ: 0.2~ 1.0



Reactive power and reactive energy



Sinφ=1



Sinφ: 0.2~ 1.0



Harmonic



All parameters



<0.1%



0.0%~ 100%



Voltage unbalance



All parameters



<10%



0.0%~ 100%



Working voltage of device



All parameters



DC9.8V±0.1V



DC9.5V~ 10.5V



External electric field,


magnetic field



All parameters



Should be avoided



Test position



Measured related parameters of current



Tested wire at the center of clamp.



.jpg
