Оборудование для проволоки арматуры бар выпрямить выпрямитель резак ролики правки автомат
- Категория: >>>
- Поставщик: Changge,Townstone,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.29 $* | 0.8 $* |
| Aug-18-2025 | 0.78 $* | 0.93 $* |
| Jul-18-2025 | 0.46 $* | 0.0 $* |
| Jun-18-2025 | 0.66 $* | 0.45 $* |
| May-18-2025 | 0.66 $* | 0.7 $* |
| Apr-18-2025 | 0.37 $* | 0.18 $* |
| Mar-18-2025 | 0.99 $* | 0.48 $* |
| Feb-18-2025 | 0.25 $* | 0.1 $* |
| Jan-18-2025 | 0.74 $* | 0.94 $* |
Характеристики
Our Dealer
If you want to receive our machines faster, you can buy them directly from our dealers.
Products Description
Model | GTQ3-12 | GT4-12 | GT4-14A | GT4-14B | YGT4-14 | YGT4-16 |
HPB235 | Ø3-12 mm | Ø4-12 mm | Ø4-14 mm | Ø4-14 mm | Ø4-14 mm | Ø4-16 mm |
HRB335 | Ø3-10 mm | Ø4-10 mm | Ø4-12 mm | Ø4-12 mm | Ø4-12 mm | Ø4-14 mm |
Cut Length | 0.3-99 m | 0.3-99 m | 0.3-99 m | 0.3-99 m | 0.3-99 m | 0.01-99 m |
Power | 3kw | 5.5kw | 7.5kw | 9kw | 13kw | 20.5kw |
Working Speed | 18-40 m/min | 30 m/min | 38 m/min | 40-65 m/min | 55 m/min | 0-70 m/min |
Net weight | 95 kg | 230 kg | 300 kg | 400 kg | 850 kg | 900 kg |
APPLICATION
Steel bar straightening and cutting machine is mainly used for straightening and fixed length cutting of rebar coil and steel wire rod coil. Widely used in housing, hydropower, bridges and other construction projects.

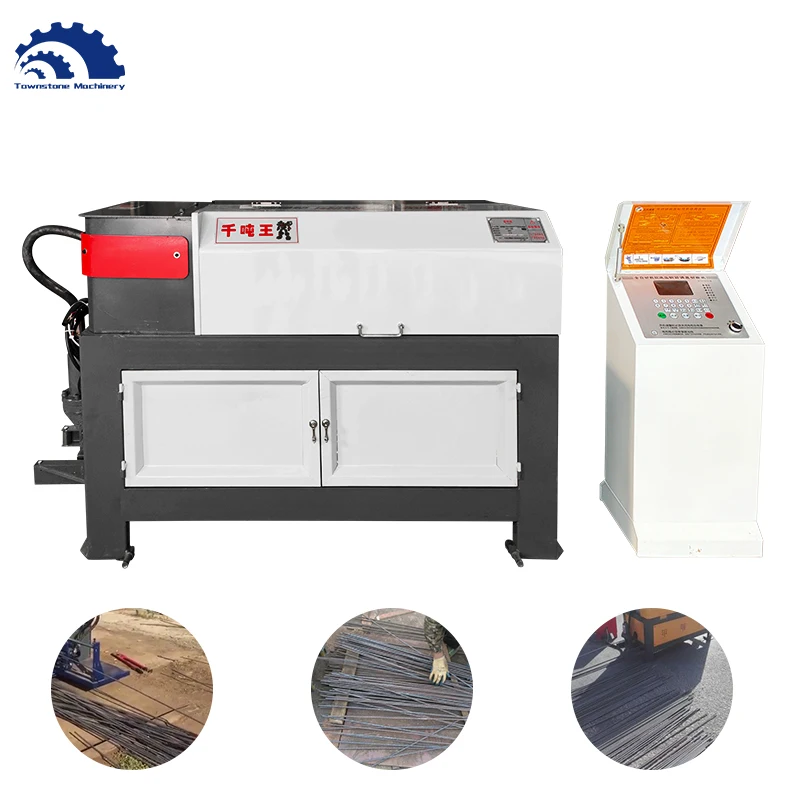

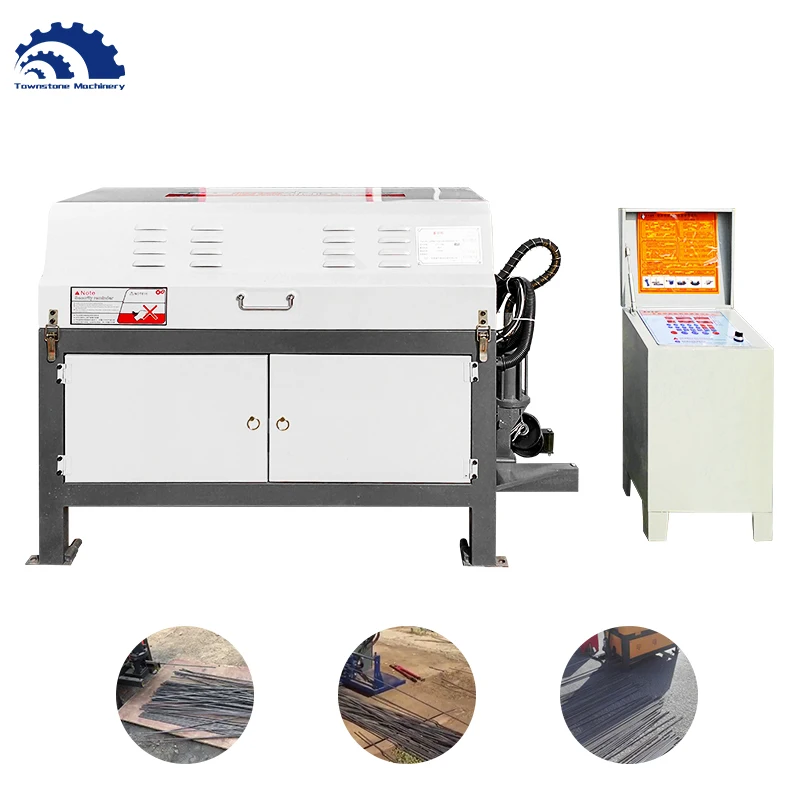

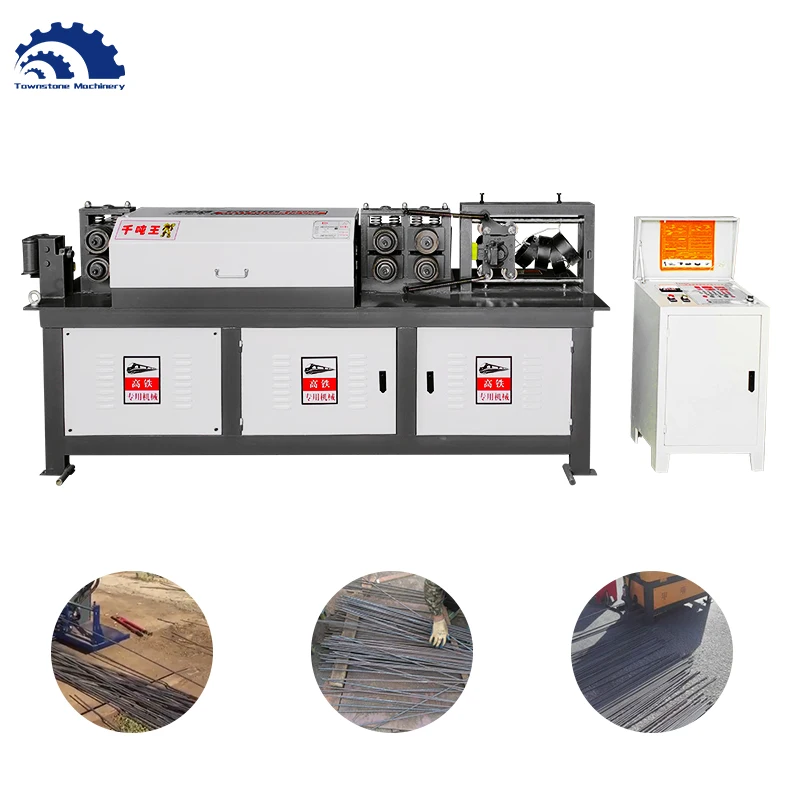

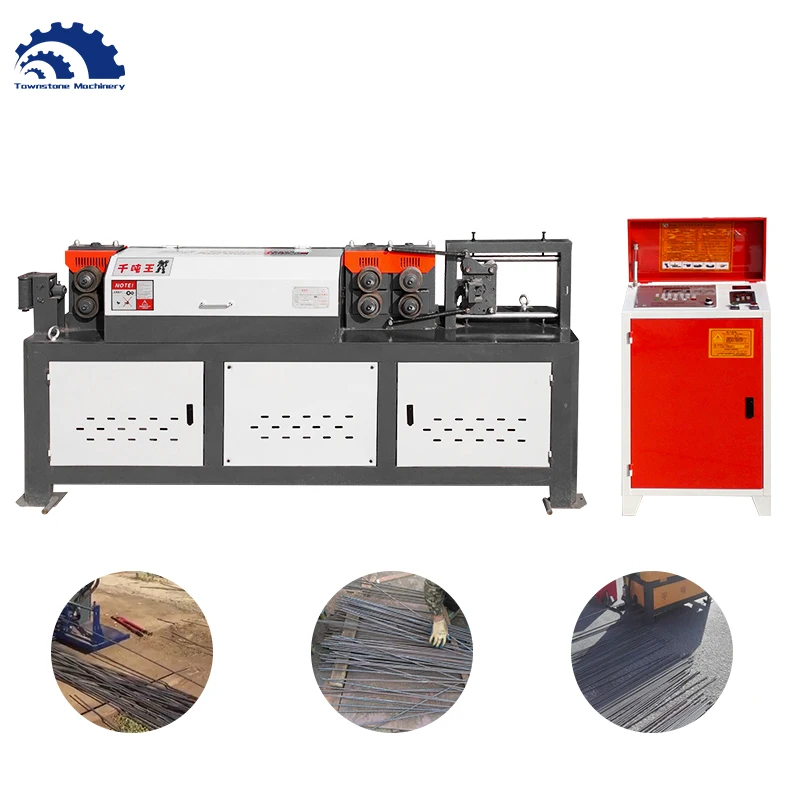

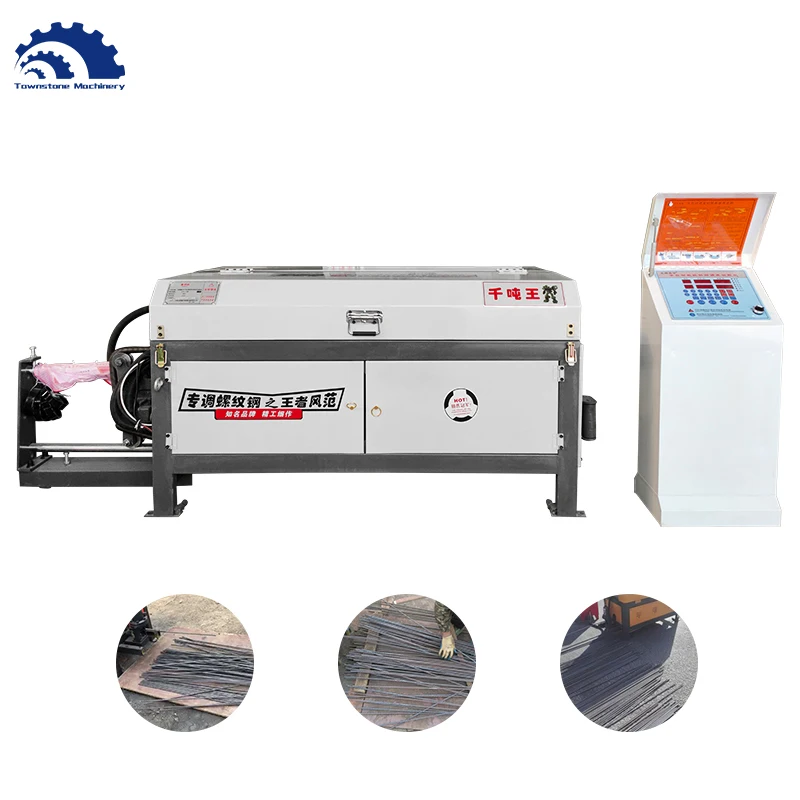

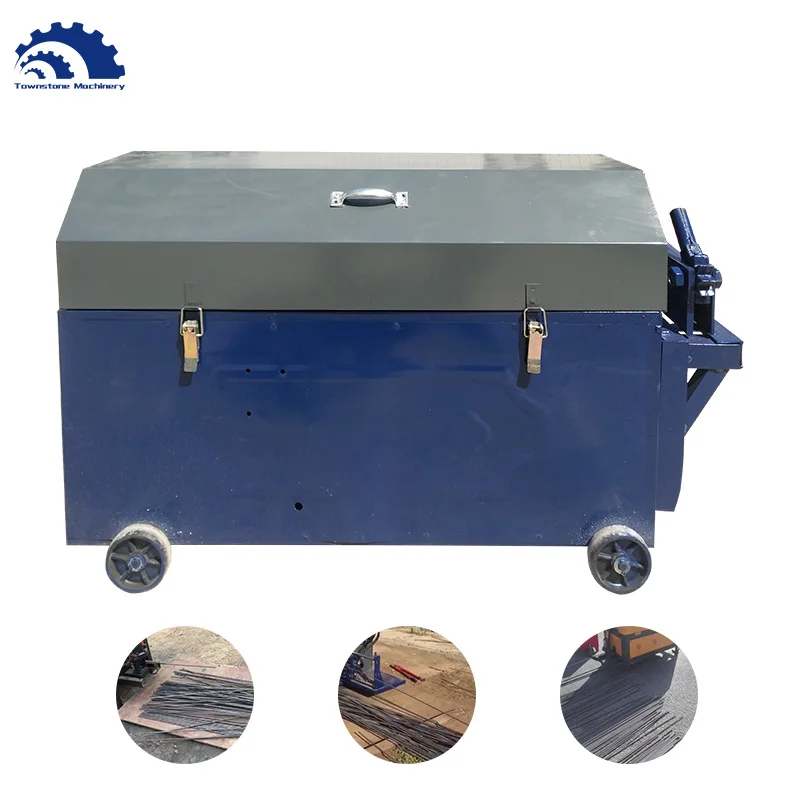

Product Photo
OPTIONAL MODEL
The operation mode of straightening and cutting machine is divided into manual model and full-automatic model. The maximum working capacity of different models is divided into 12mm/14mm/16mm.
GTQ3-12
Power: 3 kw
Working Speed: 18-40 m/min
Net weight: 95 kg
GT4-12
Power: 5.5 kw
Working Speed: 30 m/min
Net weight: 230 kg
GT4-14A
Power: 7.5kw
Working speed: 38 m/min
Net weight: 300 kg
GT4-14B
Power: 9 kw
Working Speed: 40-65 m/min
Net weight: 400 kg
YGT4-14
Power: 13 kw
Working Speed: 55 m/min
Net weight: 850 kg
YGT4-16
Power: 20.5 kw
Working Speed: 0-70 m/min
Net weight: 900 kg
Net weight: 900 kg
Product Detail
DETAILS WINNING
We focus on construction machinery manufacturing for 20 years, making every detail the best and giving you the best experience.
CNC PANEL
The fully automatic CNC panel can be set by itself to realize fully automated operation, easy to understand and easy to operate.
STRAIGHTENING FRAME
Material: Cr12
Process: Seamless Solder
The use of a more wear-resistant Cr12 material straightening frame, resolutely do not use inferior materials, to ensure that the machine can work for a long time. Efficiency higher.
Process: Seamless Solder
The use of a more wear-resistant Cr12 material straightening frame, resolutely do not use inferior materials, to ensure that the machine can work for a long time. Efficiency higher.
STRAIGHTENING Roll
Material: Cr12
Structure: Integrated Casting
The straightening roll is a wearing part, but our machine uses a more wear-resistant Cr12 material straightening wheel, which can keep working for a long time, reduce the use cost and improve the work efficiency.
Structure: Integrated Casting
The straightening roll is a wearing part, but our machine uses a more wear-resistant Cr12 material straightening wheel, which can keep working for a long time, reduce the use cost and improve the work efficiency.
COUNT WHEEL
Material: Cr12MoV
Structure: Integrated Casting
Some models of straightening machines we use the Cr12MoV material count wheel, which is harder and more wear-resistant, so the counting is more accurate.
Structure: Integrated Casting
Some models of straightening machines we use the Cr12MoV material count wheel, which is harder and more wear-resistant, so the counting is more accurate.
ELETRIC MOTOR
Material: Copper Wire
Standard: International Standard
The International standard copper wire motor provides strong power for
machine. We accept voltage customization as 220/380/415/440V etc according to the requirements of different countries.
machine. We accept voltage customization as 220/380/415/440V etc according to the requirements of different countries.
Mass Production
MASS PRODUCTION
We can provide custom reabr straightening & cutting machines according to customer requirements such as work capacity, weight, shape, color, voltage, etc.
Currently, our monthly production is 450 units and the maximum output is 600 units.
In the past ten years, our products have been sold to 39 countries and regions.
With the accumulation of customers, our export volume is growing at an average annual rate of 36%.
Why Choose Us
WHY US ?
Focus on manufacturing construction machinery, understand the market, and understand you better.
Stable quality | Professional customization | Fast delivery on time | Professional after sales service |
1、20 years of experience in construction machinery production 2、15 professional engineers 3、Professional quality inspection process | 1、10 years of export experience 2、9 years OEM/ODM experience 3、Service customized customers over 80 | 1、Stable supply chain，Core accessories we produce ourselves 2、20 skilled workers 3、common models and parts standing stock | 1、1 year warranty 2、7 * 24 hours technical support 3、A comprehensive after-sales service system ensures long-term cooperation |
Our Company
FACTORY DISPLAY
20 years of manufacturing experience.
15600 square meters production workshop.
The 65 employees include 15 engineers and 20 skilled workers.
Welcome to visit our factory.
15600 square meters production workshop.
The 65 employees include 15 engineers and 20 skilled workers.
Welcome to visit our factory.
24-HOUR
ONLINE SERVICE
ONLINE SERVICE
√
7×24 customer service online
√
√
7×24 engineers online
√
√
12 months quality assurance
MAIN MARKET
South / North America
Mexico, Honduras, Chile, Colombia, Brazil
Europe
Romania, Bulgaria, Russia, Czech Republic
Asia
Philippines, Bangladesh, India, Cambodia
Mexico, Honduras, Chile, Colombia, Brazil
Europe
Romania, Bulgaria, Russia, Czech Republic
Asia
Philippines, Bangladesh, India, Cambodia
OUR EXHIBITION
China Exhibition
Guangzhou, China, Canton Fair
International Exhibition
Kazakhstan, India, Indonesia, etc.
Welcome to our booth.
Guangzhou, China, Canton Fair
International Exhibition
Kazakhstan, India, Indonesia, etc.
Welcome to our booth.
Business Partners
In the past 10 years of foreign trade transactions, we are honored to serve more than 1,500 customers, deal with 153 international visiters, and have long-term relationships with 56 customers all over the world (Europe, South America, Asia, Middle East, Asia, Australia, etc.).
My friend, we sincerely welcome you to visit us at any time.
Packing & Delivery
PACKING & DELIVERY
It is usually packaged with iron frame + felt or packaged according to your requirements.
