12000 Вт 20 кВт пиковая мощность бесщеточный DC Электрический велосипед спицевый
- Категория: Electric Bicycle Motor >>>
- Поставщик: Shanghai,Weiyi,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.11 $* | 0.52 $* |
| Aug-19-2025 | 0.36 $* | 0.87 $* |
| Jul-19-2025 | 0.42 $* | 0.27 $* |
| Jun-19-2025 | 0.5 $* | 0.72 $* |
| May-19-2025 | 0.85 $* | 0.32 $* |
| Apr-19-2025 | 0.99 $* | 0.61 $* |
| Mar-19-2025 | 0.7 $* | 0.14 $* |
| Feb-19-2025 | 0.35 $* | 0.4 $* |
| Jan-19-2025 | 0.35 $* | 0.78 $* |
Характеристики
Product Description
Specification

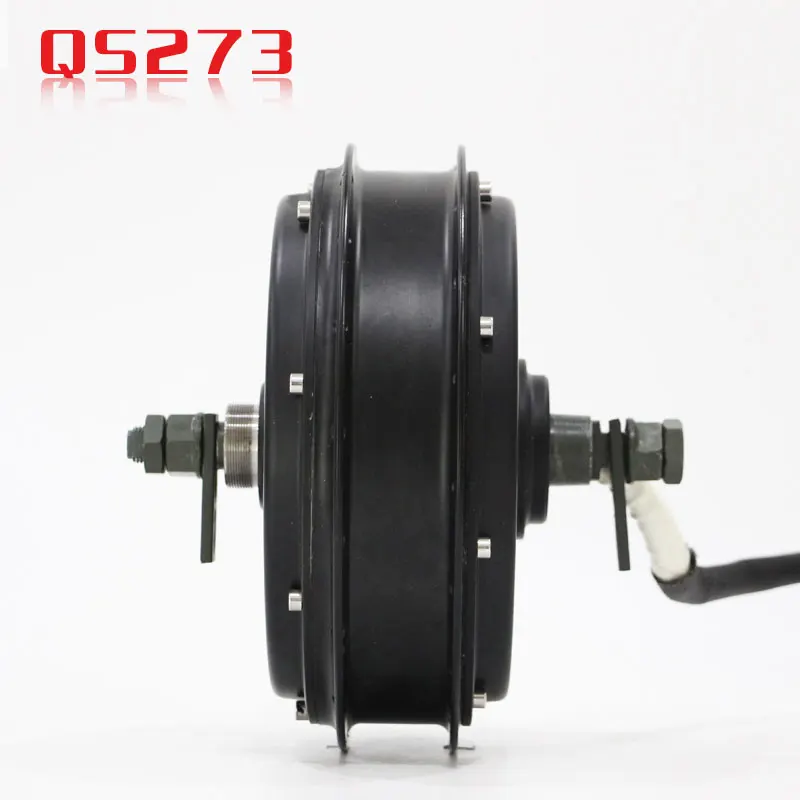

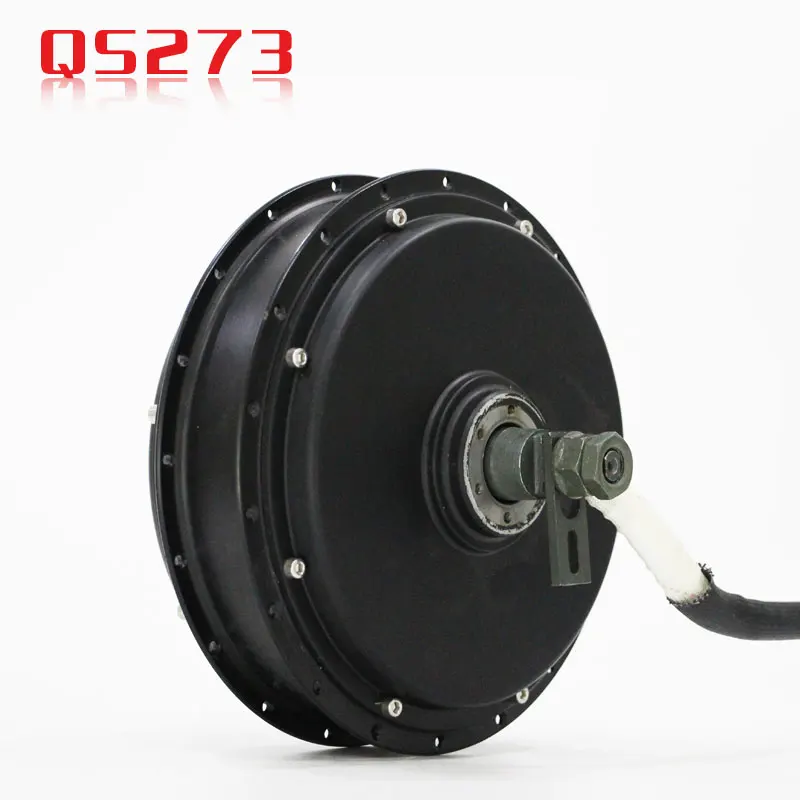

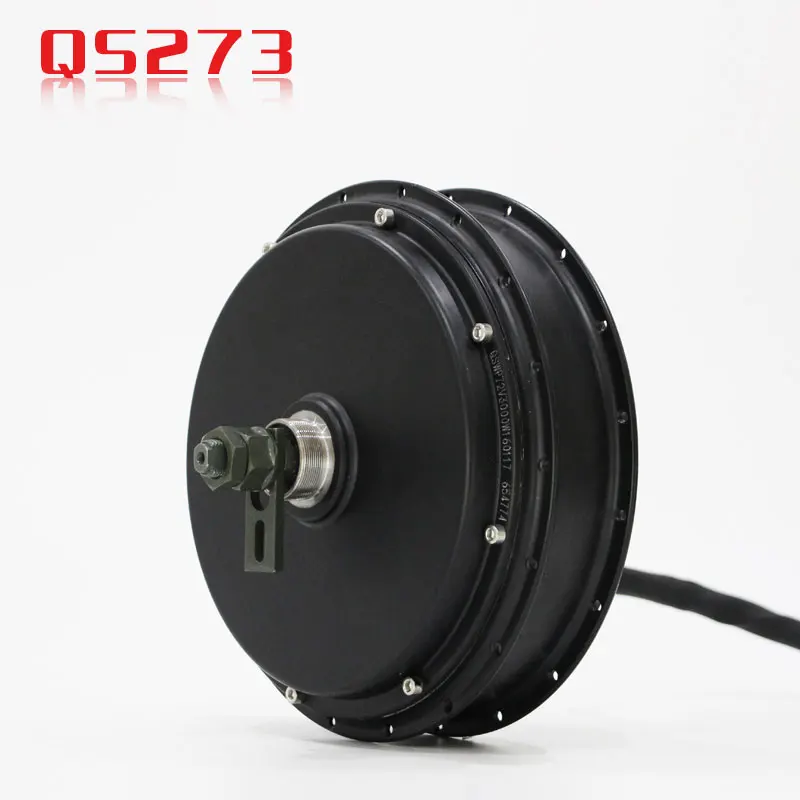

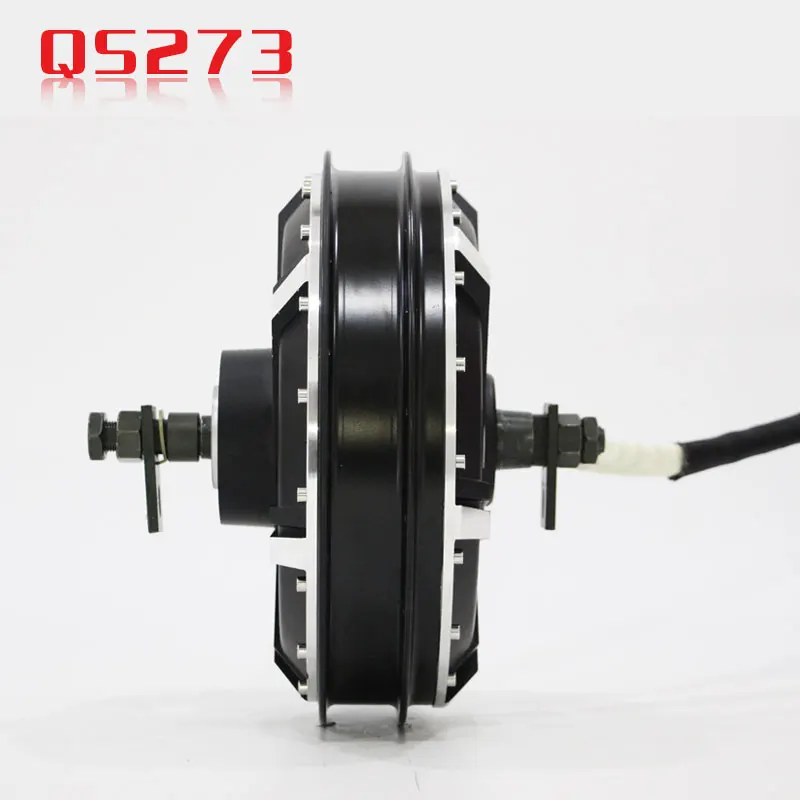

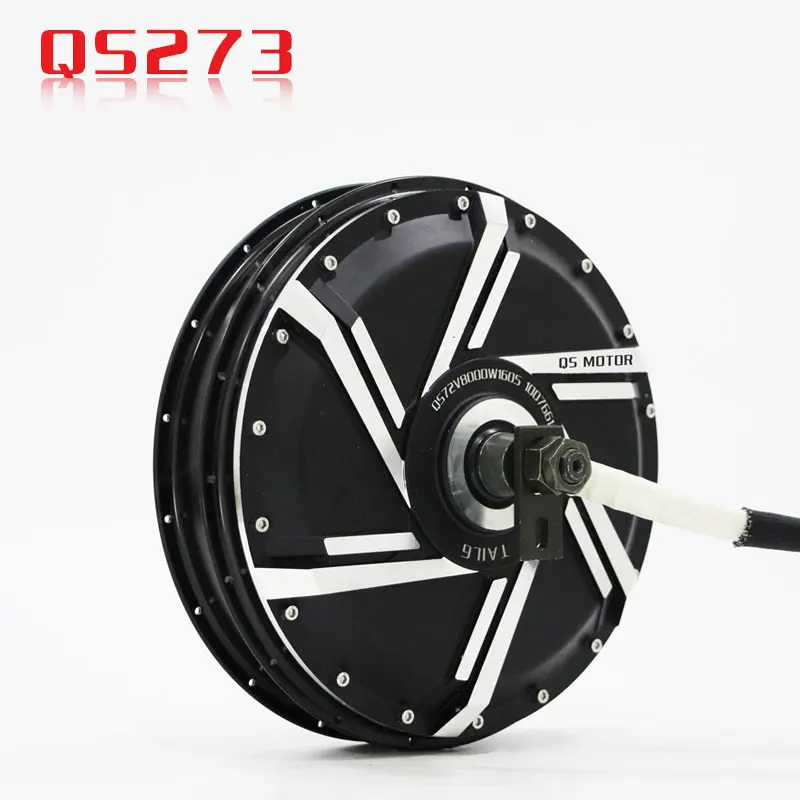

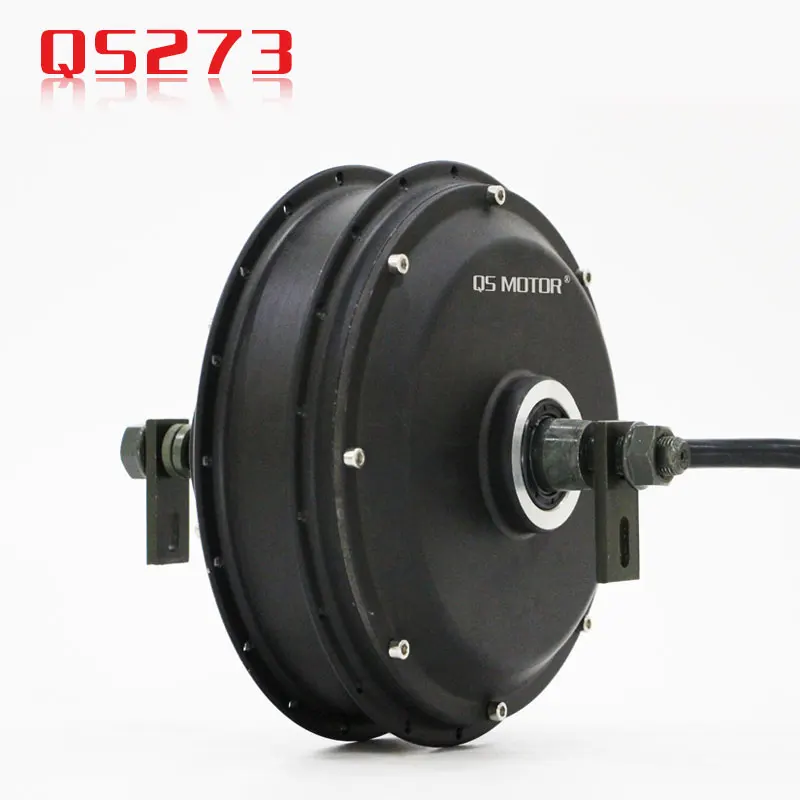

- Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
- Brand: QS Motor,QSMOTOR
- Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
- Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
- Magnet Height: 50mm, 16 pole pairs
- Stator: Aluminmum Core
- Rated Power: 8000W
- Rated Voltage: 72V as default (48V-96V, optional)
- Speed: 120KPH as default (24-120KPH, optional)
- Max Torque: approx 350N.m
- Max Efficiency: 86-91%
- Continuous Battery Current: 110A (72V)
- Peak Battery Current: 150-200A (72V)
- Suggest Peak Phase Current: 300-650A (depend on the kV)
- Thermic Probe: KTY83/122 (as default, optional)
- Working Temperature: 70-120℃ , peak 150 ℃
- Brake type: Bike Disc brake, PCD3*80mm(as default)
- Drop-outs/Rear Fork Width for installation: 200m
- 14mm axle flats
- Dual Hall Set with waterproof connectors
- 16mm⊃2; Cross Section of Phase Wire (not include insulation layer)
- Hall Sensor Phasing angle: 120 degree
- Waterproof Grade: IP54
- Color: Black (as default), White/Luminous (extra $5.0)
- N.W./G.W.: 21.5kg/23.0kg
- Package Dimension: 43cm*43cm*41cm/piece
