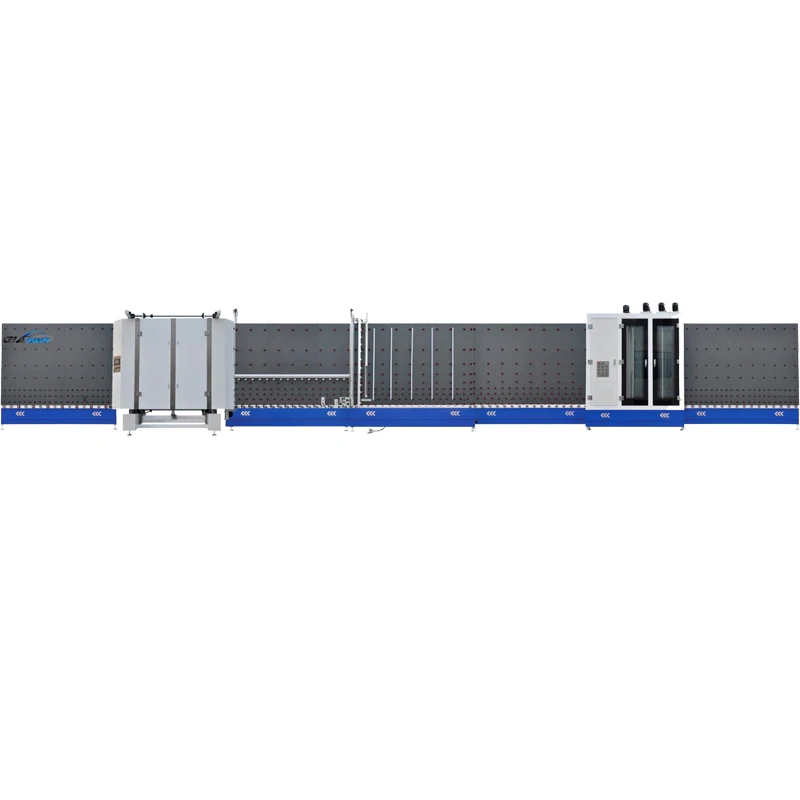

Полностью автоматическая машина для производства двойного стекла производственная линия изолированного
- Категория: Машина по производству стекла >>>
- Поставщик: Jinan,Glasino,Glass,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 35700.49 $* | 37485.72 $* |
| Aug-18-2025 | 35400.80 $* | 37170.34 $* |
| Jul-18-2025 | 29700.47 $* | 31185.82 $* |
| Jun-18-2025 | 34800.68 $* | 36540.22 $* |
| May-18-2025 | 30300.18 $* | 31815.77 $* |
| Apr-18-2025 | 34200.50 $* | 35910.62 $* |
| Mar-18-2025 | 33900.30 $* | 35595.6 $* |
| Feb-18-2025 | 33600.26 $* | 35280.19 $* |
| Jan-18-2025 | 33300.97 $* | 34965.98 $* |
Характеристики
Product Description
Technical Characteristic
1.PLC Control, touch screen control interface
2.High speed conveyance (40m/min) controlled by PLC frequency control
3.Separate controller of the feeding section
4.Low-E glass automatic recognition
5.Stainless steel washing-drying section
6.3 pairs of brushes 7motors
7.2 separate water circuits
8.Water tank and pipe feature easy washing
9.Distance between the brushes is adjustable
10.Easy brush roller adjustment
11.High speed washing
12.Wringing roller
13.Low noise and complete closed drying room
14.Infinite variable speed brushes
15.Rear and front glass support
16.Step IG unit available
17.Hydraulic press plate
18.Gear and chain structure for panel press (synchronous structure like Europe machine)
19.No breaking glass for panel press
20.Automatic alarm of press plate repair (open and close)
21.Automatic output statistics
2.High speed conveyance (40m/min) controlled by PLC frequency control
3.Separate controller of the feeding section
4.Low-E glass automatic recognition
5.Stainless steel washing-drying section
6.3 pairs of brushes 7motors
7.2 separate water circuits
8.Water tank and pipe feature easy washing
9.Distance between the brushes is adjustable
10.Easy brush roller adjustment
11.High speed washing
12.Wringing roller
13.Low noise and complete closed drying room
14.Infinite variable speed brushes
15.Rear and front glass support
16.Step IG unit available
17.Hydraulic press plate
18.Gear and chain structure for panel press (synchronous structure like Europe machine)
19.No breaking glass for panel press
20.Automatic alarm of press plate repair (open and close)
21.Automatic output statistics
Seven control motors
3 Pair of brushers
3 Srong brusher 3 soft brushers
Stainless stell panel
Brusher
Brushers and Universal nozzle
Noice down device
Big power fan
Special made box
Blowing control
Technical Parameter
Parameter | LB2025 | LB2030 | LB2536 |
Power Supply | 380v 50Hz | 380v 50Hz | 380v 50Hz |
power | 30kw | 30kw | 34.0kw |
Max size | 2000×2500mm | 2000×3000mm | 2500×3600mm |
Min size | 300×500mm | 300×500mm | 300×500mm |
Glass thickness | 3—12mm | 3—12mm | 3—12mm |
Transport speed | 8—45m/min | 8—45m/min | 8—45m/min |
Weight | 5500kg | 6000kg | 7000kg |
Overall dimension | 19000×1800×3100mm | 22000×1800×3100mm | 26000×1800×3600mm |
Details Show
Washing Box
Air Knife
Pressing Part
English Panel
Outside Assembling Wheel
Aluminum Spacer Width Controller
Srrong Chain
Aviation plug.
High Strength Density Board
Main parts
NO. | Name | Brand | Remarks |
1 | PLC | Siemens | Germany |
2 | Frequency converter | Siemens | Germany |
3 | Touch screen | Kinco | China |
4 | Photoelectric Sensor | Autonics | South Korea |
5 | Proximity switch | Omron | Japan |
6 | Pneumatic Parts | AirTAC | Taiwan |
7 | Circuit breaker | Schneider | France |
8 | Motor circuit breaker | Siemens | Germany |
9 | Miniature circuit breaker | Siemens | Germany |
10 | AC contactor | Siemens | Germany |
11 | Intermediate relay | Schneider | France |
12 | Button | Schneider | France |
13 | Indicator light | Schneider | France |
14 | Motor | Maili | China |
15 | Switch power supply | Mingweo | China |
TSimens PLC
7 Siemens Inverters
1 German Siemens Low Voltage Electrical Appliances, high-end precision.
2.German Siemens PLC, original, high precision.
3. French Schneider relay, stable and safe.
4. The electric cabinet is equipped with air plug, which is convenient to install, safe and efficient.
2.German Siemens PLC, original, high precision.
3. French Schneider relay, stable and safe.
4. The electric cabinet is equipped with air plug, which is convenient to install, safe and efficient.
5.Airtac cylinder
304 Stainless Stell
Product Packaging And Exhibition
In Moxico
In Italy
In China
Why Choose Us
1 Advanced and leading technology
2 Stable and efficient products
3 More than 10 years of export experience
4 professional and timely after-sales service
5 Extensive market and good reputation
4 professional and timely after-sales service
5 Extensive market and good reputation
FAQ
1.Are you a factory or a trading company？
We are factory
2. How long is the equipment warranty？
One year.
3.How to provide after-sales service？
Provide on-site installation, commissioning and training.Free accessories within one year.Provide remote service and videoguidance
4.What operating language is the machine
Standard English, can also be changed as required
5.How long is the delivery time？
30-40days after receive the deposit.
We are factory
2. How long is the equipment warranty？
One year.
3.How to provide after-sales service？
Provide on-site installation, commissioning and training.Free accessories within one year.Provide remote service and videoguidance
4.What operating language is the machine
Standard English, can also be changed as required
5.How long is the delivery time？
30-40days after receive the deposit.
6.How many days for installing?
Generally 7-10days
Generally 7-10days
