Заводская цена от производителя склеивающая машина гофрированный автоматический

Заводская цена от производителя склеивающая машина гофрированный автоматический

Категория: Оборудование для пресса >>>
Поставщик: Huizhou,Degang,Machinery,Co.,Ltd.

Цена:60 000,00 $ - 80 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	71400.95 $*	74970.26 $*
Aug-20-2025	70800.62 $*	74340.34 $*
Jul-20-2025	59400.93 $*	62370.21 $*
Jun-20-2025	69600.53 $*	73080.94 $*
May-20-2025	60600.17 $*	63630.30 $*
Apr-20-2025	68400.39 $*	71820.33 $*
Mar-20-2025	67800.57 $*	71190.84 $*
Feb-20-2025	67200.17 $*	70560.6 $*
Jan-20-2025	66600.66 $*	69930.23 $*

Характеристики

Product Description

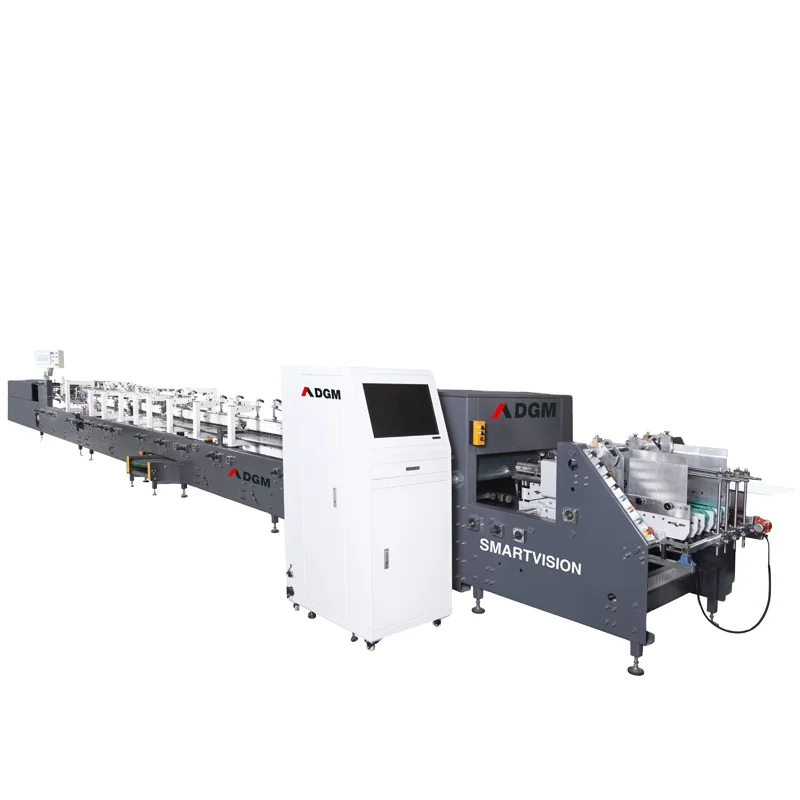

High speed automatic folder gluer

SMARTFOLD 1100 – PC

suitable for straight-line, crash-lock bottom & double wall boxes

SMARTFOLD 1100 – SL
suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
SMARTFOLD 1100 It is specially indicated for the most demanding packaging companies, commercial printers and finishers. Can run from small to large sized boxes, covering a wide range of industries. It is flexible to operate and it comes with a state of the
art technology and electronics. The standard version includes the accessories for straight line and crash lock bottom boxes. It is
flexible and easy to operate.

1. Feeder section

* Independently motorized friction feeder with variable speed.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 8 feeder belts.
* Two adjustable front feed knives.

2. Side register section

* Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank
alignment.

3. Online inspection module

High speed image processing system.

Inspection software Printing Plus V5.0 English edition published.

High speed vision image unit, equipped with Japan’s imported lens, Canada imported high/frequency COMS line scan industrial camara.

Independent electric cabinet.

4. Pre-folding section

* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.

5. Crash lock bottom section

* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accessories for B-type lock bottom.

6. Lower gluing unit

* One lower (left side) gluing tank.
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)

7. Folding & Closing section

* Smooth and accurate folding of 2nd and 4th creases.
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).

8. Trombone section

* Upper and lower drive mechanism for lengthwise adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.

9. Press section

* Independent and motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.
