6t Автоматический Газовый паровой котел

Категория: Boilers & Parts >>>
Поставщик: Zhangjiagang,Wilford,Thermal,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.95 $*	0.80 $*
Aug-19-2025	0.79 $*	0.90 $*
Jul-19-2025	0.2 $*	0.76 $*
Jun-19-2025	0.86 $*	0.35 $*
May-19-2025	0.98 $*	0.67 $*
Apr-19-2025	0.28 $*	0.16 $*
Mar-19-2025	0.86 $*	0.30 $*
Feb-19-2025	0.60 $*	0.56 $*
Jan-19-2025	0.20 $*	0.76 $*

Характеристики

Product Description

Product Description

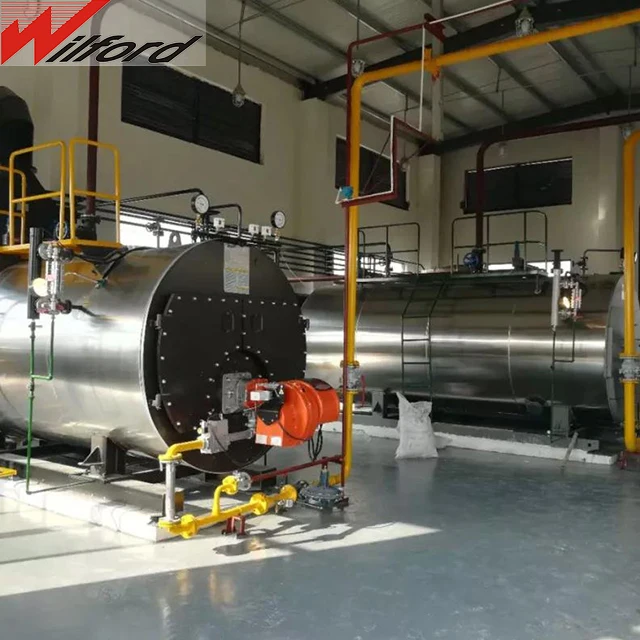

WNS series gas/oil fired industrial steam boiler use international most mature three-pass all wet back structure,safety and reliable .Use waveform furnace ,strengthens the disturbance of the smoke and increases the radiation heat transfer area ;increases the stiffness of the furnace and effectively reduces the thermal stress of the furnace;enhance heat transfer and promote the combustion of fuel in the furnace.The heating surface is arranged symmetrically with solid structural strength and reasonable water circulation .Boiler up part inside has full water capacity ,big steam space and good quality steam .During procession ,the water level fluctuation is small .Big distance between two ends boiler ,big diameter of tubes ,all of these ensure good natural circulation . Steam boiler with very small heat loss because of unique furnace and flue gas thermal surface design . boiler 6t

Technical Parameter

Model			WNS6	WNS8	WNS10	WNS12	WNS15	WNS20
Item		unit	WNS6	WNS8	WNS10	WNS12	WNS15	WNS20
Rated evaporation		T/h	6	8	10	12	15	20
Rated working pressure		Mpa	1.25
Staturated steam temperature		℃	193
Weight		T	15.5	18.4	23	30.1	36.5	49.5
fuel consumption	diesel oil	Kg/h	360	480	600	720	900	1200
	natural gas	Nm3/h	449	614	766	921	1140	1525
	LPG	L/h	699	957	1194	1435	1777	2377
a main steam valve		mm	125	150		200		250
b safety valve			65×2		80×2
c water inlet			40	50		65		80
d drain valve			50			65
e chimney			600	650	750	1000		1250
Overall size	L		7470	7950	8600	8740	10730	11250
	W		3000	3200	3400	7450	8110	8360
	H		4070	4100	4300	3475	3850	4395
Transportation size	L1		6120	6700	7350	2700	2950	3250
	W1		2400	2600	2800	4050	4210	4650
	H1		3100	3070	3470	3280	3510	3820

boiler 6t

Product Advantage

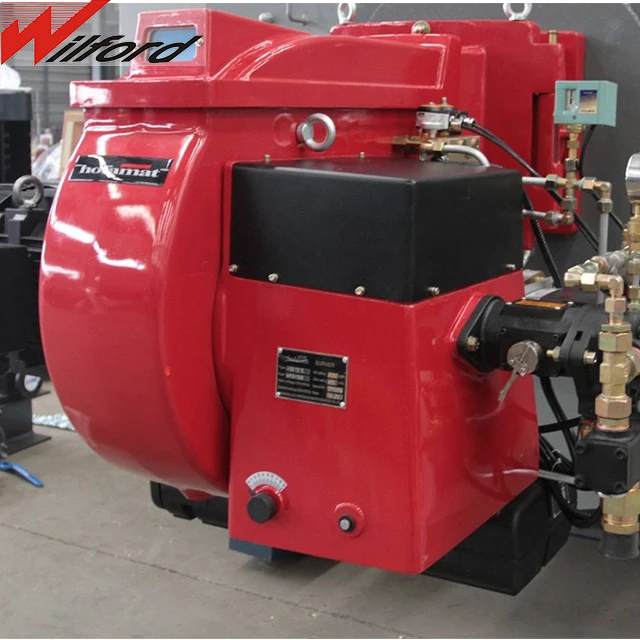

1. Pre purge function, improve the working conditions of the burner and prolong the service life .

2. The unique design of the combustion chamber, increasing the radiation heating furnace area, shrinking the size of boiler, reducing NOx emissions."

3. Two ends smoke box multi-level sealed to avoid smoke leakage .

4. Large steam room and high quality steam.

5. Horizontal structure boiler ,with adequate heating area, full heat transfer ,stable operating under load revise ,high combustion efficiency. Boiler furnace located at low position ,ensurethe safety range of the water level.Big steam evaporation surface, high quality steam ."
