Характеристики



Product Description

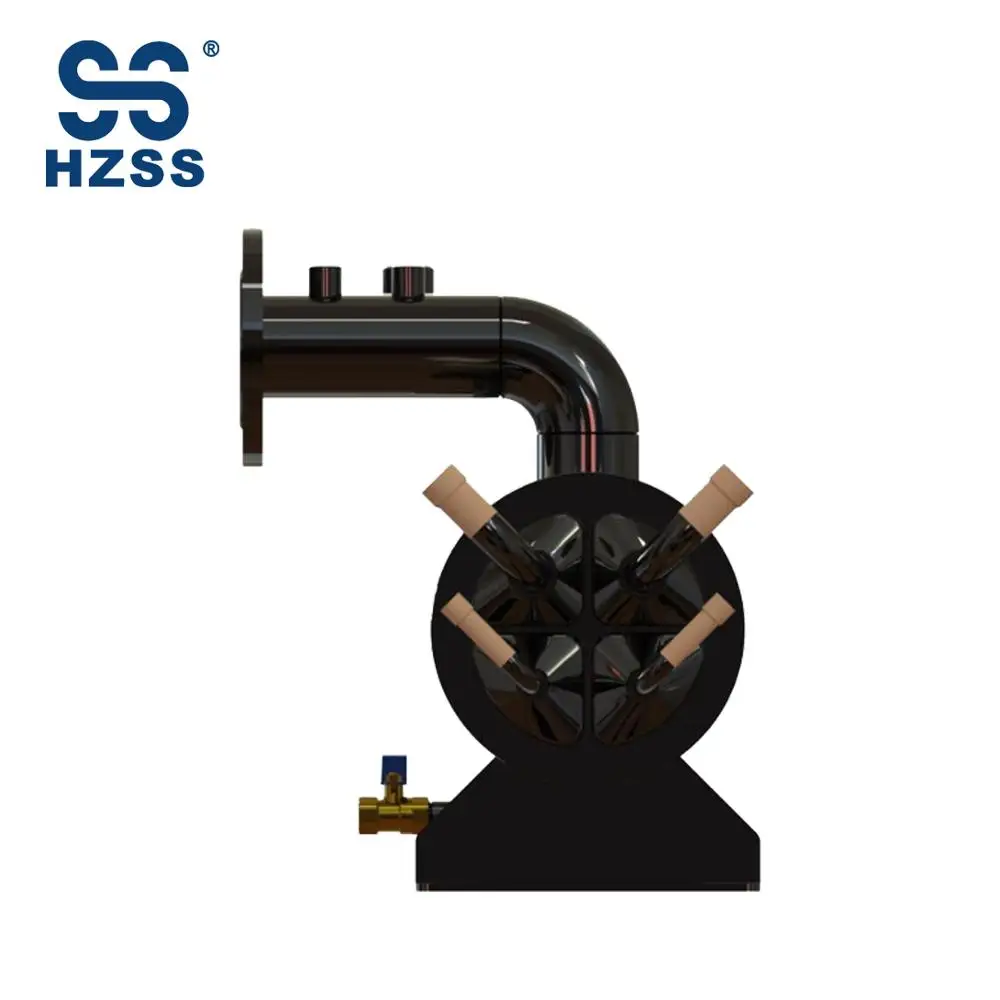

Shell and tube heat exchanger introduction


Shenshi's 130KW shell and tube are used forevaporators and condensers of hot and cold water units, modular units and other units; 7mm heat transfer tube upgrade, spiral baffle optimization, and multiple Shenshi's patented distributors are used in combination, with high heat exchange efficiency ; Shenshi's shell tube is designed and manufactured strictly in accordance with GB150, 151 standards. The fluorine side head is laser welded, with high pressure, no risk of leakage from traditional gaskets, the heat exchange tube is integrally formed, no splicing, no solder joints and water Contact, freeze resistance and strong reliability; Patented optimized design of the fluorine side head saves material costs, small housing for small heat transfer tubes, high compactness, and small material consumption.




Main Features


1.High heat exchange efficiency
2.7mm heat transfer tube
3.Spiral baffle
4.Patent dispenser
5.Laser welding for more sealing
6.Integrated molding without splicing
7.Strong frost resistance
8.Excellent value for money



Efficient Design


Shenshi's design heat transfer tube
7mm heat transfer tube, bottom wall thickness 0.35mm, number of teeth, tooth height and helix angle are all own parameters, the result of repeated optimization.
Shenshi's spiral baffle
unique lock design, tight stitching in the
splicing area, smooth and natural transition, uniform flow velocity on the water side, high heat exchange efficiency; no dead zone, reducing freezing risks.
Shenshi's Patent Distributor
Refrigeration: 1 mix + 2 distributions Heat pump: 1 mix + 1 distribution


Processing Technology


Laser cutting process
Inner tube bending process
Robot Expander
Laser welding of fluorine side head
Four-axis machining center
Laser welding of fluorine side head





Technical Parameters


Size
Model
WindpipeID (mm)
Liquid pipeID (mm)
Nozzle size
Length (mm)
Width (mm)



height (mm)
SS-KG168-R-2-C
28.6
16
DN65
1735
375
483
SS-KG168-B-2-C
28.6
16
DN65
1735
375
483
SS-KG168-G-2-C
28.6
16
DN65
1735
375
483
SS-KG219-R-2-C
35
22
DN65
1772
470
498
SS-KG219-R-4-C
28.6
16
DN65
1768
470
498
SS-KG219-B-2-C
35
22
DN65
1772
470
498
SS-KG219-B-4-C
28.6
16
DN65
1768
470
498
SS-KG219-G-2-C
35
22
DN65
1772
470
498


Certifications




Exhibitions







2019 AHR in USA-Atlanta









2019 CRH in China-Shanghai








2019 HVAC in China-Beijing









2020 AHR in USA-Orlande





Our Company








HZSS Profile.

Hangzhou Shenshi Energy Conservation Technology Co., Ltd.(HZSS) was set up in the year of 2005 (the original name was Hangzhou Shenshi Heat Exchanger Co., Ltd.), and now located in Hangzhou Jiande, Zhejiang Province, China. HZSS is a professional coaxial heat exchanger manufacturer, and owner of the global-leading technology of integrated micro-channel heat exchanger and small climate system. HZSS focus on production and marketing and innovation of high efficiency and energy saving heat exchangers.



Product Application


                  Air energry heat pump

                   Air source heat pump

                      Ice machine



             Swimming pool heat pump

                        Water chiller

                     Water purifier



Related Products


coaxial heat exchanger


tube and shell plate exchanger


microchannel heat exchanger




FAQ


1.How to choose a match heat exchanger?

Pls fill in our Techology Selection Sheet, our engineer will recommend a match model to you.

2.If possible to customize?How to do?

Yes, We can supply OMD service.

We can maufacture heat exchanger according to customer's drawings.

Or we draw papers based on customer's requirements, manufacture after client confirm.

3.How long is the delivery time?

10 to 15 days for regular models, or 25 to 30 days for customized models.

4.How to packing?

Paper box and plywood pallet, or plywood case for heavy weight products.

Individual or multiple pieces per package base on weight and dimension.

5.How to pay?

In general by T/T and L/C at sight, OA is available for large quantity purchase order and long-term cooperation.

6.How to get sample?Anything while the sample cost and freight is paid.

7.How many is MOQ?

Over 20 pieces.

8.How long is warranty?

The warranty is 1 year, but lifelong technical support and service.
