CBB65A 60 мкФ 450vac двигатель пусковой конденсатор

Описание и отзывы

Трекер стоимости

Характеристики

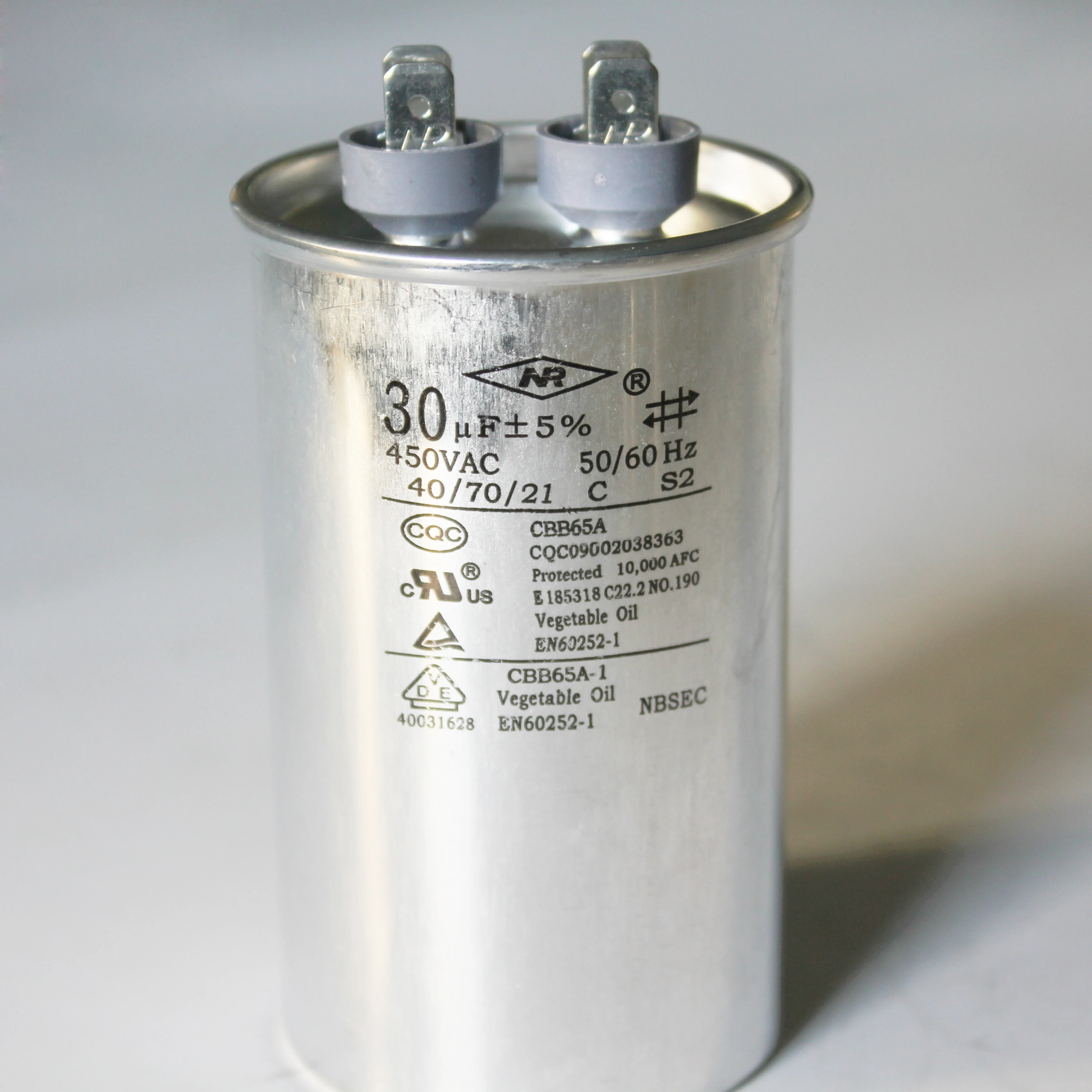

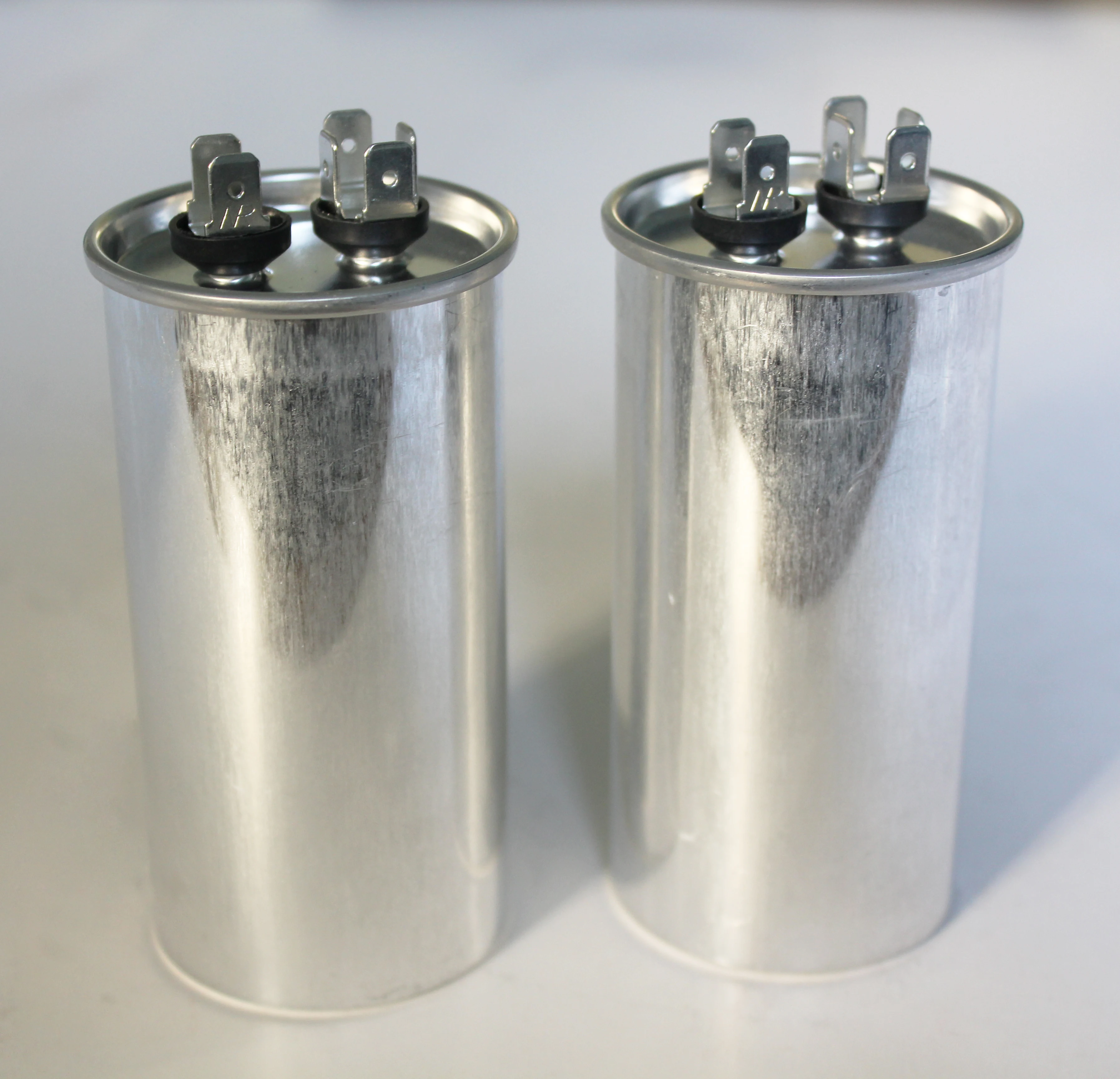

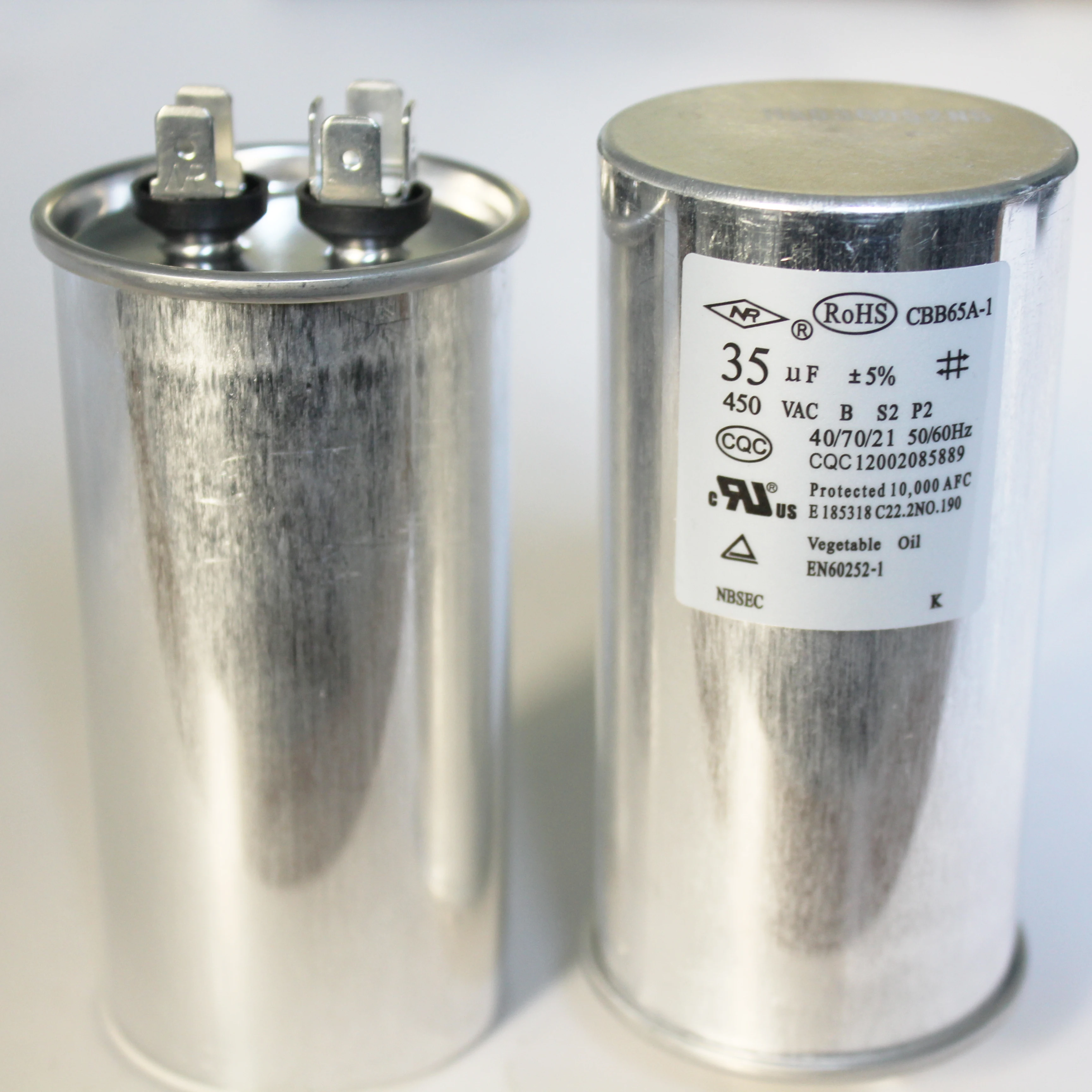

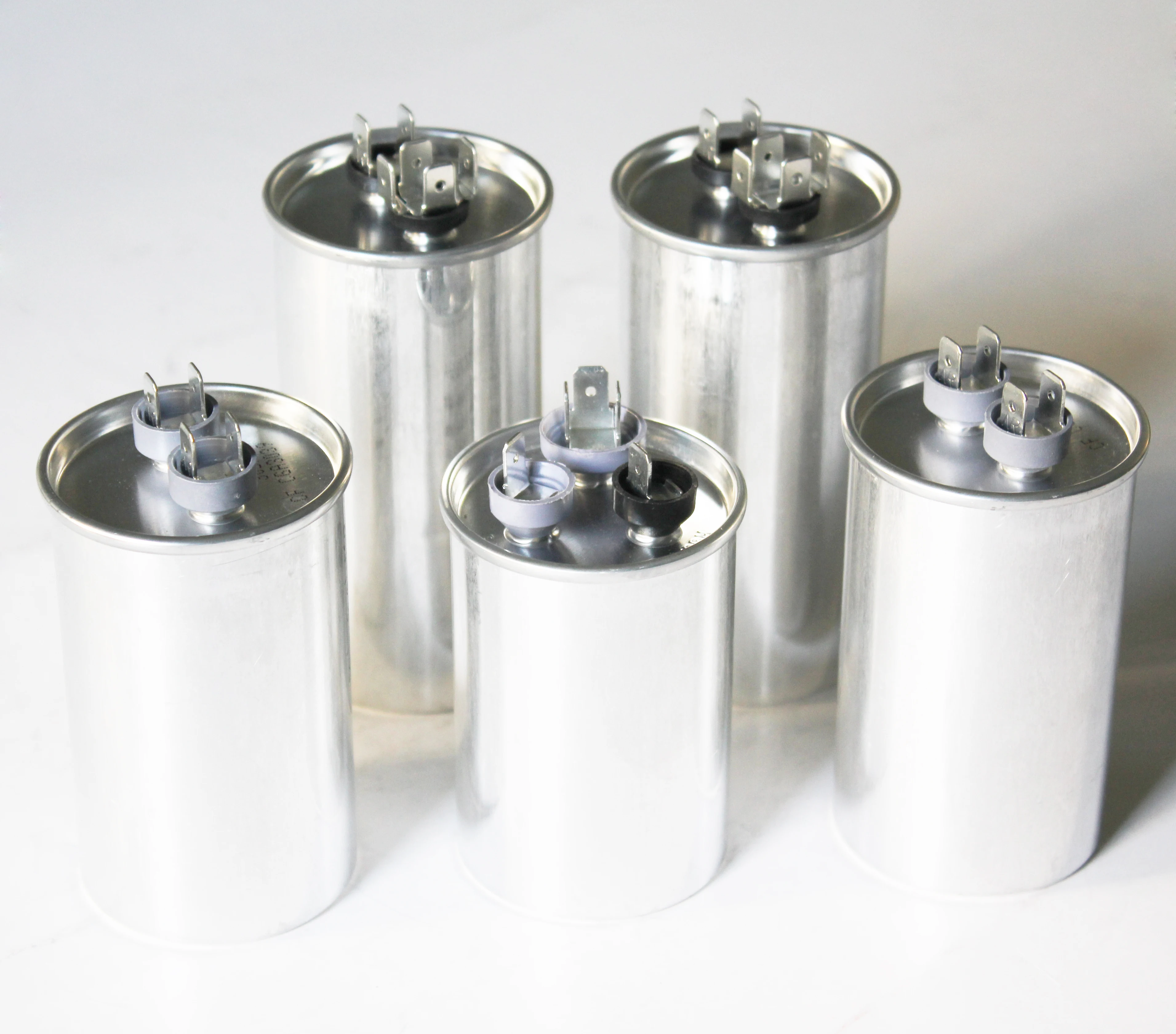

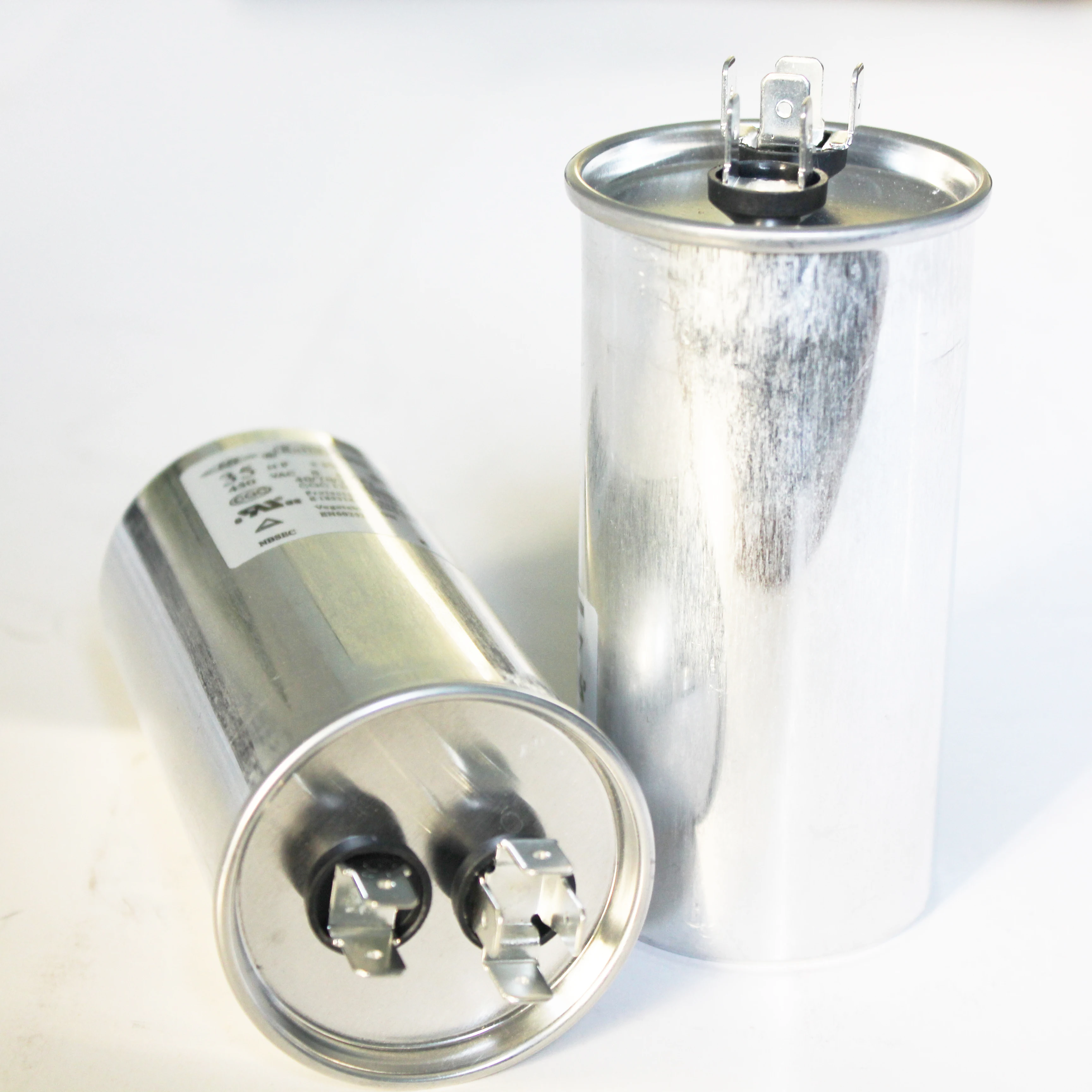

CBB65A CBB65A-1 60uf 450vac motor starting capacitor



Application:

Products are suitable for home appliances,such as air-conditioner,air conditioners,freezers and washing.



Characteristics:

It selects high-quality polypropylene coated film as the medium,uses the advanced zinc-aluminum coating process,Oil-immersed aluminum shell and explosion-proof stucture.Products have the male tabs or wire leads and the structures,such as single structure and combined stucture.Products are with characteristics of high temperature,low loss and long life,etc.It had passed the CQC,VDE.



Technical Specification:

Configuration	Aluminum Shell,Oil Filled,Protective Device
Temperarure	-40℃~85℃
Capacitance Tolerance	±5%
Dissipation Factor	≤0.002(50Hz )
Testing Voltage	T-T:2.0Un 2s  T-C:2000VAC 2s
Insulation Resistance	T-T:≥3000mΩ/uF T-C:≥1000mΩ(20℃)
Rated Frequency	50/60Hz
Lif Class	B,C
