Сельскохозяйственный орошение глубинный насос высокого давления на солнечной энергии
- Категория: Насосы >>>
- Поставщик: Ningbo,Guanghan,Pump,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 286.83 $* | 300.24 $* |
| Aug-18-2025 | 283.53 $* | 297.40 $* |
| Jul-18-2025 | 238.99 $* | 250.77 $* |
| Jun-18-2025 | 278.16 $* | 292.82 $* |
| May-18-2025 | 242.71 $* | 254.85 $* |
| Apr-18-2025 | 274.38 $* | 288.27 $* |
| Mar-18-2025 | 271.96 $* | 285.85 $* |
| Feb-18-2025 | 269.3 $* | 282.52 $* |
| Jan-18-2025 | 266.12 $* | 279.76 $* |
Характеристики
Product Description
We focus on water pumps for 25 years

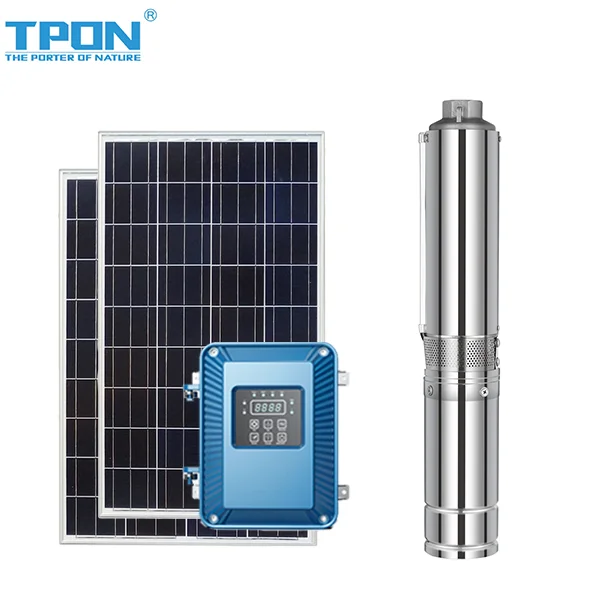

agricultural irrigation deep well pump high pressure solar powered water pump
agricultural irrigation deep well pump high pressure solar powered water pump
①ALL goods produced by ourselves,we provide one-stop services from designing,printing to processing
②Quick response within2-8hours,response rates over 95%
③24 hours phone call is available,feel free to contact with us
③24 hours phone call is available,feel free to contact with us
Product Paramenters
MODEL:4TPPC6-84-110-1100
VOLTAGE:DC110V
POWER:1100W
MAX HEAD:84M
MAX FLOW:6M3/H
OUTLET:1.25INCH
VOLTAGE:DC110V
POWER:1100W
MAX HEAD:84M
MAX FLOW:6M3/H
OUTLET:1.25INCH
What we get for you:
1 x 4inch DC solar pump with one 2m cable

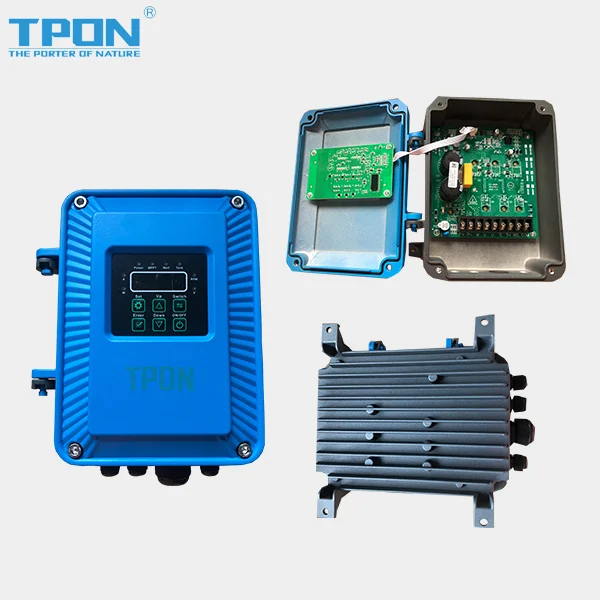

1 x Pump controler with MPPT function
1 x Stainless steel float swith (sensor for tank)
1 x 4inch DC solar pump with one 2m cable
1 x Pump controler with MPPT function
1 x Stainless steel float swith (sensor for tank)
Model | Power(w) | Voltage(V) | Max flow (m3/h) | Max head (m) | Outlet (inch) |
4TPPC6-84-96-1100 | 1100 | 96 | 6 | 84 | 1.25" |
4TPPC6-112-96-1300 | 1300 | 96 | 6 | 112 | 1.25" |
4TPPC6-135-96-1500 | 1500 | 96 | 6 | 135 | 1.25" |
4TPPC9-45-96-750 | 750 | 96 | 9 | 45 | 2" |
4TPPC9-58-96-1100 | 1100 | 96 | 9 | 58 | 2" |
4TPPC9-71-96-1300 | 1300 | 96 | 9 | 71 | 2" |
4TPPC9-85-96-1500 | 1500 | 96 | 9 | 85 | 2" |
Why Choose Us
According to the other customers feedback of our return rate is 2% lower than other factory

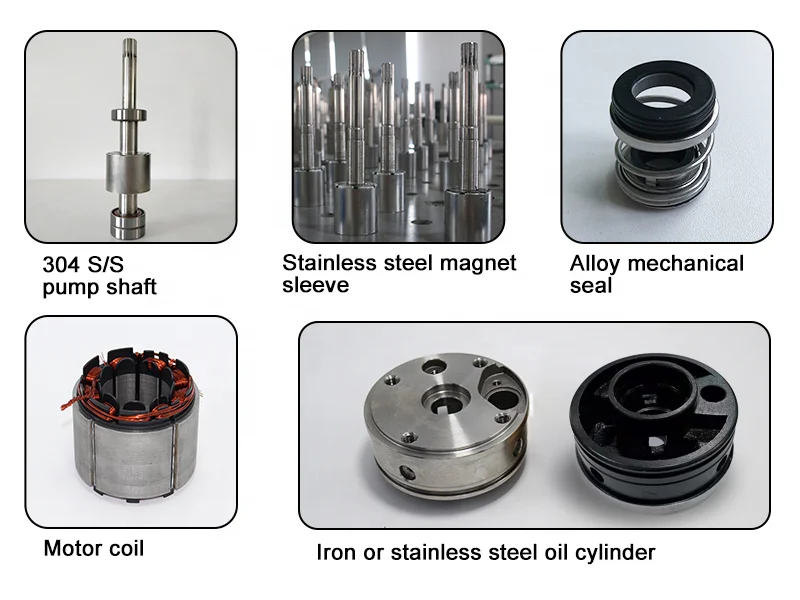

① S/S pump shaft. ② SS outlet/connector/ oil cylinder. ③ bearing, the working life will be 3 to 5 times
prolonged.④ Double bearing motor base can work under more axial pressure
⑤Alloy mechanical seal: Longer working life and high reliability.
⑥Motor coil is made by automatic winding machine
prolonged.④ Double bearing motor base can work under more axial pressure
⑤Alloy mechanical seal: Longer working life and high reliability.
⑥Motor coil is made by automatic winding machine
PUMP VOLTAGE (V) | SOLAT PANEL (W) | PEAK VOLTAGE VMP(V) | OPEN CIRCUIT VOLTAGE VOC(V) |
24V/36V | ≥1.3PUMP POWER | ≥18 | 18V-50V |
48V | ≥1.3PUMP POWER | ≥30 | 30V-96V |
72v | ≥1.3PUMP POWER | ≥50 | 50V-150V |
110v | ≥1.3PUMP POWER | ≥60 | 60V-180V |
Installation Instructions
How to choose pump：
HEAD CALCULATE:
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tankWater source: Borehole(diameter__mm )
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tankWater source: Borehole(diameter__mm )
FLOW CALCULATE:
How much water per hour or per day do you want? Selecting the solar pump model that meets your requirements against the pump model
number table
number table
agricultural irrigation deep well pump high pressure solar powered water pump
Customer feedback
①Application of deep well pump to irrigation
②Village and town water supply
③Clean drinking water
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Enviroment friendly
⑥Pumping and drip irrigation
⑤Enviroment friendly
⑥Pumping and drip irrigation

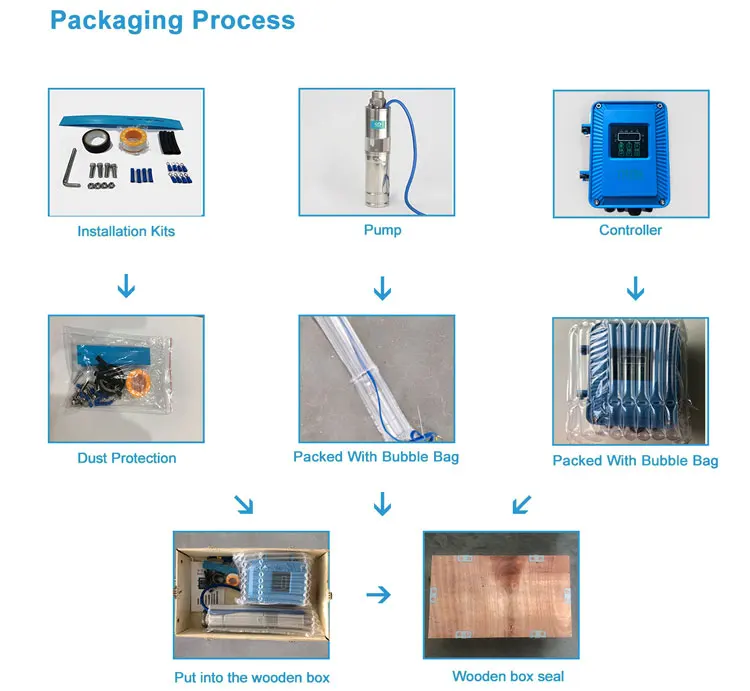

Product packaging
Company Profile
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china we believe one day difful pump will exist in every corner of the world by means of its reliable quality and gooreputation thank all of you for the long-term supporting and concerning of our growth.Your views are the driving forces of DIFFUL

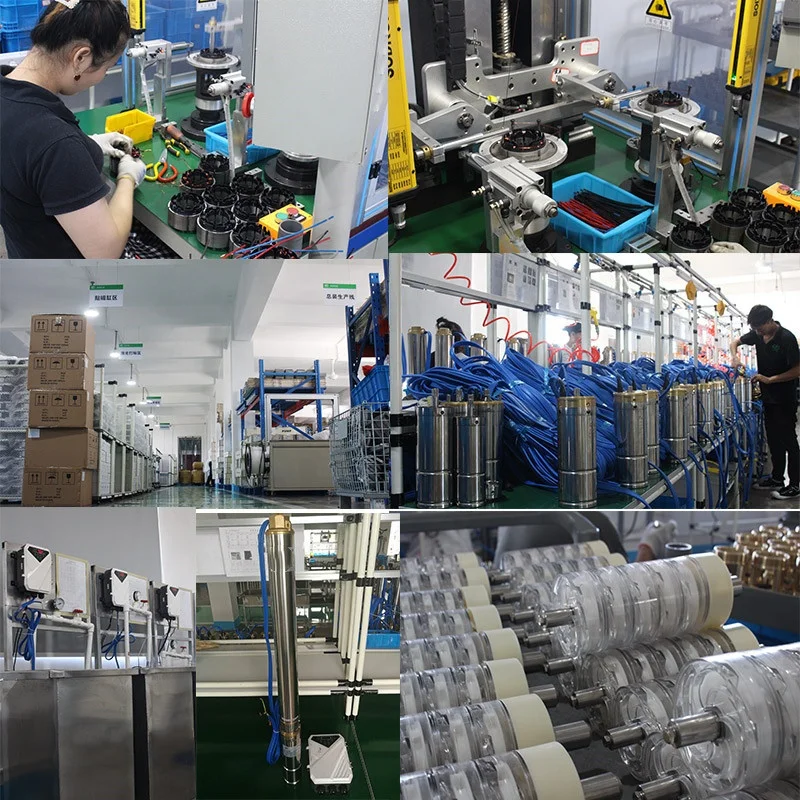

In our company, there are large quantities of high-quality scientific research and management talents, strong technical
force,advanced assembly equipment, and perfect detection devices. In addition, in order to meet the market demand, the company also provides the service of tailor-made products and develops new products on a regular basis.
force,advanced assembly equipment, and perfect detection devices. In addition, in order to meet the market demand, the company also provides the service of tailor-made products and develops new products on a regular basis.
FAQ
1. Q:What’s your MOQ?
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
