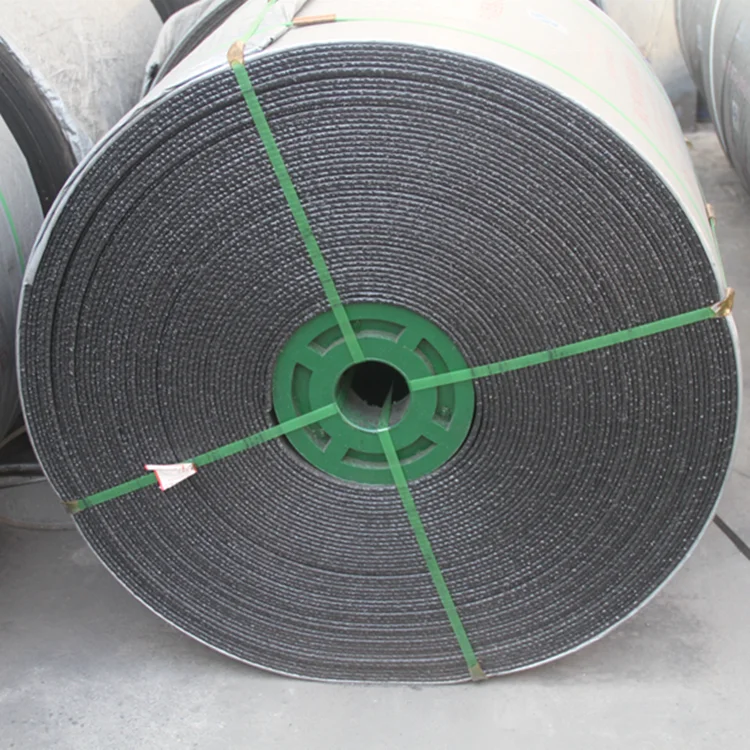

800mm belt width EP type rubber conveyor belts



Standards

GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.

Features

1.Natural rubber Thin belt body with high strength, light weight;
2.Anti-abrasive, impact resistant, corrosion resistant;
3.Softy belt body, good flexibility, excellent trough;
4.Vulcanization molding;

5.Long service life.



Specification and technical data of rubber conveyor belts



Fabric	Fabric  structure		Fabric Type	Fabric  Thickness (mm/p)	(N/mm) strength					Cover  thickness  (mm)		Width (mm)	Length (m)
	Wrap	Weft			2ply	3ply	4ply	5ply	6ply	Top  cover	Bottom  cover
Cotton CC	Cotton C	Cotton C	CC-56	1.40	112	168	224	280	336	3-12	1.5-4.5	400-2200	≤300
Polyester Cotton TC	Polyester Cotton TC	Cotton C	TC-70	1.20	140	210	280	350	420	3-12	1.5-4.5	400-2200	≤300



A:Tensile property of total thickness

a. The longitudinal tensile strength of the conveyor belt is not lower than the following

    nominal value: 160 200 250 315 400 500 600 630 800N/mm.

b. The total thickness elongation rate of the belt should not less than 10%, the reference

    force elongation rate of total thickness of the belt should no more than 4%,
c. Straightness: no more than 25mm.
d. Ply bond strength:

Belt carcass	Adhesion strength			Elongation
	Between plies N/mm	N/mm Between rubber and carcass		Longitudinal  elongation  elongation  at break%≥	Longitudinal  elongation at reference  load%≤
		Cover thickness ≤1.5mm	Cover thickness ≥1.5mm
Cotton canvas	≥3.20	≥2.10	≥2.70	10	4.0



B:Physical and mechanical properties of covering layer

According to the customer’s requirements, the belts could be

Cotton canvas of rubber conveyor belts



Cotton canvas of belt carcass



Production of rubber conveyor belts



Certifacations



Our research and development center, test equipment



Our Factory

For more details,please inquiry us!
