20 кГц регулируемая амплитуда нетканый ультразвуковой сварочный аппарат звуковой преобразователь с
- Категория: Сварочное оборудование >>>
- Поставщик: Yuhuan,Clangsonic,Ultrasonic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1488.89 $* | 1562.72 $* |
| Aug-20-2025 | 1475.47 $* | 1549.99 $* |
| Jul-20-2025 | 1238.45 $* | 1300.39 $* |
| Jun-20-2025 | 1450.36 $* | 1523.37 $* |
| May-20-2025 | 1263.5 $* | 1326.31 $* |
| Apr-20-2025 | 1425.6 $* | 1496.19 $* |
| Mar-20-2025 | 1413.35 $* | 1484.77 $* |
| Feb-20-2025 | 1400.85 $* | 1470.9 $* |
| Jan-20-2025 | 1388.17 $* | 1457.85 $* |
Характеристики
Recommend Products
Product Description

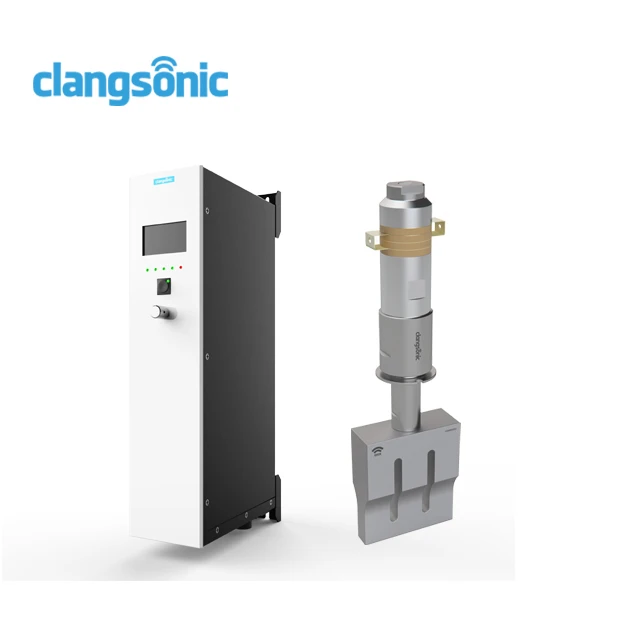

20khz adjustable amplitude nonwoven ultrasonic welding machine transducer horn with generator
Our digital T ultrasonic generator is adopting advanced IGBT Full Bridge Phase Shift technology which features in automatic frequency tracking and constant amplitude output etc which can acheive accurate resonant frequency and energy output. It can tune itself to fit to transducer and sonotrode during working.
Main Function:
1. Automatic Frequency Tracking
2. Constant Amplitude Output
3. Amplitude 10-100% Adjustable
4. Three Working Modes Choices: External Control/Timing/Energy

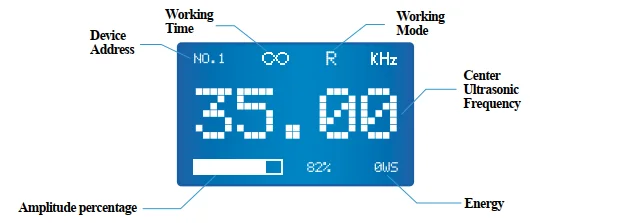

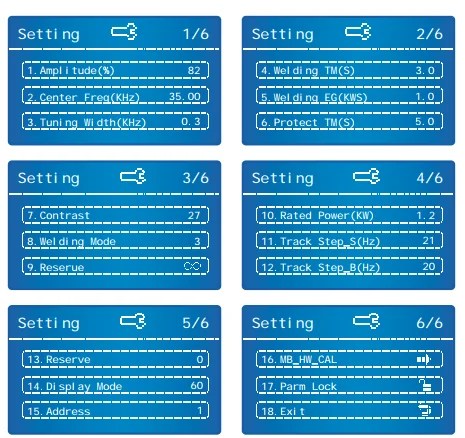

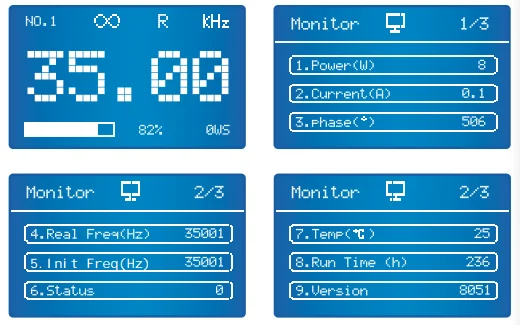

5. LCD Display To Monitor Working Status
6. RS485 MODBUS RTU Communication
7. Self Protection, For example Over-Temperature Protection, Over-Current Protection, Over-Voltage Temperature etc
Product Paramenters

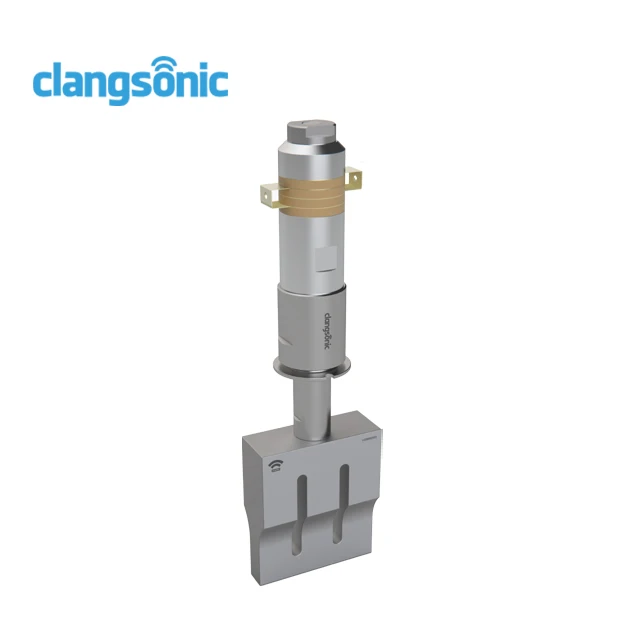

Name | Ultrasonic Transducer With Booster And Sonotrode | Ultrasonic Generator |
Model | CW2050-4P8-2 | TU2020-Z21 |
Ultrasonic Frequency | 20±0.5kHz | 20±0.5kHz |
Peak Ultrasonic Power | 2000Watts | 2000Watts |
Capacitance | 11000±10%pF | - |
Resistance | ≤10Ω | - |
Max.Allowable Temperature | 120°C | 40°C |
Storage Temperature | -5°C-+40°C | 0-40°C |
Storage Humidity | 60±20%RH | 0-90°C |
Size | H 382 x W 110 mm | L 224 x W 88 x H415 mm |
Working Area | L 110x W 20mm | - |
Application
This ultrasonic welding transducers and generator can be used for non-woven bag making machine, paper cup sealing machine, three layers bag making machine, medical cloths making machine, plastic welding machine, plastic bag making machine and mask welding etc.
Packing&Shipping
Shipment is available by air, ocean and International Express.
Product | Ultrasonic Transducer + Ultrasonic Generator (1 Set) |
Size/CTN | 50x37x29cm |
Weight/CTN | 15KG |
