Высококачественная машина для шитья проволоки и седла
US $2000-$3100
Складные и склеивающие автоматические папки MEGAFOLD 1450 китайский
- Категория: Оборудование для пресса >>>
- Поставщик: Huizhou,Degang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 71400.79 $* | 74970.86 $* |
| Aug-20-2025 | 70800.32 $* | 74340.19 $* |
| Jul-20-2025 | 59400.62 $* | 62370.99 $* |
| Jun-20-2025 | 69600.29 $* | 73080.61 $* |
| May-20-2025 | 60600.18 $* | 63630.27 $* |
| Apr-20-2025 | 68400.19 $* | 71820.97 $* |
| Mar-20-2025 | 67800.83 $* | 71190.90 $* |
| Feb-20-2025 | 67200.96 $* | 70560.79 $* |
| Jan-20-2025 | 66600.62 $* | 69930.33 $* |
Характеристики
Product Description
Product Description
High speed automatic folder gluer
MEGAFOLD 1450 – C
Without pre-folding section suitable for straight-line boxes.
MEGAFOLD 1450 – AC
Without pre-folding section suitable for straight-line, crash-lock bottom & double wall boxes.
MEGAFOLD 1450 – PC
Suitable for straight-line, crash-lock bottom & double wall boxes.
MEGAFOLD 1450 – SL
Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.

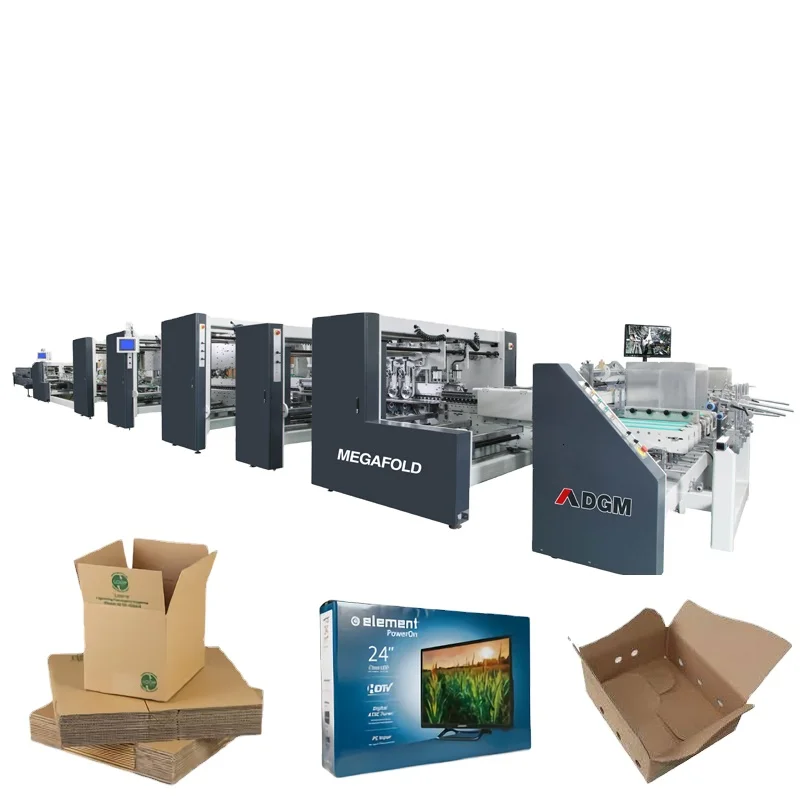

MEGAFOLD-1450 Perfect solution to work with medium and large sized boxes in the heavy packaging industry. With high productivity,
it offers the flexibility to run thin solid board to thick corrugated carton.
· Modular design allows different configurations, to meet customer’s needs.
· Wide range of accessories that allows to run thousands of designs.
· Fast, steady and precise machine, easy to set up and operate.
· All sections with independent servo-motor driving system.
· Motorized carrier movement with high precision linear guides.
· Memory function to save repetitive jobs.
Without pre-folding section suitable for straight-line boxes.
MEGAFOLD 1450 – AC
Without pre-folding section suitable for straight-line, crash-lock bottom & double wall boxes.
MEGAFOLD 1450 – PC
Suitable for straight-line, crash-lock bottom & double wall boxes.
MEGAFOLD 1450 – SL
Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.
MEGAFOLD-1450 Perfect solution to work with medium and large sized boxes in the heavy packaging industry. With high productivity,
it offers the flexibility to run thin solid board to thick corrugated carton.
· Modular design allows different configurations, to meet customer’s needs.
· Wide range of accessories that allows to run thousands of designs.
· Fast, steady and precise machine, easy to set up and operate.
· All sections with independent servo-motor driving system.
· Motorized carrier movement with high precision linear guides.
· Memory function to save repetitive jobs.

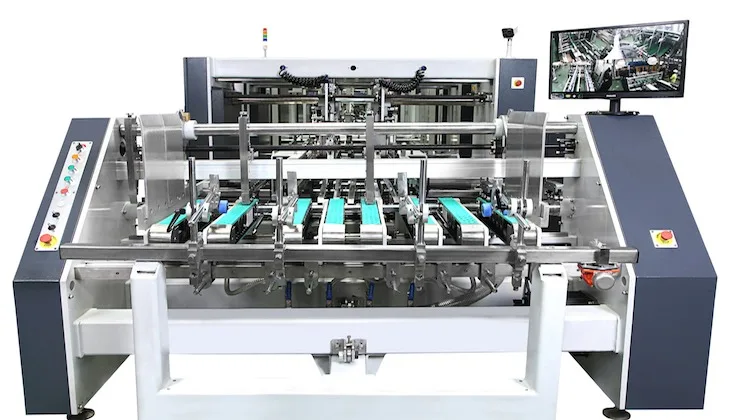

1. Feeder section
* Independently motorized friction feeder with variable speed.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 8 feeder belts.
* Two adjustable front feed knives.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 8 feeder belts.
* Two adjustable front feed knives.
2. Side register section
* Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank
alignment.
alignment.
3. Pre-folding section
* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.
4. Crash lock bottom section
* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accessories for B-type lock bottom.
* Set of accessories for B-type lock bottom.
5. Lower gluing unit
* One lower (left side) gluing tank.
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)
6. Folding & Closing section
* Smooth and accurate folding of 2nd and 4th creases.
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).
7. Trombone section
* Upper and lower drive mechanism for lengthwise adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.
8. Press section
* Independent and motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.
9. Squaring device
* Motorized and pneumatic squaring device on press section. Two carriers with transport belts allow a perfect flow of boxes
moving to the pressing station.
* Rear stack corrector, that allows to square the boxes while falling on the lower conveyor.
* Motorized and pneumatic squaring device on press section. Two carriers with transport belts allow a perfect flow of boxes
moving to the pressing station.
* Rear stack corrector, that allows to square the boxes while falling on the lower conveyor.
10. Press section
* Independently motorized pneumatic press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward through a motorized system, allowing different box length.
* 6.5 meters total length with 4 meters of effective pressure.
* Pneumatic pressure regulation.
* Independently motorized pneumatic press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward through a motorized system, allowing different box length.
* 6.5 meters total length with 4 meters of effective pressure.
* Pneumatic pressure regulation.
11. Back-folding device
* Motorized and untimed electronic back folding system with intelligent servo-motor technology.
* Two independent servo motors, one for each shaft.
* Versatile and easy to setup.
* Two independent servo motors, one for each shaft.
* Versatile and easy to setup.
12. Scoring/creasing module
* Independent scoring section driven by servo motors.
* Located right after Side-register section, before pre-folding section.
* Allows to make deeper scores if needed.
* Located right after Side-register section, before pre-folding section.
* Allows to make deeper scores if needed.
Material
Material
Specification
Specification
BOX
BOX
