Shoot Фирменная деревообрабатывающая Автоматическая шлифовальная машина

Shoot Фирменная деревообрабатывающая Автоматическая шлифовальная машина

Категория: >>>
Поставщик: Yantai,Shoot,CNC,Machine,Co.,Ltd

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.98 $*	0.59 $*
Aug-19-2025	0.61 $*	0.70 $*
Jul-19-2025	0.4 $*	0.87 $*
Jun-19-2025	0.33 $*	0.76 $*
May-19-2025	0.2 $*	0.30 $*
Apr-19-2025	0.54 $*	0.54 $*
Mar-19-2025	0.79 $*	0.91 $*
Feb-19-2025	0.61 $*	0.58 $*
Jan-19-2025	0.49 $*	0.28 $*

Характеристики

Product Description

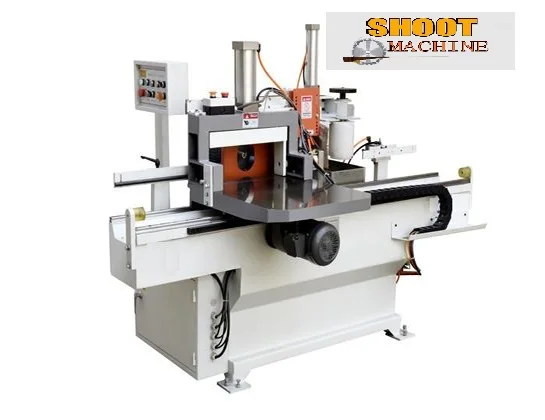

Auto Finger Jointing Shaper Machine
Feature
1.with gluing function
2.with auto motor adjust speed function
Model	SHMB3515/1E
Maximum Processing Width	450mm
Maximum Processing Thickness	100mm
Maximum Processing Length	700mm
Main Shaft Speed	6300r/min
Saw Blade Speed	2900r/min
Jointing Cutter Diameter	160mm
Spindle Diameter	50mm
Spindle Motor Power	7.5kw
Saw Blade Motor Power	3kw
Gluing Motor Power	0.1kw
Servo Motor Power	0.75kw
Air Consumption	0.6-0.8Mpa
Overall Dimensions	215016801400mm
Total Power	11.35kw

Packaging & Shipping

Packing: by Plywood Case or Plastic film

Shipping: Qingdao Port

Deliver time: 30days after receive payment

Company Information

SHOOT Logo-1.jpg

Yantai Shoot CNC Machine Co.,Ltd

Yantai Shoot Woodworking Machine Co.,Ltd

wechat: 0086 13906451612

whatsapp: 0086 13906451612

viber: 0086 13906451612

website: www.shootmachine.com

Photo & feature:
1.Using a unique anti deformation design, Guide rail to the main shaft through Reinforcement and thickening treatment. It has the most thick body in the same type of equipment. the standard for quality control within 10C, ensure the accuracy and anti deformation ability of tenon.
2.This device can realize the automatic gluing function, greatly save labor cost.
3.The use of motor driven mesa mobile, moving more stable, strong adaptability, suitable for various regions of the weather.
4.Using a unique anti deformation design, with similar equipment the most thick body, the standard for quality control within 10C, ensure the accuracy and anti deformation ability of comb
5.Comb speed, spindle speed higher than similar products.
6.Get more info can add Manufacturer skype litonmachinery. Spindle use the SKF bearing which from Switzerland, we will Force analysis basic on the Stress point use double bearing.Cutter install point will use the Dia. 50mm. make sure the spindle firm and stable during the High speed rotation.
7.Using Precision Linear slide from TaiWan, Precision in 0.02mm.Middle pre-press Linear slide design. In that can improve its Stability & Durability. Liear slide with unique dust-proof design, extended life.

8.Electric control Part:
1)OMRON PLC,with high operation speed.
2)The work table using the delta inverter motor drive. According to the characteristics of wood. Can flexibly control the running speed of the working table. Adapt to the production of different products.

3)Photoelectric sensor: use omron.with Infrared visible light, easy adjust .with the Background suppression function .collect Distinguish wooden colour and Wood scarring.

4)Control panel: Convenient and simple. Easy to use . Auto Error alert
5)All Thermal relay are use delixi. AC contactor are use Shihlin. Proximity switch are use airtac.

9.Glue coating system: use the profile teeth dip in type. make sure the glue can full of the wood.characteristic design make cleaning glue is easy and the time of cleaning is greatly saved.

10.Oil-water separator: make sure the air compressor dry.

11.Pressure sensor: make sure machine Work under safe condition. Avoid lack of pressure ,the wood can’t press well throw out.

Our Services

Sample Availability & Policy

We can supply a sample machine for you to test, but you need to pay all costs, including machine's cost, shipping cost and customs cost.

Guarantees/Warranties/Terms and Conditions
One year

Export/Import Processing Support
We supply high-quality machine products for our clients, we deliver machine on time according to the sales contract. If the clients have other requirements, please ask us to help you.

After Sales Service
After the clients order our machines, we supply free support for one year. If the clients have questions, we can reply in 24 hours.

Prototyping
We have the expertise for reverse engineering, rapid prototyping and tooling design etc..
We can transform your drawing into a sample in a few weeks. If you don't have a drawing, send us a sample. We can measure your sample accurately, convert the data into 3D models or 2D drawings. We will forward the drawings for your approval and prototype according to the drawings.

Machining
Our combined facilities enable us to machine products to your standards. We utilize CNC equipment to make complex and high tolerance products

Assembling
We do many types of assembling. This will allow you to purchase a finished product rather than just a component.

Quality Control
Our inspectors test the products we sell for durability, accuracy and performance. We sell only quality products that meet or exceed your standards.
Training

A.Customers can get free technical training in our factory or online. Mainly training are as follow:
1.Software operation
2.Machine operation and maintenance
3.Instruction of technical parameters, as well as their setting ranges
4.Solutions for common problems

B.Also we can dispatch our technician to customers' place if customer agrees to pay visa cost,air ticket, accommodation and USD150/day/person training fee .

FAQ

1. Where you ship?
We ship worldwide to all the major ports and then transport by train or truck to your warehouse or the trucking terminals in your area. For special orders, we ship by airfreight or by express mail service through FedEx, UPS, DHL, TNT etc.
2. What is the approximate shipping time?
Express mail service like UPS, FedEx takes less than a week. We work closely with the shipping companies for the shortest delivery time.

3. What is the payment method?
We prefer irrevocable letter of credit. Telegraphic transfer is also accepted.

4. How will we handle quality issues?
Should there be defects in materials and workmanship, we will refund you with replacements from next delivery. We are not responsible for consequential damages resulted from these defects.

5. How do you pack?
We pack in heavy duty corrugated cartons or wooden crates and then strapped to pallets or steel pallets. We fumigate the wooden packages and have them degased.

6. Do you do private labeling?
Yes. We may apply private labeling and bar coding to the products you order. We can imprint your product number, your logo onto the products and the packages.
