Контроллер Greenpedel KT Sinewave Squarewave 36 В 48 22 А 25 500 Вт 9 контроллер световой функции
- Категория: Other Electric Bicycle Parts >>>
- Поставщик: Changzhou,Green,Pedel,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.28 $* | 0.12 $* |
| Aug-15-2025 | 0.89 $* | 0.35 $* |
| Jul-15-2025 | 0.23 $* | 0.56 $* |
| Jun-15-2025 | 0.64 $* | 0.60 $* |
| May-15-2025 | 0.81 $* | 0.82 $* |
| Apr-15-2025 | 0.9 $* | 0.53 $* |
| Mar-15-2025 | 0.94 $* | 0.85 $* |
| Feb-15-2025 | 0.77 $* | 0.25 $* |
| Jan-15-2025 | 0.55 $* | 0.88 $* |
Характеристики
Products Description
ATTENTION
2, There is 2 versions. Compare with sinewave and squarewave .Sinewave means less noise , more smooth when riding .The sinewave controller is 3$ more .
All waterproof connector
Type : 36/48V 22A 25A controller
Brand : KT
Color : Silver

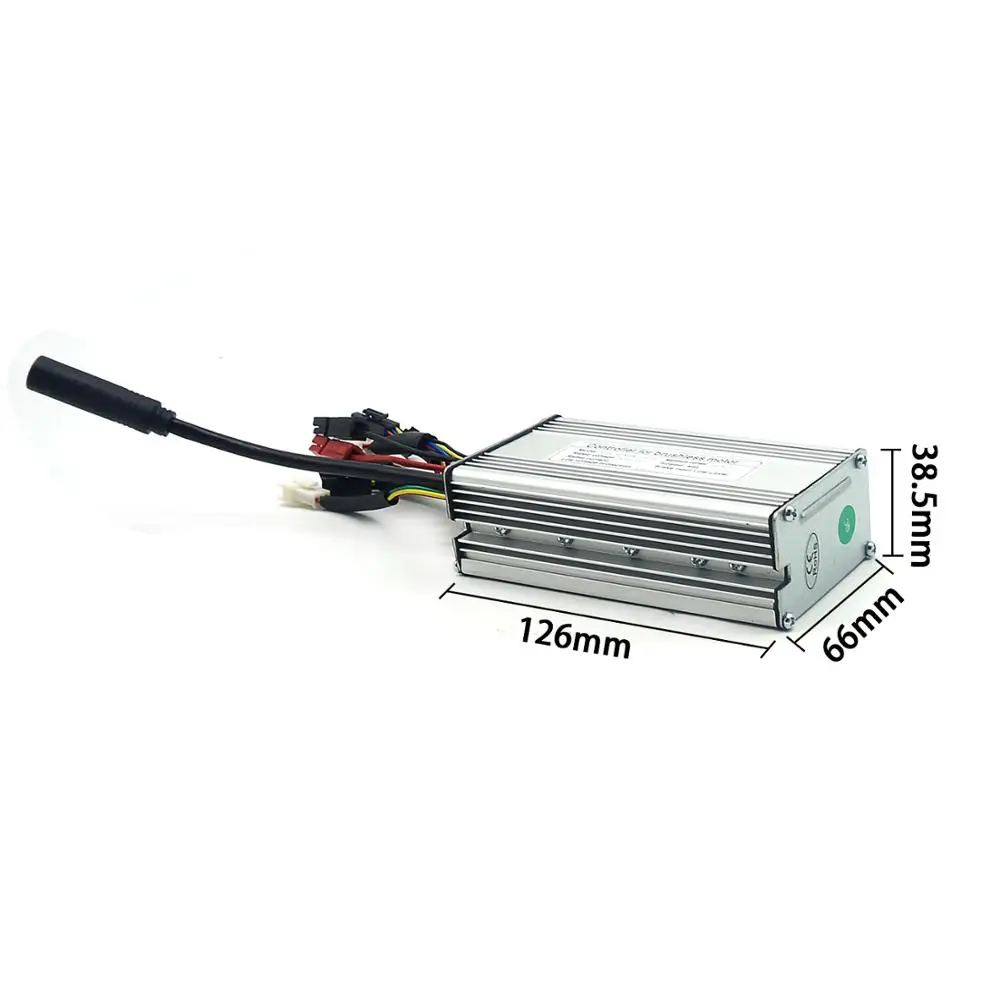

Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g
Brand : KT
Color : Silver
Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g

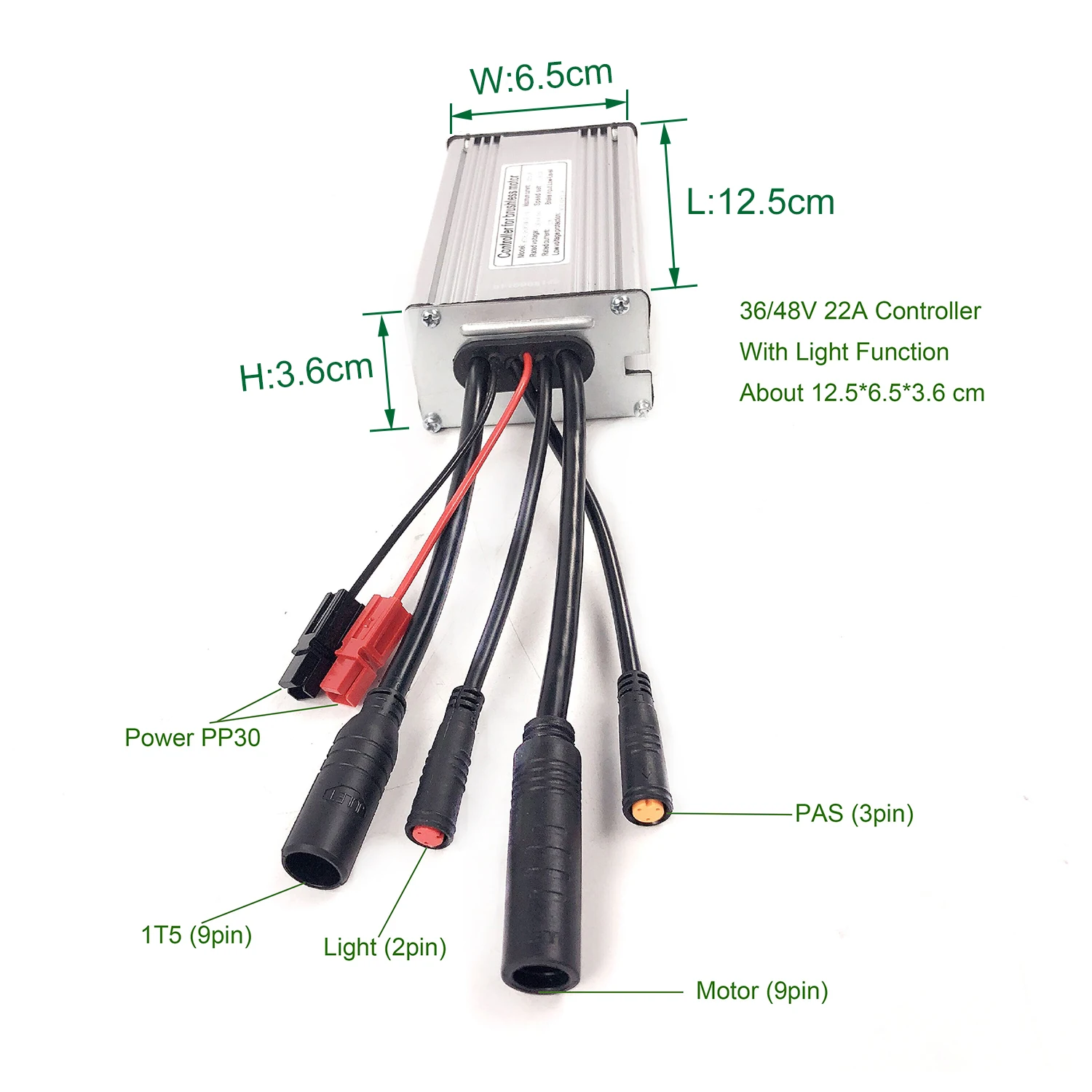

FUNCTION & PLUG

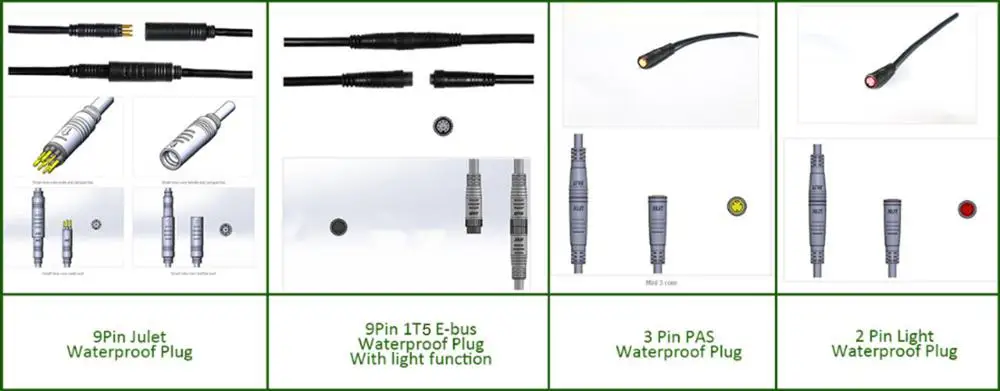

motor (9pin Julet waterproof plug )
power (red-black Anderson PP30 plug)
1T5 cable plug(9pin Julet waterproof plug-Throttle-Display-Ebrake*2-Light)
PAS (Yellow-3pin Julet waterproof plug)
Light (Red-2pin Julet waterproof plug)
power (red-black Anderson PP30 plug)
1T5 cable plug(9pin Julet waterproof plug-Throttle-Display-Ebrake*2-Light)
PAS (Yellow-3pin Julet waterproof plug)
Light (Red-2pin Julet waterproof plug)
Type : 36/48V 22A 25A controller
Brand : KT
Color : Silver
Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g
Brand : KT
Color : Silver
Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g

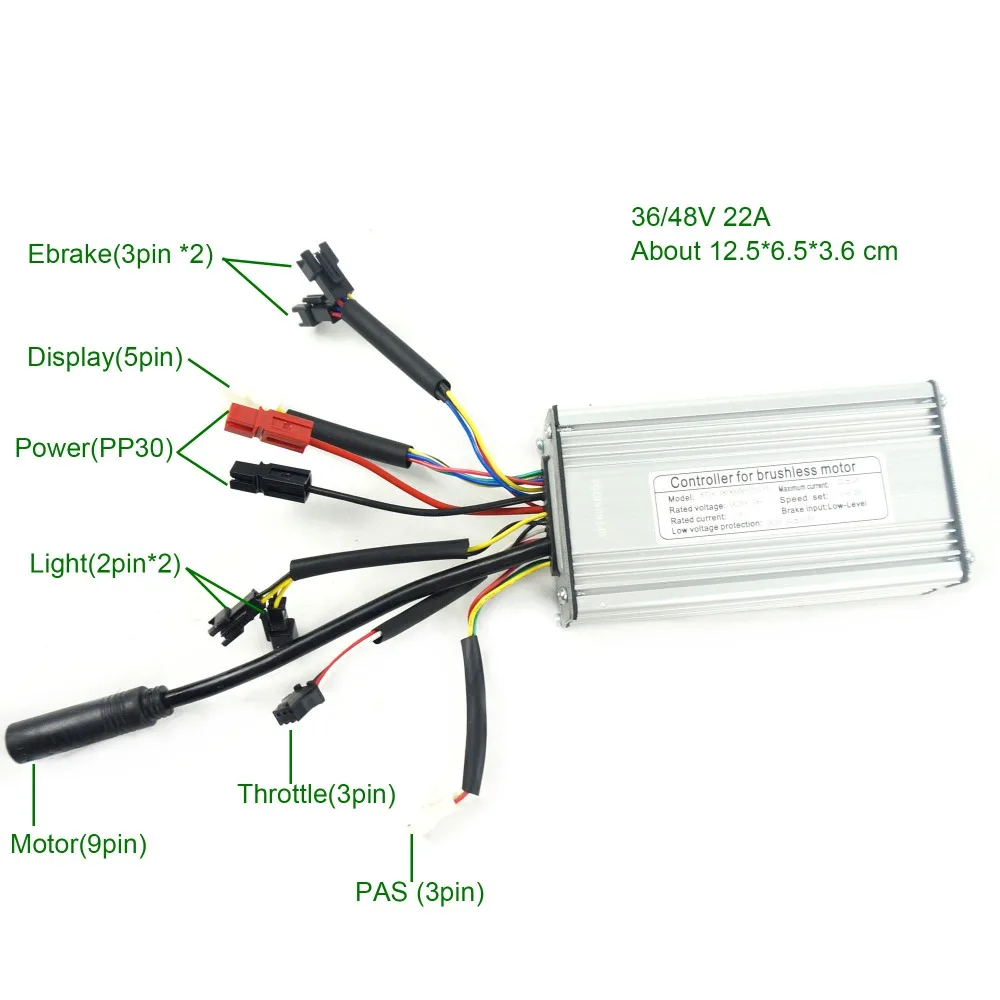

FUNCTION & PLUG
motor (9pin Julet waterproof plug )
power (red-black Anderson PP30 plug)
display (5 pin SM plug)
throttle (3pin SM plug)
ebrake (3pin SM plug ) *2
PAS (3pin SM plug)
light (2pin SM plug)*2
power (red-black Anderson PP30 plug)
display (5 pin SM plug)
throttle (3pin SM plug)
ebrake (3pin SM plug ) *2
PAS (3pin SM plug)
light (2pin SM plug)*2
Details Images
Friendly Reminder
We also have different waterproof types of the same model. Please contact us if you need!
