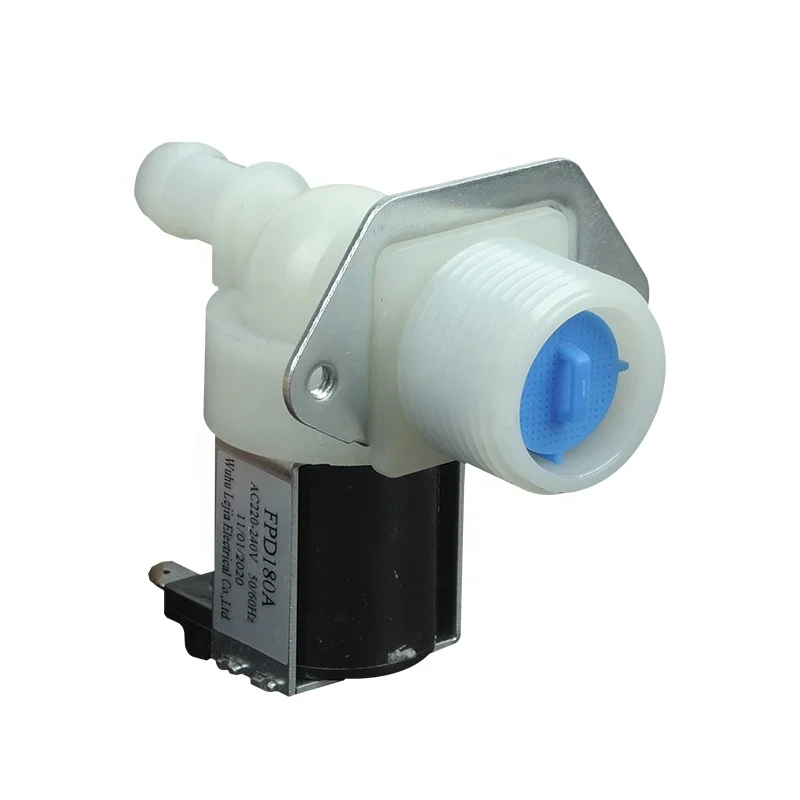

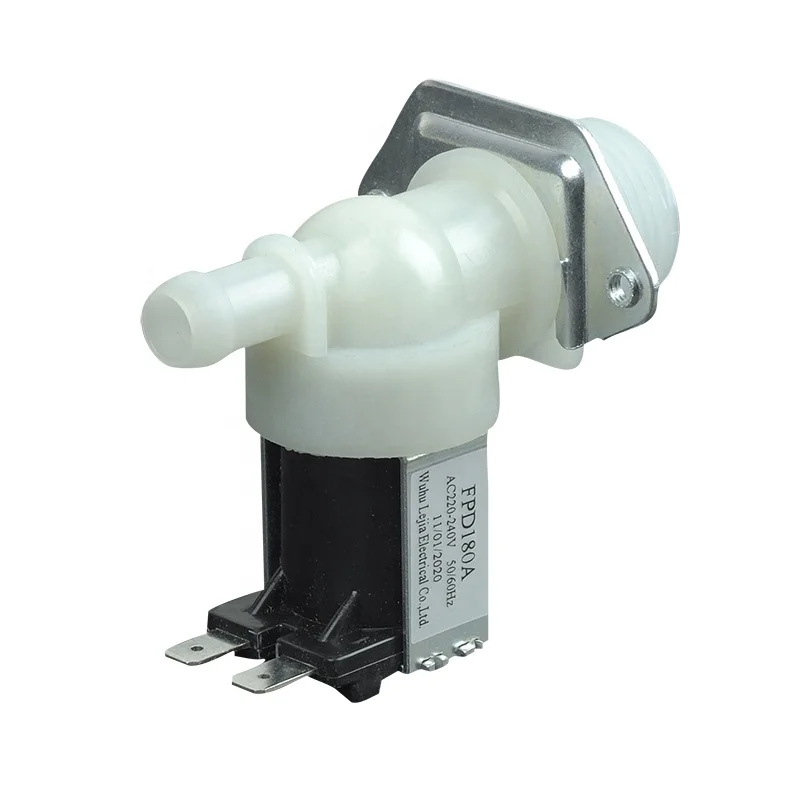

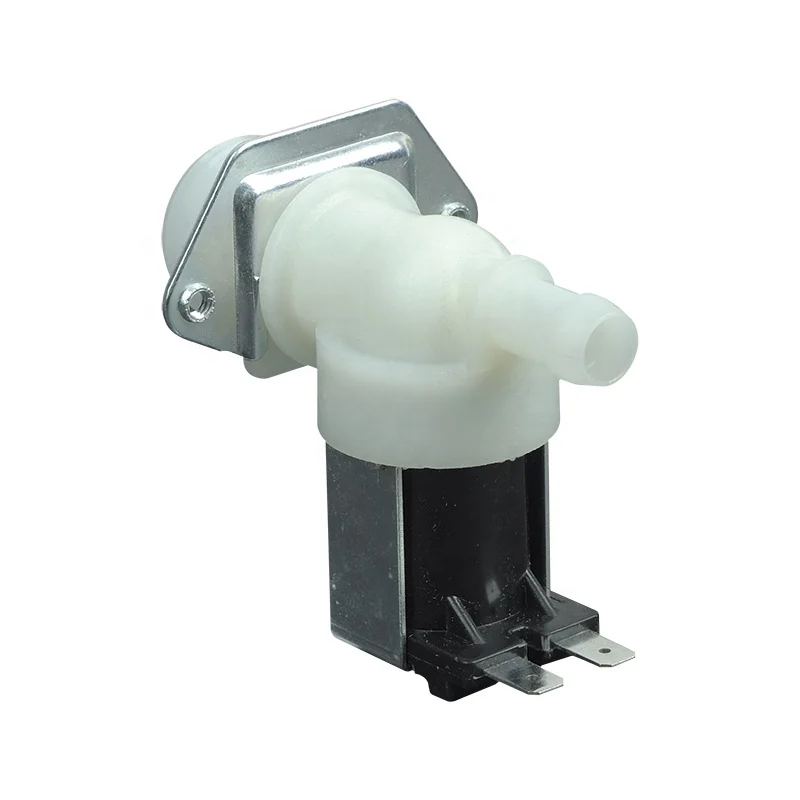

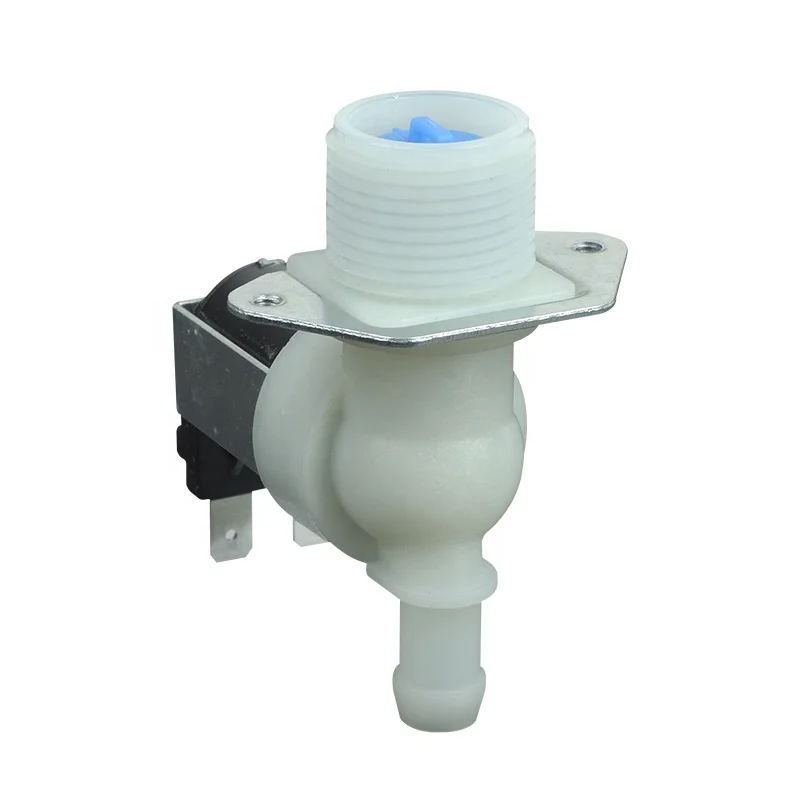

Запчасти для автоматических стиральных машин клапан управления потоком воды соленоидный

-Wuhu Lejia Electrical Co., Ltd

 We are factory!

-Our control standard: Same as Omron!

-Our capacity: 25,000,000 pcs per year!

-Our Quality:Zero customer complaint within 3 Years!

1. 25 years of technical experience

2. Professional technical team.

1.Wide customer market area

2. Lots of washer brands stable supplier

1. Advanced automation equipment

2. Complete testing equipment

Coil Terminal Direction :  0°(360°)/90°/180°/270°

Outlet Numbers      :

 D : single outlet    S : more than 1 outlet

Inlet and outlet angle  :

 P : parallel type     C : vertical type

Parameters

Performance

Parts

Material

Rated Voltage & Rated current

AC220-240V,50/60Hz   &   ≤ 45mA

AC110-127V,50/60Hz; DC24V

Stress circle

EPDM

Apply water pressure

0.02-1.0MPa

Diaphragm

EPDM

Flow characteristics

water pressure(MPa)

0.02

0.5

0.8

Max

Iron core

SUS430

Flow rate(1/min)

> 3

> 12

> 21

<25

Sealability

Apply 2.5Mpa water pressure to the water inlet valve for 5 minute without dripping;

Guide rod

PP+GF5

Insulation resistance

The conductive part, the leaked metal part, and the non-metal part are all greater than 100MΩ

BMC Sealing

Resin for enameled wire insulation

Coil resistance

4.7±0.3KΩ

The piston cap

EPDM

Noise

Sound pressure level is less than 40dB (A)

The diaphragm plate

POM

G3/4 Thread strength

Unbreakable with 2Nm torque

The valve

PP
