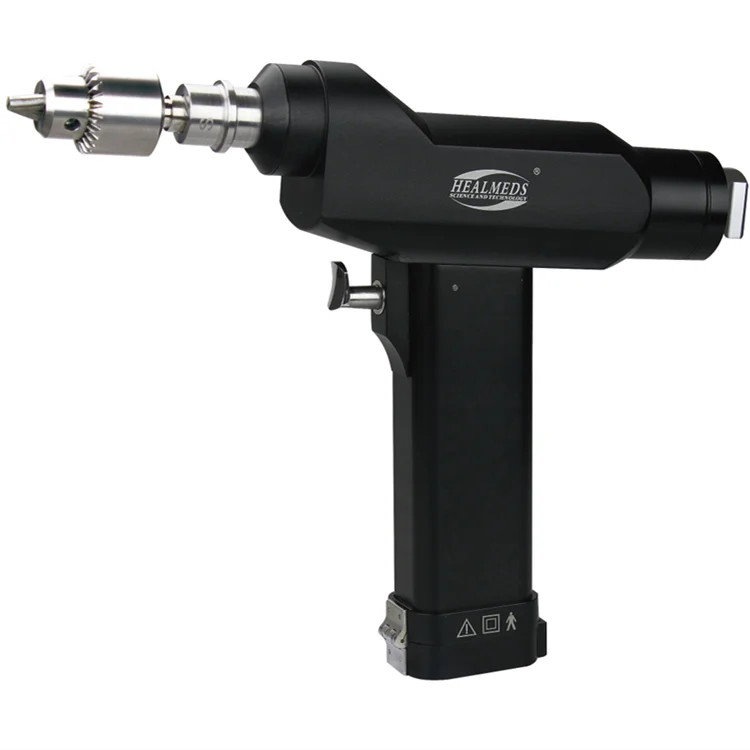

Fast High Efficiently stryker cannulate drill bone drill

No.	Parameters	Values
1	Speed	0-1200rpm
2	Torque	2N.m
3	Sterilization temperature	135℃
4	Noise	≤75dB
5	Operation(V) voltage	14.4V
6	Radial circle run-out	≤0.1mm
7	Axial movement	≤0.5mm
8	Battery capacity	1600mAh
9	Biggest drill bit diameter	8mm

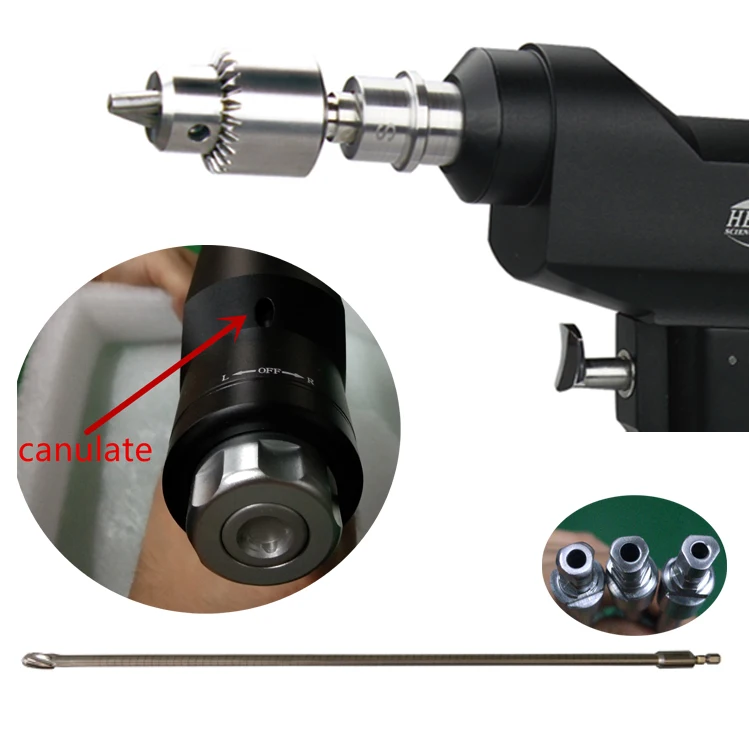

10	Diameter of Cannulation	4.5mm
11	BATTERY	NI-MH
12	Color	black/ silver



Standard Configuration:

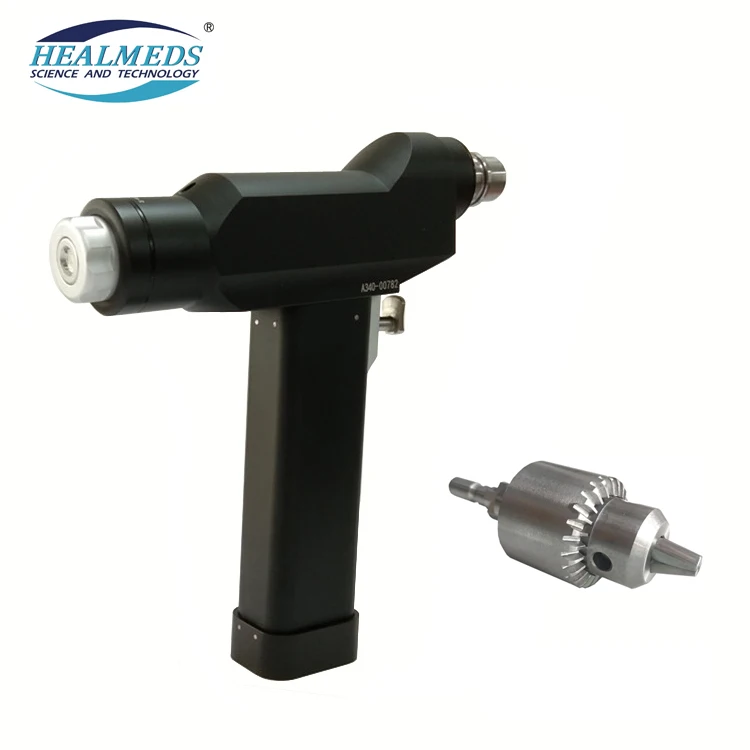

1.  One handpiece
2.  2 batteries
3.  One charger

4.  One drill chuck with key
5.  One Aseptic transfer kit

6.  Aluminum case for option



Feature:

1. Imported motor, stepless speed control

2. long service life, 1 year warranty for handpiece

3. High Coaxiality, Low-Noise

4. Ergonomic design

5. Quick coupling

6. Whole unit can be autoclavable at 135 °C (Improved type ≤ 155 °C ), with 1.6Mpa



Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.





Notes:

1.  Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.

2.  Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.

3.  The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.

4.  The battery cannot be sterilized ,it is not autoclavable.

5.  The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.

6.  The battery space in the handpiece of the tool should not have any water,after sterilization.

7.  The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is easy to be attrite,we suggest each blade only use for 1 surgery.
