Китайский поставщик высокое качество конкурентоспособная цена IP66 100 Вт промышленный светодиодный подвесной
- Категория: LED-светильник для высокого пролета >>>
- Поставщик: Zhejiang,Alite,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 88.71 $* | 90.62 $* |
| Jul-16-2025 | 71.79 $* | 72.83 $* |
| Jun-16-2025 | 86.21 $* | 88.82 $* |
| May-16-2025 | 86.2 $* | 88.71 $* |
| Apr-16-2025 | 68.93 $* | 69.85 $* |
| Mar-16-2025 | 84.79 $* | 86.59 $* |
| Feb-16-2025 | 83.65 $* | 85.24 $* |
| Jan-16-2025 | 83.78 $* | 85.78 $* |
Характеристики
Application
Specification
2020 New design UFO AH16
Consider spaces like manufacturing facilities, gymnasiums, warehouses, large department stores, factories, and more; these
facilities are typically vast and cover a lot of vertical as well as horizontal space. This requires powerful lighting to provide
the appropriate foot-candle levels to adequately illuminate. High bay lighting fixtures typically hang from the ceiling via hooks,
chains, or pendants, or they may be fixed to the ceiling directly.
Various industries and facilities require high bay lighting. Some of the most common are:
* Warehouses
* Industrial facilities
* Manufacturing facilities
* School and university gymnasiums
* Municipal facilities like community centers or recreation centers
* Commercial applications like department stores
Model No. | AH16-100W | AH16-150W | AH16-200W | AH16-240W | AH16-300W | ||||
Power | 100W | 150W | 200W | 240W | 300W | ||||
Light Source | 3030SMD | ||||||||
Lumens | 130lm/w | ||||||||
Power fcator | 0.95 | ||||||||
CCT | 3000-6500K | ||||||||
Input voltage | AC85-265V | ||||||||
Beam angle | 90°/120° | ||||||||
Surge protection | 3-6KV | ||||||||
CRI | RA＞70 | ||||||||
Warranty | 2/3/5 years | ||||||||
Electric protection | CLASSI | ||||||||
IP Rating | IP65 | ||||||||
IK Rating | IK08 | ||||||||
Net Weight | 2.1KG | 3.0KG | 4.2KG | 5.4KG | 5.5KG | ||||
Product size | 230*155 | 360*167 | 360*186 | 460*187 | 410*187 | ||||
Qty/Ctn | 4 | 1 | 1 | 1 | 1 | ||||
20 GP | 949PCS | 691PCS | 500PCS | 500PCS | 500PCS | ||||
40 GP | 2136PCS | 1556PCS | 1125PCS | 1125PCS | 1125PCS | ||||
40 HQ | 2690PCS | 1960PCS | 1417PCS | 1417PCS | 1417PCS | ||||
Dimension
Product Description
AH series of mining lamps,celling lamps,design patents ,focusing on the application of high-end engineering market ,superior product performance ,lamp luminous efficiency of more than 160 lumens per watt.

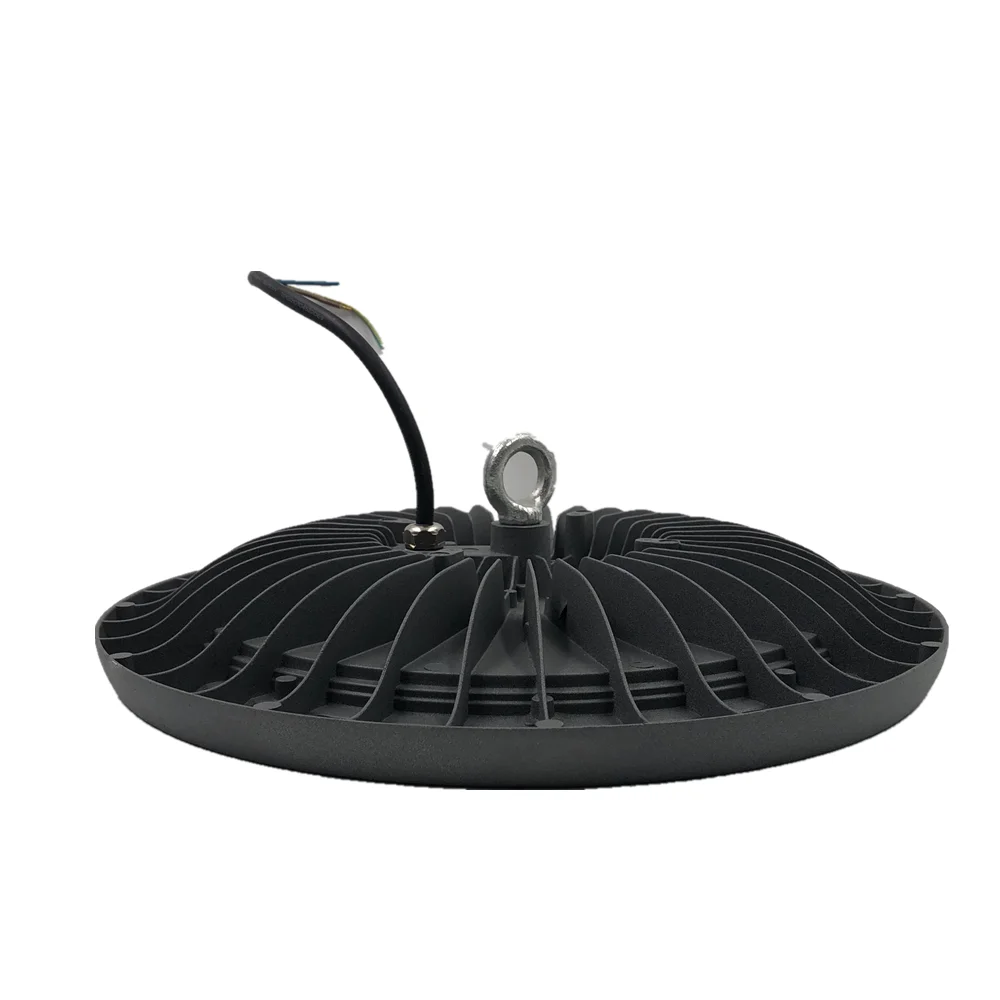

Light Body
The aluminum body of the lamp body is sufficient,and the heat dissipation performance is superior.The net weight of the lamp shell aluminum material is more than 60% higher than the equivalent wattage on the market.

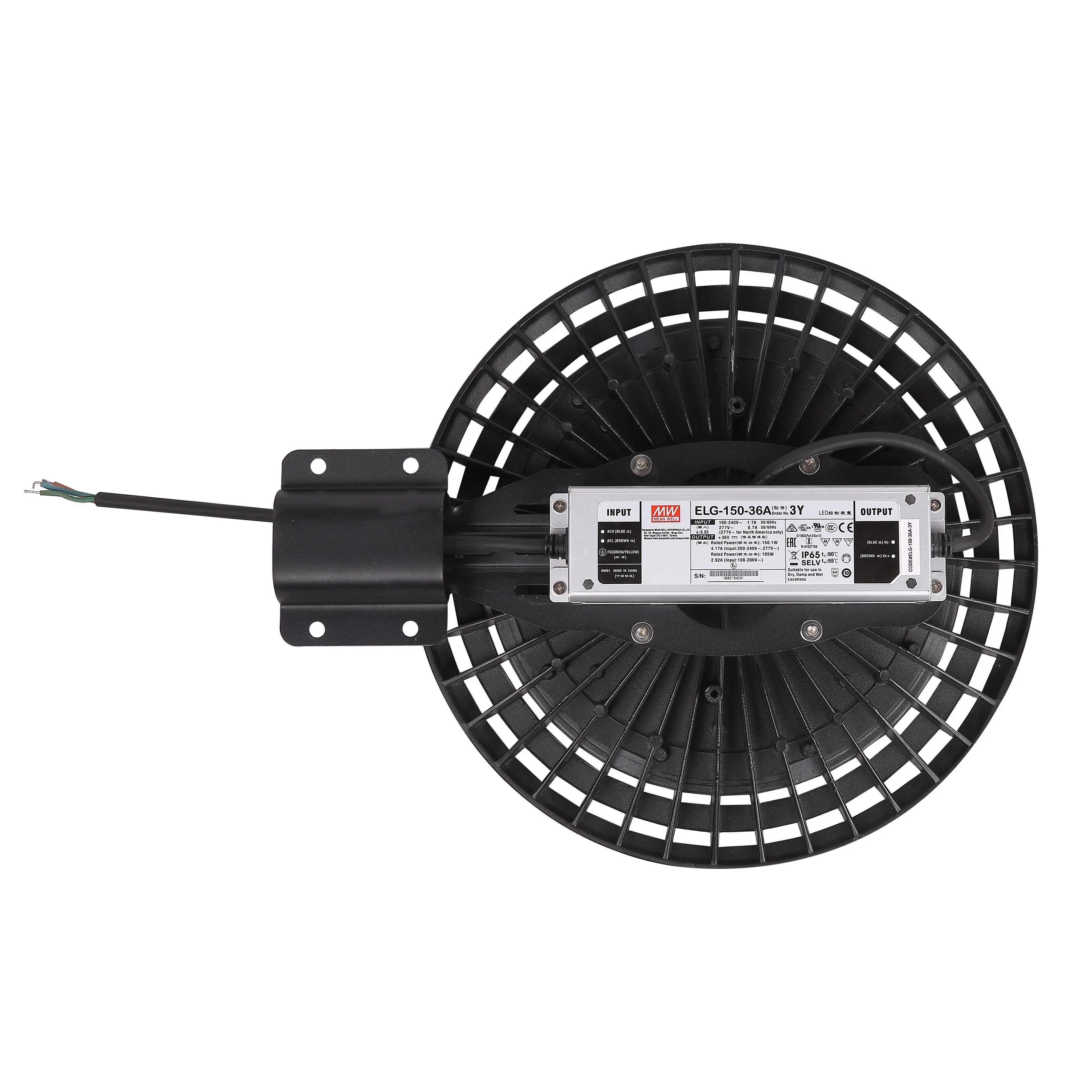

Light Drive
The lighting protection design drive,the anti-surge voltage is more than 4000v.
High-Standard
ACCESSORIES
ACCESSORIES
Lens changeable & Optional
DLA LUX
Storage lighting design 2019/09/26
Lumineire layout plan
AH16 200W
No. | X[m] | Y[m] | Mouting height[m] | Light loss factor |
1 | 7.116 | 14.943 | 9.800 | 0.80 |
2 | 12.063 | 14.943 | 9.800 | 0.80 |
3 | 17.011 | 14.943 | 9.800 | 0.80 |
4 | 21.958 | 14.943 | 9.800 | 0.80 |
5 | 26.906 | 14.943 | 9.800 | 0.80 |
6 | 31.853 | 14.943 | 9.800 | 0.80 |
7 | 7.159 | 4.724 | 9.800 | 0.80 |
8 | 12.107 | 4.724 | 9.800 | 0.80 |
9 | 17.054 | 4.724 | 9.800 | 0.80 |
10 | 22.002 | 4.724 | 9.800 | 0.80 |
11 | 26.949 | 4.724 | 9.800 | 0.80 |
12 | 31.897 | 4.724 | 9.800 | 0.80 |
1/Perpendicular illuminance ( adaptive)
1:Perpendicular illuminance ( adaptive) ( surface)
Light scene:1
Average :304 lx( Target:≥ 500 lx). Min:72.4 lx, Max:435 lx, Min/average:0.24, Min/max:0.17
Isolines [lx] & False colors [lx] & Value grid [lx]
IES
Luminaire property
Luminaire Manufacturer:
Luminaire Description:17s-100w Lamp Description: 3030
Voltage:220.3V Current:0.466A
power:97.04w power factor:0.945
Photometric Results
CIE CLASS:Direct Total Rated Lamp Lumens:14070.8 lm
Measurement Flux:14070.8 lm Efficiency:100%
Downward Ratio:100% Upward Ratio:0%
Horizontal Diffuse Angle(50%):V94.2
Vertical Diffuse Angle(50%):V93.7
Luminaire Efficacy Rating (LER):145.05 Central Intensity:6771.39 cd
MAX.Intensity:6773.57 cd pos for Max.Intensity:H180 V2
S/MH( CO/C180):1.32 S/MH( C90/C270):1.34
Picture of Luminaire Luminous Intensity Distribution Curve
Certification
Company Information
ZHEJIANG ALITE LIGHTING
is a professional supplier of LED lighting products, main products are LED Street lights, LED Garden Light, LED Floodlight and LED lighting resource etc.With professional testing personnel and advanced testing equipment, we guarantee the quality control for you.Our aim is MORE THAN LIGHT, we keep bringing a better
life and green life.
life and green life.
FAQ
Payment:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 30-40 working days
Warranty:
1,2,3,5 years warranty as you request
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose
this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its;
temperature after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 30-40 working days
Warranty:
1,2,3,5 years warranty as you request
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose
this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its;
temperature after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM
Contact us
Contact us | ||
Josie | ||
ZHE JIANG ALITE LIGHTING CO.LTD | ||
Wechat/Whatsapp:+0086 18858690957 | ||
Email:sales12@alitecn.com | ||
Website：www.alitecn.com | ||
