Соленоидный управляющий клапан для многоходового экскаватора
- Категория: Запчасти для строительной техники >>>
- Поставщик: Wuhan,Emanway,Import,And,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 50.27 $* | 51.90 $* |
| Jul-17-2025 | 40.56 $* | 41.87 $* |
| Jun-17-2025 | 49.64 $* | 50.69 $* |
| May-17-2025 | 48.37 $* | 49.0 $* |
| Apr-17-2025 | 39.28 $* | 40.18 $* |
| Mar-17-2025 | 48.57 $* | 49.34 $* |
| Feb-17-2025 | 47.84 $* | 48.90 $* |
| Jan-17-2025 | 47.91 $* | 48.3 $* |
Характеристики

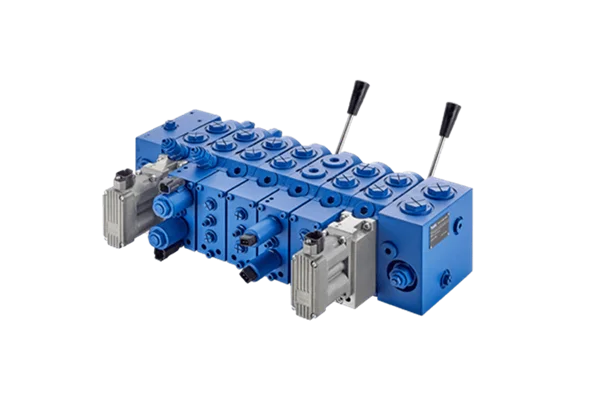

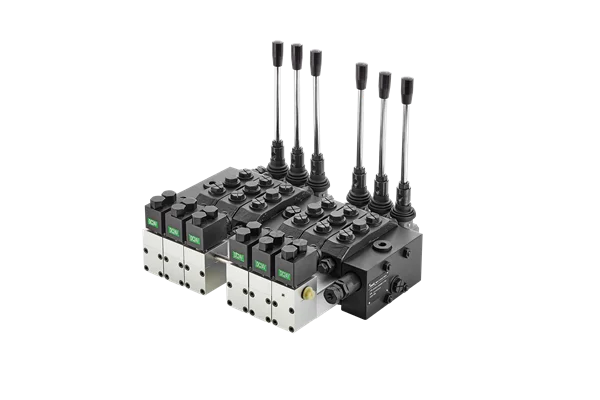

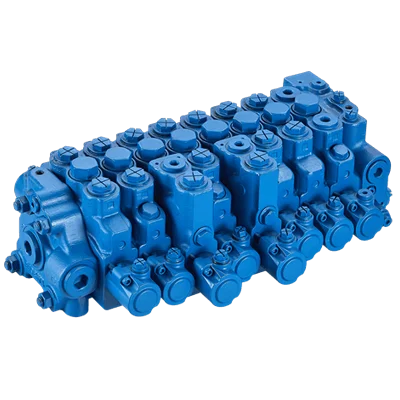

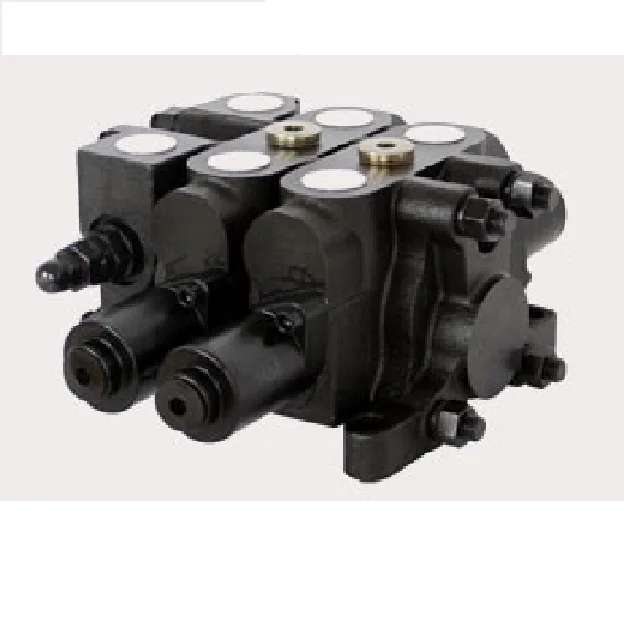

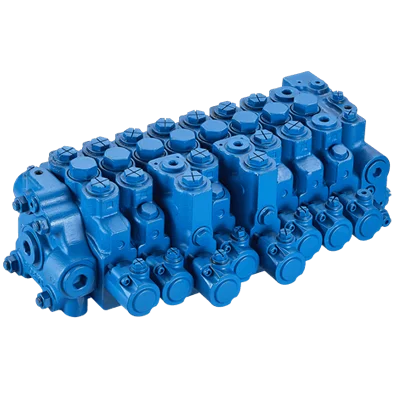

HVSE SERIES FLOW SHARING multi-way control VALVE
Product Description
Multi-way directional valve is a combination valve composed of two or more directional valves. The directional valve is a valve that changes the on-off relationship of the oil passage connected to the valve body by the relative movement between the valve core and the valve body. According to different working requirements, auxiliary valves such as safety relief valve, check valve and charge valve can also be combined. Compared with other types of valves, the multi-way directional valve has the advantages of compact structure, low pressure loss, small sliding valve moving resistance, multi-position function, long life, simple manufacturing and other advantages.
Rated flow:90-180 L/min
Applications:Excavators 1.5-18 ton
High efficiency
Less volume,lighter weight
Precise controllability
Low pressure drop,less fuel consumption
Comfort and coordination
Applications:Excavators 1.5-18 ton
High efficiency
Less volume,lighter weight
Precise controllability
Low pressure drop,less fuel consumption
Comfort and coordination
General
Hydraulic
| Structure | Sandwich plate design | |||
| Connection type | ISO 1179-1 | JIS B2351-1 | ||
| Mass (kg) (8 blocks) | Nominal Size | |||
| 09 | 12 | 18 | 25 | |
| 22kg | 48kg | 67kg | 198.5kg | |
| Unit dimensions (mm) | 350×207×112 | 450×278×138 | 498×326×172 | 394×239×721.5 |
Hydraulic
| Nominal Size | 09 | 12 | 18 | 25 | |
| Rated flow | Q (L/min) | 90 (ΔP=15bar) | 120 (ΔP=15bar) | 180 (ΔP=15bar) | 300 (ΔP=15bar) |
| Max. operating pressure at port | P /LS (bar) | 320 | 320 | 320 | 350 |
| A/B (bar) | 350 | 350 | 350 | 400 | |
| T (bar) | 30 | ||||
| TS (bar) | Less than 3 | ||||
| Pilot pressure | a/b (bar) | Less than 35 | |||
| Pilot pressure control curve | Please refer to "Page 07/18 " | ||||
Product Overviews
 |  |  |
Our Services
Packaging & Shipping
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we could not offer the sample for free charge but we can supply the goods with sample price.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Packing Details : Packing, hydraulic pump , 1pcs/carton
Delivery Details : 7-10 days after order of hydraulic pump
Purchase process:
