Характеристики



PB-CNC DA69T CNC Press Brake


Product Description




Main features:
* 6+1 Axis,Y1 Y2 Z1 Z2 X R+Crowing
* WILA Top and Bottom Tooling Holder
* Synchronized cylinders for Y1 & Y2 axis.
* Schneider Electrics, Yaskawa Servo Motor and Driver
* Imported ball bearing lead screw and linear guide rail


Controller
DELEM DA69T
Motor
Siemens
Valve
BOSCH Rexroth
Electrics
Schneider
Pump
Sunny
Servo
Yaskawa


Controller


DELEM DA69T
* 3D and 2D graphical touch screen programming mode
* 3D visualisation in simulation and production
* 17" high resolution colour TFT
* Full Windows application suite
* Delem Modusys compatibility (module scalability and adaptivity)
* USB, peripheral interfacing
* User specific application support within the controllers multitasking environment
* Sensor bending & correction interface
* Profile-T3D offline software


Main Parameters




MB8
6325
10032
10040
16032
16040
20032
20040
25032
25040
Nominal Pressure
800
1000
1000
1600
1600
2000
2000
2500
2500
Workbench Length
2500
3200
4000
3200
4000
3200
4000
3200
4000
Workbench Width
110
110
110
110
110
110
110
110
110
Poles distance
1960
2600
3200
2600
3200
2600
3200
2600
3200
Throat depth
320
380
380
400
400
400
400
400
400
Slipper Stroke
200
200
200
200
200
200
200
200
200
Max Opening Height
480
480
480
480
480
480
480
480
480
slipper stroke adjust Length
150
150
150
150
150
150
150
150
150
Main motor
5.5
7.5
7.5
11
11
15
15
18.5
18.5
Oil pump
13
16
16
20
20
25
32
32
32
Hydraulic System Max Work Pressure
30
30
30
30
30
30
30
30
30
wallboard thickNess
35
45
45
50
50
50
60
70
70
slipper thickNess
40
50
50
60
60
60
60
70
70
support plate thickNess
40
60
60
70
70
70
70
80
80
Dimension(L×W×H)
2800×1700×2550
3800×1750×2580
2600×1500×2200
3800×1800×2900
2800×1900×2820
3800×1900×2920
4500×2100×2920
3800×2150×3020
4500×2150×3050
Machine weight
4.8
7.6
9
9
11
12
13.5
14
15


Detailed Images


DA69T Controller
Top quality and grade in the world

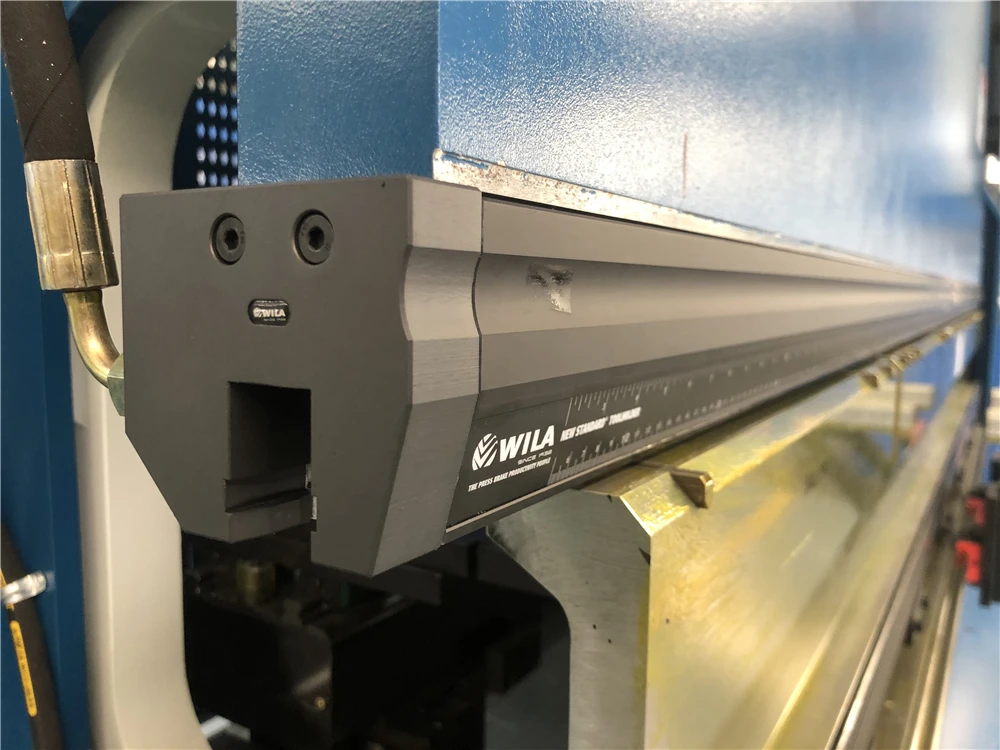

Wila Top Tooling Holder
Automatic clamp and release.
Wila Bottom Tooling Holder
Automatic Clamp and release

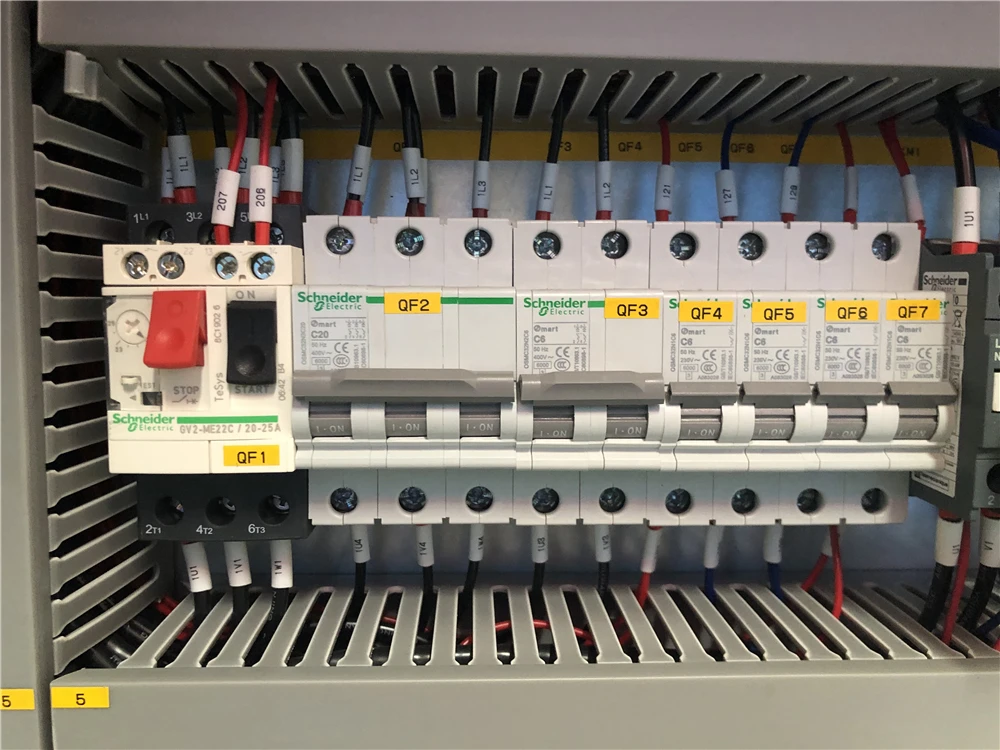

Schneider Electrics
World famous bran, Stable quality. easy to get replace parts
Yaskawa Servo
Japanese Brand, High quality.
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.


Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire
Sunny Oil Pump
American most famous pump brand.
High quality
Siemens Motor
Original Germany Siemens imported motor


Air Cooling Device
Cooling device for hydraulic oil. Keep the oil temperature low
Kacon Foot Switch
South Koera CE Standard Foot Switch
GIVI Linear Encoder
High accuracy,stable quality.

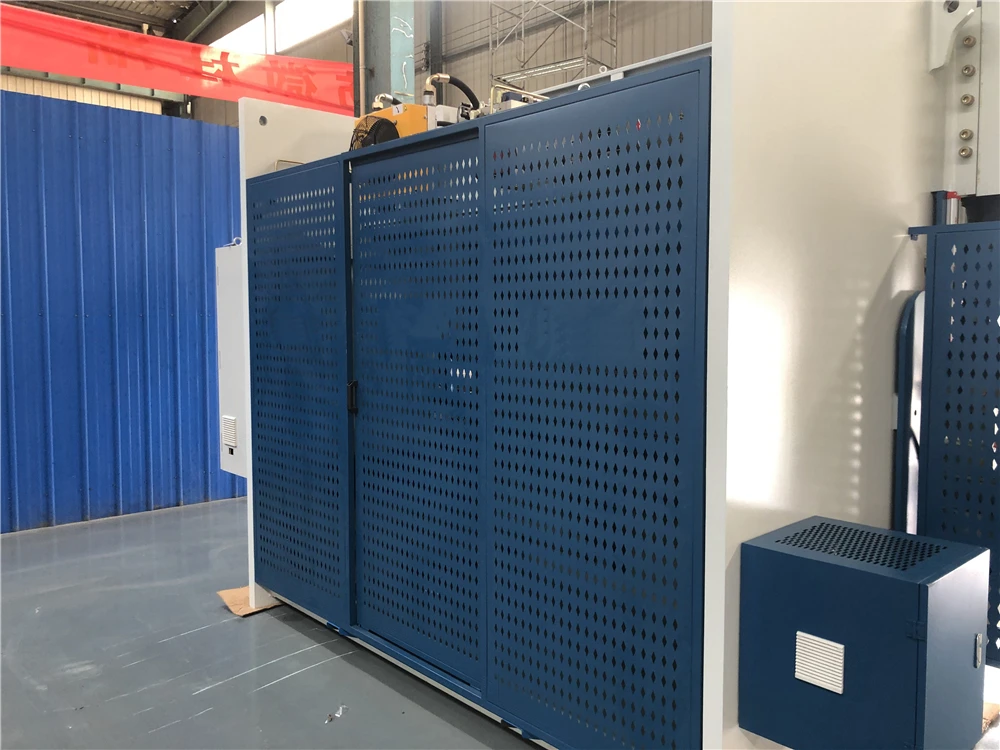

Side Fence
CE Safety Standard. Power off when open
Back Fence
Movable Door. Power off when open the door
Hiwin Linear Guider and ball screw
Taiwan Brand. High Accuracy

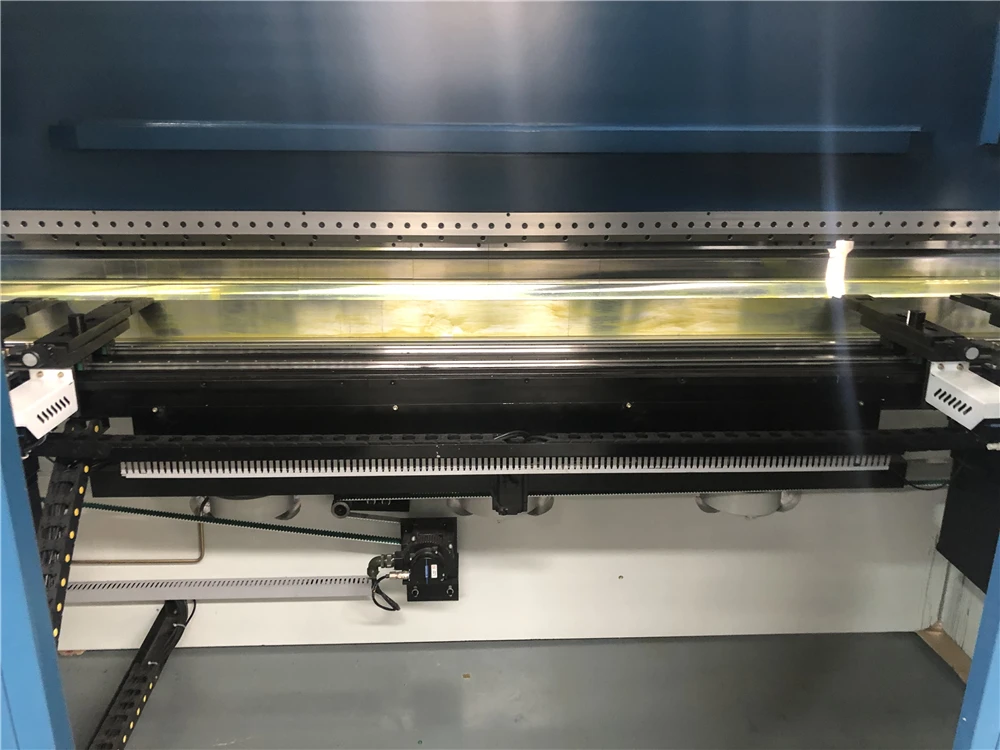

Backgauge
Controlled by servo motor. X,R,Z1,Z2 axis

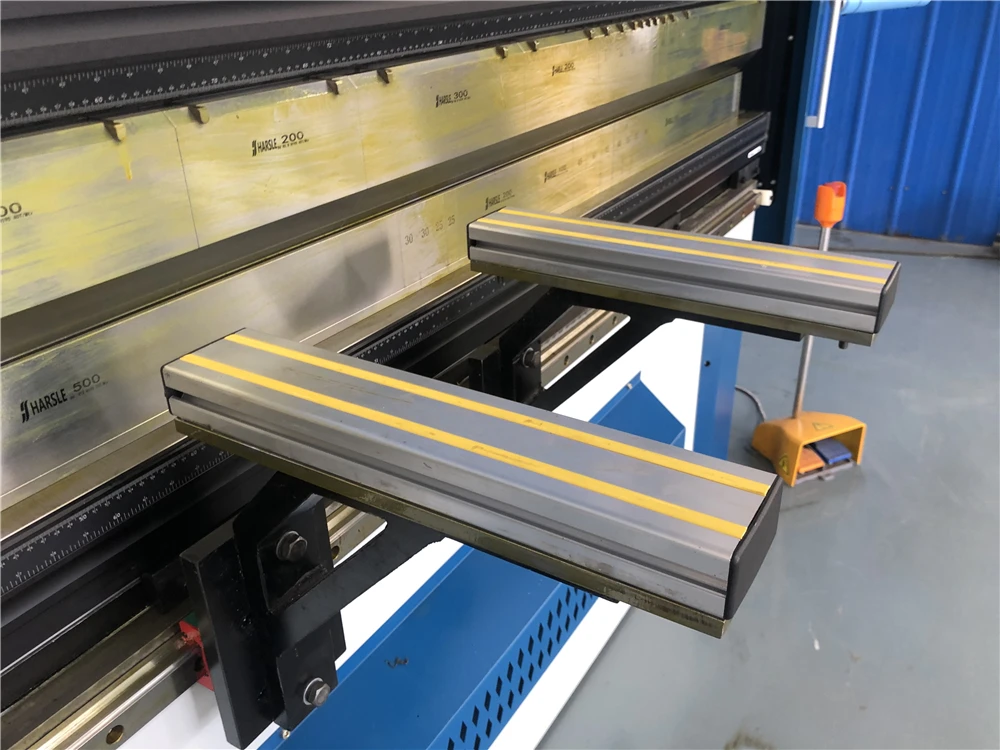

Stop Fingers
Standard equipped with 4 fingers. 2 fixed,2 movable


Standard AMADA type Toolings
*6CrW2Si material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Other types tooling for optional


Related Products




Optional Parts


Laser Protection Device
For CE Standard use. Keep safety of finger
Servo Main Motor
Fast Speed. No Noise when machine works. Need less hydraulic oil.
Two Hands Start Foot Switch
For CE Standard, keep safety.


Packing&Shipping




Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.


Company Profile



Nanjing Chzone Machine Tool Co., Ltd. is located in Jiangsu province Nanjing city LishuiDistrict mingjue Industrial Park, only15 km away from Nanjing airport, the geographical position is superior, the traffic is very convenient.
and technical personnel 48 people, is the backbone enterprise of forging machineryindustry.Our main products are: WP67K, WB67K, WS67K series CNC bending machine, WD67Kseriesof electro-hydraulic servo CNC bending machine, QC12K series CNC hydraulicshears,QC11K series CNC hydraulic guillotine shears, press J23 series, W11 series ofthree roller bending machine, Q35Y series of combined,Laser cutting machine,plasma cutting machine ,punching and shearing machine,bending machine and die cutting machine blade, machine parts, widely used in the field
of decoration, metallurgy, ship, automobile, machinery, aviation and other professionalproduction.The company passed the ISO9001:2008 international quality system certification, CEcertification, with import and export enterprise qualification certificate and certificate ofexport quality, the company products have been domestic and foreign customers certainlyto the exquisite design, reasonable price, excellent quality and efficient customer serviceand technical support services,.
