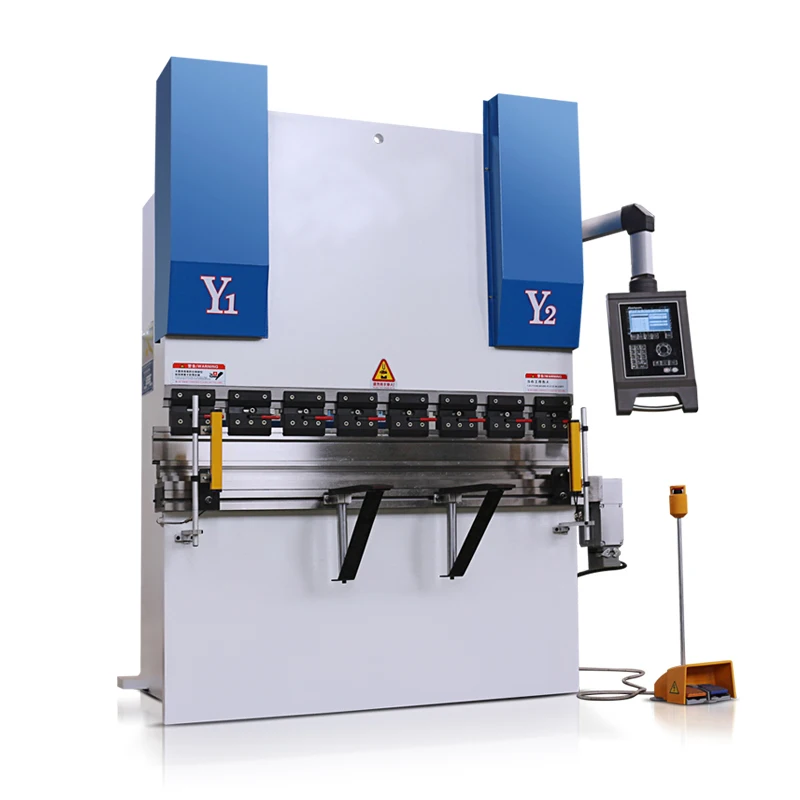

PB-CNC 63T/1600 CNC Press Brake DA52S
Product Description
Main features:
* 3+1 Axis,Y1 Y2 X axis+crowing
* Fast Released Clamp
* Synchronized cylinders for Y1 & Y2 axis.
* 3+1 Axis,Y1 Y2 X axis+crowing
* Fast Released Clamp
* Synchronized cylinders for Y1 & Y2 axis.
* Schneider Electrics, Yaskawa Servo Motor and Driver
* Imported ball bearing lead screw and linear guide rail
* Imported ball bearing lead screw and linear guide rail
Controller | DELEM 52S |
Motor | Siemens |
Valve | BOSCH Rexroth |
Electrics | Schneider |
Pump | Sunny |
Servo | Yaskawa |
Foot Pedal | Kacon |
Controller
DELEM DA52S
* Quick, one page programming
* Hotkey navigation
* 7” VGA colour TFT
* Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
* Crowning control
* Tool/material/product library
* USB, peripheral interfacing
* Advanced Y-axis control algorithms for closed loop as well as open loop valves
* Hotkey navigation
* 7” VGA colour TFT
* Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
* Crowning control
* Tool/material/product library
* USB, peripheral interfacing
* Advanced Y-axis control algorithms for closed loop as well as open loop valves
Main Parameters
Series | Name | PB-CNC 63T/1600 | Unit |
1 | CNC Controller | DA52S | |
2 | Axis | Y1 Y2 X + Crowing | |
3 | Bending Force | 63 | Ton |
4 | Max. Bending Width | 1600 | mm |
5 | Max. Bending Thickness | 5(MS,L=1600mm),3(SS,L=1600mm) | mm |
6 | Stroke | 200 | mm |
7 | Column Distance | 1000 | mm |
8 | GAP | 480 | mm |
9 | Throat Depth | 320 | mm |
10 | Worktable Width | 110 | mm |
11 | Main Motor Power | 5.5 | KW |
12 | Back Gauge Stroke | 600 | mm |
13 | X axis Accuracy | 0.01 | mm |
14 | Oil Pump | 13-MCY | |
15 | Max. Hydraulic Pressure | 30 | Mpa |
16 | Hydraulic Oil need | 100(L-HM 46) | L |
17 | Crowing | Electric Crowing | |
18 | Voltage | 220/380/415/440 | V |
19 | Length | 2000 | mm |
20 | Width | 1700 | mm |
21 | Height | 2100 | mm |
22 | Weight | 3000 | KG |
Detailed Images

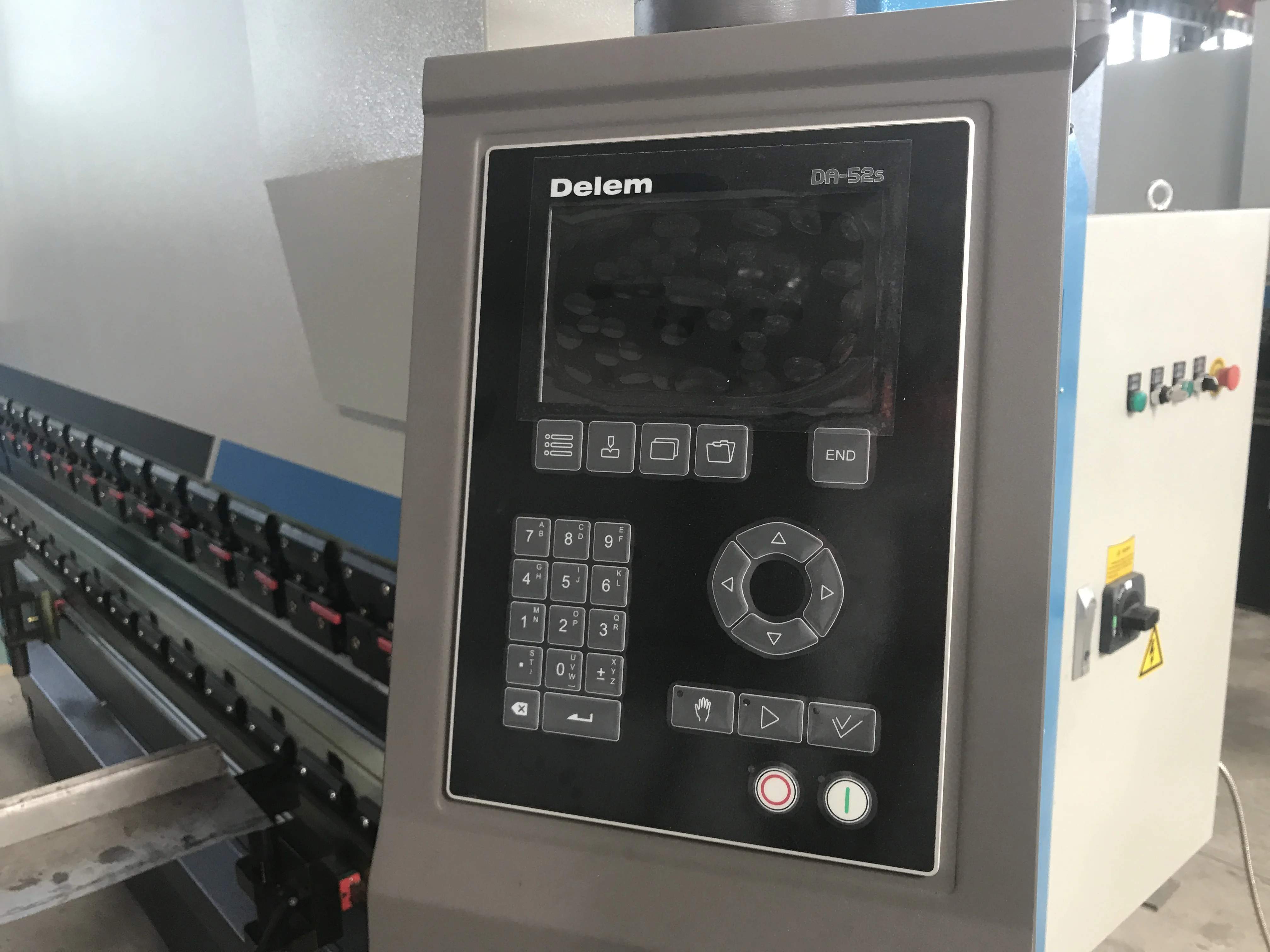

DA52S Controller
Top quality and grade in the world
Fast Released Tool Clamp
One Key loosen and fix
Electric Crowing
Automatic crowing table controled by system
Schneider Electrics
World famous bran, Stable quality. easy to get replace parts
Yaskawa Servo
Japanese Brand, High quality.
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.
Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire
Sunny Oil Pump
American most famous pump brand.
High quality

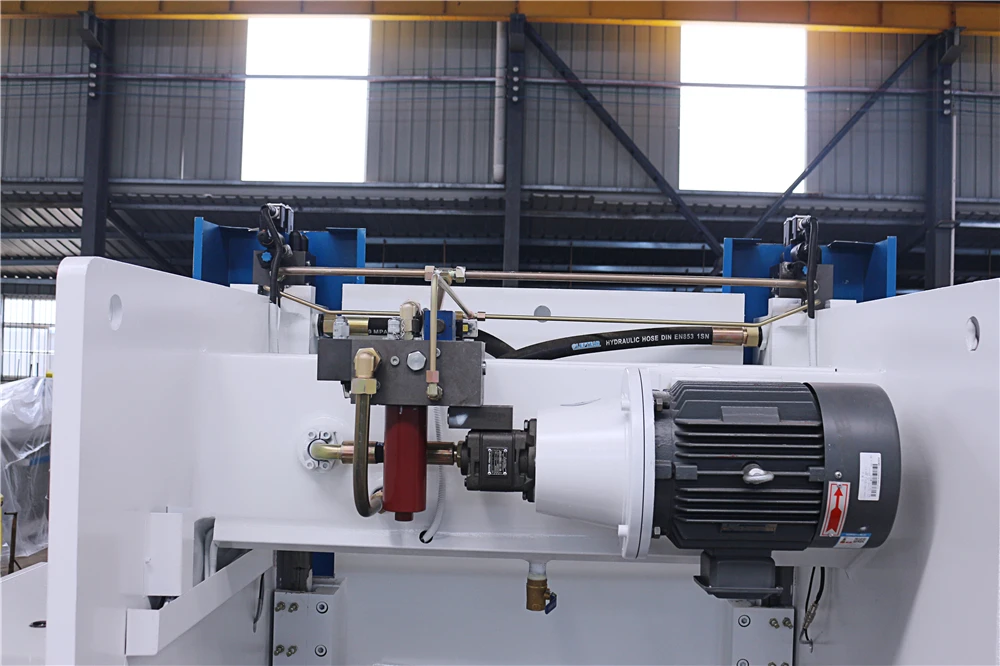

Siemens Motor
Original Germany Siemens imported motor

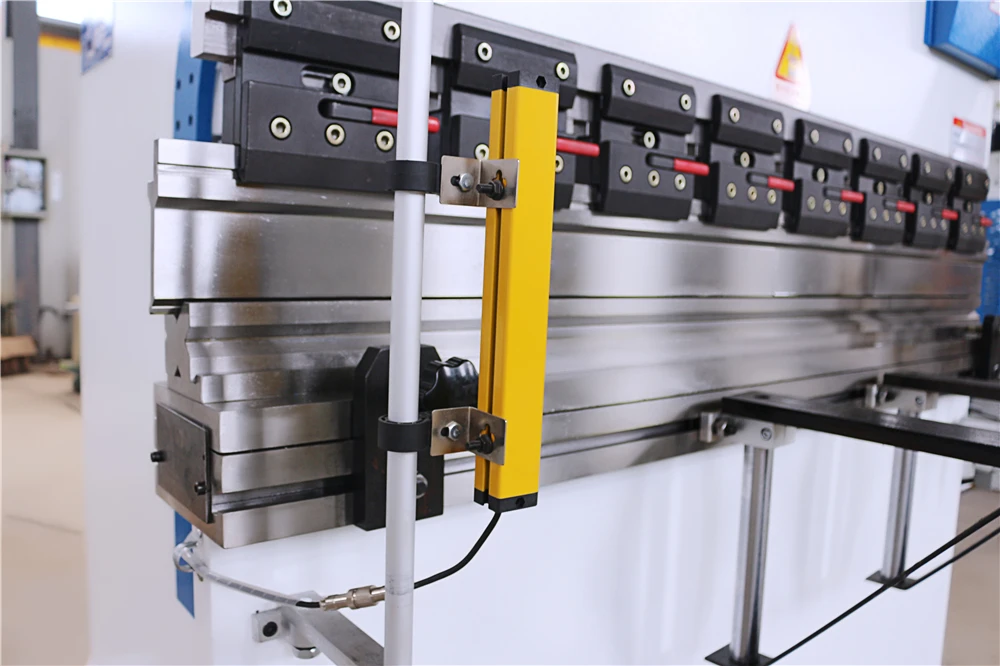

Side Light Curtain
SDKELI Brand, CE satandard
Kacon Foot Switch
South Koera CE Standard Foot Switch
GIVI Linear Encoder
High accuracy,stable quality.
Side Fence
CE Safety Standard. Power off when open
Back Fence
Movable Door. Power off when open the door
Hiwin Linear Guider and ball screw
Taiwan Brand. High Accuracy

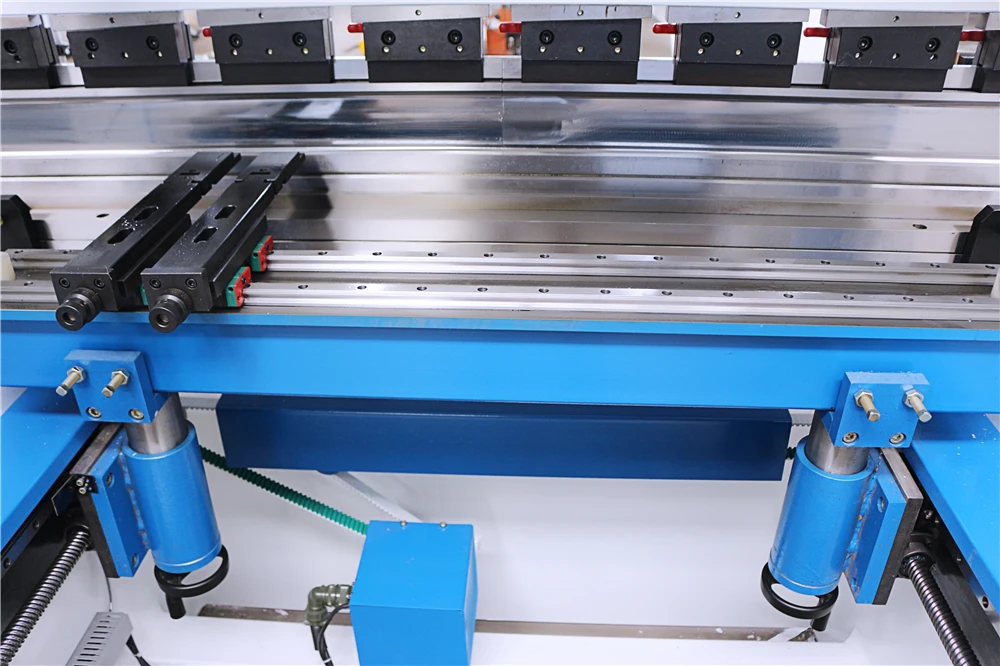

Backgauge
Controlled by servo motor. X axis
Front Supportors
2 Movable arms for plate

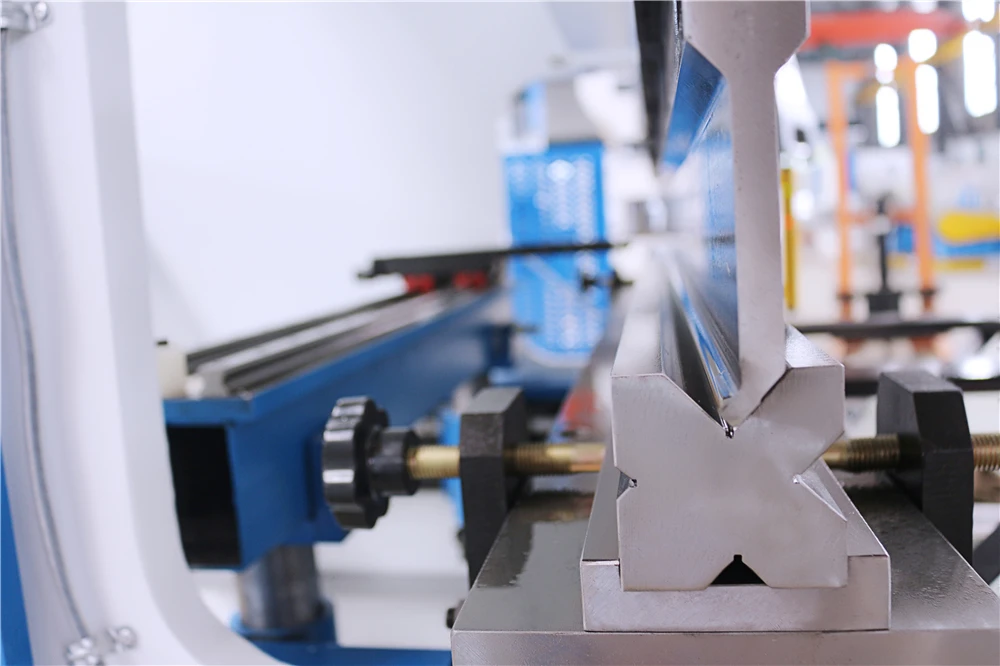

Standard Toolings
*Cr12MoV material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Optional AMADA type Toolings
Related Products
Optional Parts
Laser Protection Device
For CE Standard use. Keep safety of finger
Servo Main Motor
Fast Speed. No Noise when machine works. Need less hydraulic oil.
Two Hands Start Foot Switch
For CE Standard, keep safety.
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
