Высококачественная камнедробилка YT29 shenyang
- Категория: Mine Drilling Rig >>>
- Поставщик: Tianjin,Good,Drill,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 30164.56 $* | 31672.27 $* |
| Aug-18-2025 | 29911.73 $* | 31407.81 $* |
| Jul-18-2025 | 25095.10 $* | 26350.95 $* |
| Jun-18-2025 | 29404.7 $* | 30874.68 $* |
| May-18-2025 | 25601.45 $* | 26881.20 $* |
| Apr-18-2025 | 28897.29 $* | 30342.85 $* |
| Mar-18-2025 | 28643.7 $* | 30075.58 $* |
| Feb-18-2025 | 28390.1 $* | 29810.80 $* |
| Jan-18-2025 | 28136.5 $* | 29543.80 $* |
Характеристики
High quality YT29 rock drill shenyang YT29A
Product Description
Pneumatic Machinery has a wide range of pusher leg and stopper rock drills to cover all construction, tunneling and mining applications in different rock formations. They are robust but simply designed, with high impact energy and low air consumption.
High quality YT29 rock drill shenyang YT29A

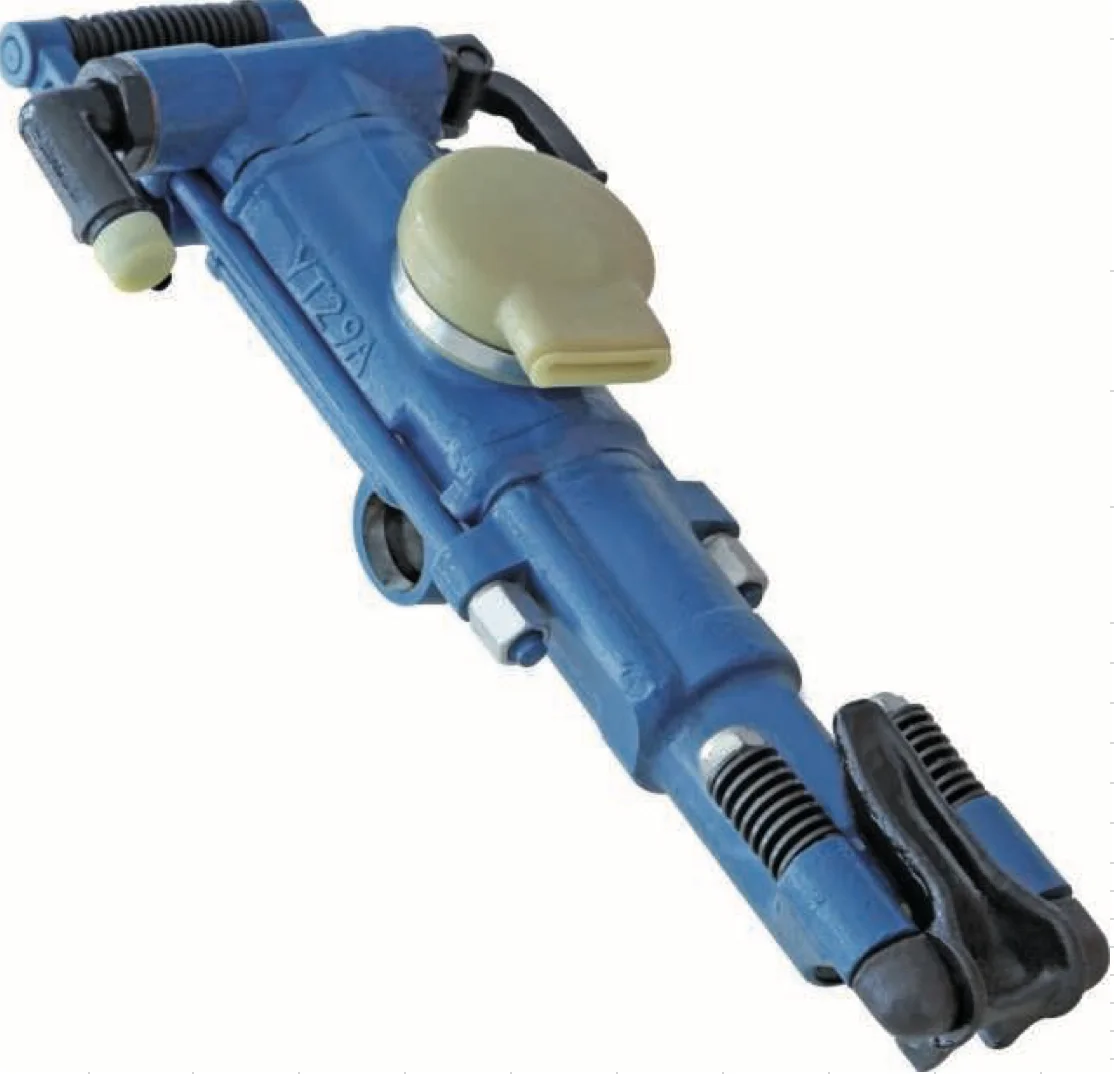

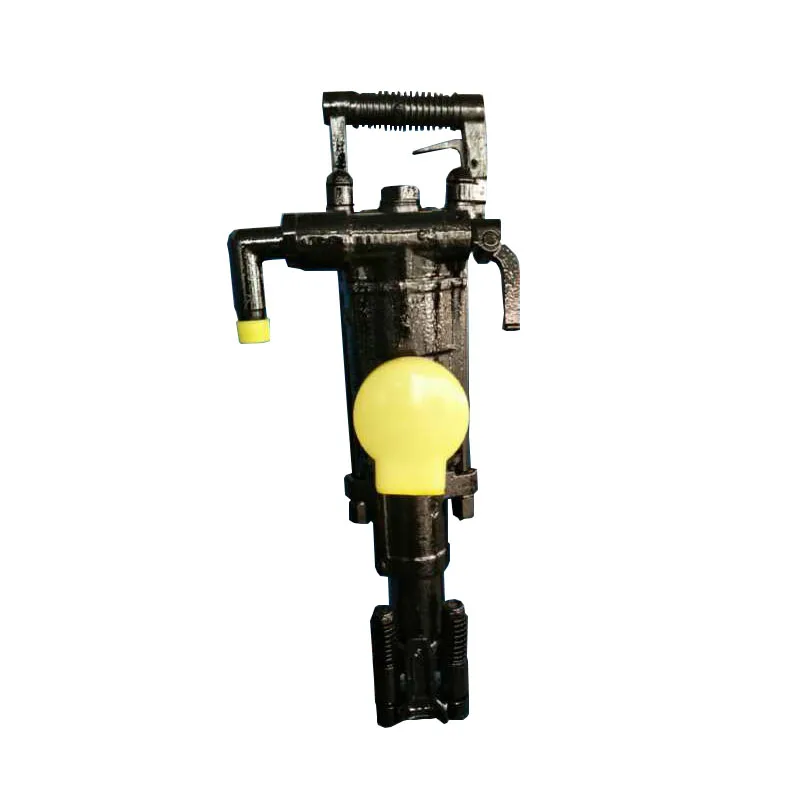

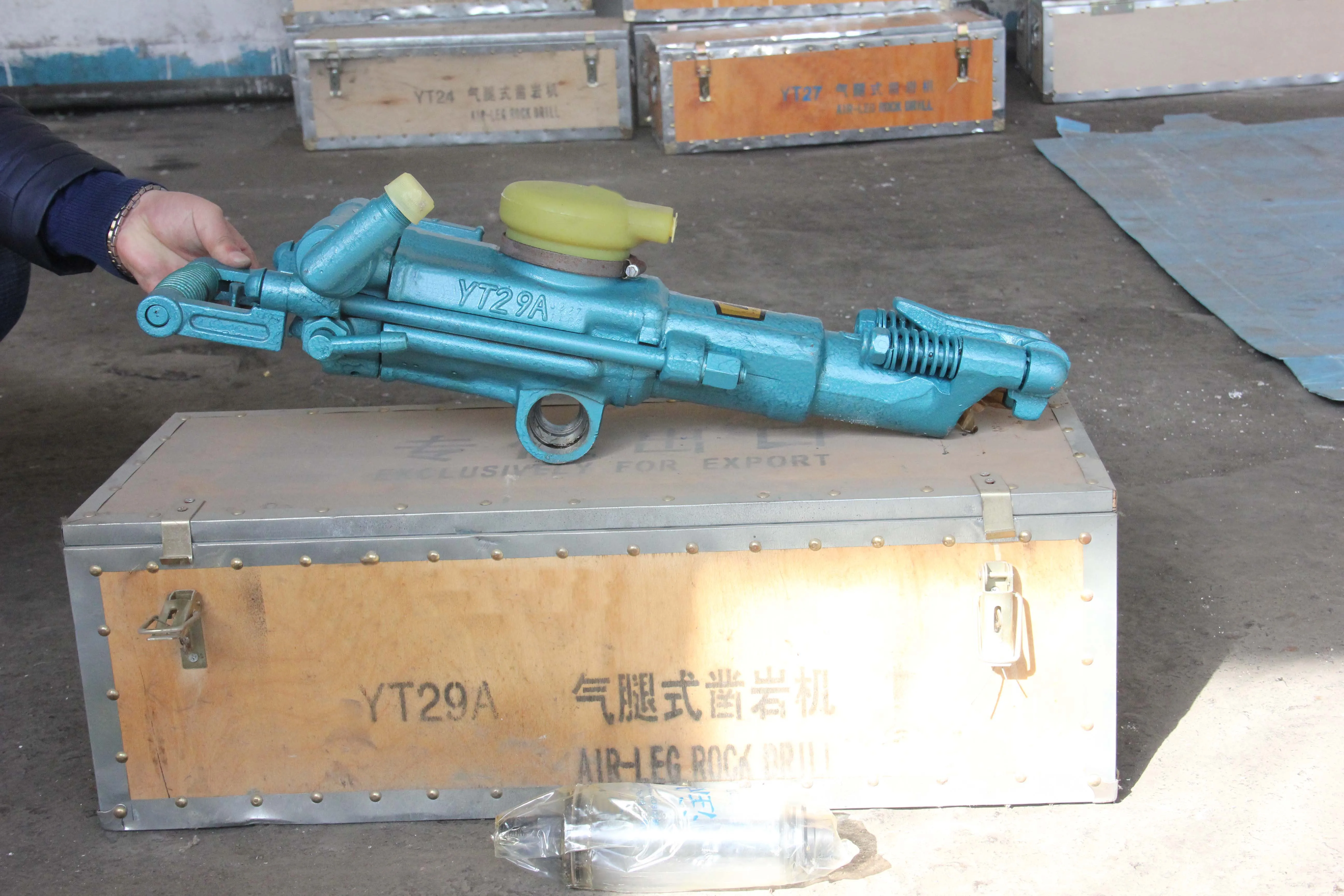

The YT29A rock drill is the most rugged, powerful and highly efficient rock drill in the range .It gives improved productivity and drill steel economy and can be used on all rock formation and in all kinds of applications.
High quality YT29 rock drill shenyang YT29A
| YT29A AIR LEG ROCK DRILL | |
| Weight | 27 kg |
| External Dimensions(L W H) | 659x248x205 mm |
| Cylinder Diameter | 82 mm |
| Piston Structure Stroke | 60 mm |
| Working Air Pressure | 0.4~0.63 MPa |
| Impact Frequency | ≥39 Hz |
| Impact energy | ≥78 J |
| Air Consumption | ≤88 L/s |
| Rotation Torque | ≥20 N.m |
| Water Pressure | 0.3~0.48 MPa |
| Air Pipe Inner Diameter | 25 mm |
| Water Pipe Inner Diameter | 13 mm |
| Drilling Hole Diameter | 34~45 mm |
| Drilling Hole Depth | 5 m |
| Working Temperature | -30~45℃ |
| Shank Size | H22x108±1 mm |
High quality YT29 rock drill shenyang YT29A
| FT160A | FT160B | FT160C | FT170 | |
| Weight | 17 kg | 16 kg | 18 kg | 18 kg |
| Length | 1668 mm | 1428 mm | 1820 mm | 1668 mm |
| Propulsion Stroke | 1338 mm | 1098 mm | 1490 mm | 1338 mm |
| Cylinder Inner Diameter | 65 mm | 65 mm | 65 mm | 67 mm |
High quality YT29 rock drill shenyang YT29A
Detailed images

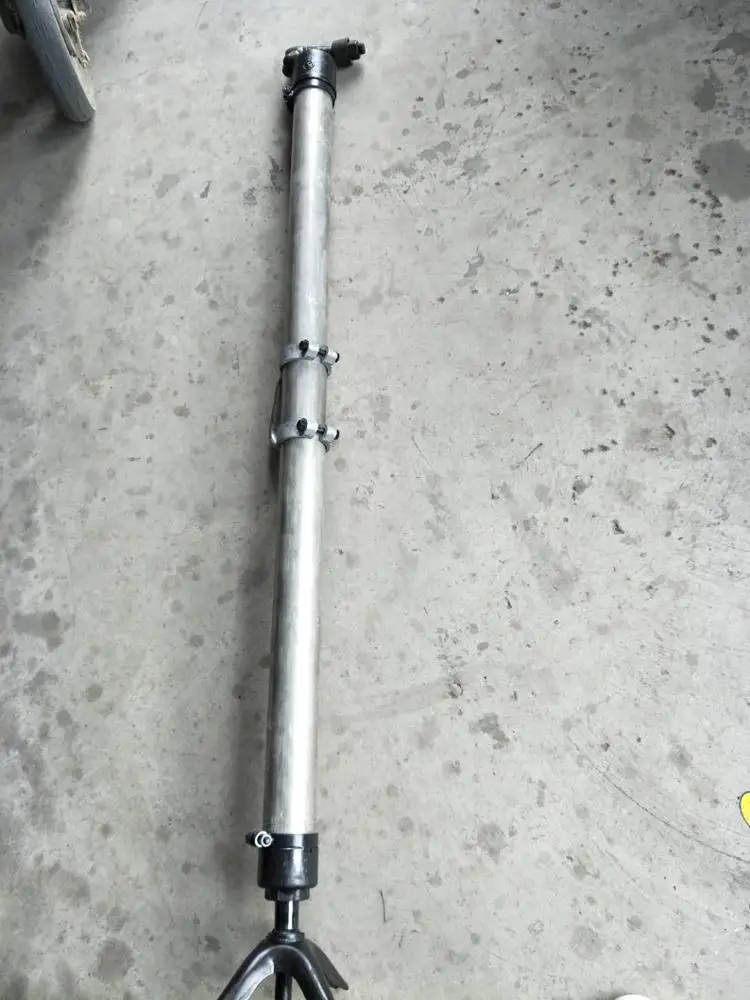

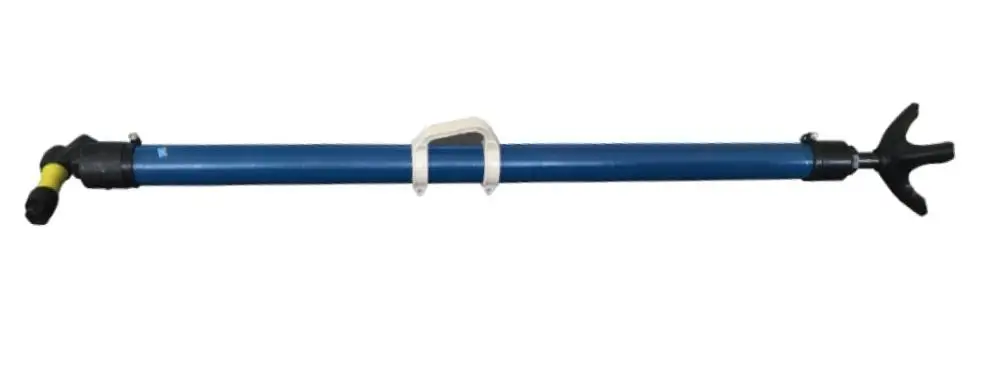

FT160A AIR LEG
YT29A rock drill can match with FT160A air leg. High quality YT29 rock drill shenyang YT29A
Productive Process
High quality YT29 rock drill shenyang YT29A
Company Profile
High quality YT29 rock drill shenyang YT29A
Contact Me
High quality YT29 rock drill shenyang YT29A
