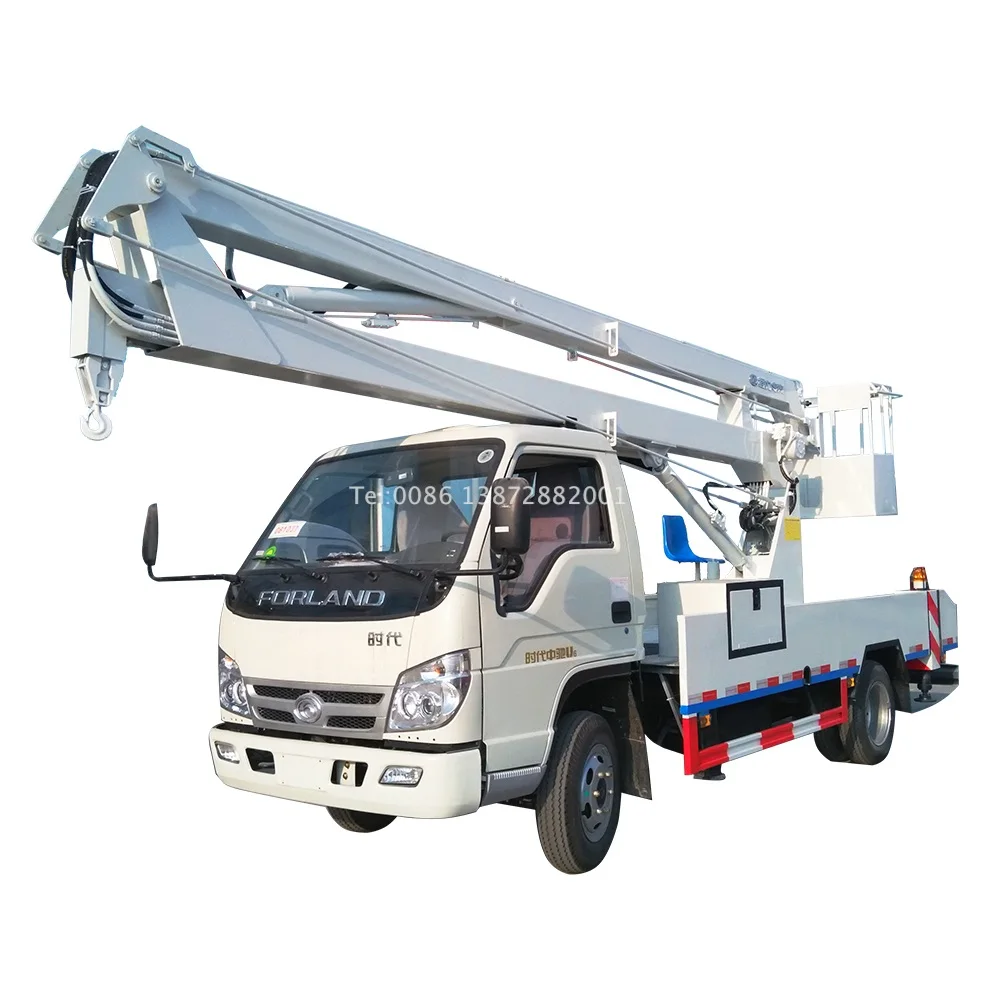

Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Продажа с завода грузовик foton forland 10 м 12
- Категория: Грузовики для работ на большой высоте над уровнем моря >>>
- Поставщик: Chengli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 23205.38 $* | 24365.12 $* |
| Aug-16-2025 | 23010.21 $* | 24161.78 $* |
| Jul-16-2025 | 19305.24 $* | 20270.30 $* |
| Jun-16-2025 | 22620.12 $* | 23751.93 $* |
| May-16-2025 | 19695.13 $* | 20680.10 $* |
| Apr-16-2025 | 22230.80 $* | 23342.94 $* |
| Mar-16-2025 | 22035.33 $* | 23137.84 $* |
| Feb-16-2025 | 21840.33 $* | 22932.57 $* |
| Jan-16-2025 | 21645.32 $* | 22727.60 $* |
Характеристики
Dongfeng XBW Hydraulic Aerial Cage Truck:
1, The cab divided to half seat, one row of seat and two row of seats three types of cab.
2, We can produce 10m, 11m, 13m, 15m, 16m, 18m, 20m and 22m length of hydraulic working arm. We can according to customers request to design the high-altitude operation truck.
3, Some of the selector valve made by China or import from oversea. When the seletor vavle rotate the hydraulic aerial cage truck can keep good banlance and flexible operation. When the outrigger open up and the hydraulic system extend out, the outrigger and hydraulic working arm mutual lock each other, to guarantee the personnel and vehicle safe.
Hydraulic Aerial Cage Truck Basic Paramter:
| Model Name | Foton Forland 12m high altitude work truck | ||||
| Driving Type | 4×2,right hand drive | ||||
| Weights | |||||
| Curb weight(kg) | 4990 | ||||
| Dimensions | |||||
| Wheelbase(mm) | 3360 | ||||
| Overall Dimension(mm) | 6930×1940×2995 | ||||
| Box dimension (mm) | ×× | ||||
| Max speed(km/h) | 90 | ||||
| Engine | |||||
| Engine model | 4DW91063 | ||||
| Engine type | 4 stroke water-cooled, lectric control system | ||||
| No. of cylinders | straight-4 cylinders | ||||
| Displacement(L) | 2.545L | ||||
| Max. output (kw) | 45kw | ||||
| Drive Line | |||||
| Transmission | 5 forwards,1 reverse gear,manual operation | ||||
| Brake system | oil brake | ||||
| Cab | |||||
| cabin | Double row,1695 | ||||
| Standard configuration | Air conditioner ,sound,and so on | ||||
| Tire specification | |||||
| Tire specification | 6.50-16 standard tire,6 tires+1 spare tire | ||||
| Special function of refrigerator truck | |||||
| Max Reach Height | 12m | ||||
| Max payload of operation platform | 200kg | ||||
| Rotating angle of arm | 360° | ||||
| Rotating speed | 0-2r/min | ||||
| Max payload of hook | 1000kg | ||||
| Hydraulic support leg | 4 | ||||
Packaging & Shipping
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
Our Services
1. Factory Supply:
one of the biggest special purpose truck manufacturers in china,
more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification
Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
passed the ISO9001-2008 and the 3C (China Compulsory Certification),
our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Company Information
Chengli Special Automobile Co.,Ltd.
Our company has total assets of 2 billion Yuan(About 0.32 billion USD), covers an area of more than 1,000 acres, has more than 8,000 employees, including 500 technical engineers, more than 2,000 skilled workers, annual production capacity of 100,000 sets special puporse vehicles .
We has leading products as: water truck, garbage truck, suction sewage truck, sweeper,oil tanker truck, chemical trucks, wrecker,aerial platfrom truck , fire truck,crane truck, refrigerated trucks, vans,LPG pressure vessels, road maintenance trucks, flatbed trucks, bulk food truck, dry mortar vehicles, beekeeping truck,mobile stage vehicles,LED advertisement trucks, mobile shop trucks, heavy duty truck mounted crane, cement pump truck, pharmaceuticals transportation trucks, all kinds of trailers,etc., covers series of more than 800 models.,
Customer Visit
FAQ
Question 1: How many units is your factory MOQ?
Our MOQ is 1 unit .
Question 2: What is the shortest production time?
Our production time is 15 days for one unit(common products), if you need more than 5 or more than 10, we can offer you in 40days .
Question 3: How long time of your warranty?
Our warranty is one years after send to your country .
Question 4: What certificate do you have?
All our products has orignal certificate and CCC and ISO certificate ,we accept SGS and BV identification.
Question 5: Do you make right hand drive trucks?
Yes,we do. Our standard Steering:Left-hand drive, if you need Right-hand drives, please inform us in advance.
Qustion 6: Where is your factory?Near Shanghai ,Guangzhou ,or Beijing?
Our factory is in central China,You can take plane to Wuhan airport from Shanghai ,Guangzhou ,or Beijing.(According to your journey).The distances between each these 3 cities to Wuhan are nearly the same. When you arrive Wuhan City,we can arrange driver to pick you up at Wuhan airport.It takes nearly 2 hours from Wuhan airport to our factory.
